Alfa Romeo Giulietta FL (from 2013) – fuse box diagram
Year of production: 2013, 2014, 2015, 2016

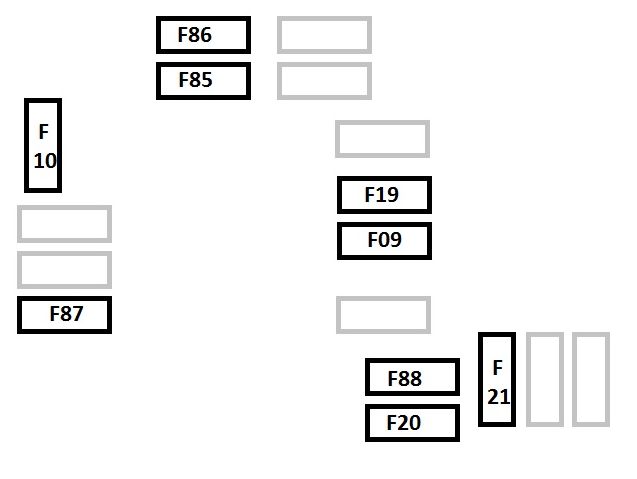

Engine compartment fuse box
| Device protected | Fuse | Ampere rating [A] |
| Headlamp washer pump power supply | F09 | 30 |
| Horn | F10 | 15 |
| AC compressor | F19 | 7,5 |
| Heated rear window | F20 | 30 |
| Fuel pump | F21 | 15 |
| Cigar lighter/power socket | F85 | 15 |
| 12 V boot power socket | F86 | 15 |
| IBS Battery charge status sensor for Start&Stop system | F87 | 5 |
| External mirror defrosters | F88 | 7,5 |
Dashboard fuse box
| Device protected | Fuse | Ampere rating [A] |
| Right main beam headlight | F91 | 7,5 |
| Left main beam headlight | F90 | 7,5 |
| Right dipped beam headlight (versions with halogen headlights) | F12 | 7,5 |
| Left dipped beam headlight (versions with halogen headlights) | F13 | 7,5 |
| Right dipped beam headlight (versions with Bi-Xenon headlights) | F12 | 15 |
| Left dipped beam headlight (versions with Bi-Xenon headlights) | F13 | 15 |
| Right fog light | F93 | 7,5 |
| Left fog light | F92 | 7,5 |
| Luggage compartment courtesy light/Sun visor courtesy light/Glove compartment courtesy light/Front and rear roof lights | F32 | 10 |
| Various devices | F31 | 5 |
| Rear electric window (left side) | F33 | 20 |
| Rear electric window (right side) | F34 | 20 |
| +30 | F36 | 10 |
| Various devices | F37 | 7,5 |
| Central locking | F38 | 20 |
| Body Computer supply | F42 | 5 |
| Two-way windscreen washer pump | F43 | 20 |
| Front electric window (driver side) | F47 | 20 |
| Front electric window (passenger side) | F48 | 20 |
| Various devices | F49 | 5 |
| Various devices | F50 | 7,5 |
| Various devices | F51 | 5 |
| +30 | F53 | 7,5 |
Fuse boc in boot compartment
| Device protected | Fuse | Ampere rating [A] |
| Left front seat movement | F1 | 15 |
| Right front seat movement | F2 | 15 |
| Electric sun roof | F3 | 15 |
| Lumbar adjustment devices | F4 | 15 |
| Front seat heating | F5 | 15 |
| BOSE amplifier + Subwoofer | F6 | 20 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
