Acura TL (2009) – wiring diagrams – transmission controls

Acura TL (2009) – wiring diagrams – transmission controls

Year of productions:  2009

Transmission controls

Version 1

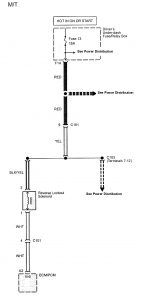

Acura TL - wiring diagram - transmission control
Acura TL – wiring diagram – transmission control

Version 2

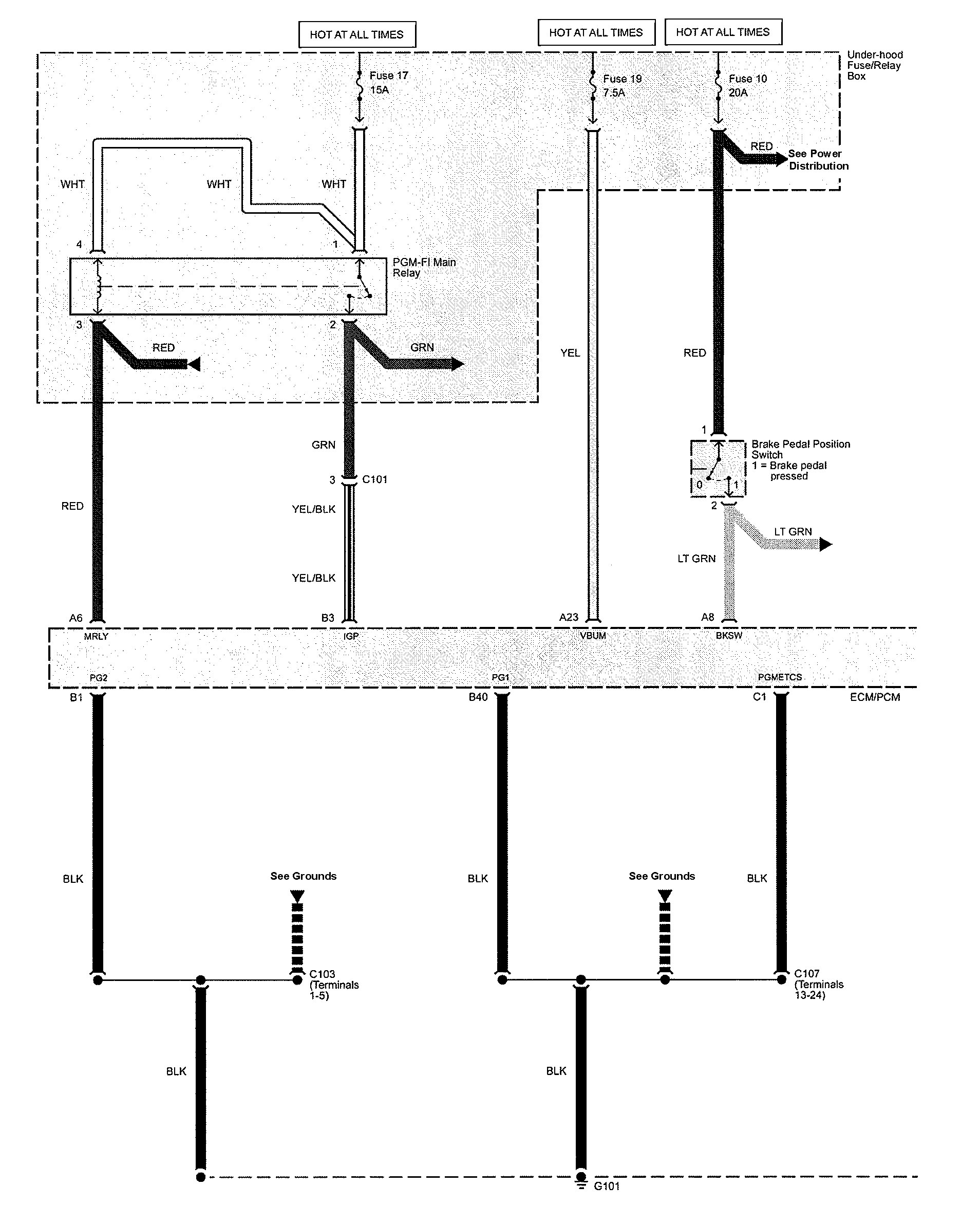

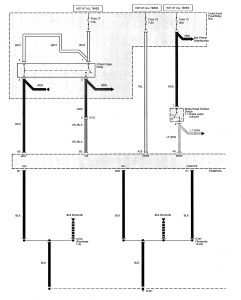

Acura TL - wiring diagram - transmission control (part 1)
Acura TL – wiring diagram – transmission control (part 1)

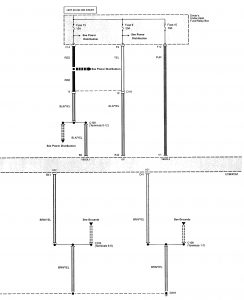

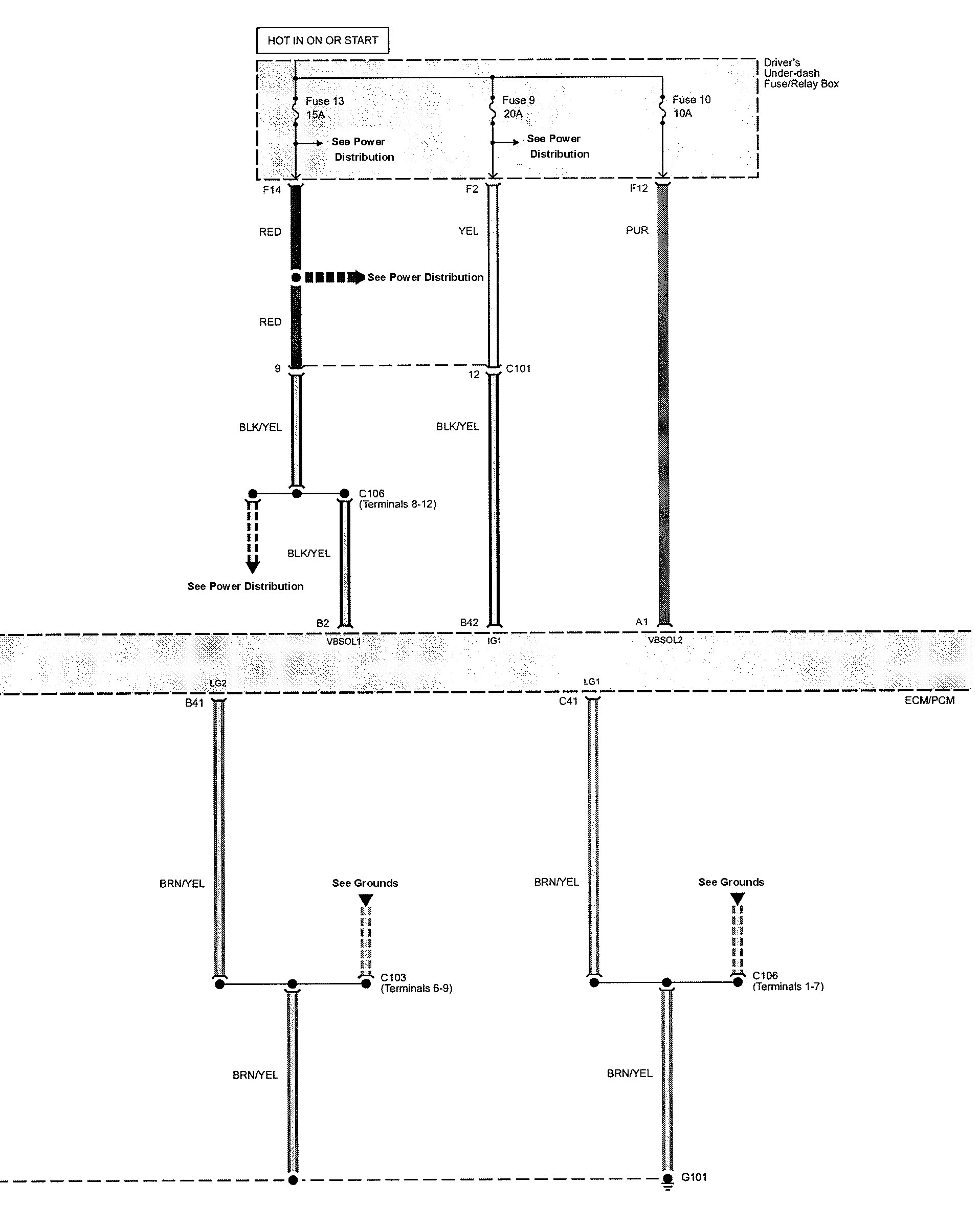

Acura TL - wiring diagram - transmission control (part 2)
Acura TL – wiring diagram – transmission control (part 2)

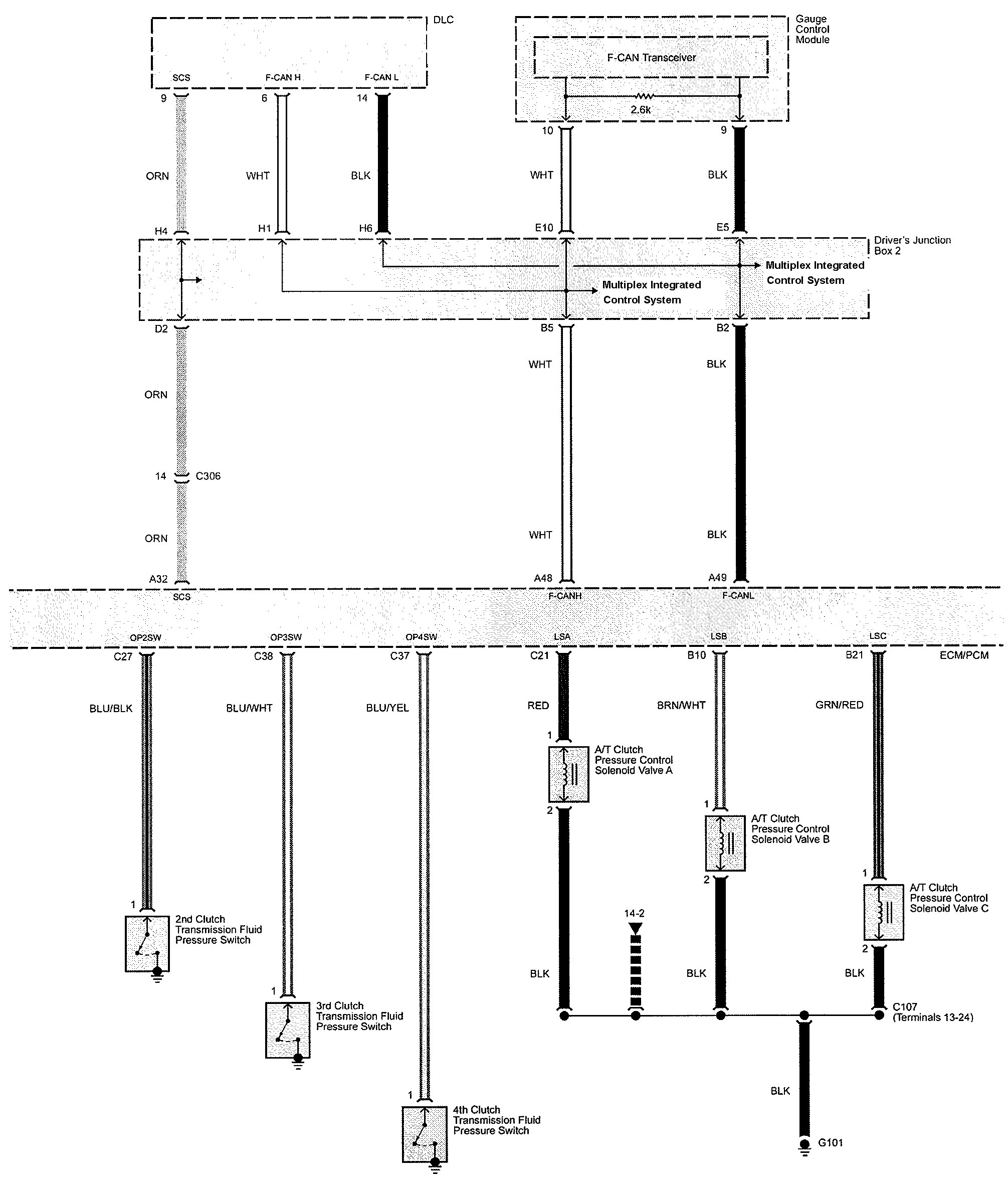

Acura TL - wiring diagram - transmission control (part 3)
Acura TL – wiring diagram – transmission control (part 3)

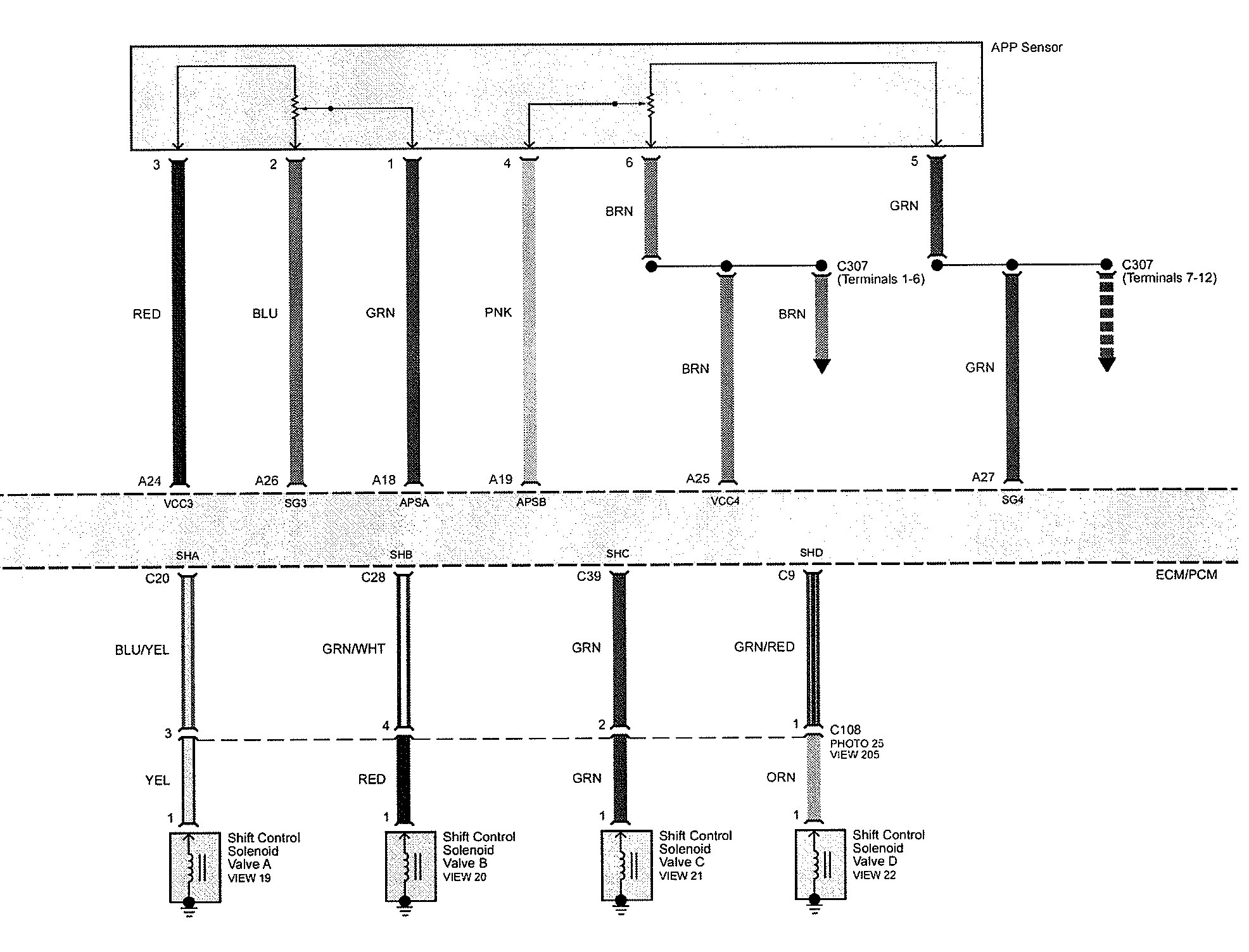

Acura TL - wiring diagram - transmission control (part 4)
Acura TL – wiring diagram – transmission control (part 4)

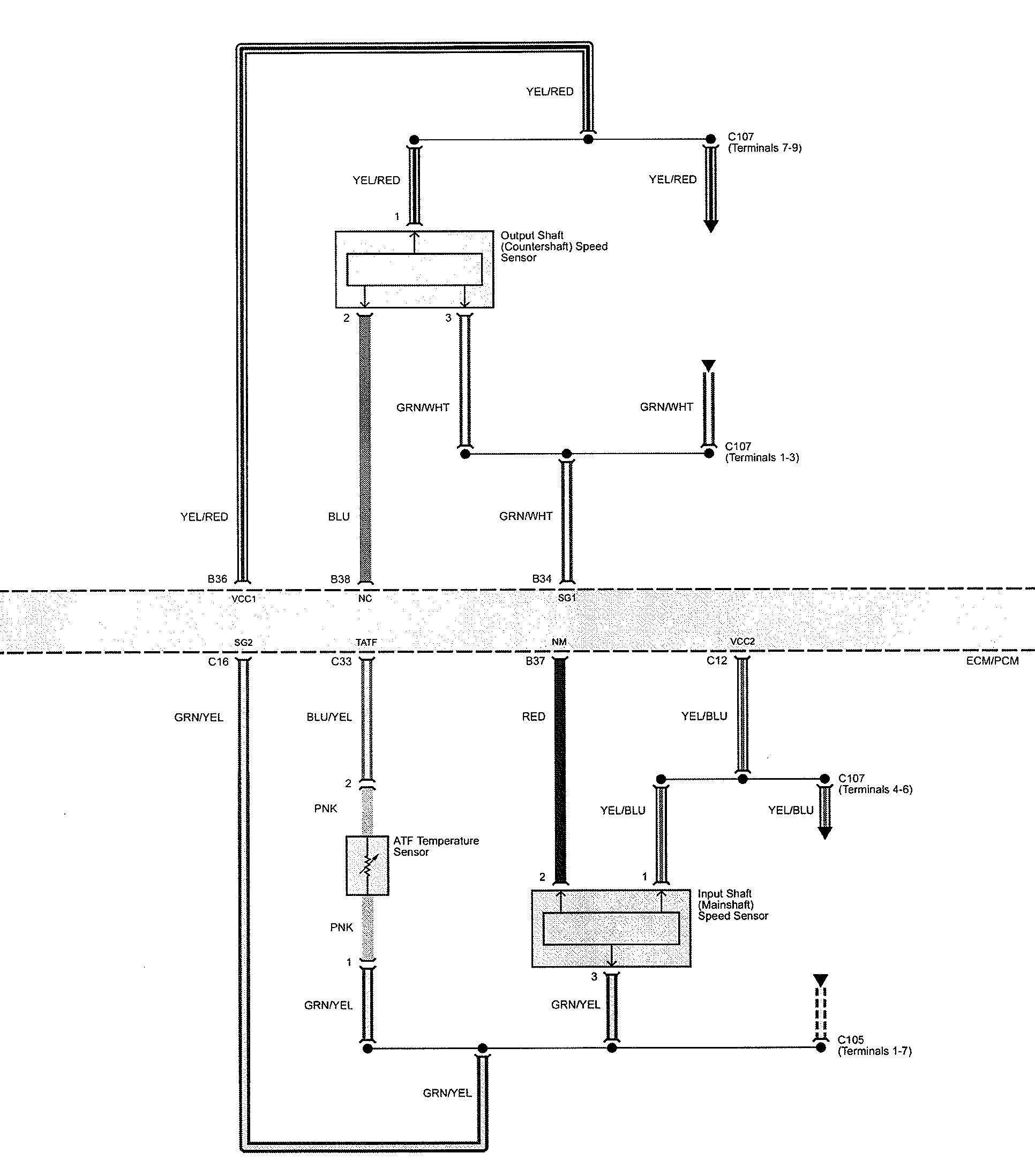

Acura TL - wiring diagram - transmission control (part 5)
Acura TL – wiring diagram – transmission control (part 5)

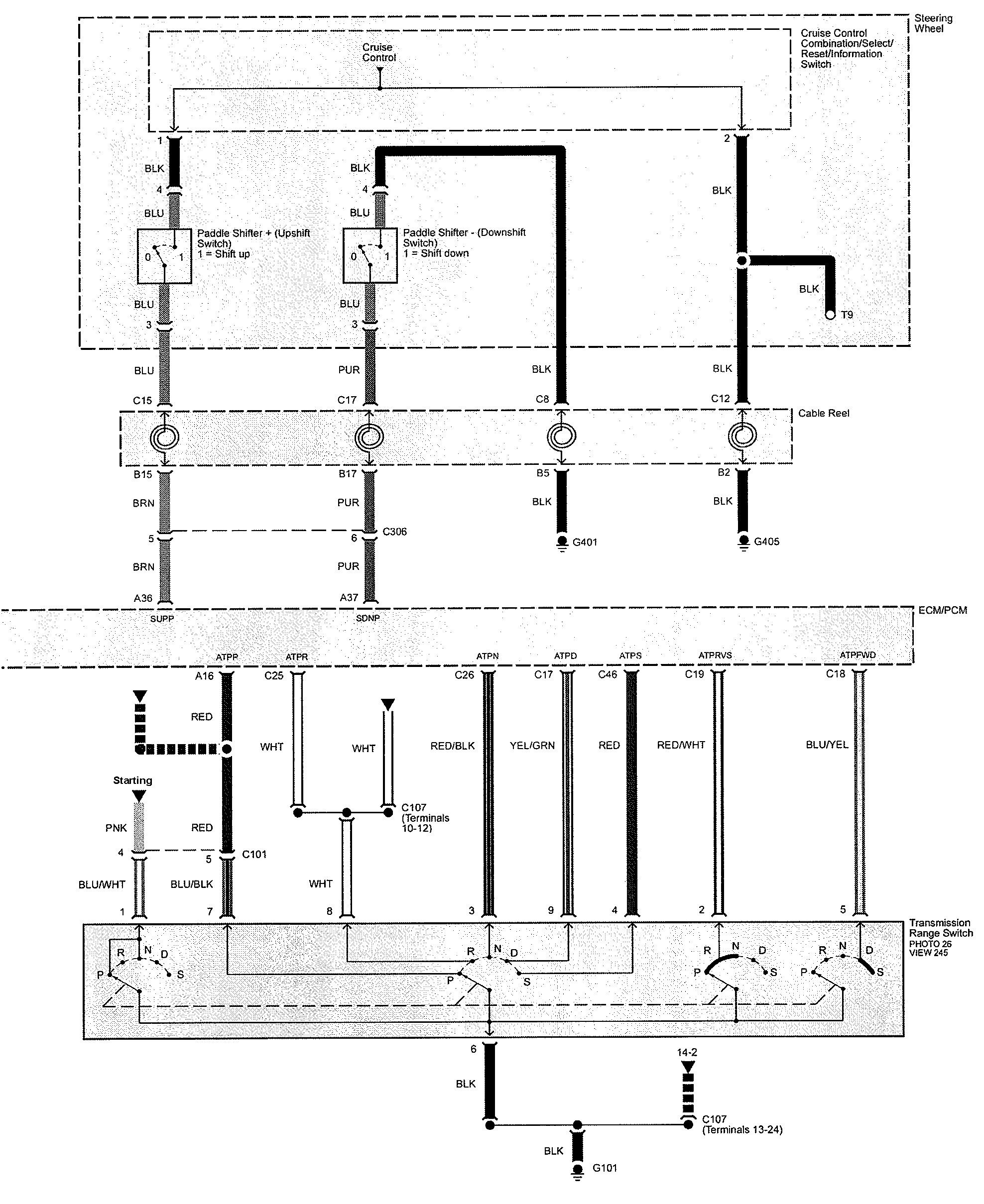

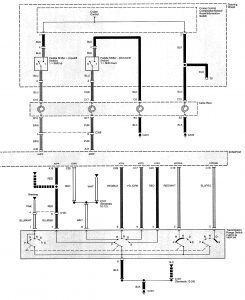

Acura TL - wiring diagram - transmission control (part 6)
Acura TL – wiring diagram – transmission control (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
