Acura TL (2008 – 2009) – wiring diagrams – symbol ID

23 July 2017 admin Acura, TL 0

Acura TL (2008 – 2009) – wiring diagrams – symbol ID

Year of productions:  2008, 2009

Symbol ID

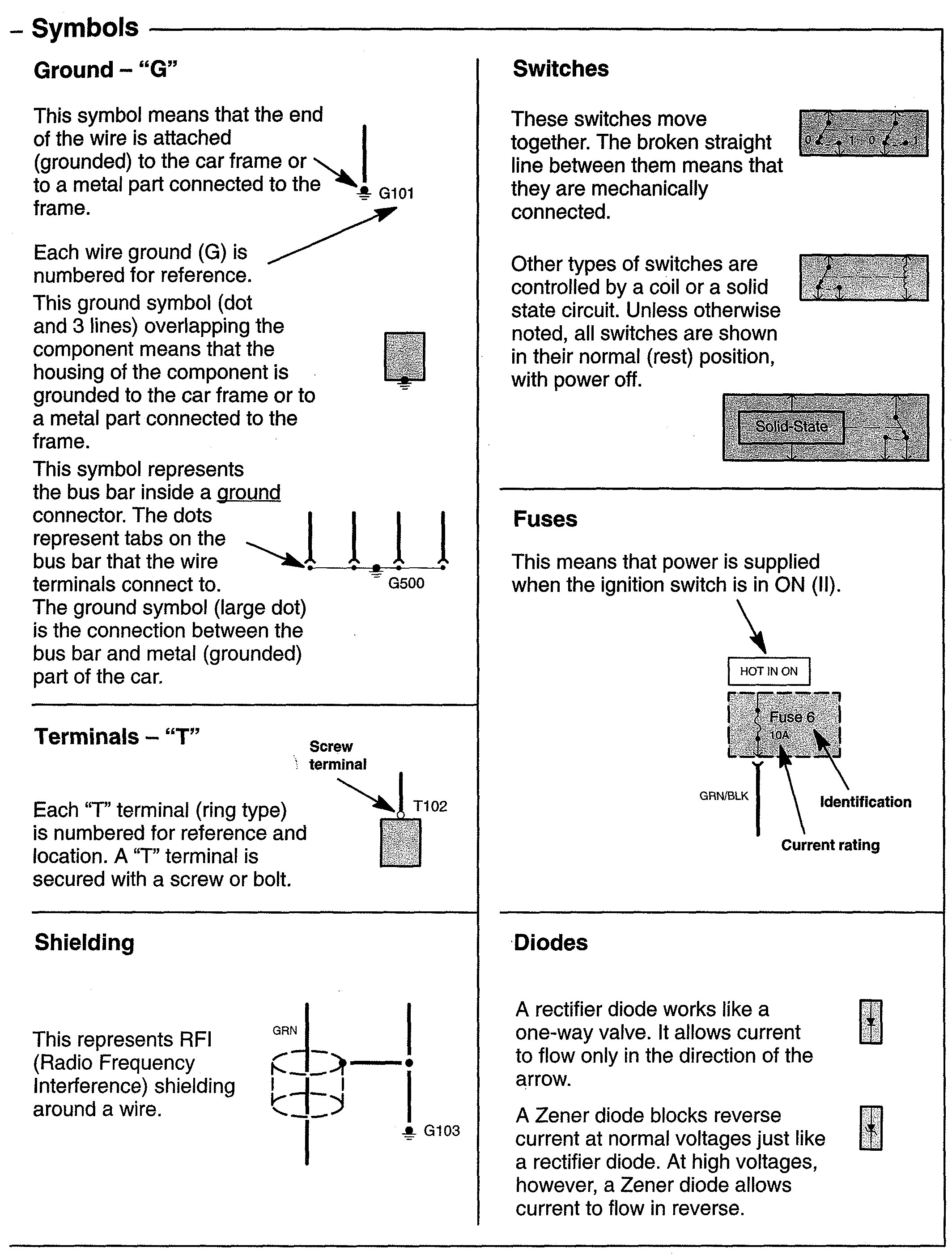

Acura TL - wiring diagram - symbol id (part 1)
Acura TL – wiring diagram – symbol id (part 1)

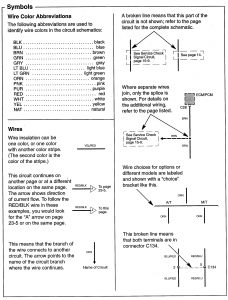

Acura TL - wiring diagram - symbol id (part 2)
Acura TL – wiring diagram – symbol id (part 2)

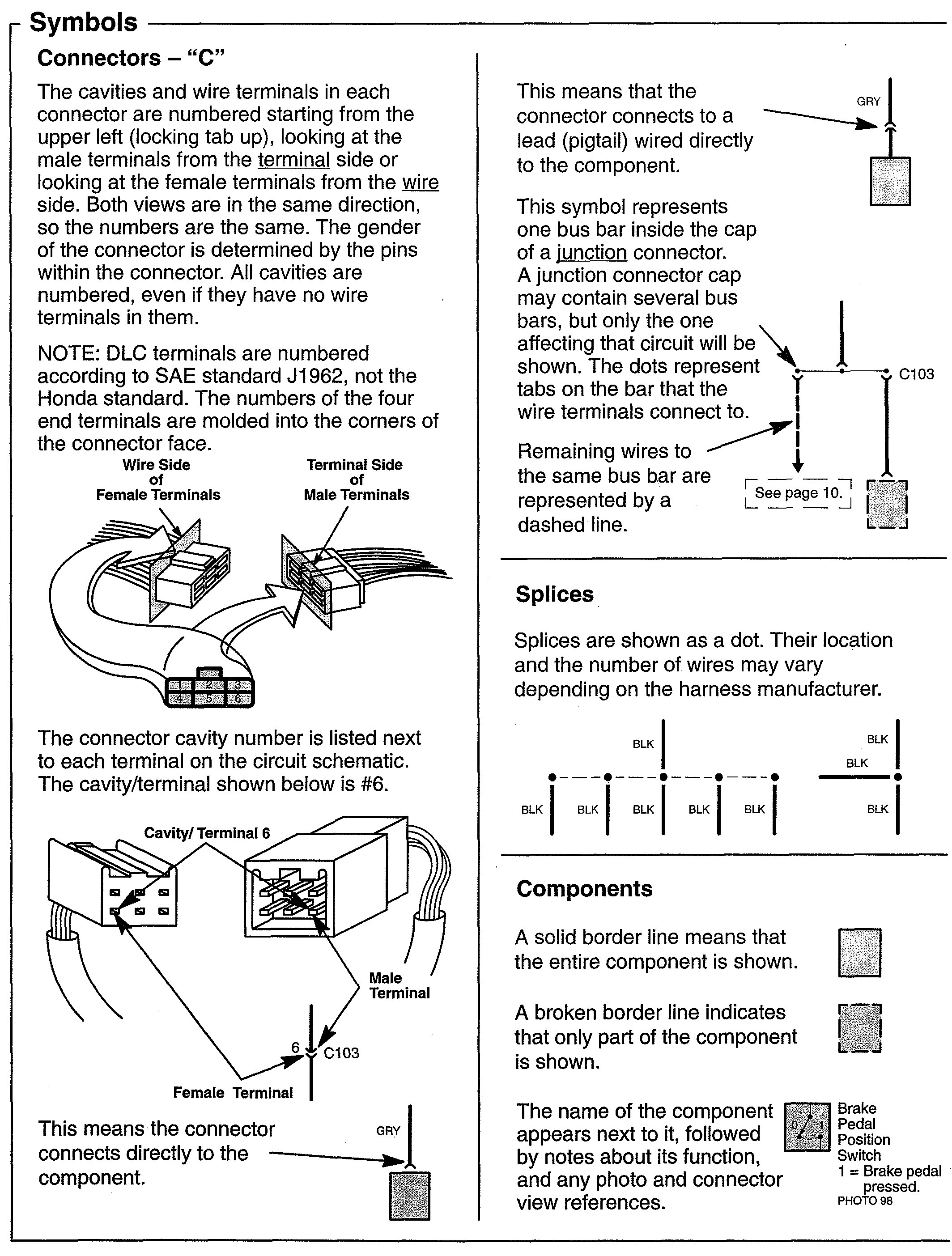

Acura TL - wiring diagram - symbol id (part 3)
Acura TL – wiring diagram – symbol id (part 3)

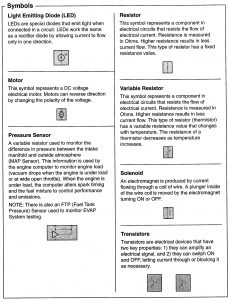

Acura TL - wiring diagram - symbol id (part 4)
Acura TL – wiring diagram – symbol id (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
