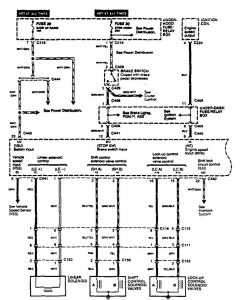

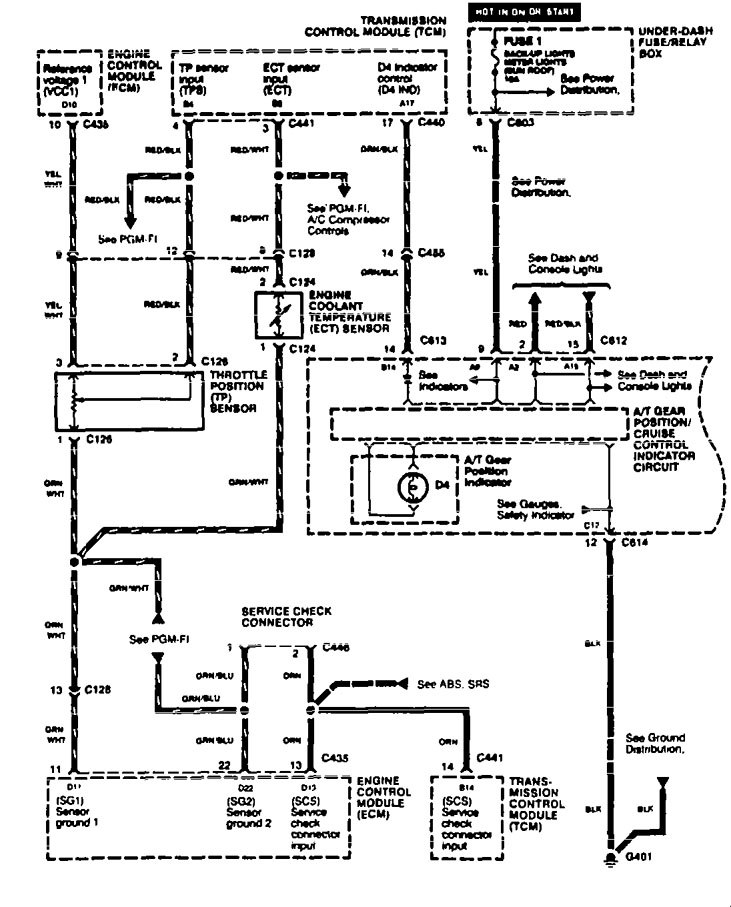

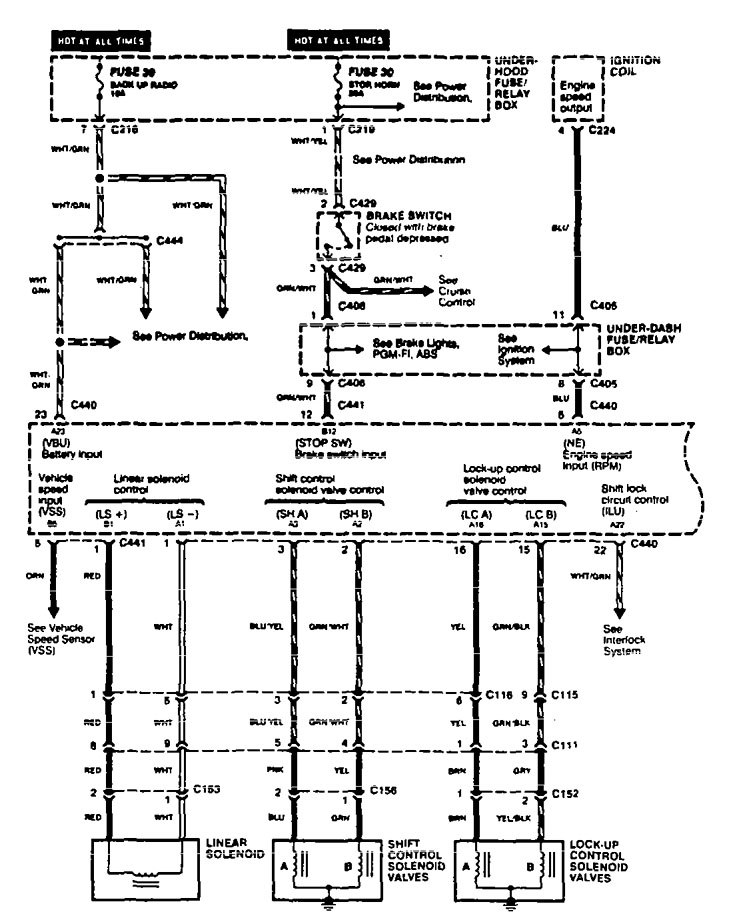

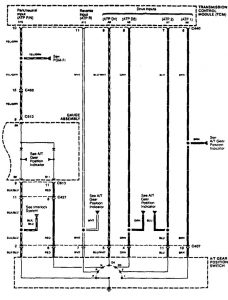

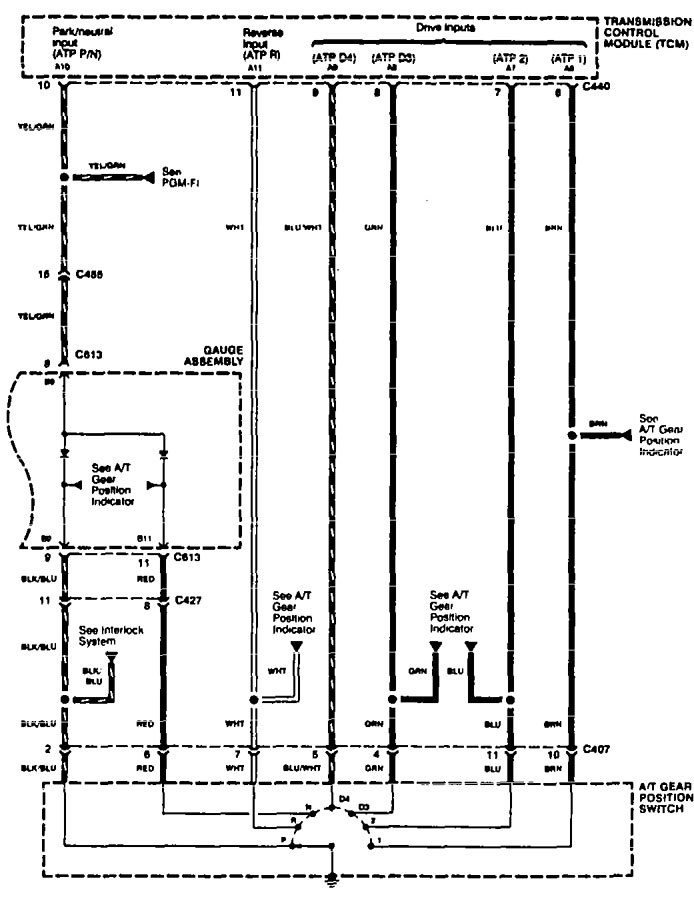

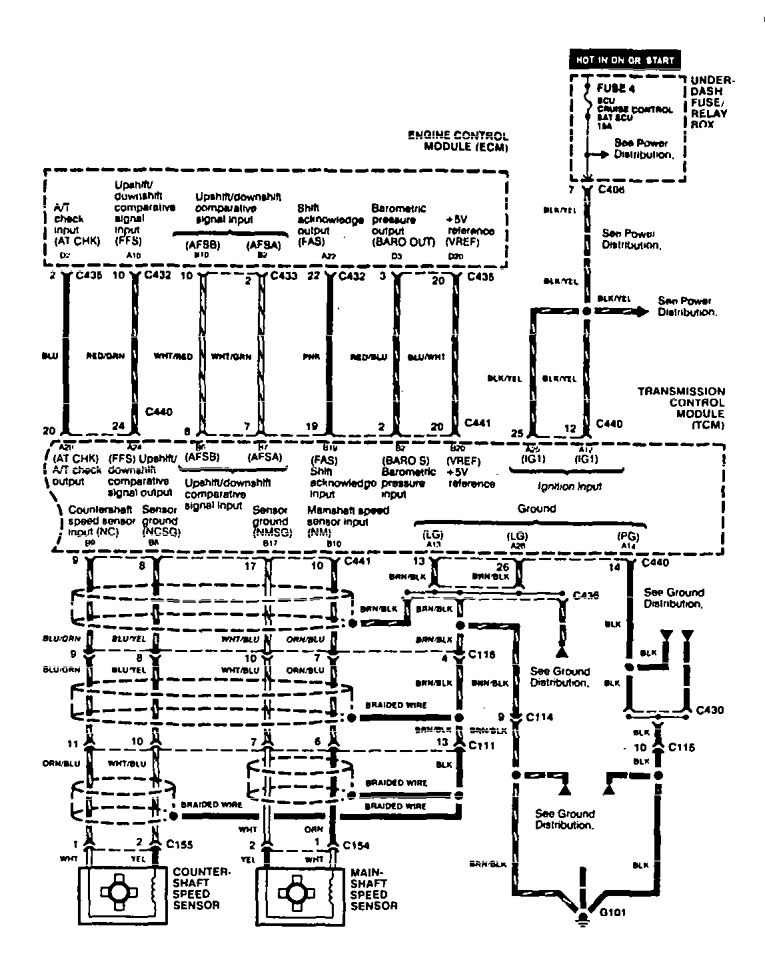

Acura TL (1995) – wiring diagrams – transaxle controls

Acura TL (2013 – 2014) – wiring diagram – navigation system Year of productions:  2013, 2014 Navigation system WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and […]

Mercedes-Benz 500SEL (1992 – 1993) – wiring diagrams – speed controls Year of productions:  1992, 1993 Speed controls Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle […]

Acura Legend (1994) – wiring diagram – steering column Year of productions:  1994 Steering column Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, […]
