Acura SLX (1996) – wiring diagrams – courtesy lamp

Year of productions:  1996

Courtesy lamp

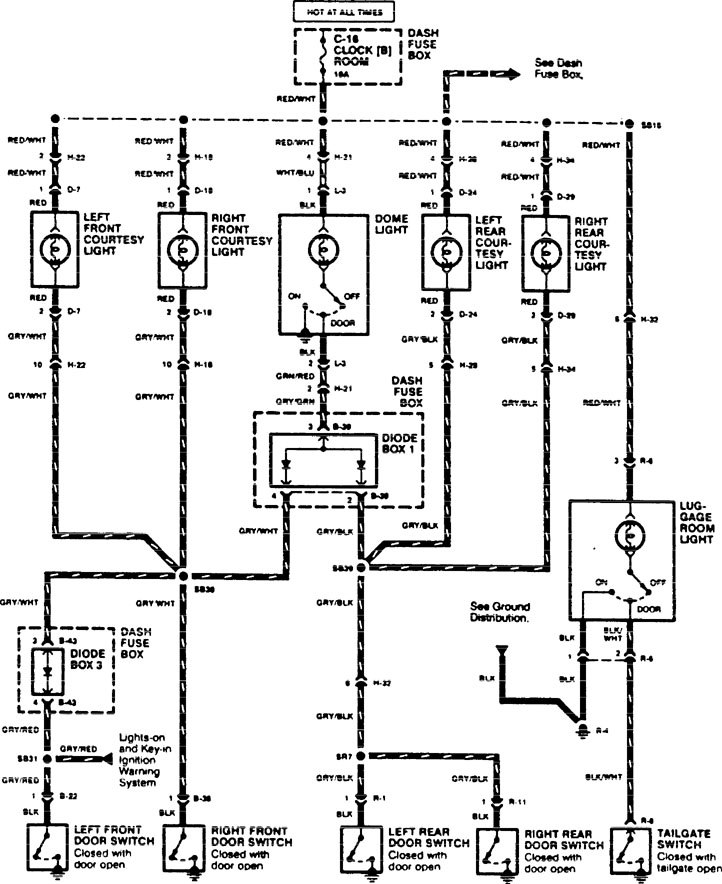

Acura SLX - wiring diagram - courtesy lamp
Acura SLX – wiring diagram – courtesy lamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
