Acura RL (2009) – wiring diagrams – heated seats

22 October 2017 admin Acura, RL 0

Acura RL (2009) – wiring diagrams – heated seats

Year of productions:  2009

Heated seats

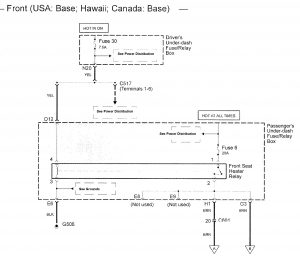

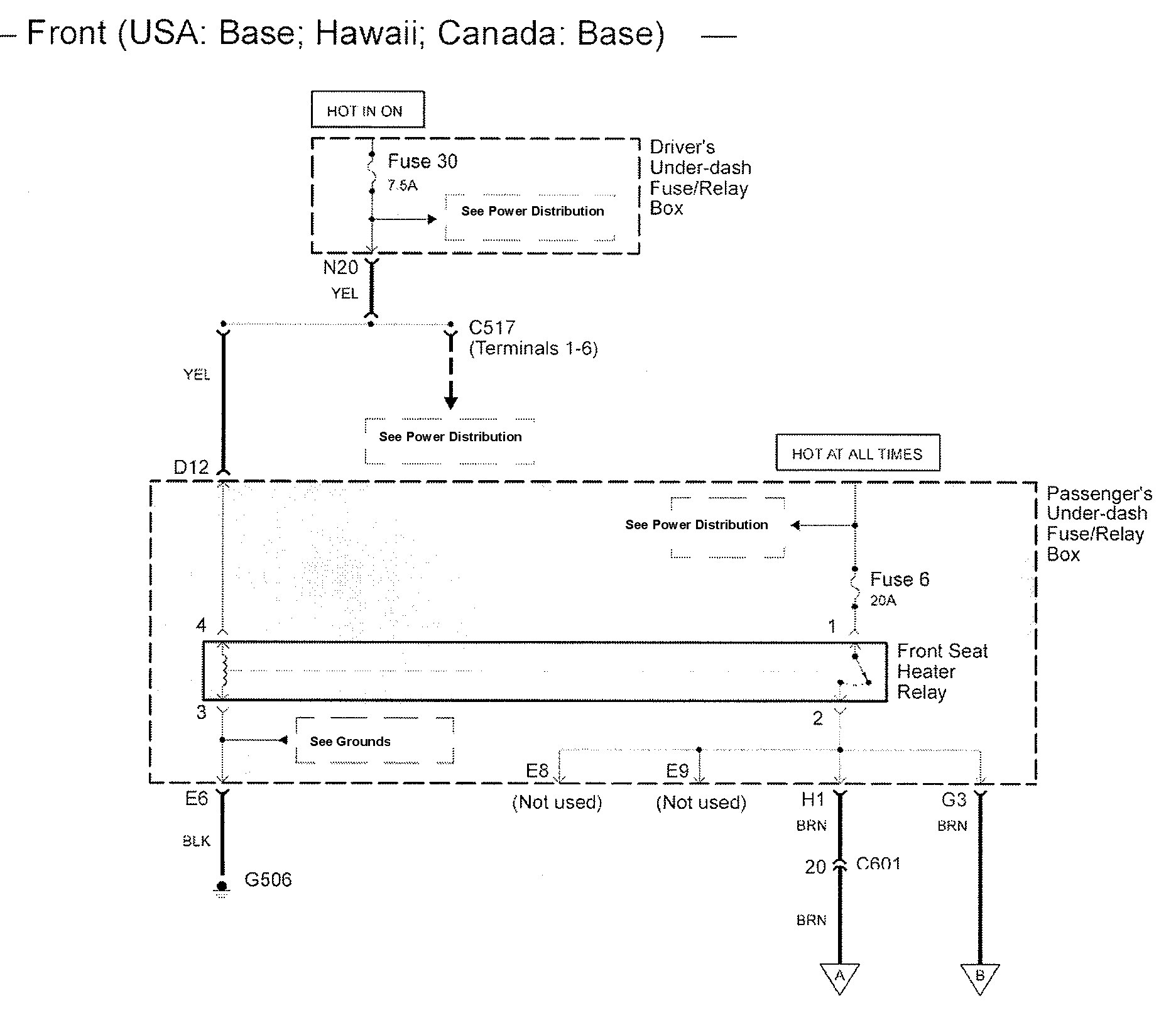

Acura RL - wiring diagram - heated seats (part 1)
Acura RL – wiring diagram – heated seats (part 1)

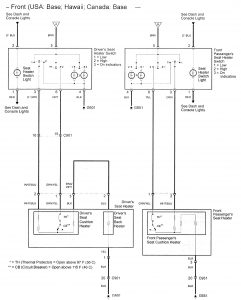

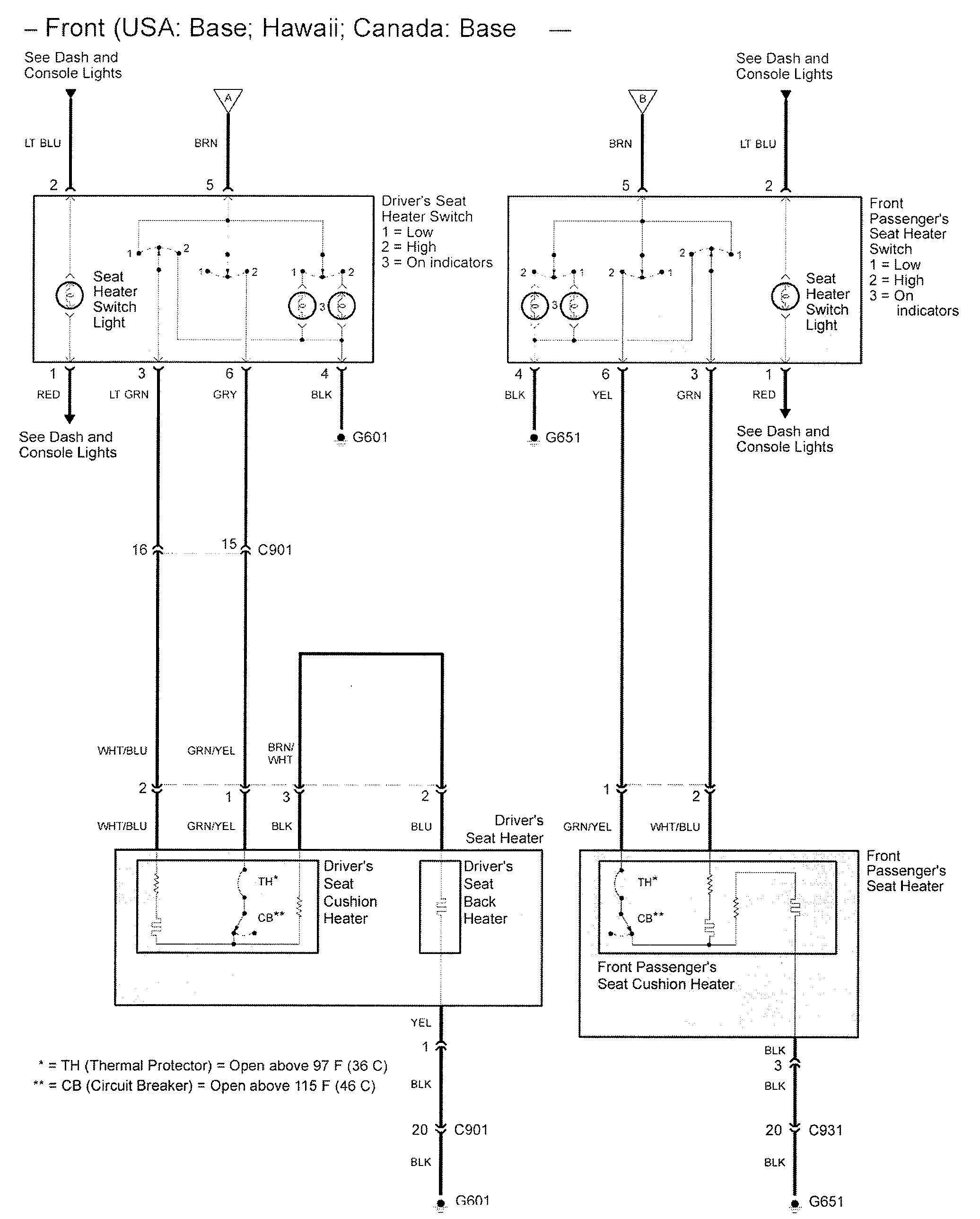

Acura RL - wiring diagram - heated seats (part 2)
Acura RL – wiring diagram – heated seats (part 2)

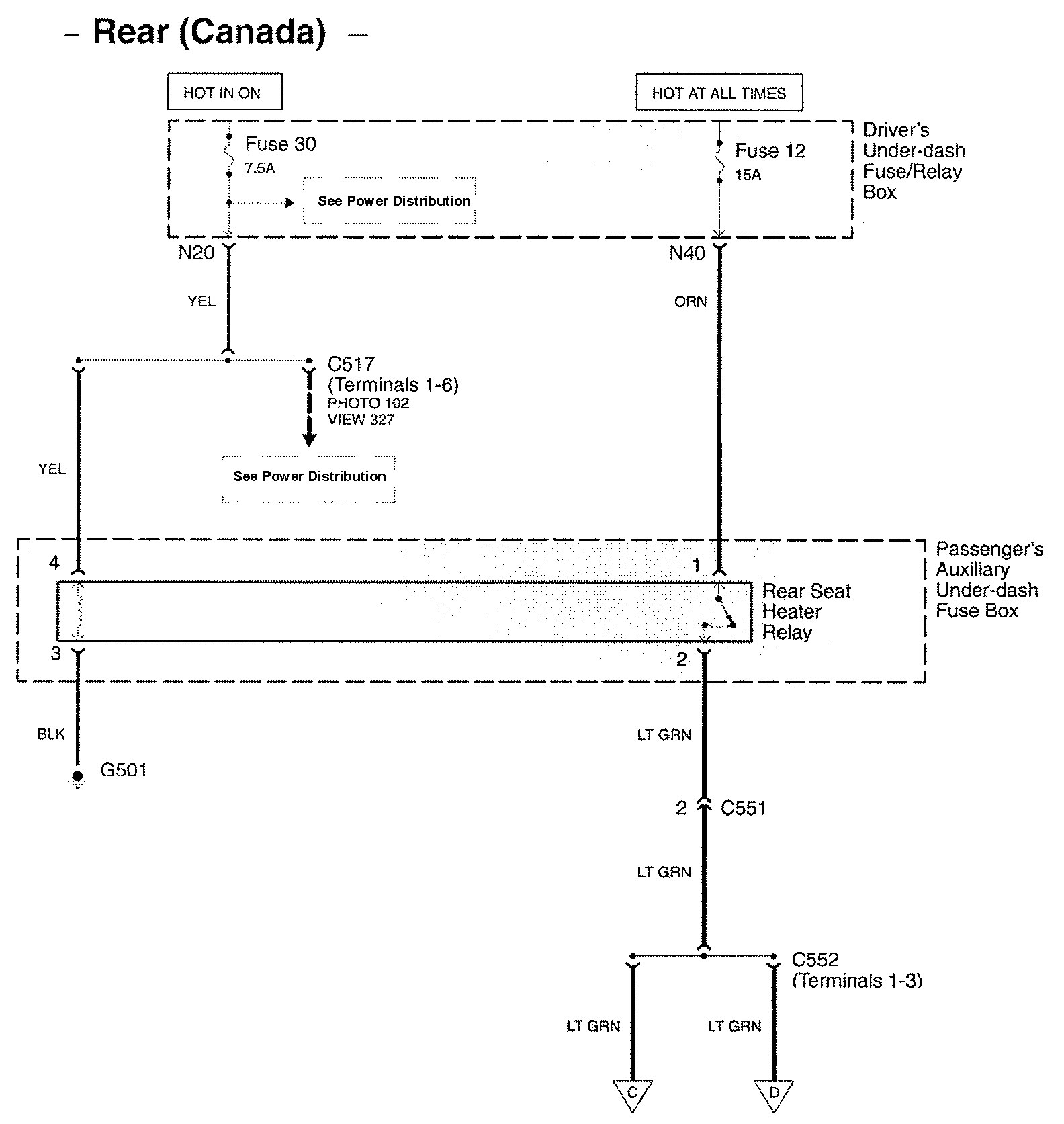

Acura RL - wiring diagram - heated seats (part 3)
Acura RL – wiring diagram – heated seats (part 3)

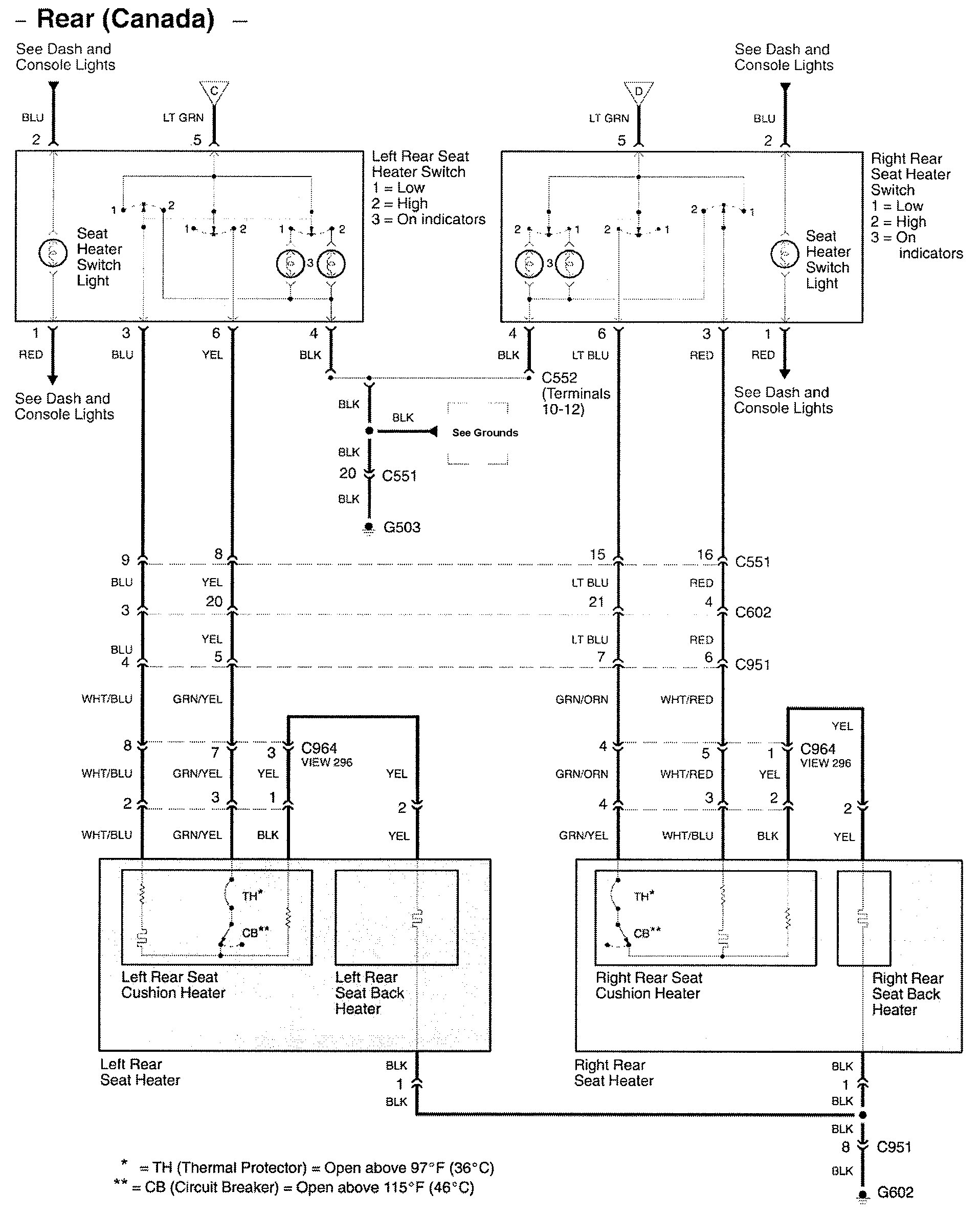

Acura RL - wiring diagram - heated seats (part 4)
Acura RL – wiring diagram – heated seats (part 4)

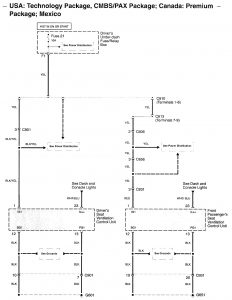

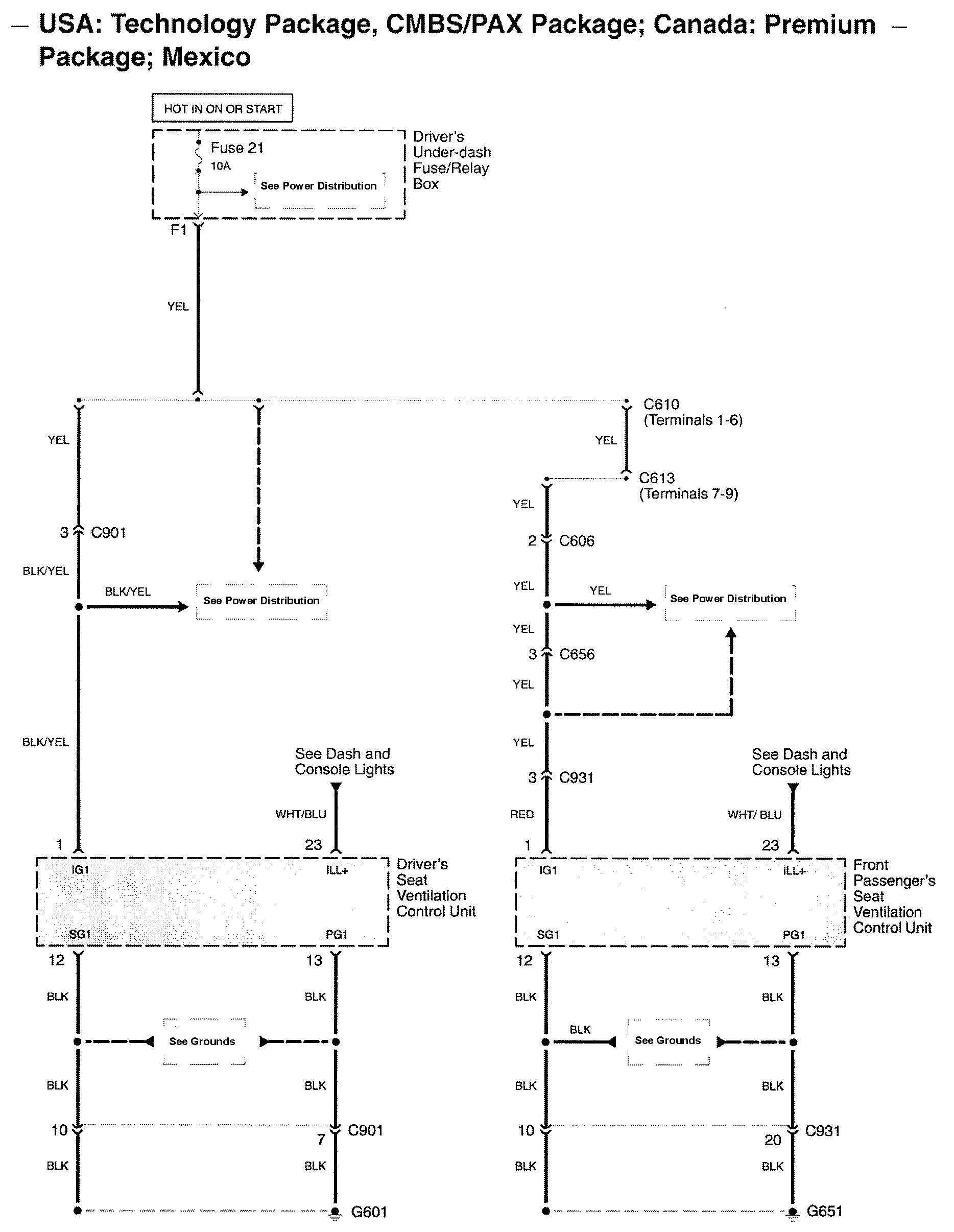

Acura RL - wiring diagram - heated seats (part 5)
Acura RL – wiring diagram – heated seats (part 5)

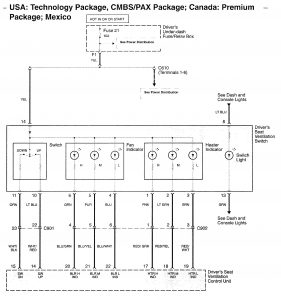

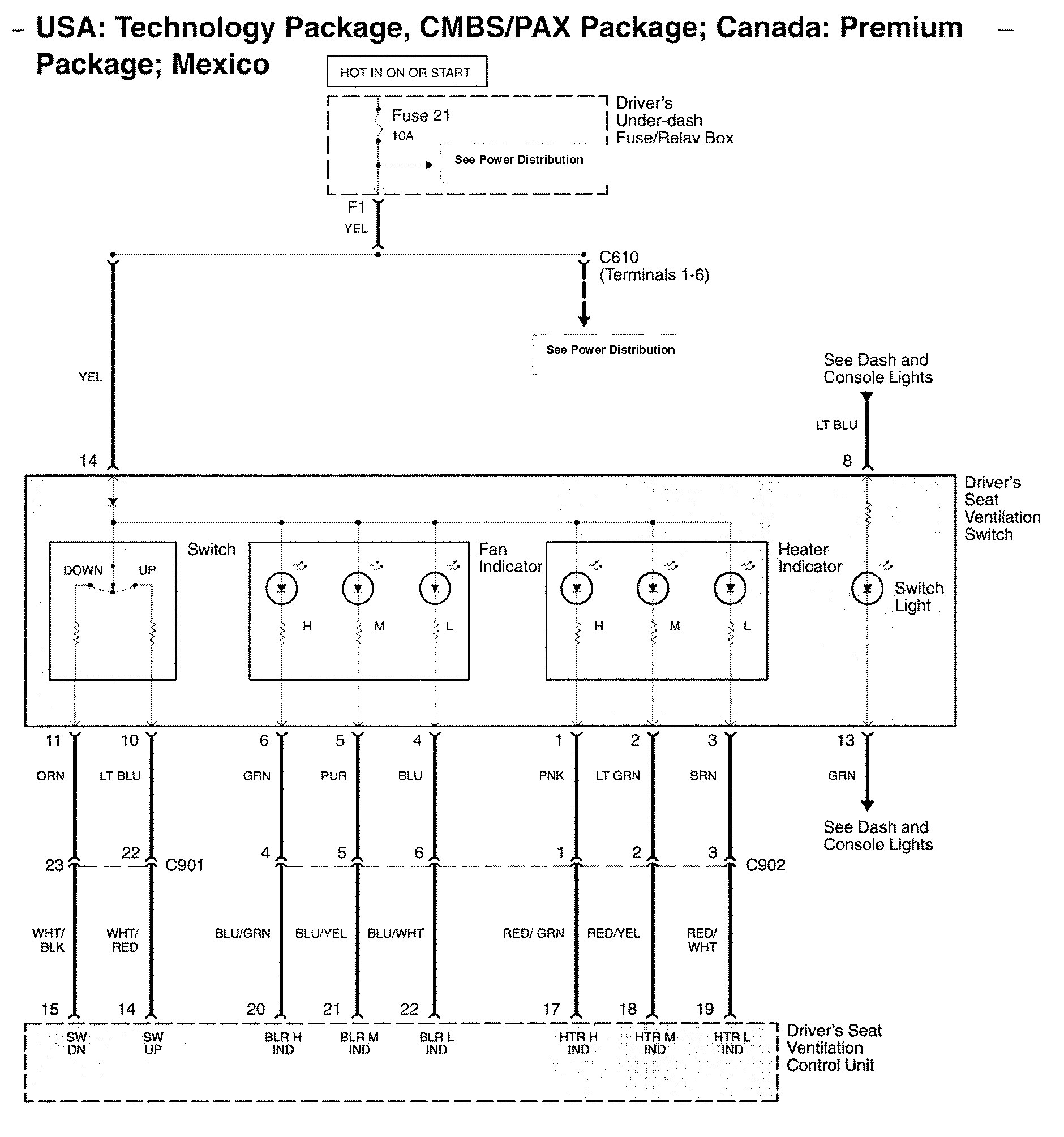

Acura RL - wiring diagram - heated seats (part 6)
Acura RL – wiring diagram – heated seats (part 6)

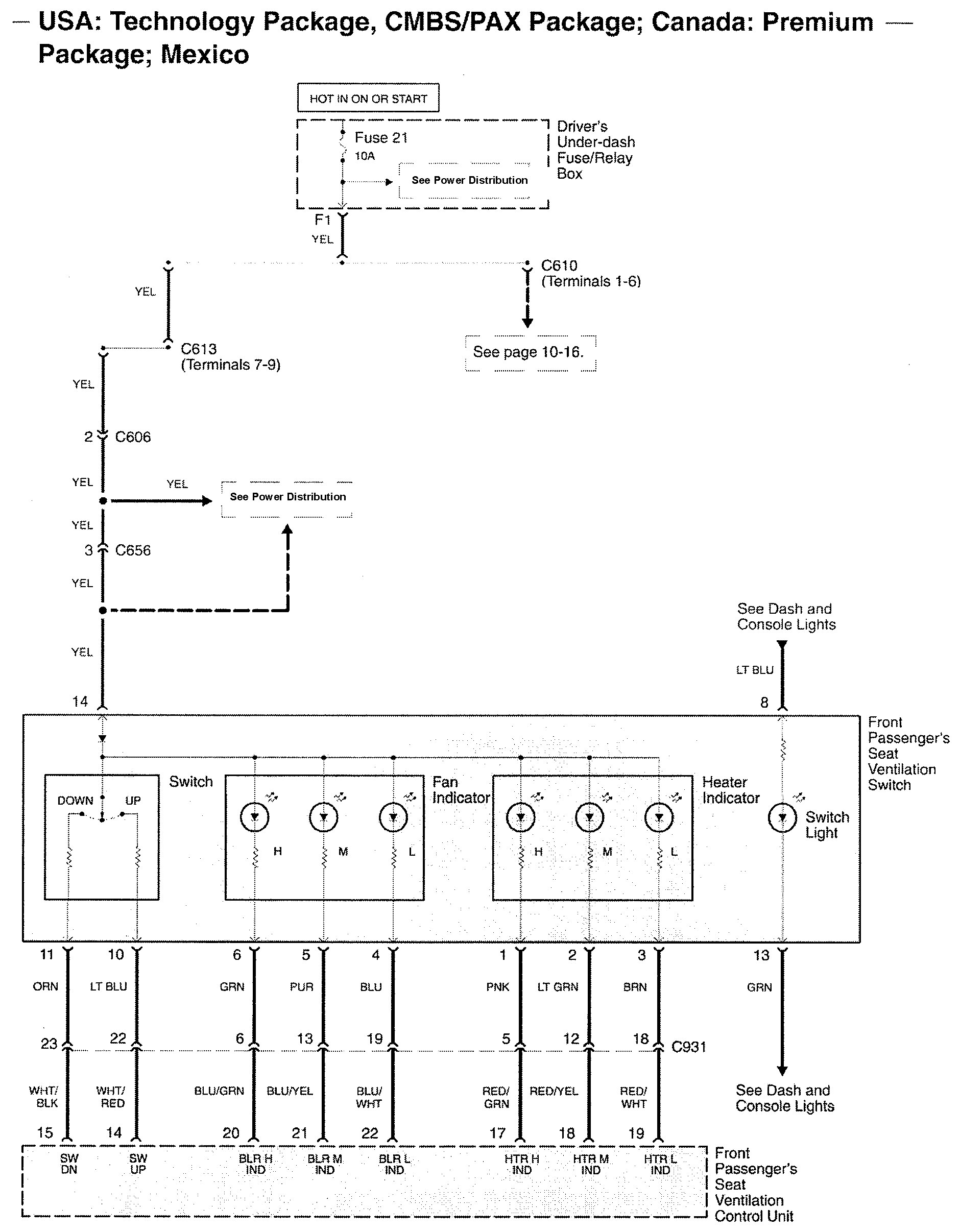

Acura RL - wiring diagram - heated seats (part 7)
Acura RL – wiring diagram – heated seats (part 7)

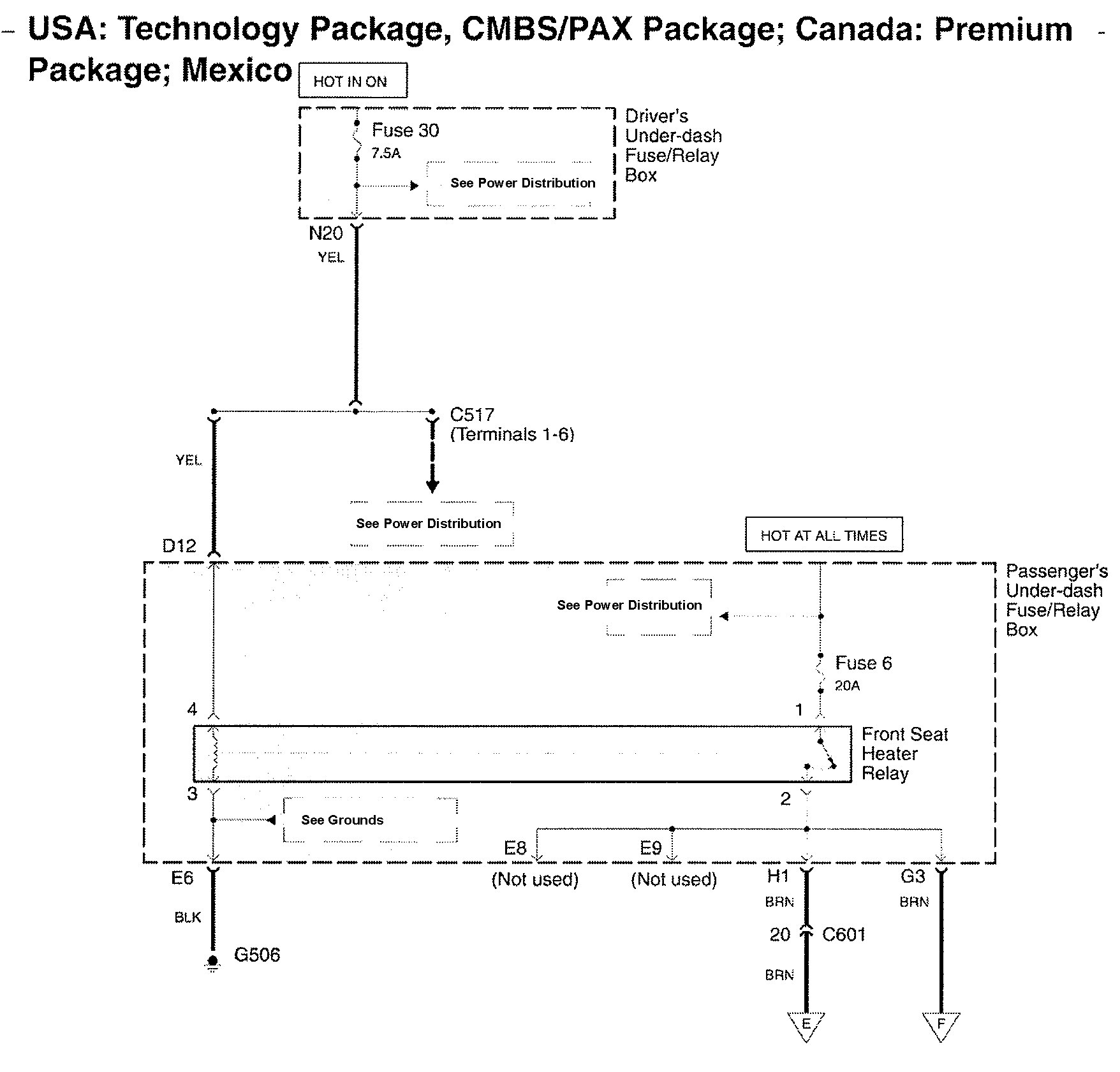

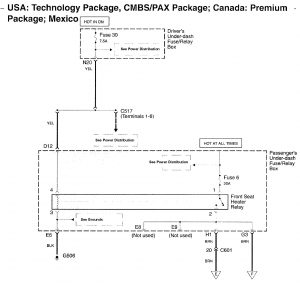

Acura RL - wiring diagram - heated seats (part 8)
Acura RL – wiring diagram – heated seats (part 8)

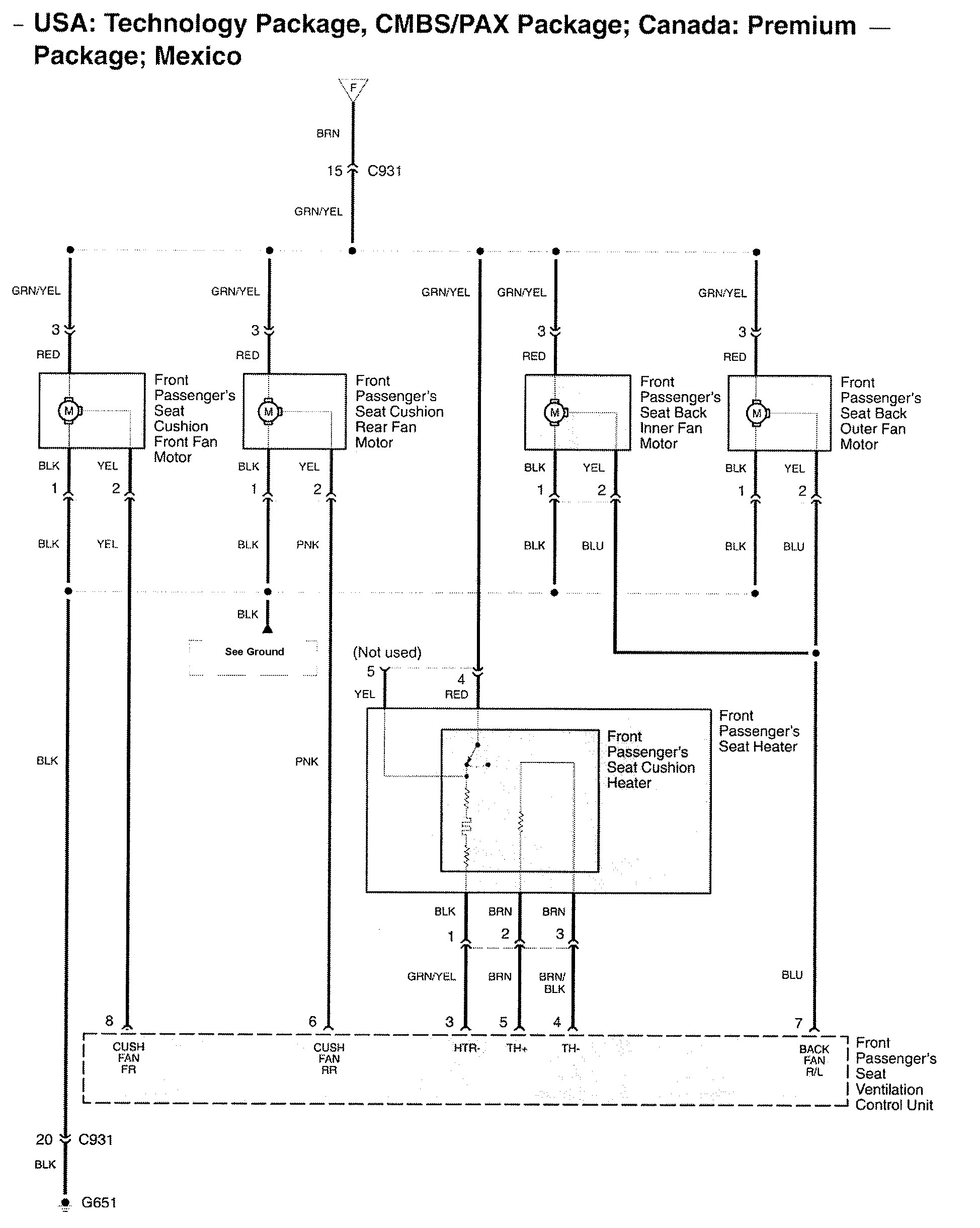

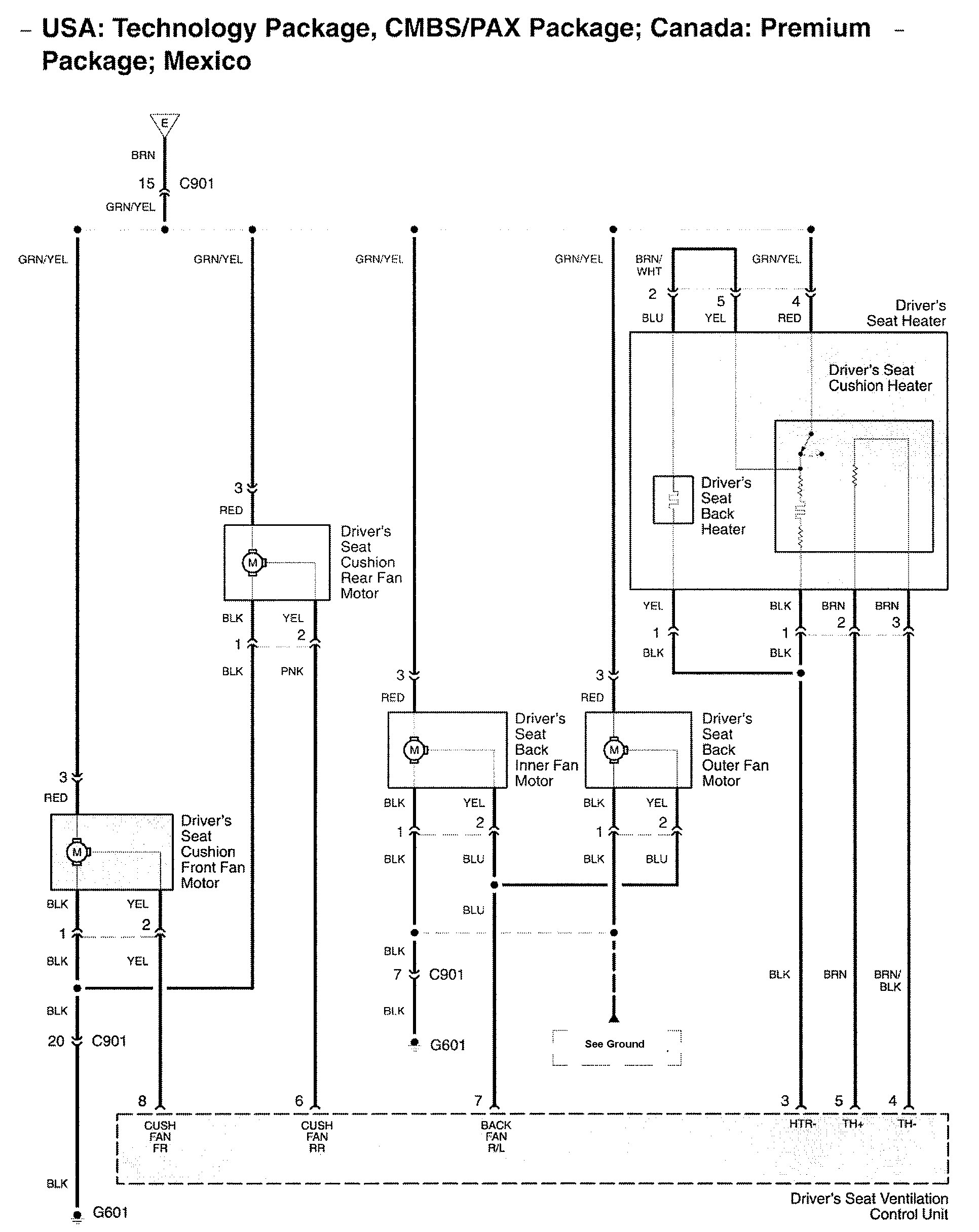

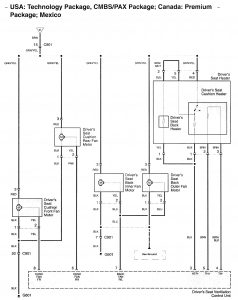

Acura RL - wiring diagram - heated seats (part 9)
Acura RL – wiring diagram – heated seats (part 9)
Acura RL - wiring diagram - heated seats (part 10)
Acura RL – wiring diagram – heated seats (part 10)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
