Acura RL (2009) – wiring diagrams – computer data lines

15 October 2017 admin Acura, RL 0

Acura RL (2009) – wiring diagrams – computer data lines

Year of productions:  2009

Computer data lines

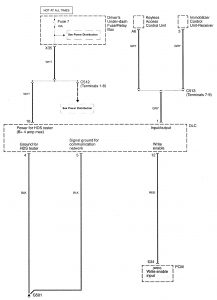

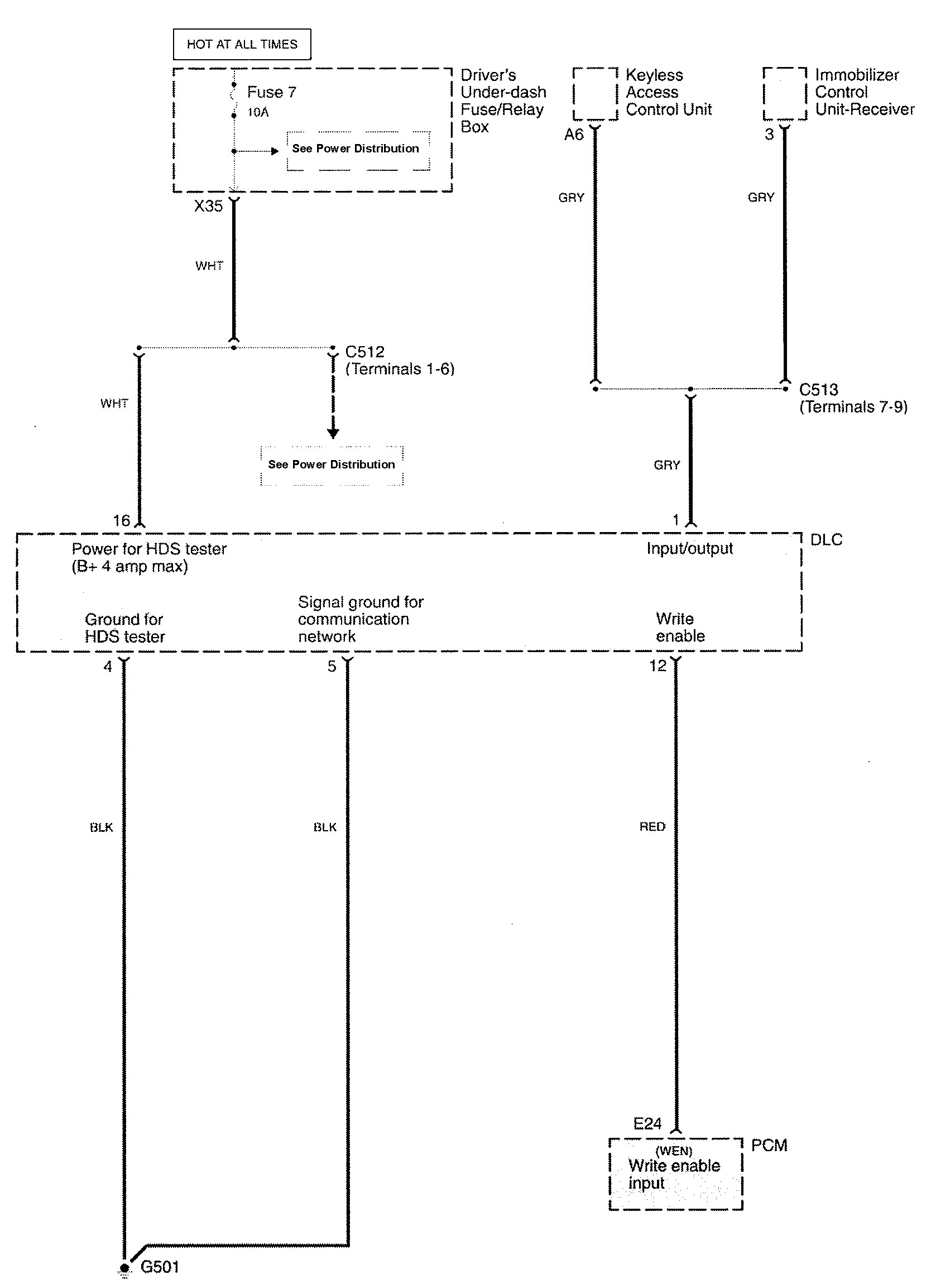

Acura RL - wiring diagram - computer data lines (part 1)
Acura RL – wiring diagram – computer data lines (part 1)

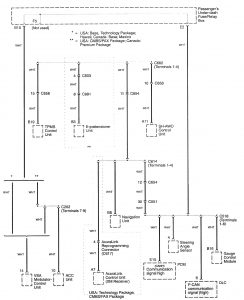

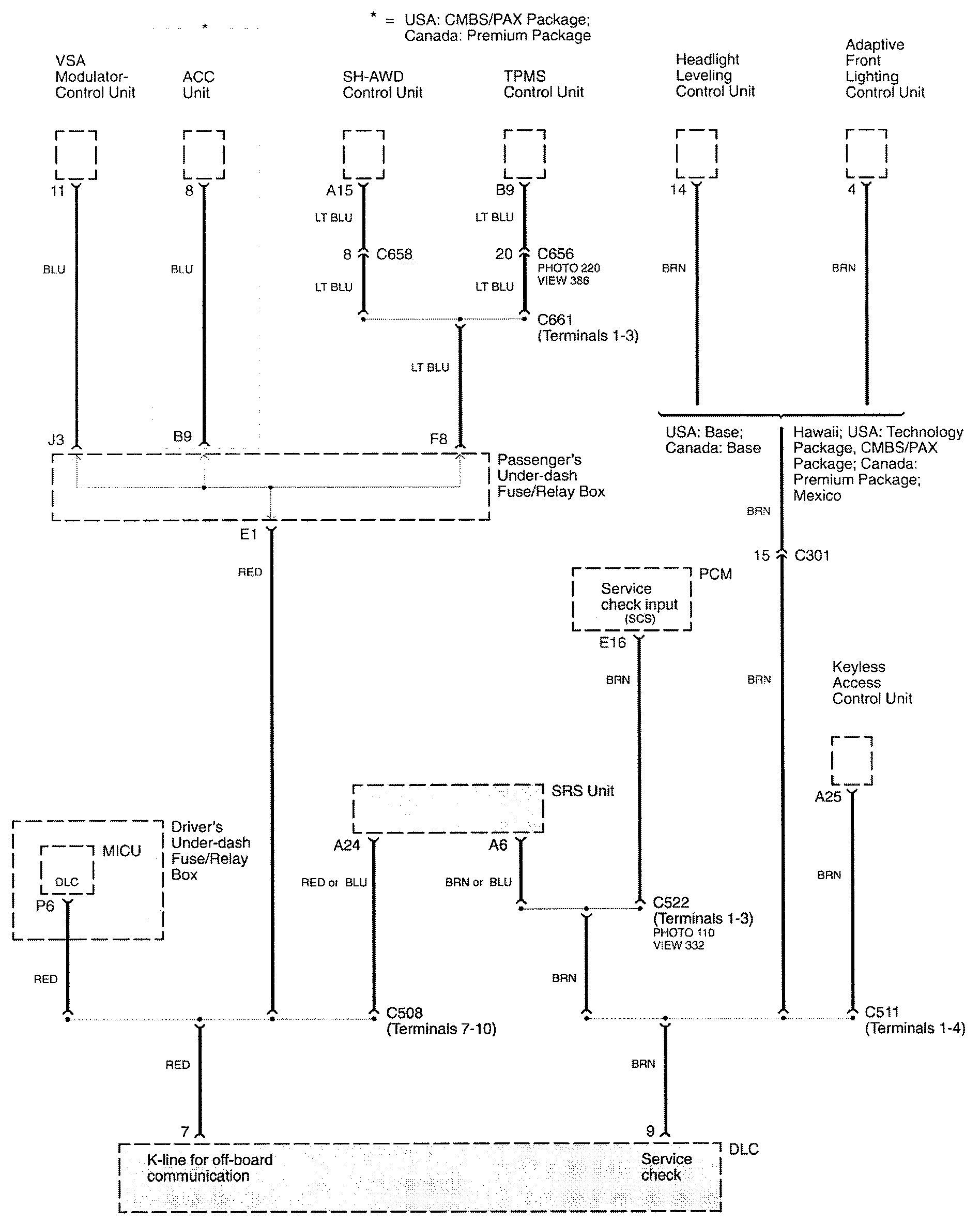

Acura RL - wiring diagram - computer data lines (part 2)
Acura RL – wiring diagram – computer data lines (part 2)

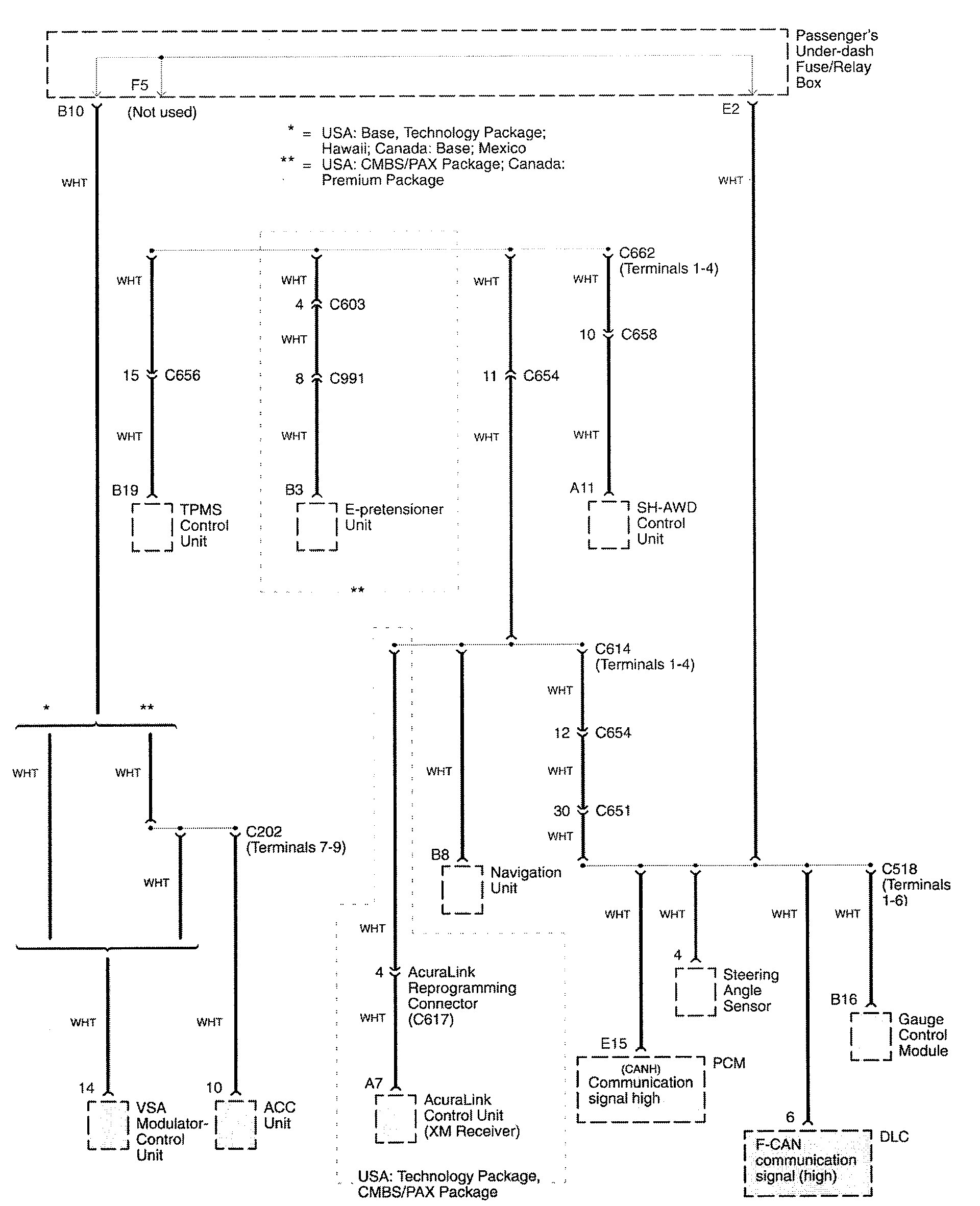

Acura RL – wiring diagram – computer data lines (part 3)

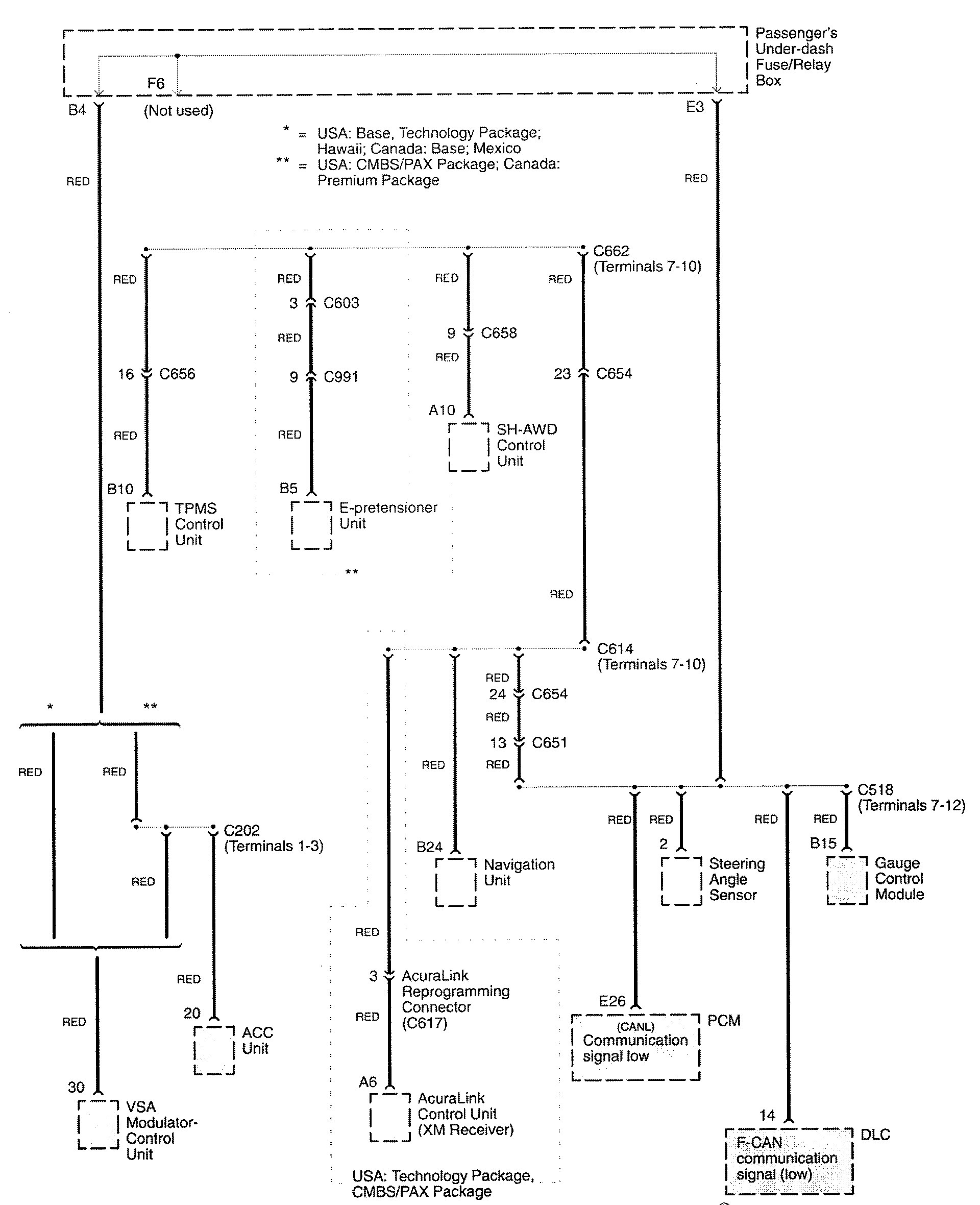

Acura RL - wiring diagram - computer data lines (part 4)
Acura RL – wiring diagram – computer data lines (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
