Acura RL (2006) – wiring diagrams – starting

Acura RL (2006) – wiring diagrams – starting

Year of productions:  2006

Starting

Version 1

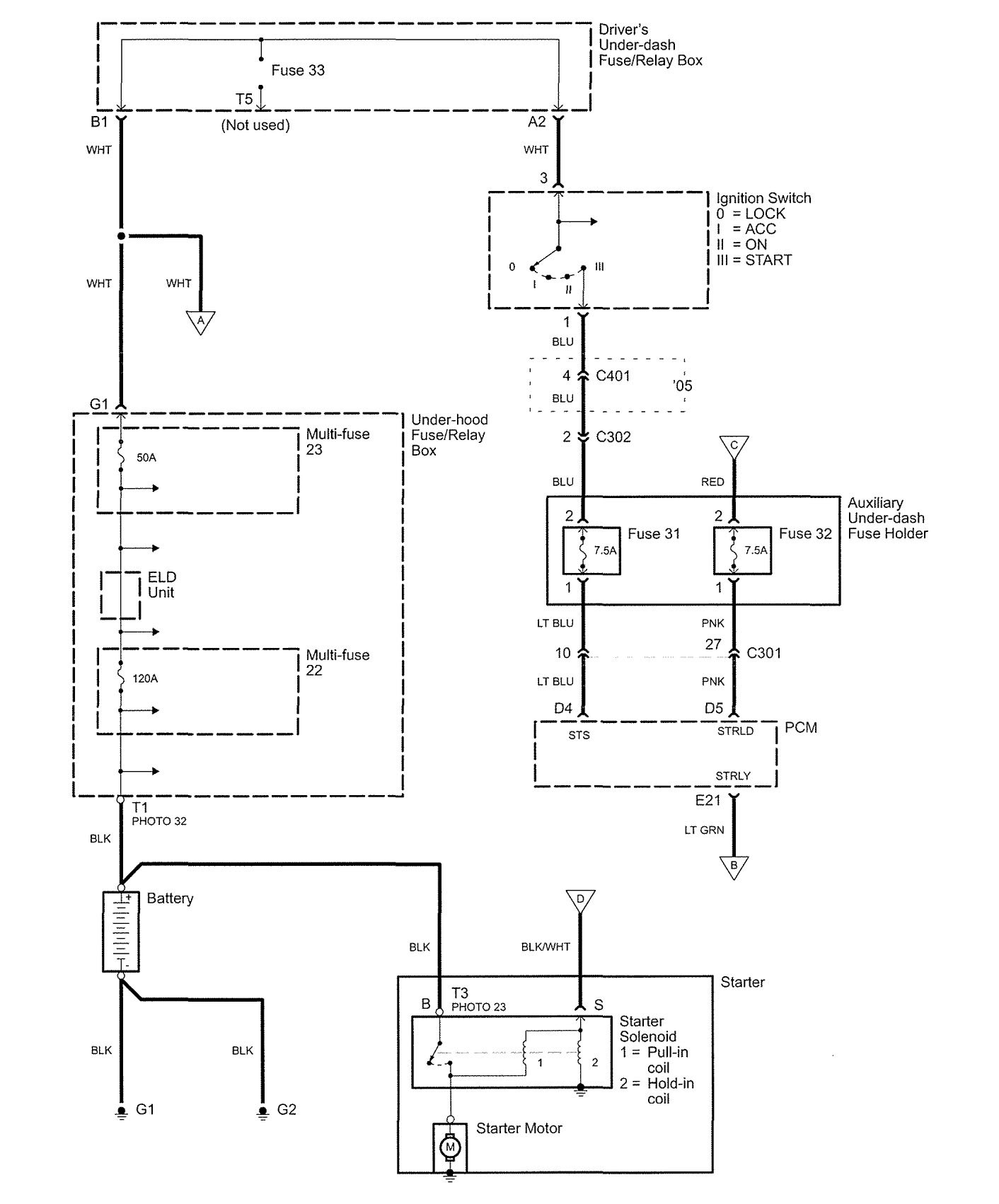

Acura RL - wiring diagram - starting (part 1)
Acura RL – wiring diagram – starting (part 1)

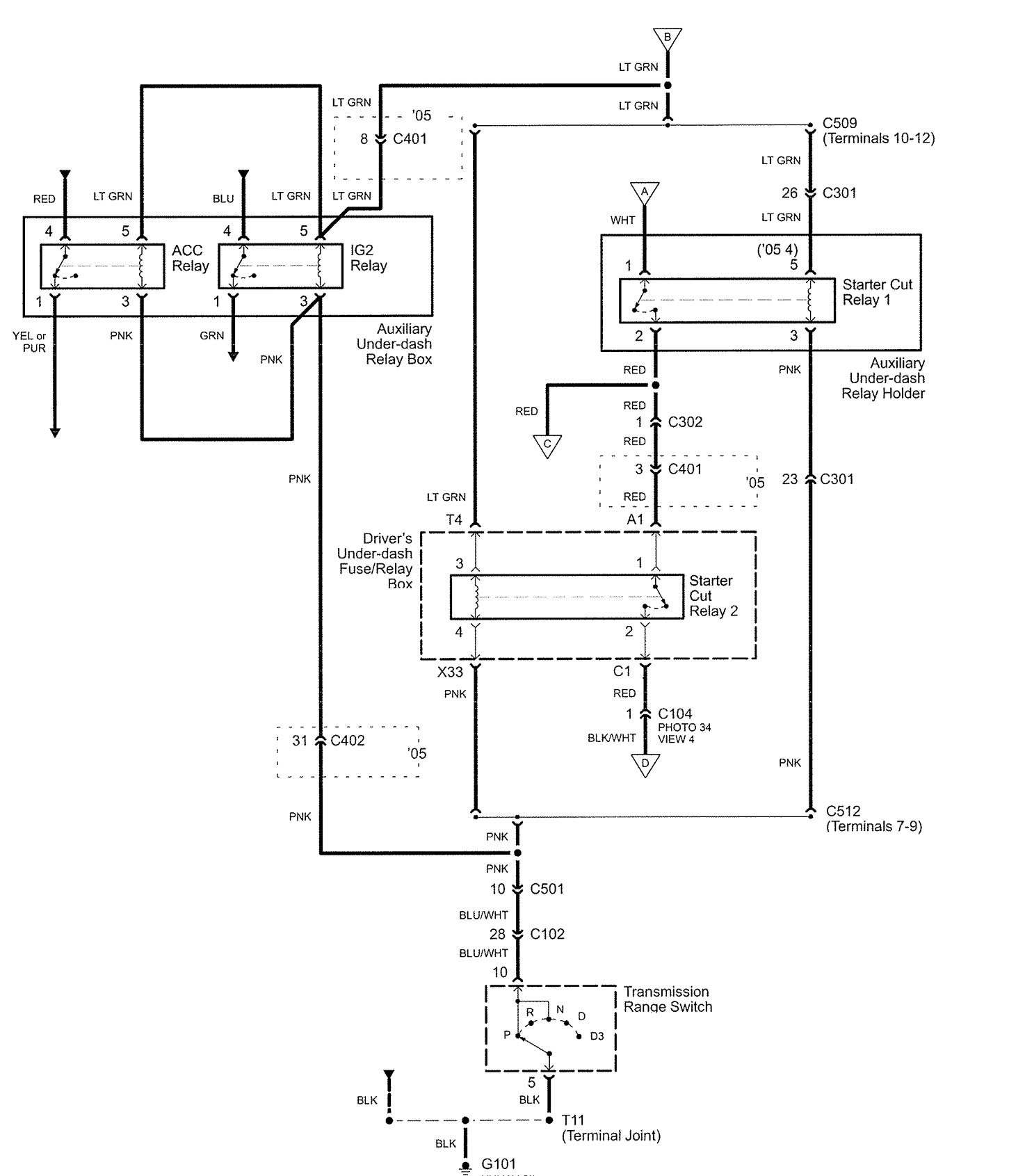

Acura RL - wiring diagram - starting (part 2)
Acura RL – wiring diagram – starting (part 2)

Version 2

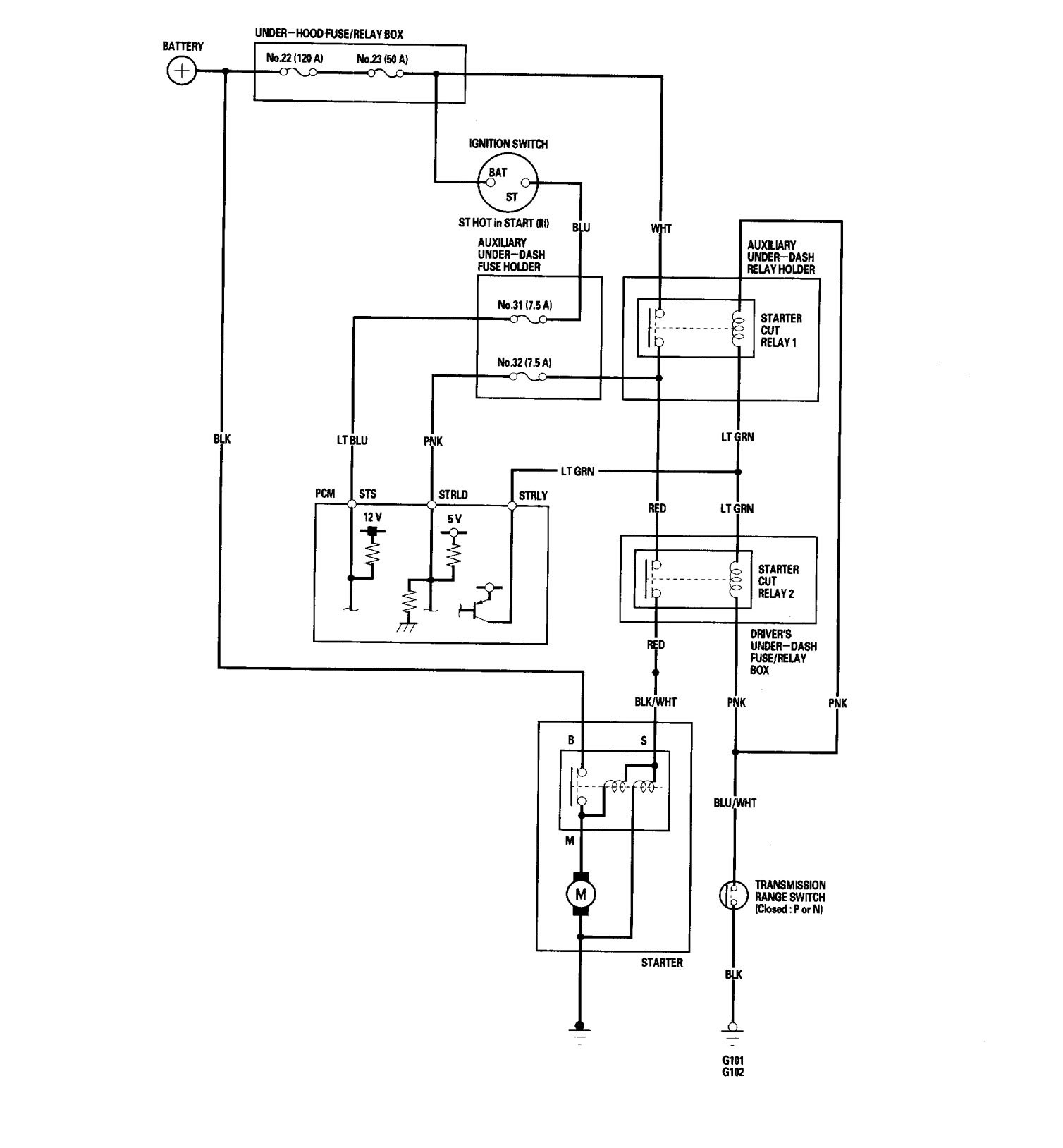

Acura RL - wiring diagram - starting
Acura RL – wiring diagram – starting

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
