Acura RL (2006) – wiring diagrams – speed control

1 October 2017 admin Acura, RL 0

Acura RL (2006) – wiring diagrams – speed control

Year of productions: 2006

Speed control

Version 1

Acura RL - wiring diagram - speed control (part 1) — Acura RL – wiring diagram – speed control (part 1)

Acura RL - wiring diagram - speed control (part 2) — Acura RL – wiring diagram – speed control (part 2)

Acura RL - wiring diagram - speed control (part 3) — Acura RL – wiring diagram – speed control (part 3)

Acura RL - wiring diagram - speed control (part 4) — Acura RL – wiring diagram – speed control (part 4)

Version 2

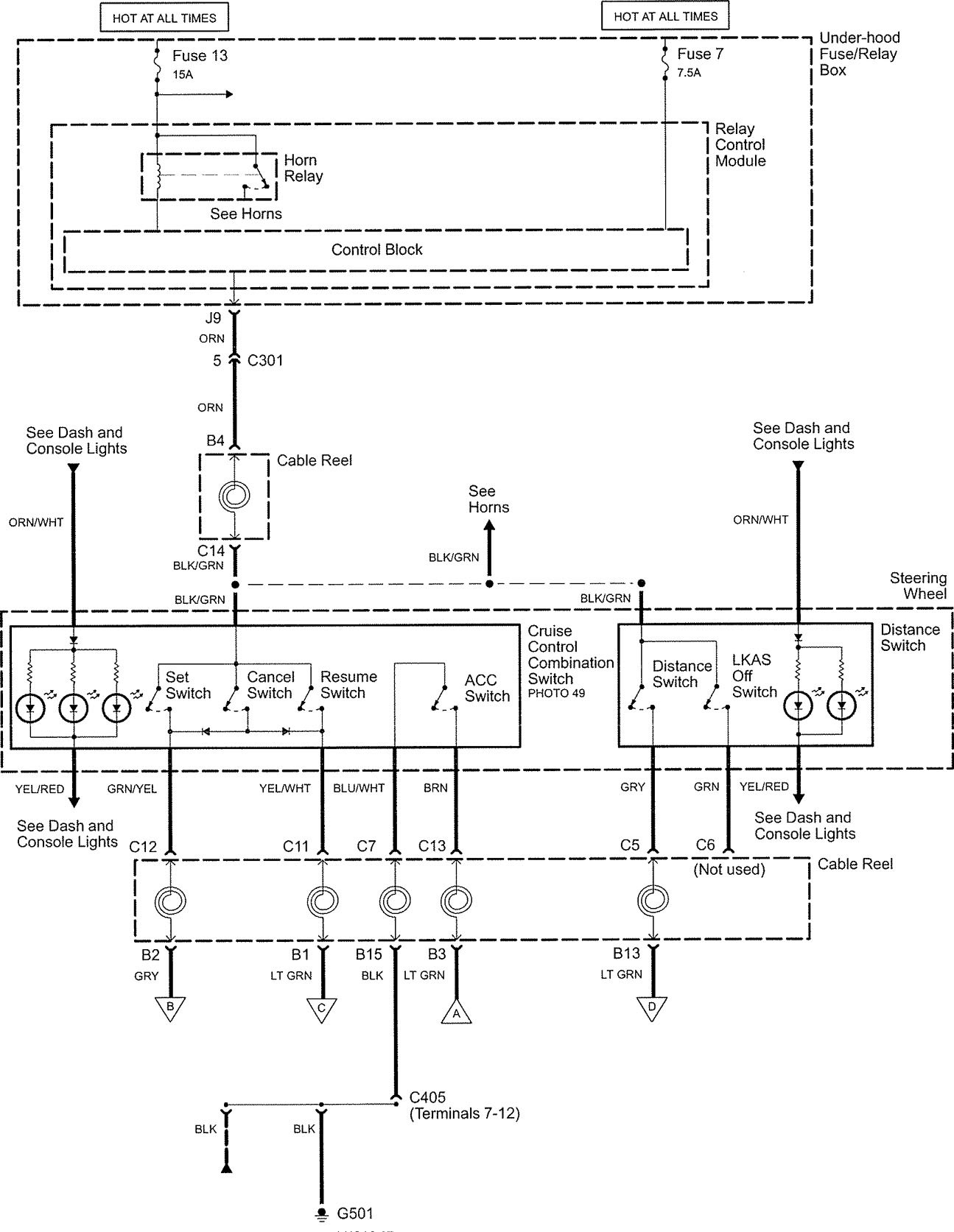

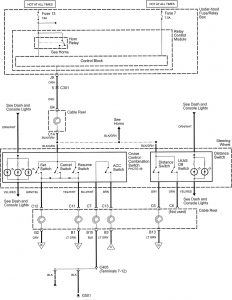

Acura RL - wiring diagram - speed control (part 1) — Acura RL – wiring diagram – speed control (part 1)

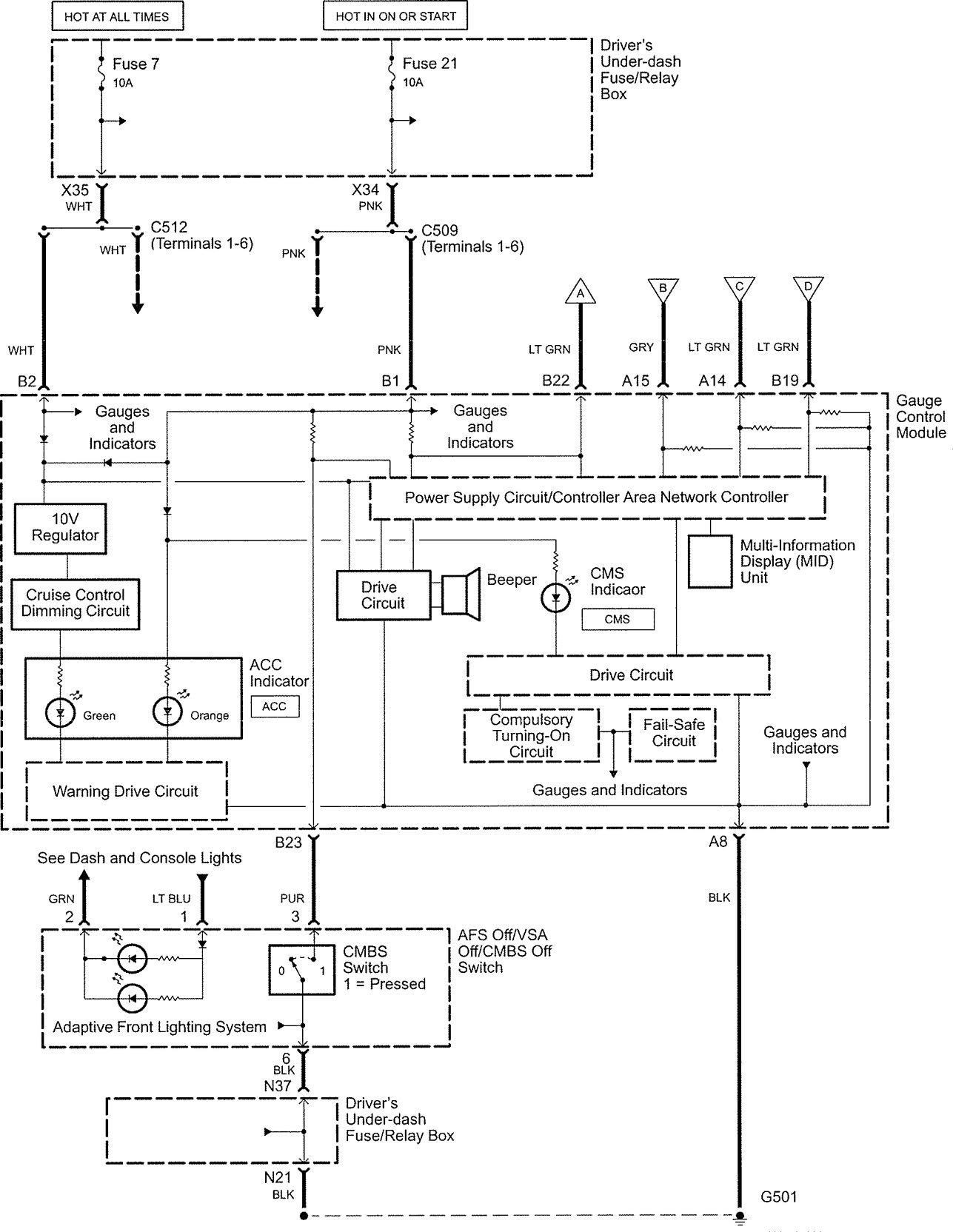

Acura RL - wiring diagram - speed control (part 2) — Acura RL – wiring diagram – speed control (part 2)

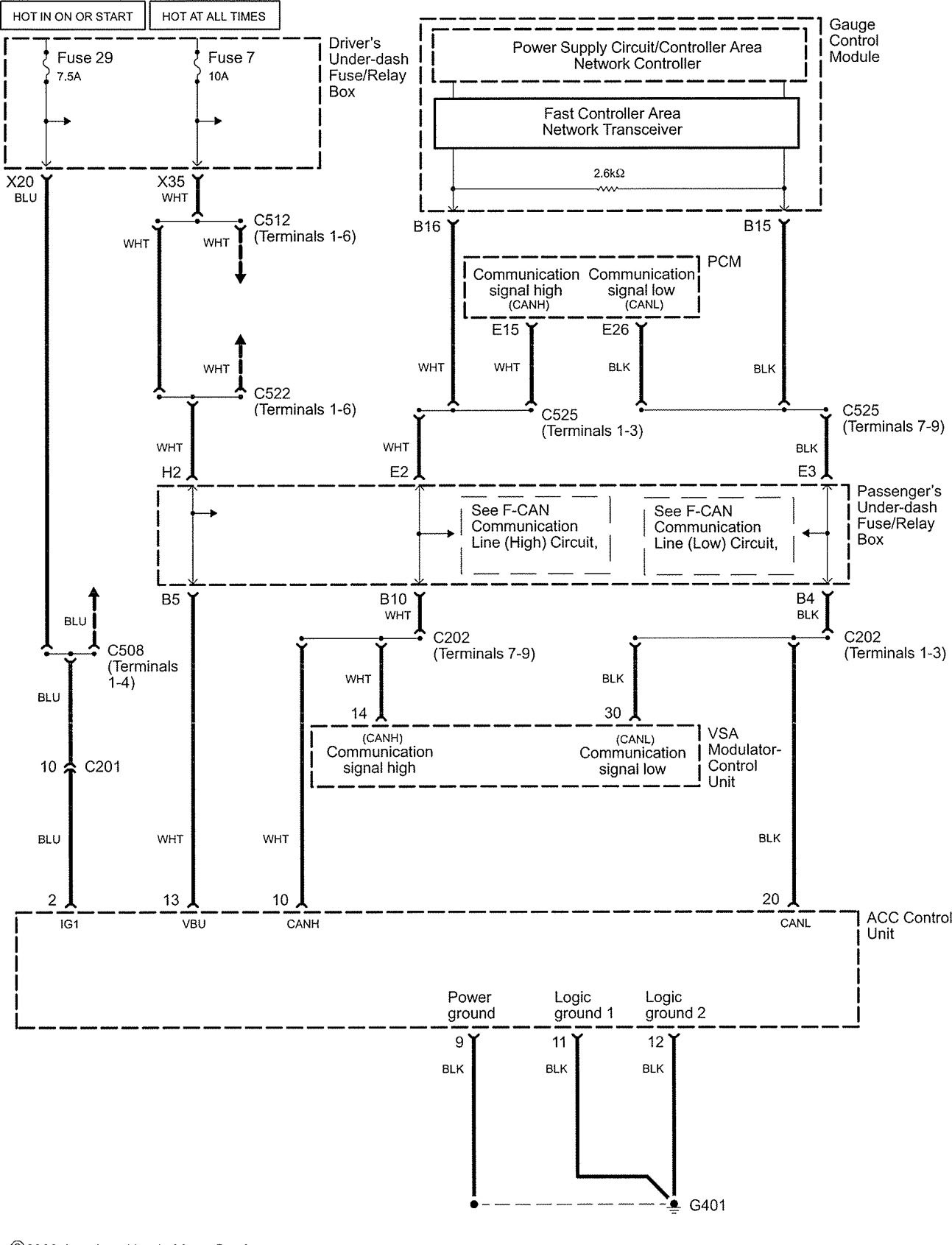

Acura RL - wiring diagram - speed control (part 3) — Acura RL – wiring diagram – speed control (part 3)

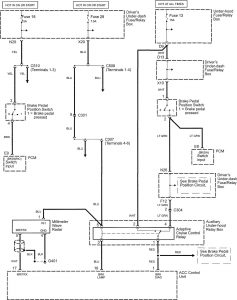

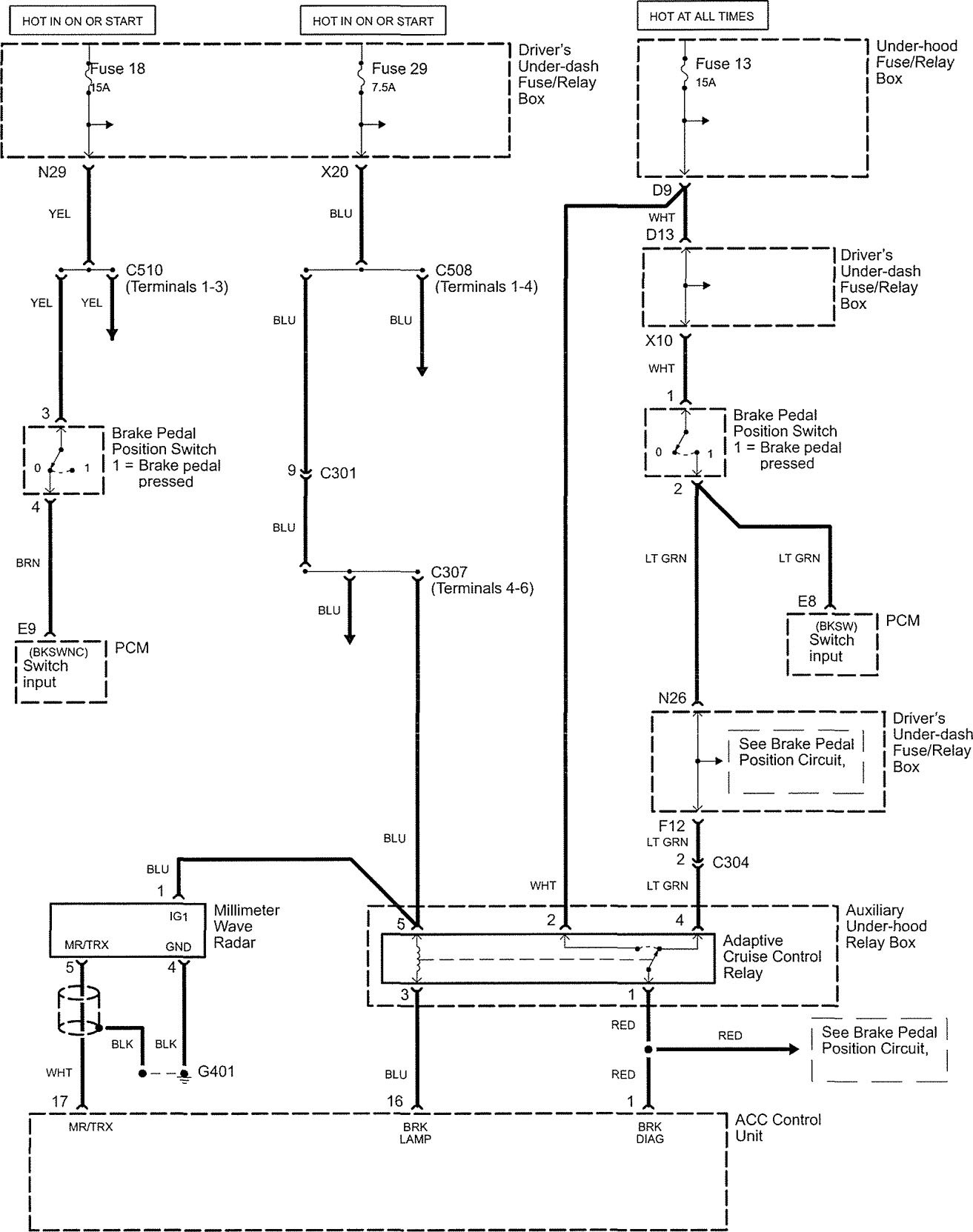

Acura RL - wiring diagram - speed control (part 4) — Acura RL – wiring diagram – speed control (part 4)

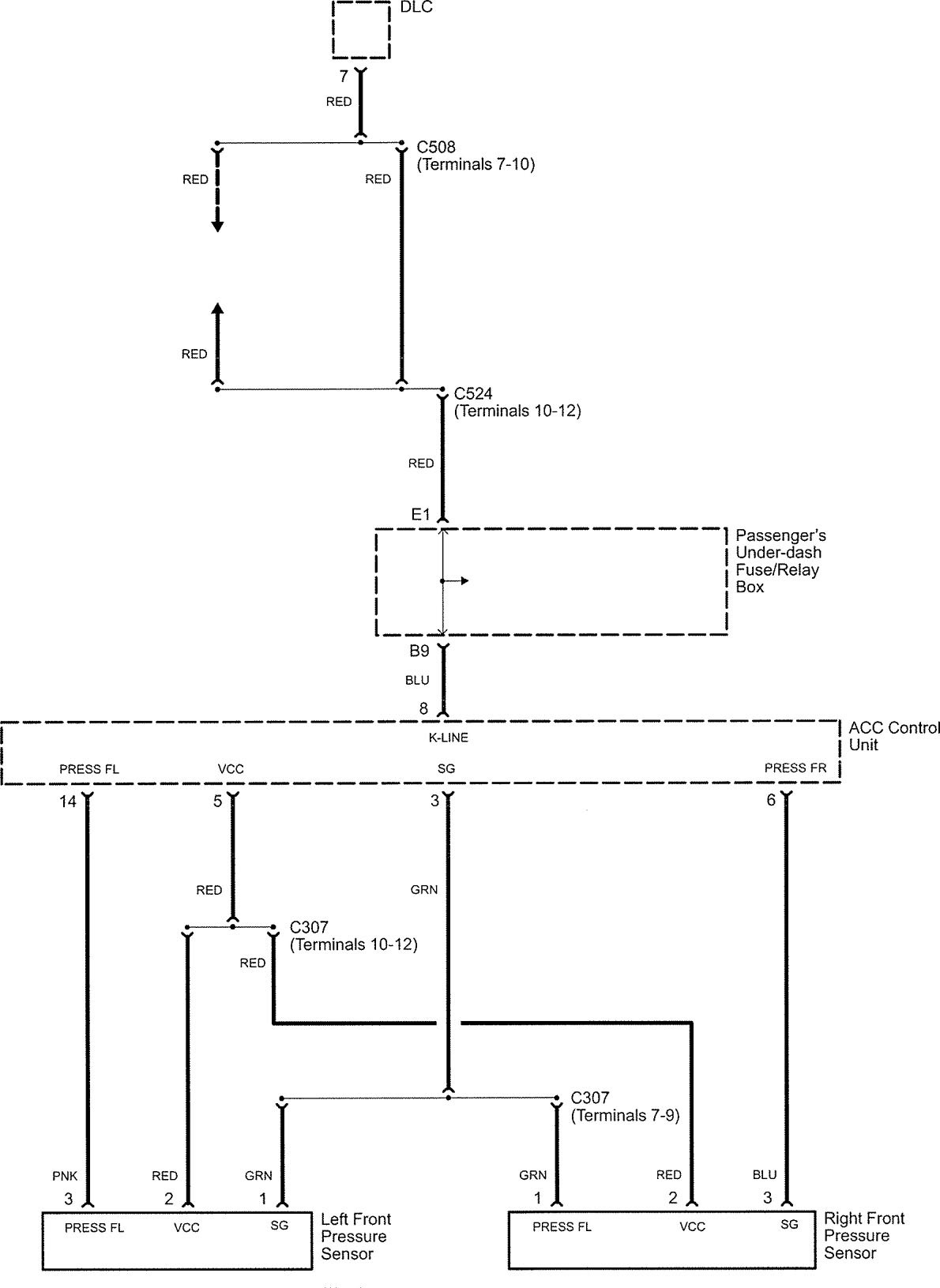

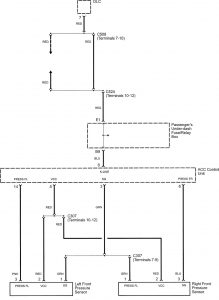

Acura RL - wiring diagram - speed control (part 5) — Acura RL – wiring diagram – speed control (part 5)

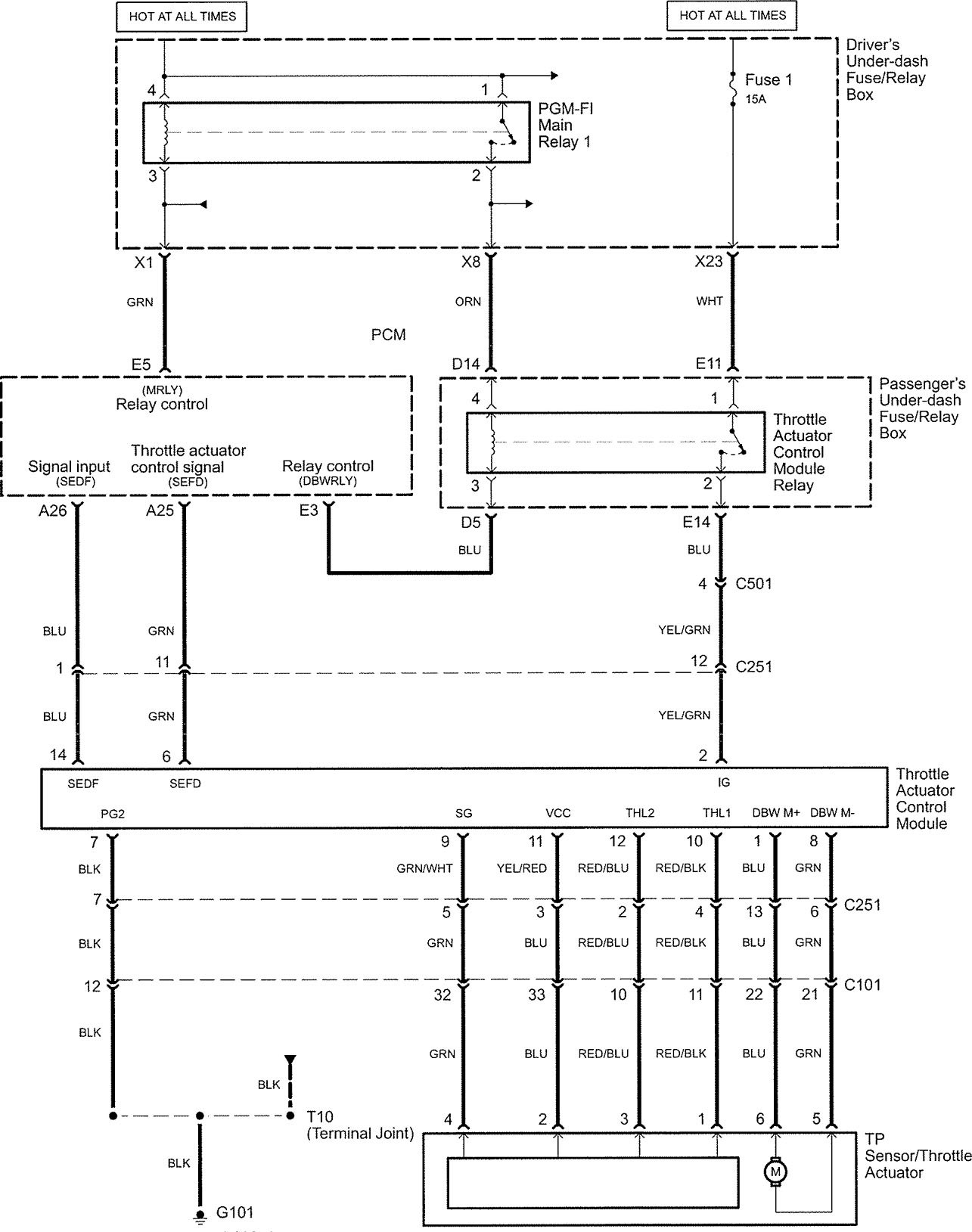

Acura RL - wiring diagram - speed control (part 6) — Acura RL – wiring diagram – speed control (part 6)

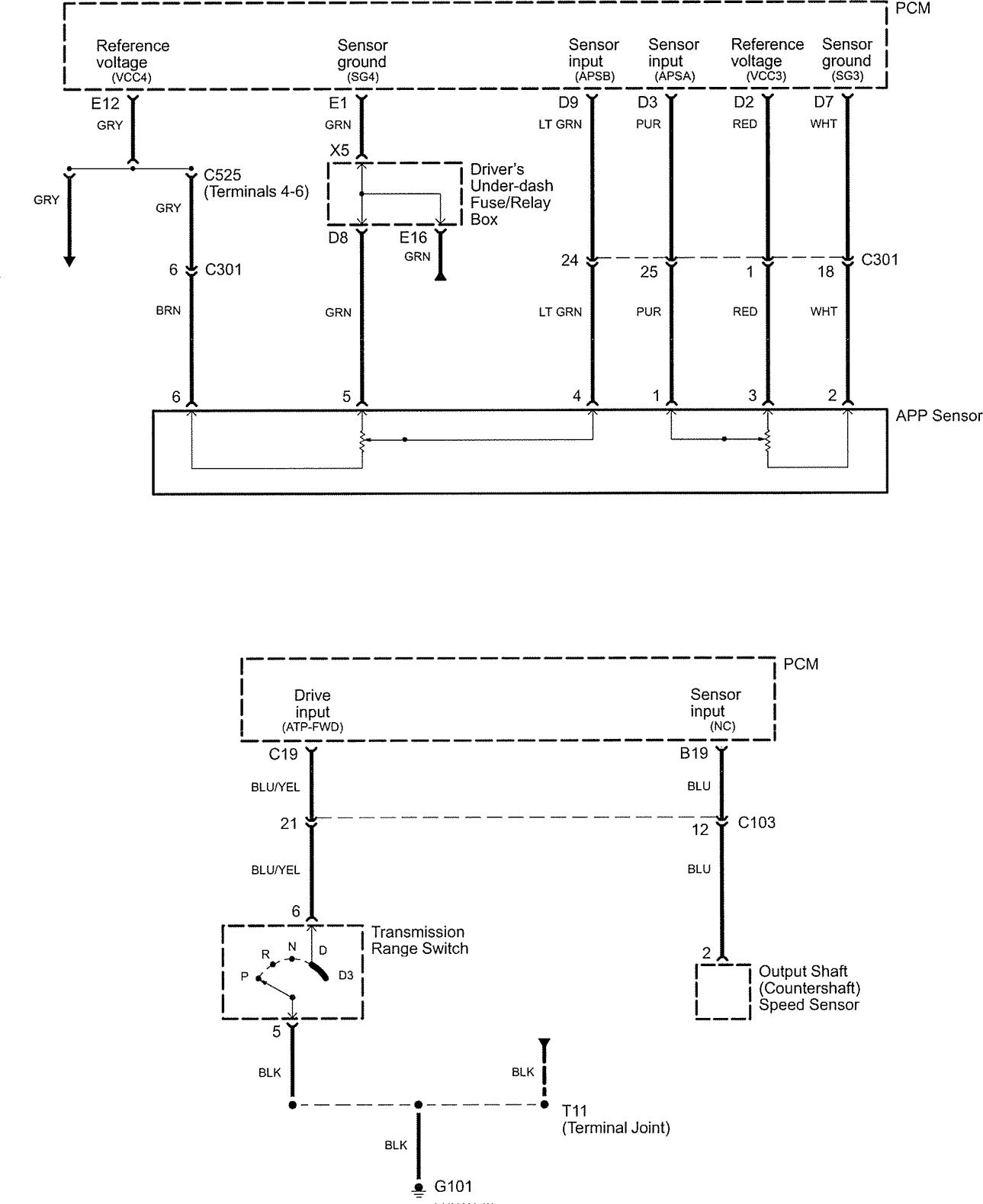

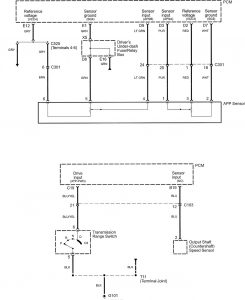

Acura RL - wiring diagram - speed control (part 7) — Acura RL – wiring diagram – speed control (part 7)

Version 3

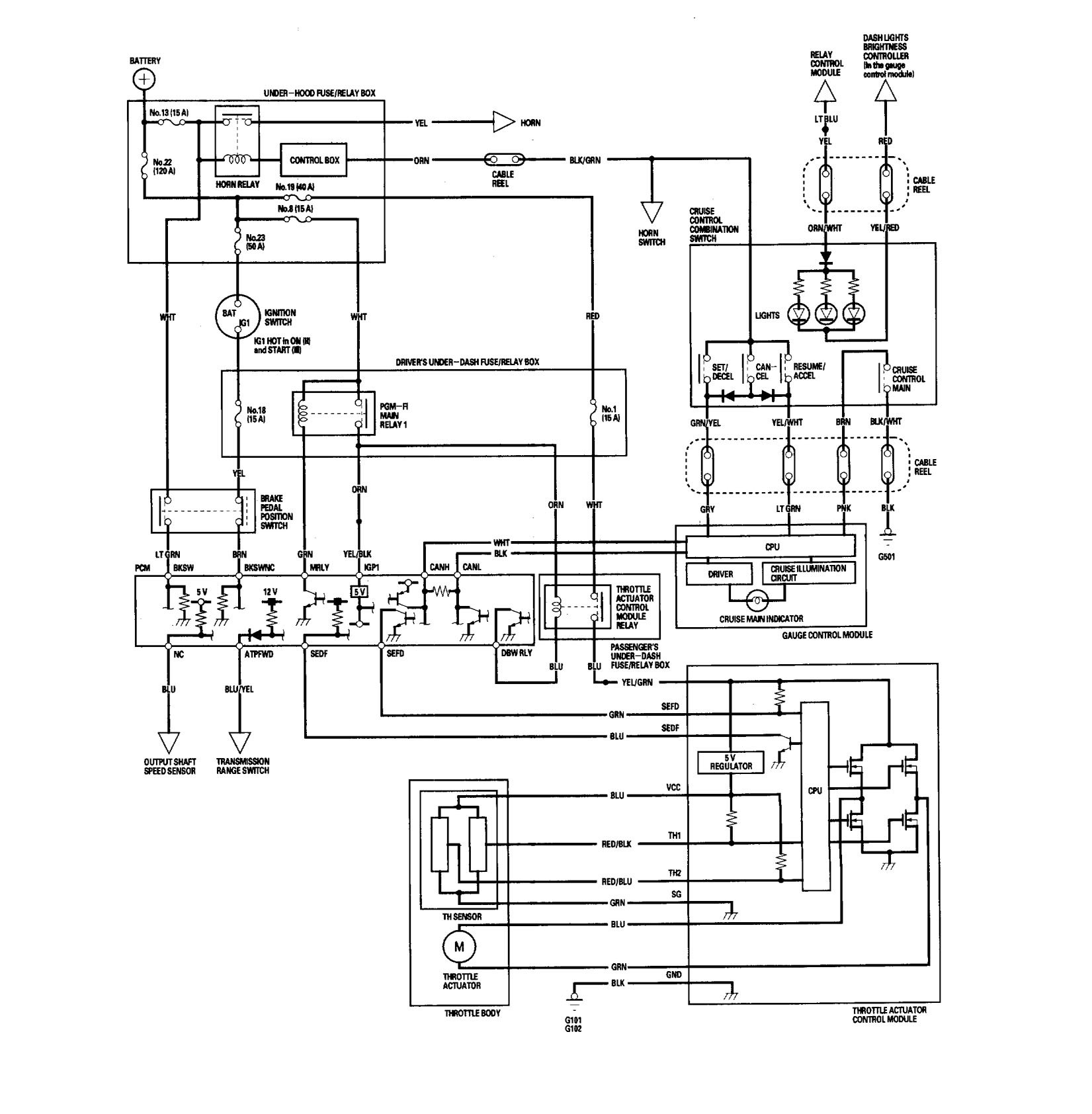

Acura RL - wiring diagram - speed control — Acura RL – wiring diagram – speed control

Version 4

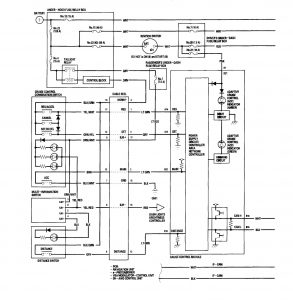

Acura RL - wiring diagram - speed control (part 1) — Acura RL – wiring diagram – speed control (part 1)

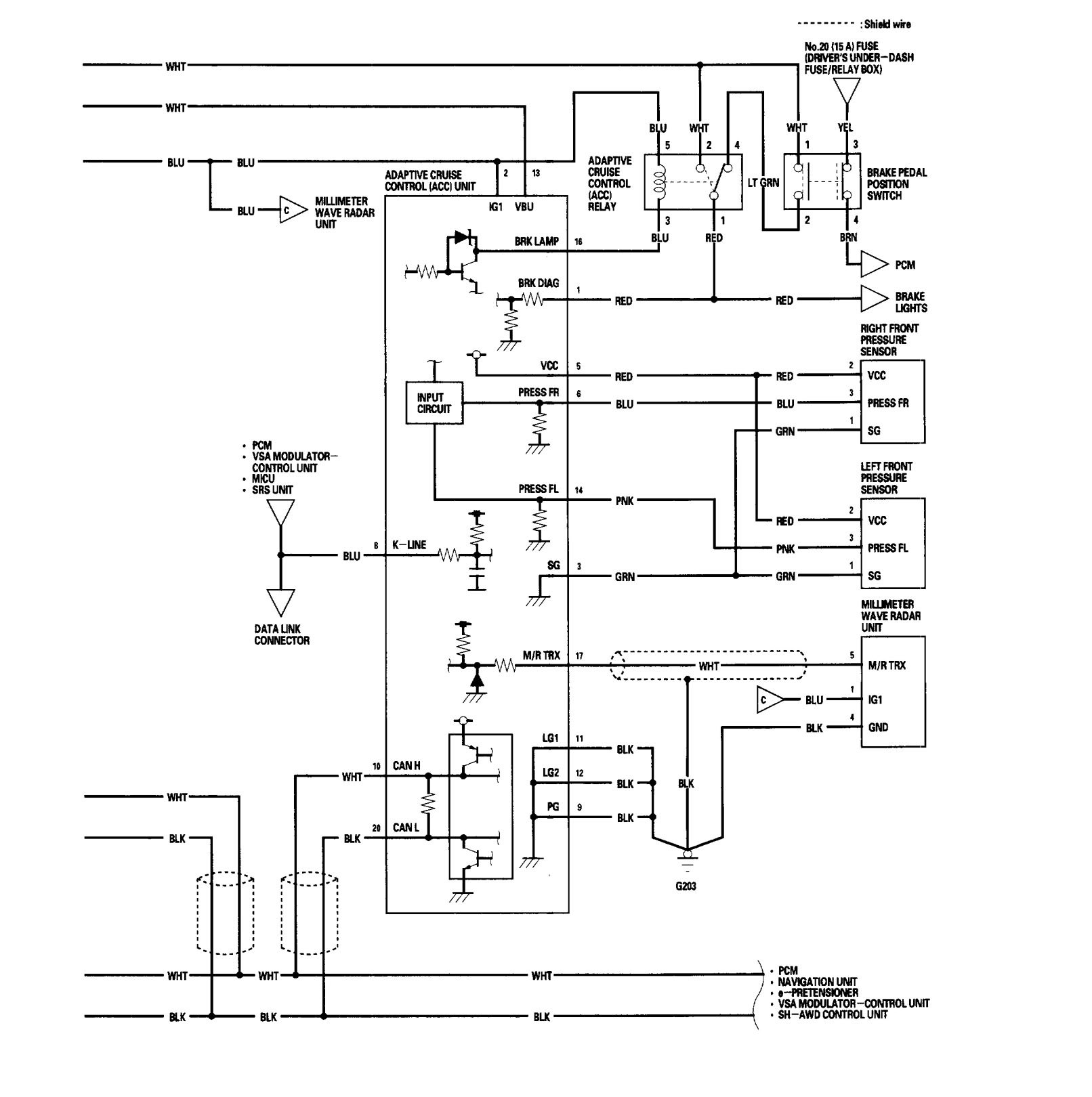

Acura RL - wiring diagram - speed control (part 2) — Acura RL – wiring diagram – speed control (part 2)

Version 5

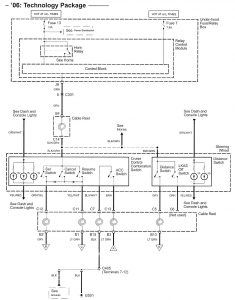

Acura RL - wiring diagram - speed control (part 1) — Acura RL – wiring diagram – speed control (part 1)

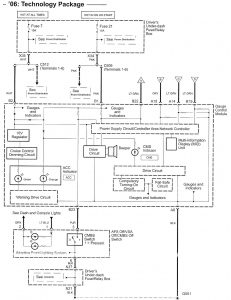

Acura RL - wiring diagram - speed control (part 2) — Acura RL – wiring diagram – speed control (part 2)

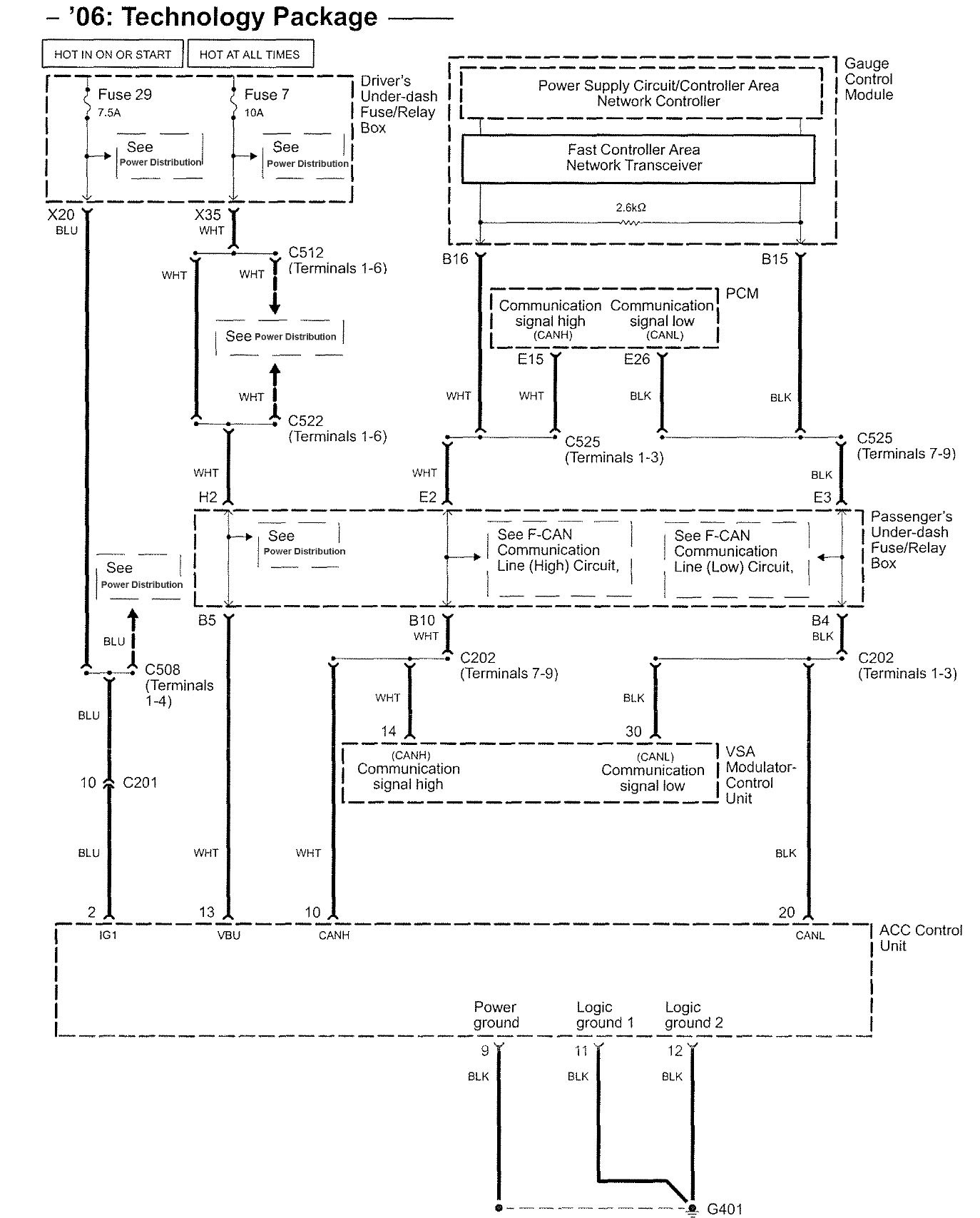

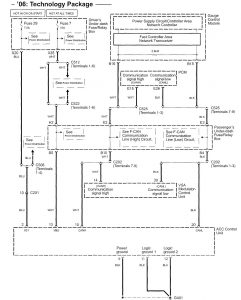

Acura RL - wiring diagram - speed control (part 3) — Acura RL – wiring diagram – speed control (part 3)

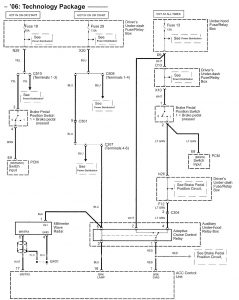

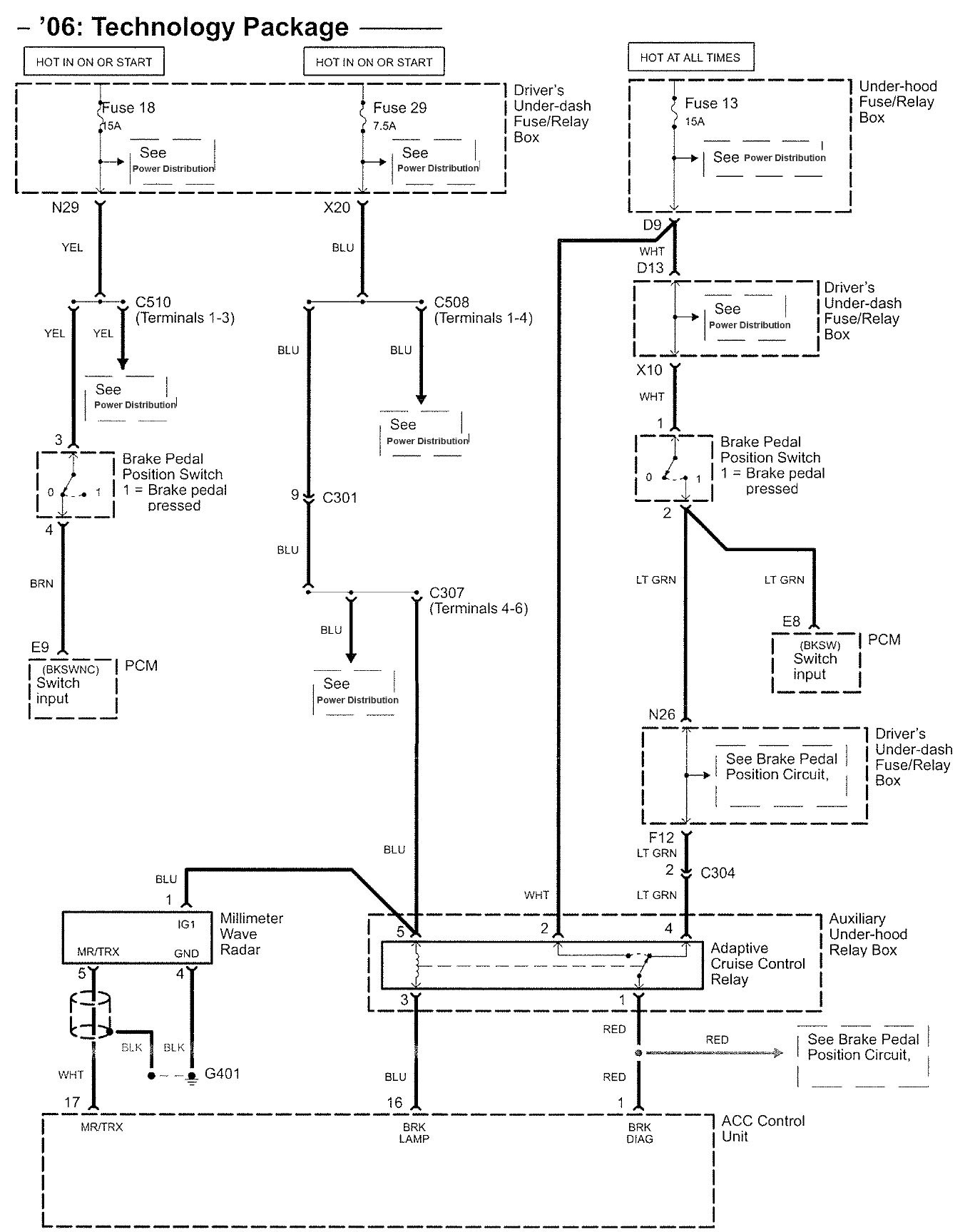

Acura RL - wiring diagram - speed control (part 4) — Acura RL – wiring diagram – speed control (part 4)

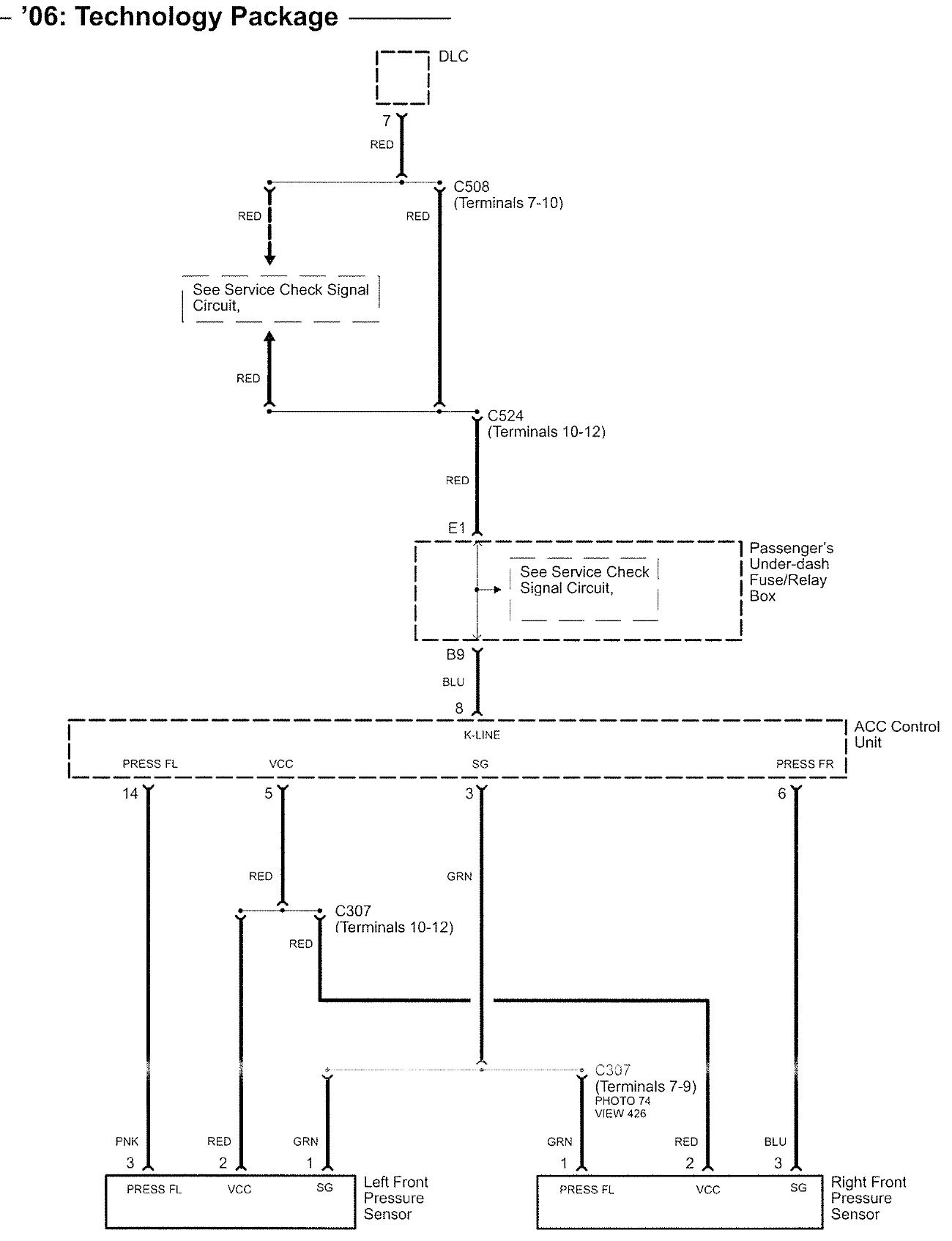

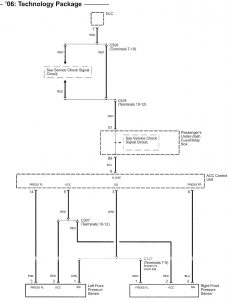

Acura RL - wiring diagram - speed control (part 5) — Acura RL – wiring diagram – speed control (part 5)

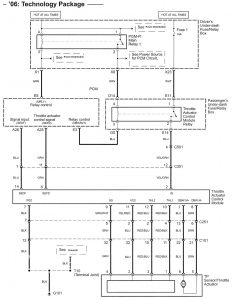

Acura RL - wiring diagram - speed control (part 6) — Acura RL – wiring diagram – speed control (part 6)

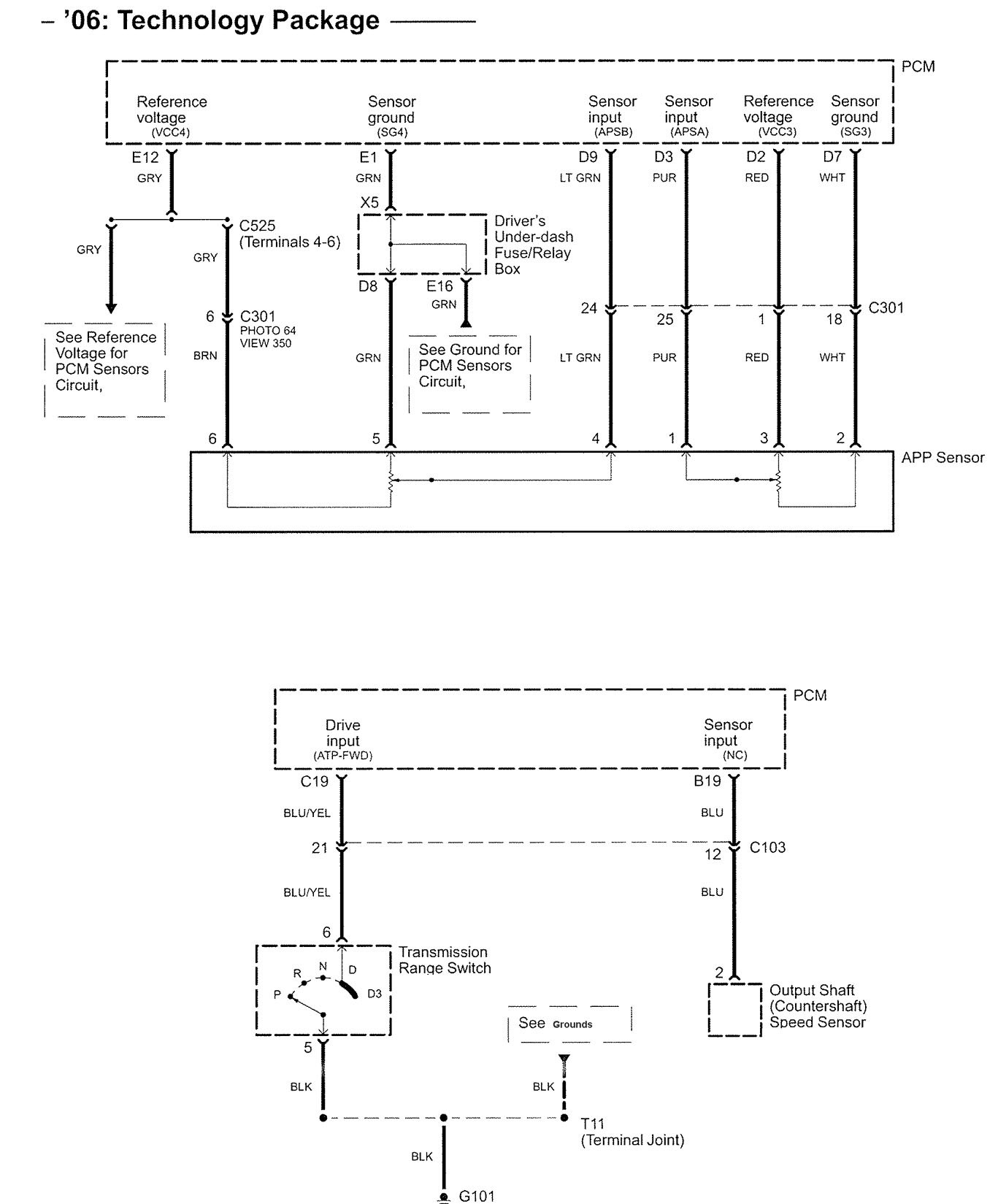

Acura RL - wiring diagram - speed control (part 7) — Acura RL – wiring diagram – speed control (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
