Acura RL (2003 – 2004) – wiring diagrams – horn

Acura RL (2003 – 2004) – wiring diagrams – horn

Year of productions:  2003, 2004

Horn

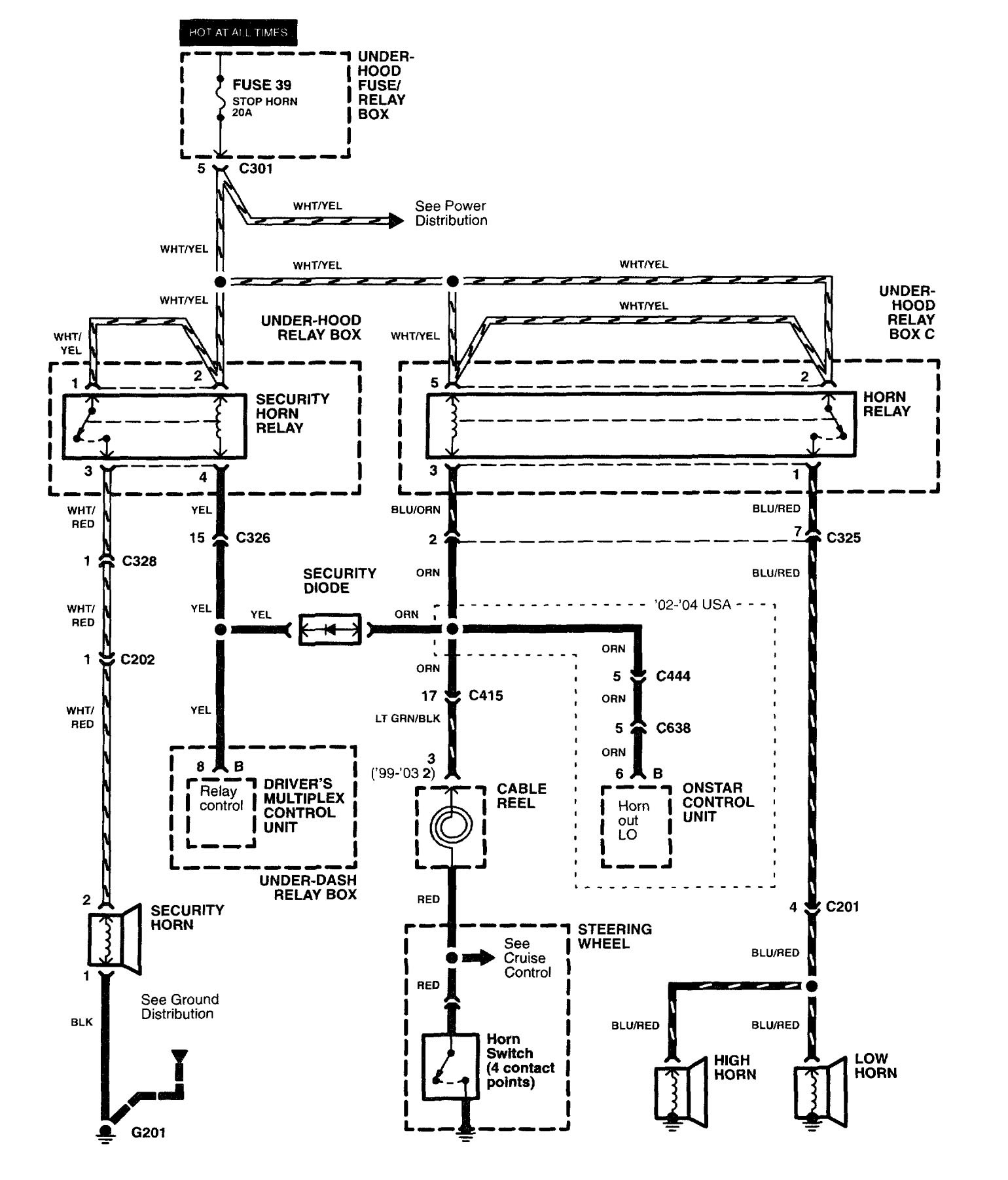

Acura RL - wiring diagram - horn
Acura RL – wiring diagram – horn

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
