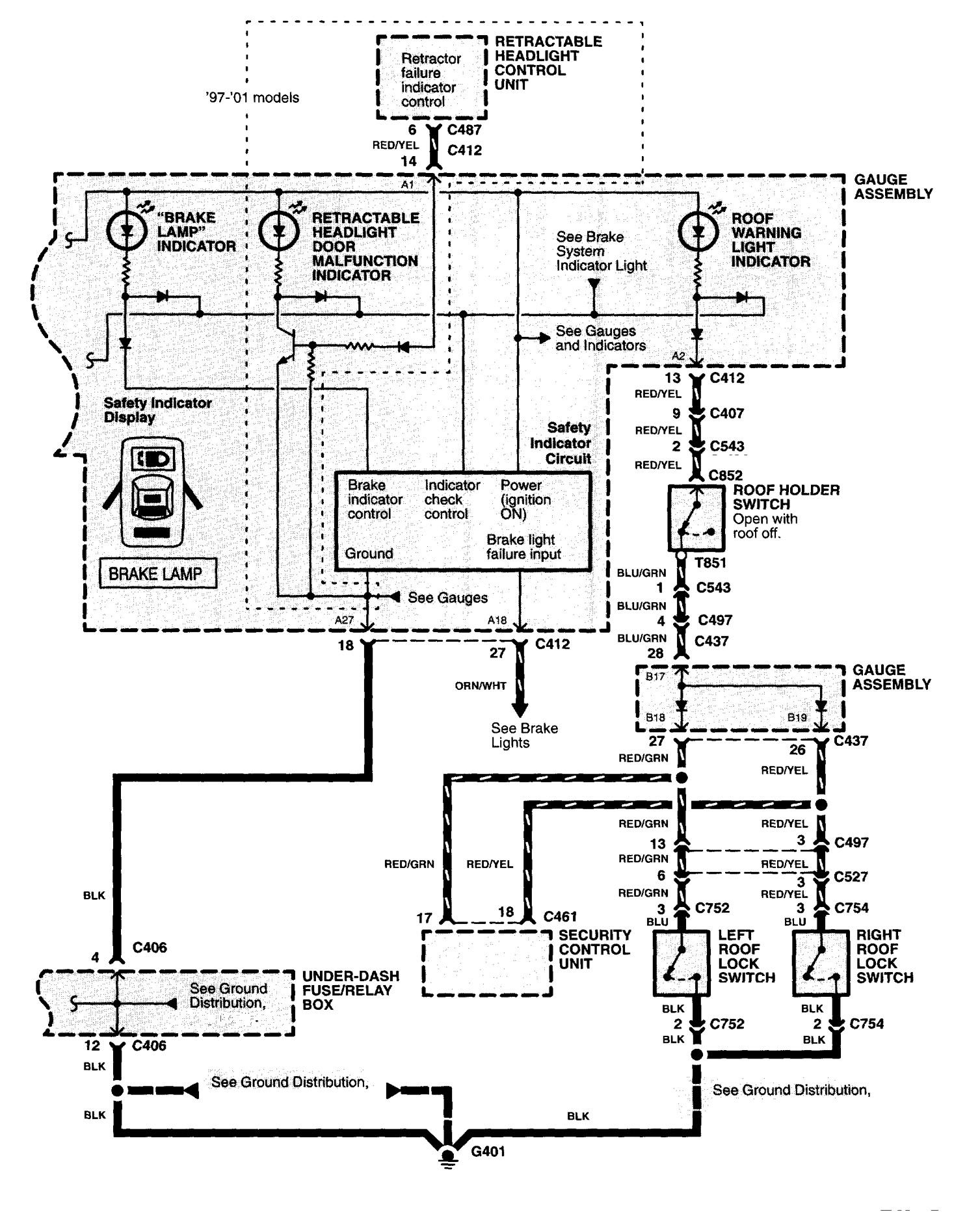

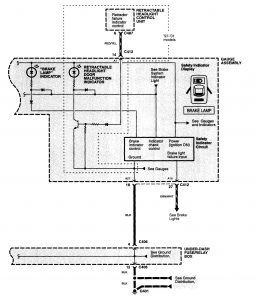

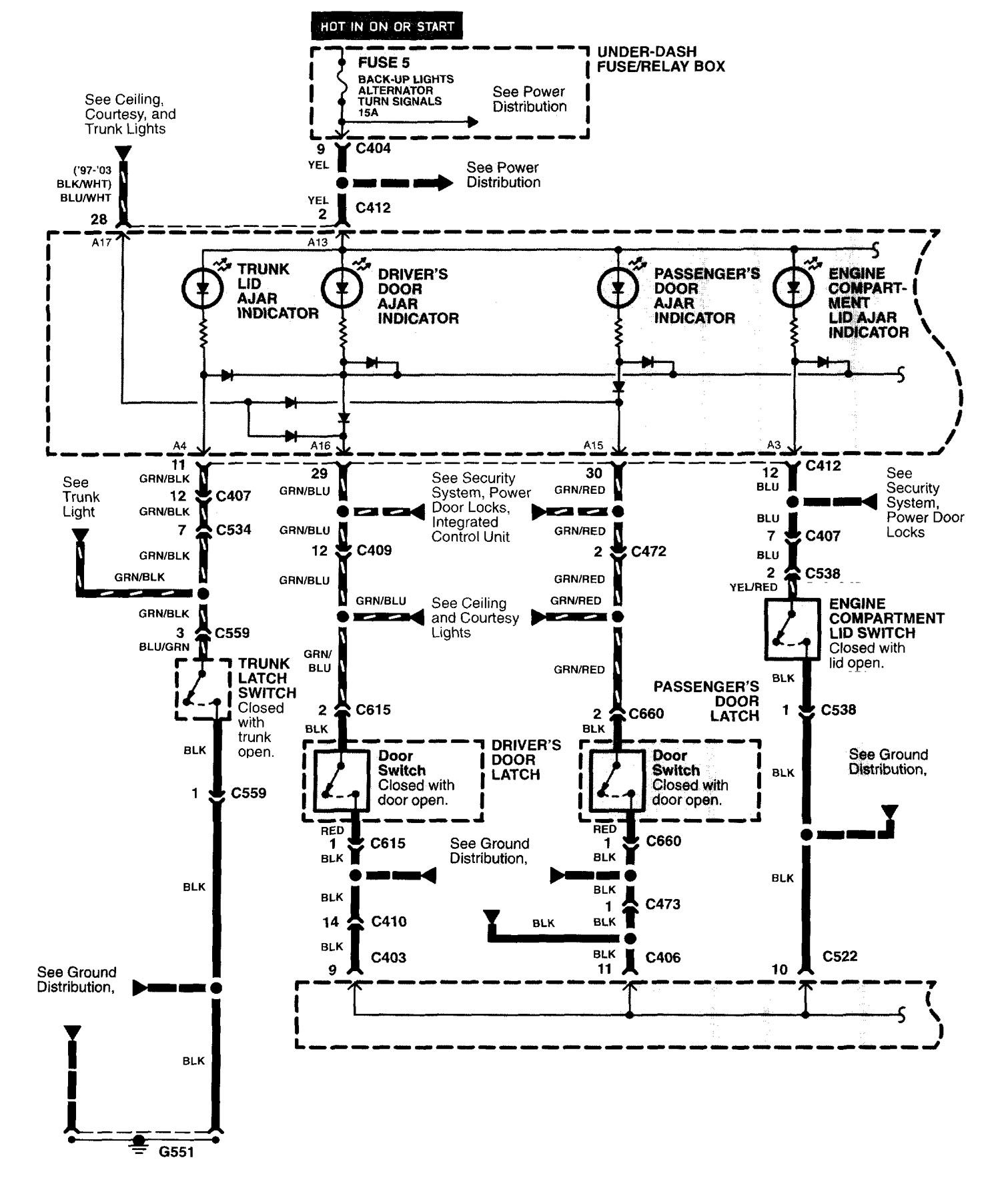

Acura NSX (1997 – 2004) – wiring diagrams – warning indicators

Acura TL (1999) – wiring diagrams – reverse lamp Year of productions:  1999 Reverse lamp WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura Vigor (1994) – wiring diagrams – driver information center/message center Year of productions:  1994 Driver information center/message center WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, […]

Buick Century (1988) – wiring diagrams – audio Year of productions:  1988 Audio Version 1 Version 2 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
