Acura NSX (1997 – 2004) – wiring diagrams – security/anti-theft

21 January 2018 admin Acura, NSX 0

Acura NSX (1997 – 2004) – wiring diagrams – security/anti-theft

Year of productions:  1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

Security/Anti-Theft

Version 1

Acura NSX - wiring diagram - security anti-theft (part 1)
Acura NSX – wiring diagram – security anti-theft (part 1)
Acura NSX - wiring diagram - security anti-theft (part 2)
Acura NSX – wiring diagram – security anti-theft (part 2)

Version 2

Acura NSX - wiring diagram - security anti-theft (part 1)
Acura NSX – wiring diagram – security anti-theft (part 1)
Acura NSX - wiring diagram - security anti-theft (part 2)
Acura NSX – wiring diagram – security anti-theft (part 2)
Acura NSX - wiring diagram - security anti-theft (part 3)
Acura NSX – wiring diagram – security anti-theft (part 3)

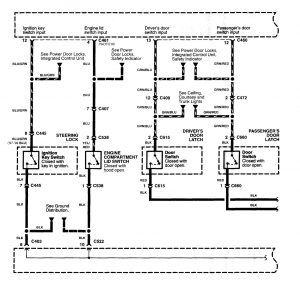

Acura NSX - wiring diagram - security anti-theft (part 4)
Acura NSX – wiring diagram – security anti-theft (part 4)
Acura NSX - wiring diagram - security anti-theft (part 5)
Acura NSX – wiring diagram – security anti-theft (part 5)
Acura NSX - wiring diagram - security anti-theft (part 6)
Acura NSX – wiring diagram – security anti-theft (part 6)
Acura NSX - wiring diagram - security anti-theft (part 7)
Acura NSX – wiring diagram – security anti-theft (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
