Acura Legend (1991 – 1993) – wiring diagrams – luggage compartment lamps

Acura Legend (1991 – 1993) – wiring diagrams – luggage compartment lamps

Year of productions: 1991, 1992, 1993

Luggage compartment lamps

Version 1

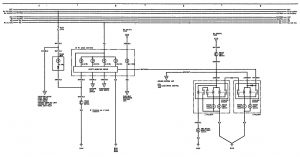

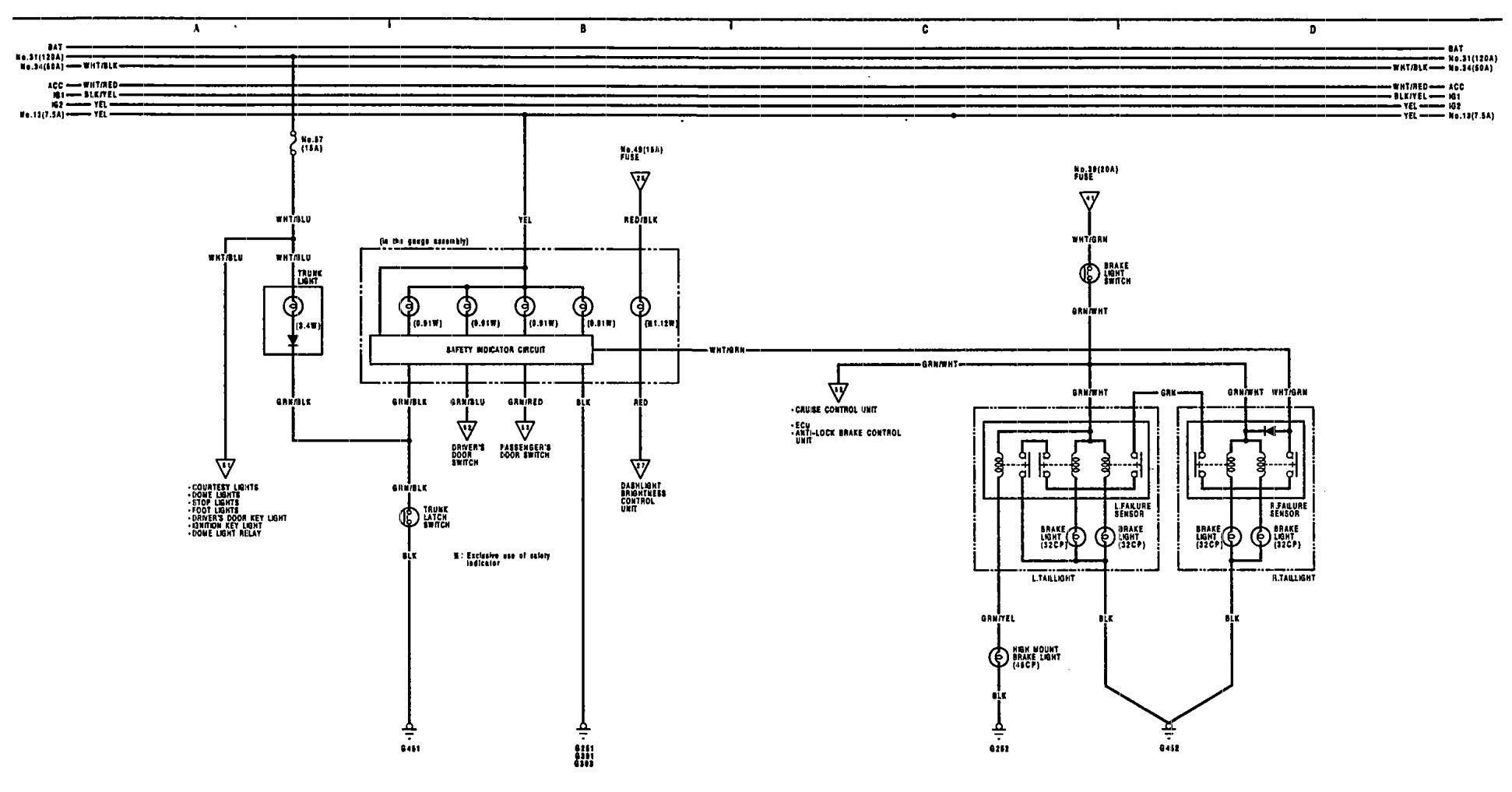

Acura Legend – wiring diagram – luggage compartment lamps

Version 2

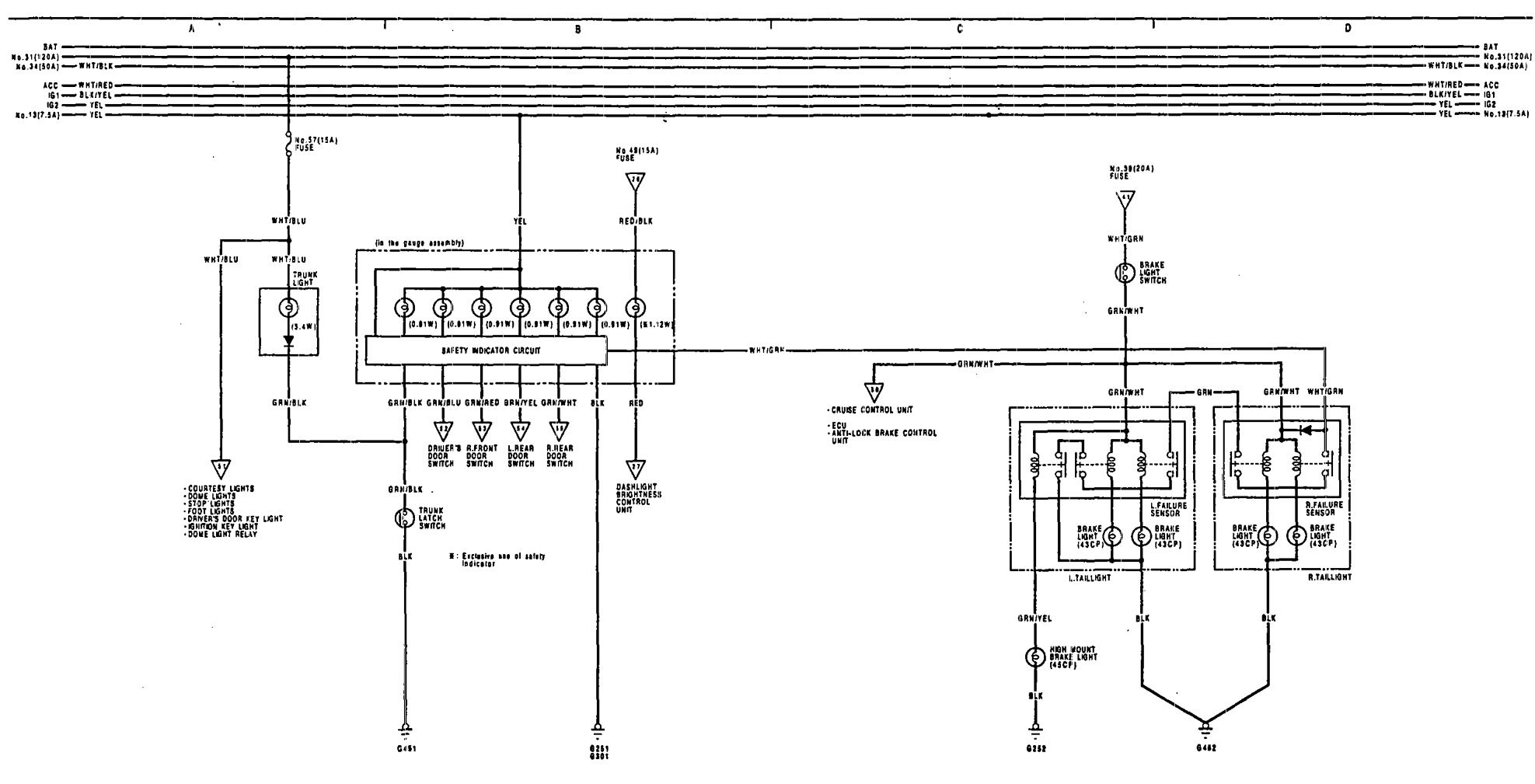

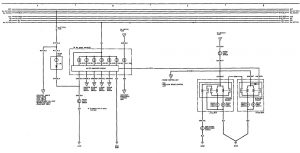

Acura Legend – wiring diagram – luggage compartment lamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
