Acura Integra (1998 – 1999) – wiring diagrams – brake warning system

Acura Integra (1998 – 1999) – wiring diagrams – brake warning system

Year of productions: 1998, 1999

Brake warning system

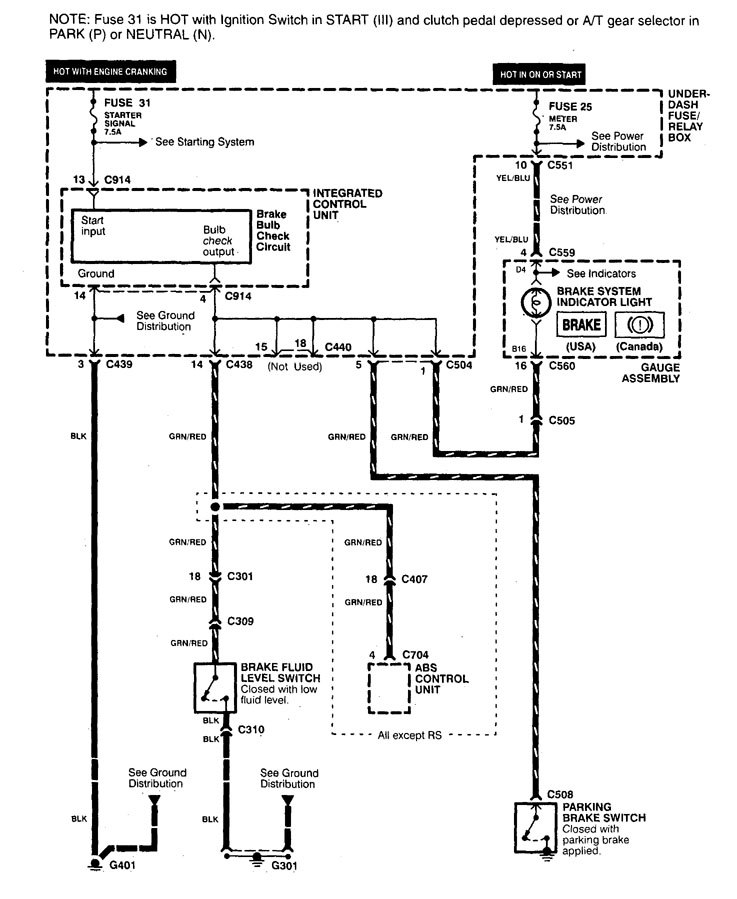

Acura Integra - wiring diagram - brake warning system

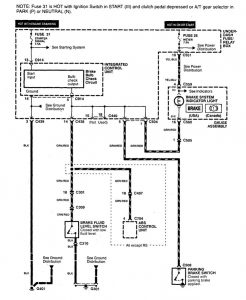

Acura Integra – wiring diagram – brake warning system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
