Acura Integra (1996) – wiring diagrams – power distribution

Acura Integra (1996) – wiring diagrams – power distribution

Year of productions: 1996

Power distribution

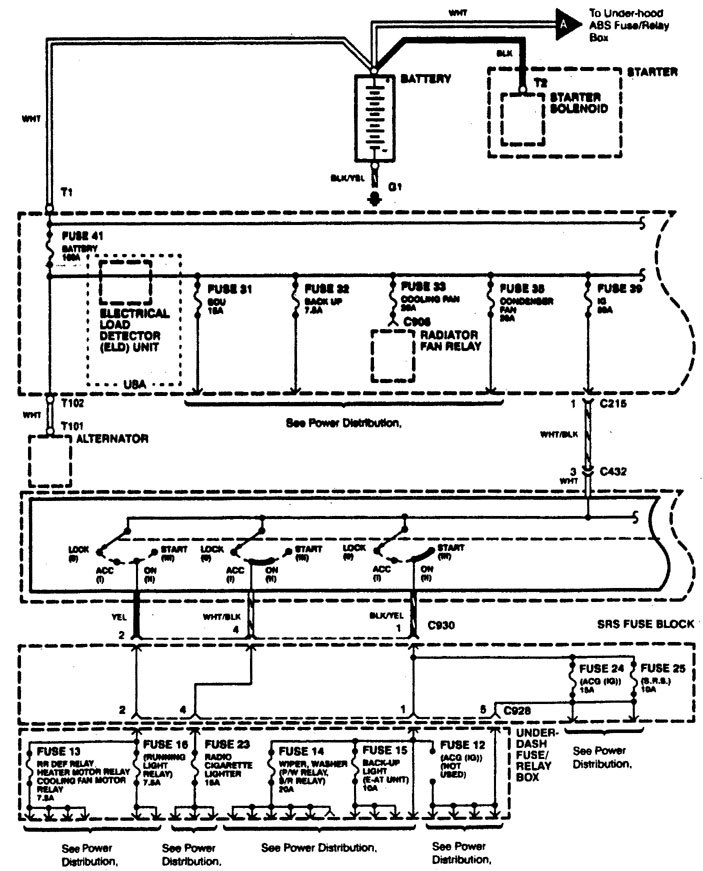

Acura Integra – wiring diagram – power distribution (part 1)
Acura Integra – wiring diagram – power distribution (part 2)

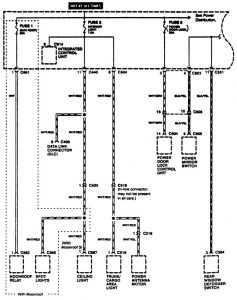

Acura Integra – wiring diagram – power distribution (part 3)

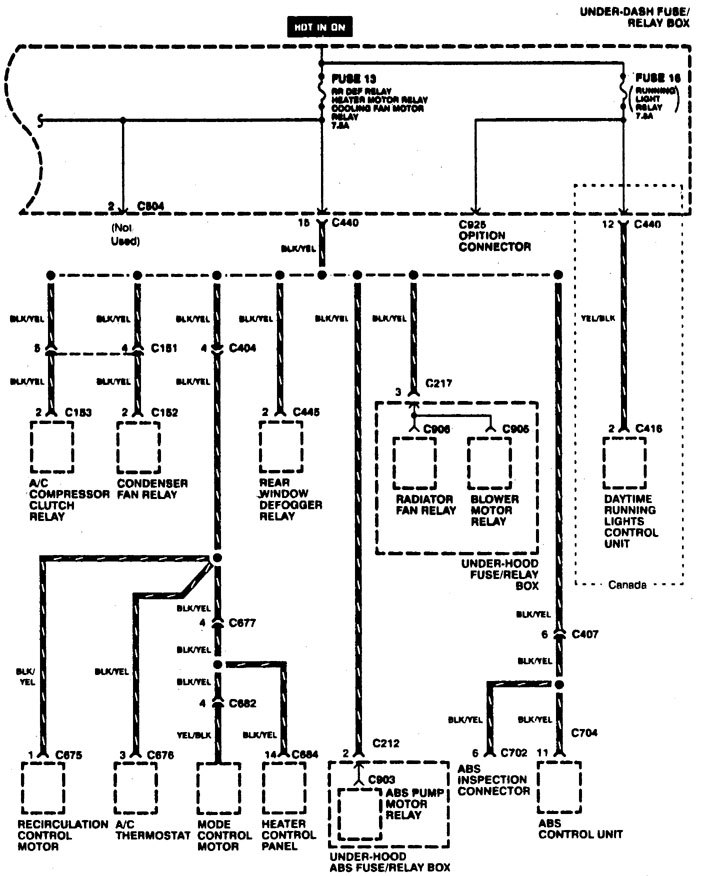

Acura Integra – wiring diagram – power distribution (part 4)

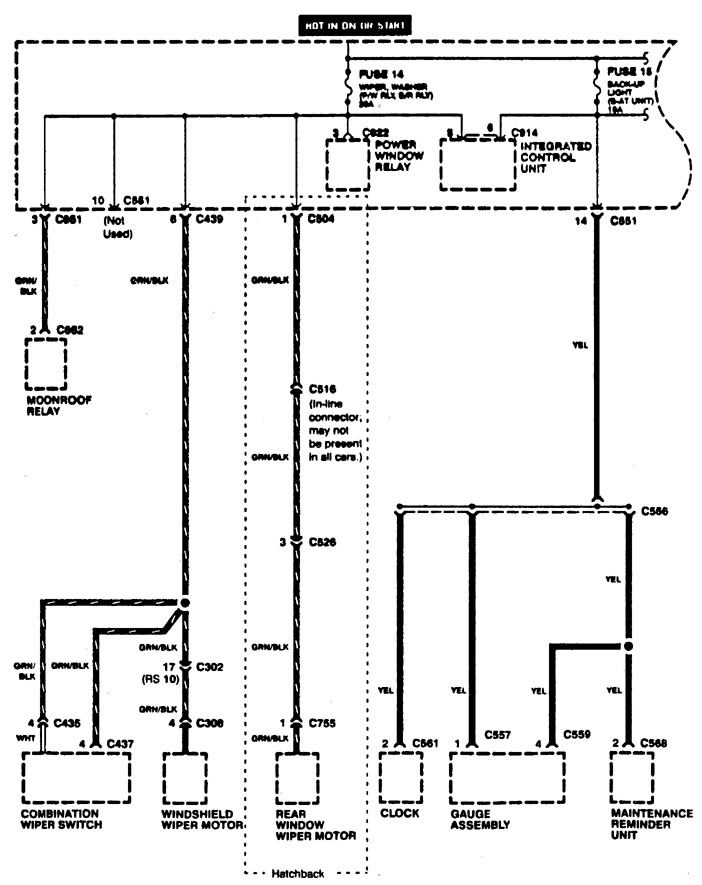

Acura Integra – wiring diagram – power distribution (part 5)

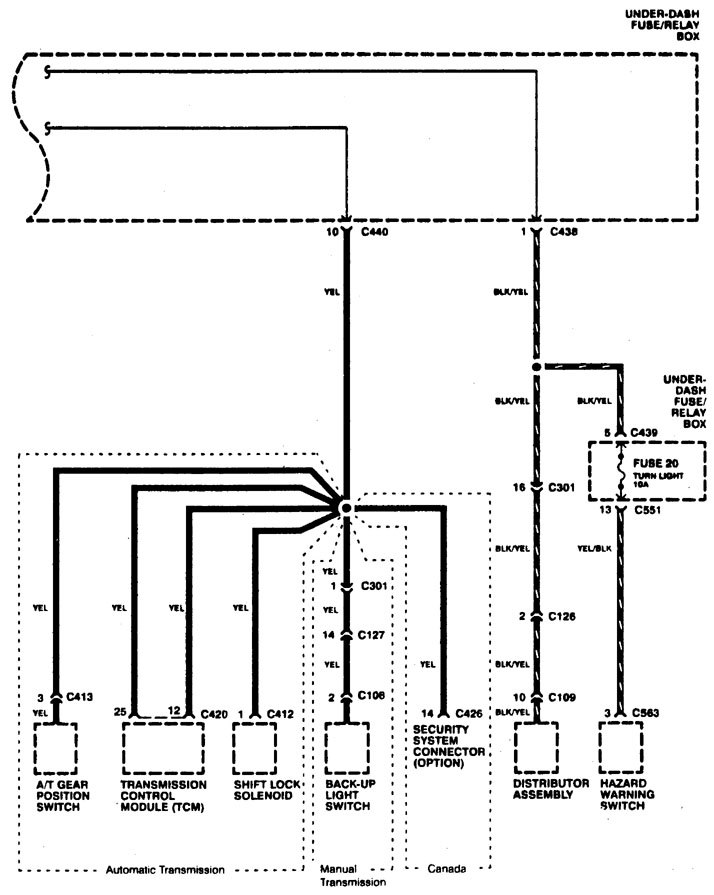

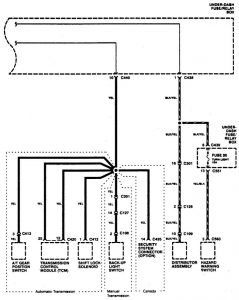

Acura Integra – wiring diagram – power distribution (part 6)

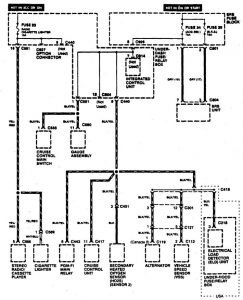

Acura Integra – wiring diagram – power distribution (part 7)

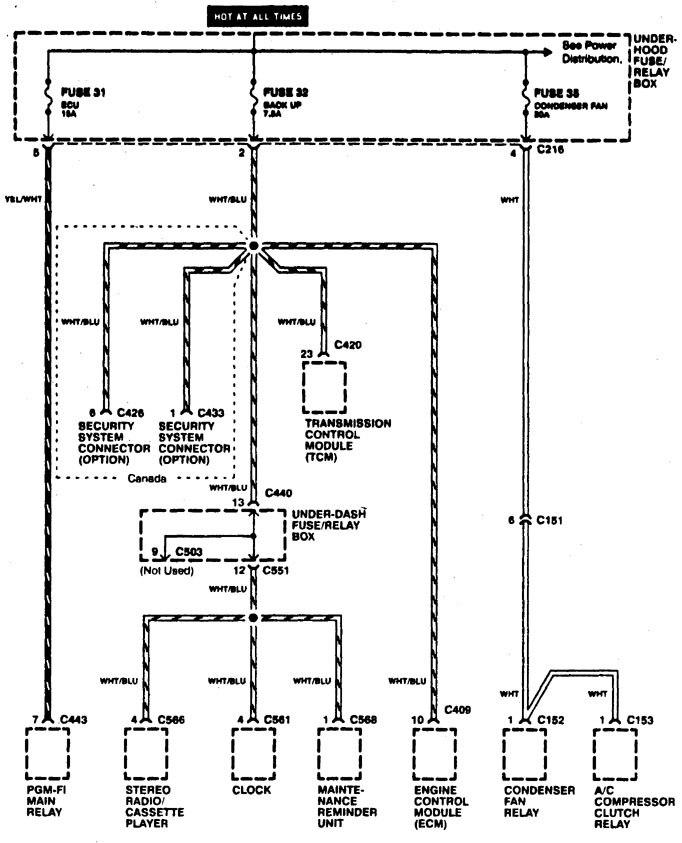

Acura Integra – wiring diagram – power distribution (part 8)

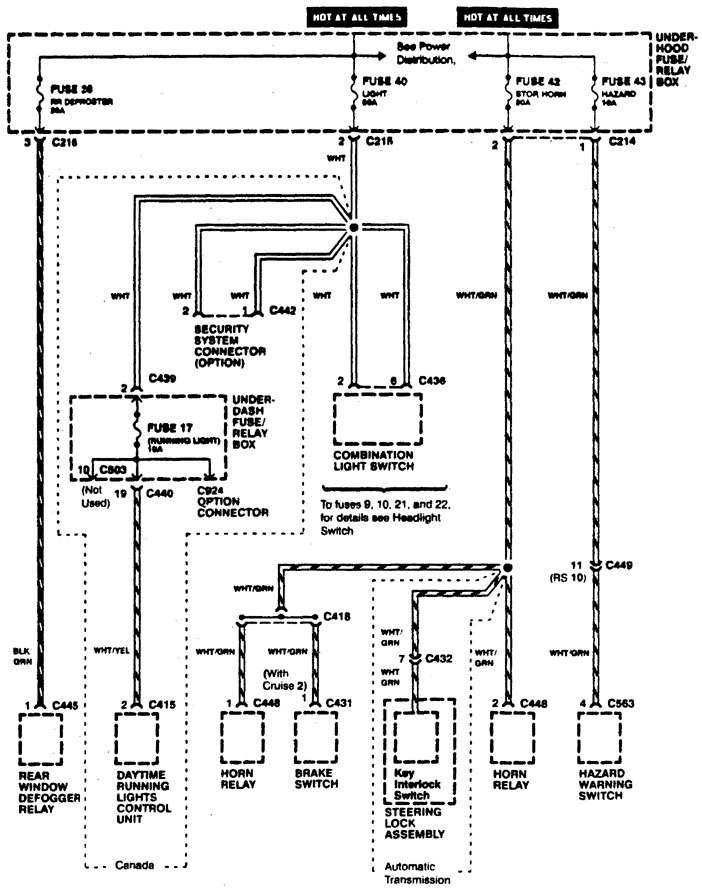

Acura Integra – wiring diagram – power distribution (part 9)

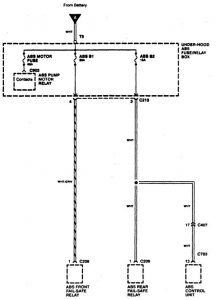

Acura Integra – wiring diagram – power distribution (part 10)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
