Acura Integra (1995 – 1997) – wiring diagrams – brake controls

Acura Integra (1995 – 1997) – wiring diagrams – brake controls

Year of productions: 1995, 1996, 1997

Brake controls

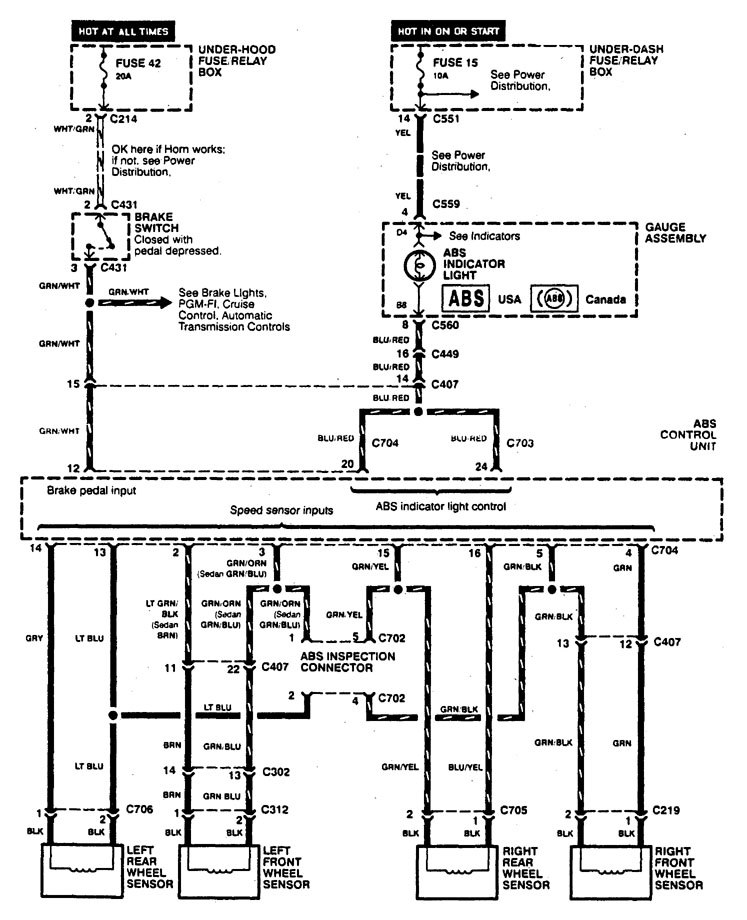

Acura Integra – wiring diagram – brake controls (part 1)

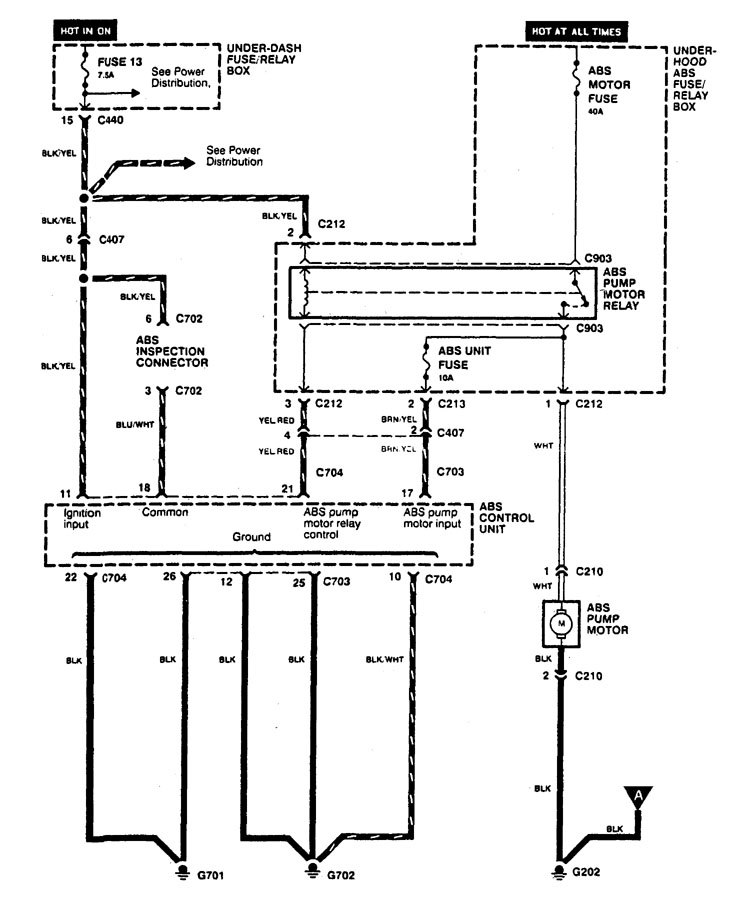

Acura Integra – wiring diagram – brake controls (part 2)

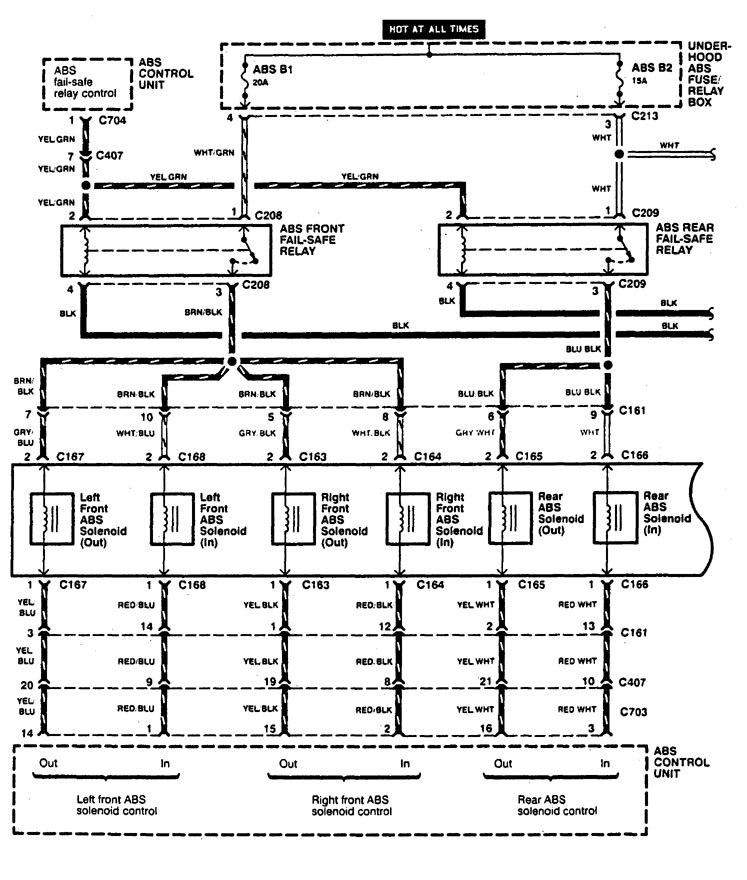

Acura Integra – wiring diagram – brake controls (part 3)

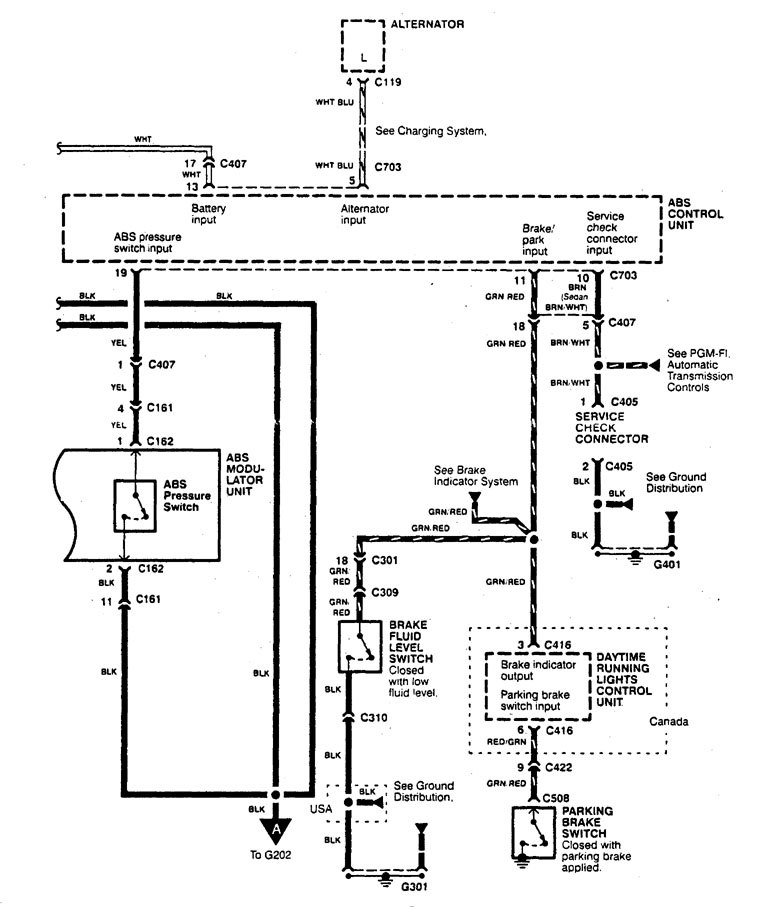

Acura Integra – wiring diagram – brake controls (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
