Acura Integra (1994 – 1997) – wiring diagrams – speed control

Acura Integra (1994 – 1997) – wiring diagrams – speed control

Year of productions: 1994, 1995, 1996, 1997

Speed control

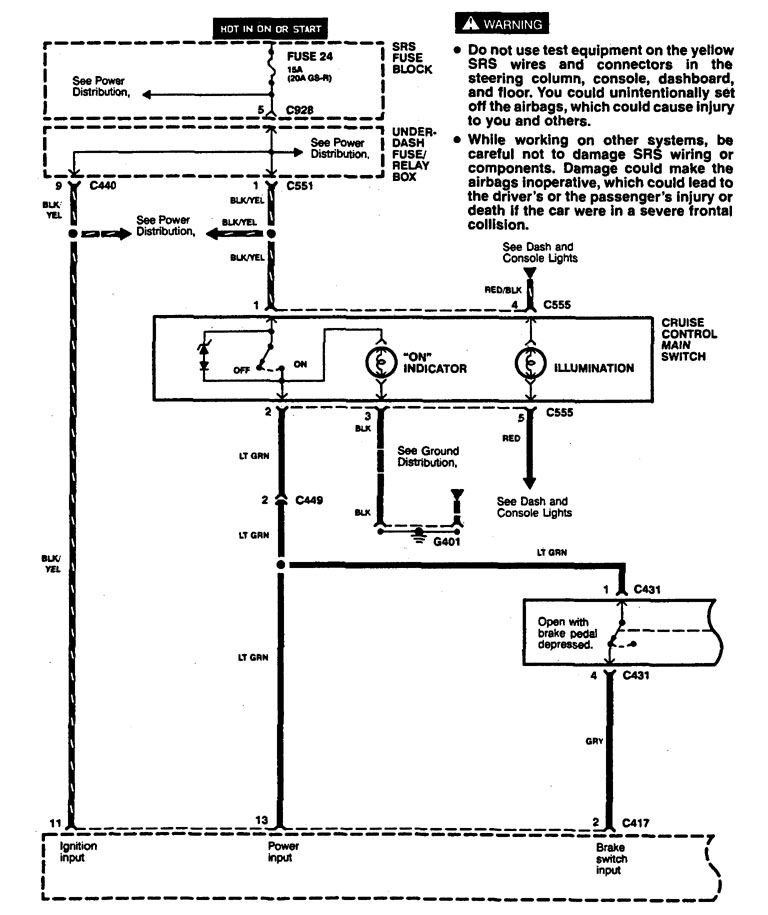

Acura Integra – wiring diagram – speed control (part 1)

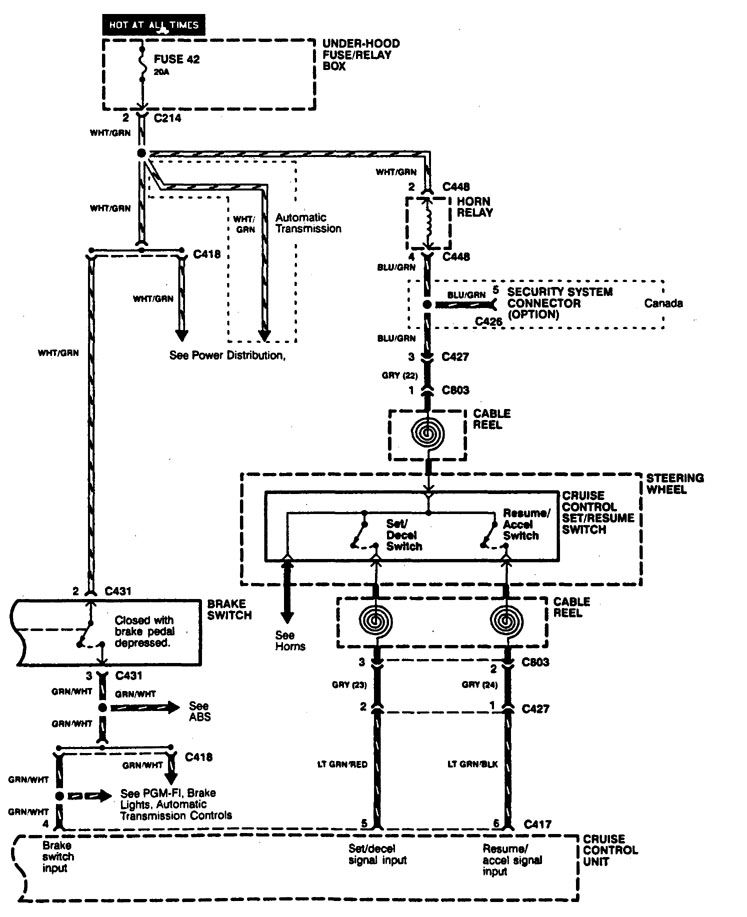

Acura Integra – wiring diagram – speed control (part 2)

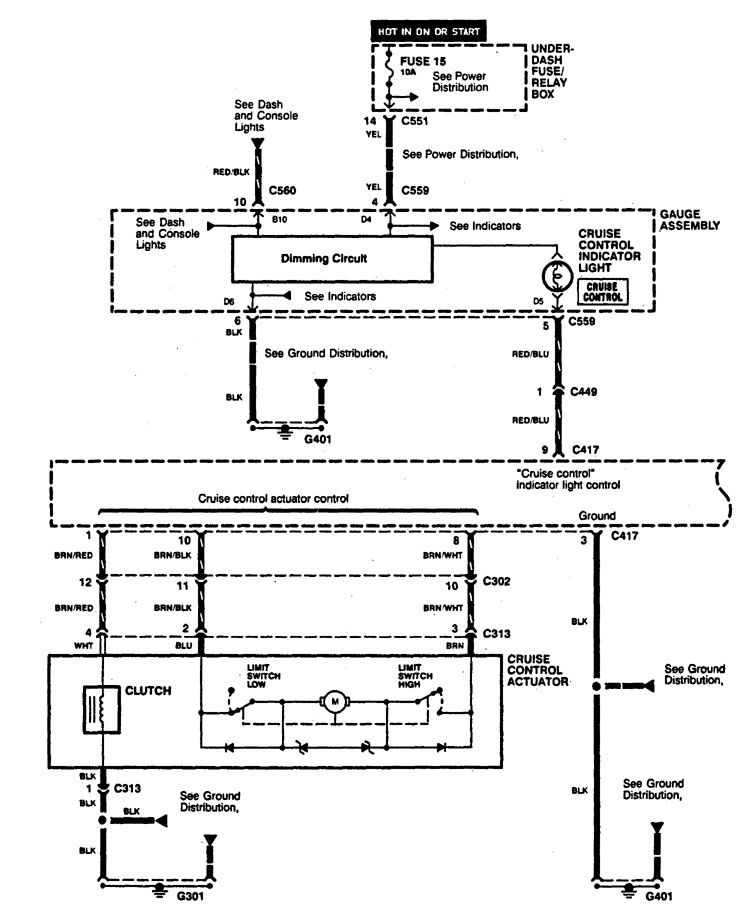

Acura Integra – wiring diagram – speed control (part 3)

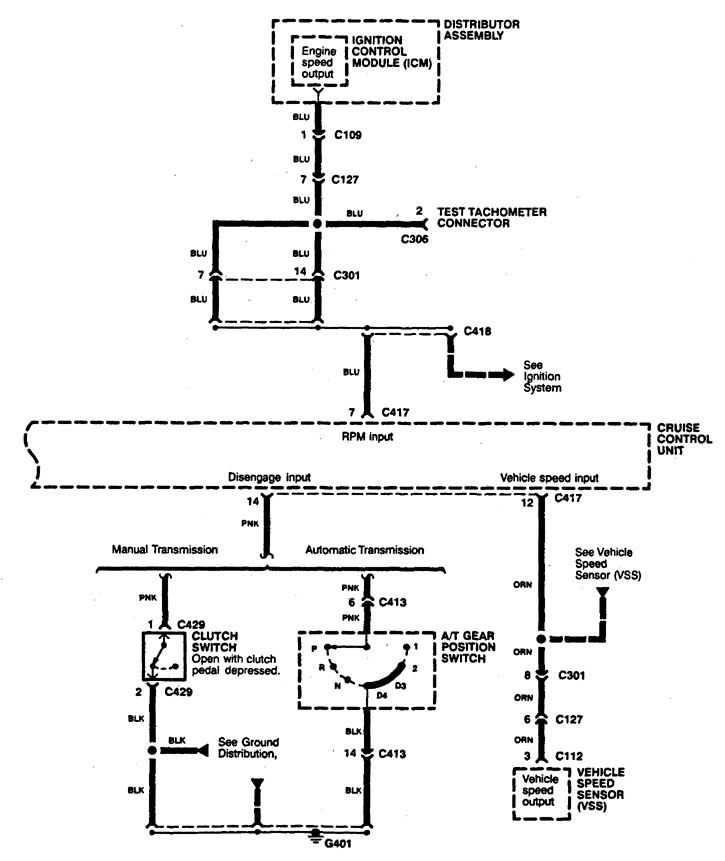

Acura Integra – wiring diagram – speed control (part 4)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
