Acura Integra (1993) – wiring diagrams – luggage compartment lamps

Acura Integra (1993) – wiring diagrams – luggage compartment lamps

Year of productions: 1993

Luggage compartment lamps

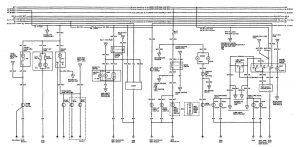

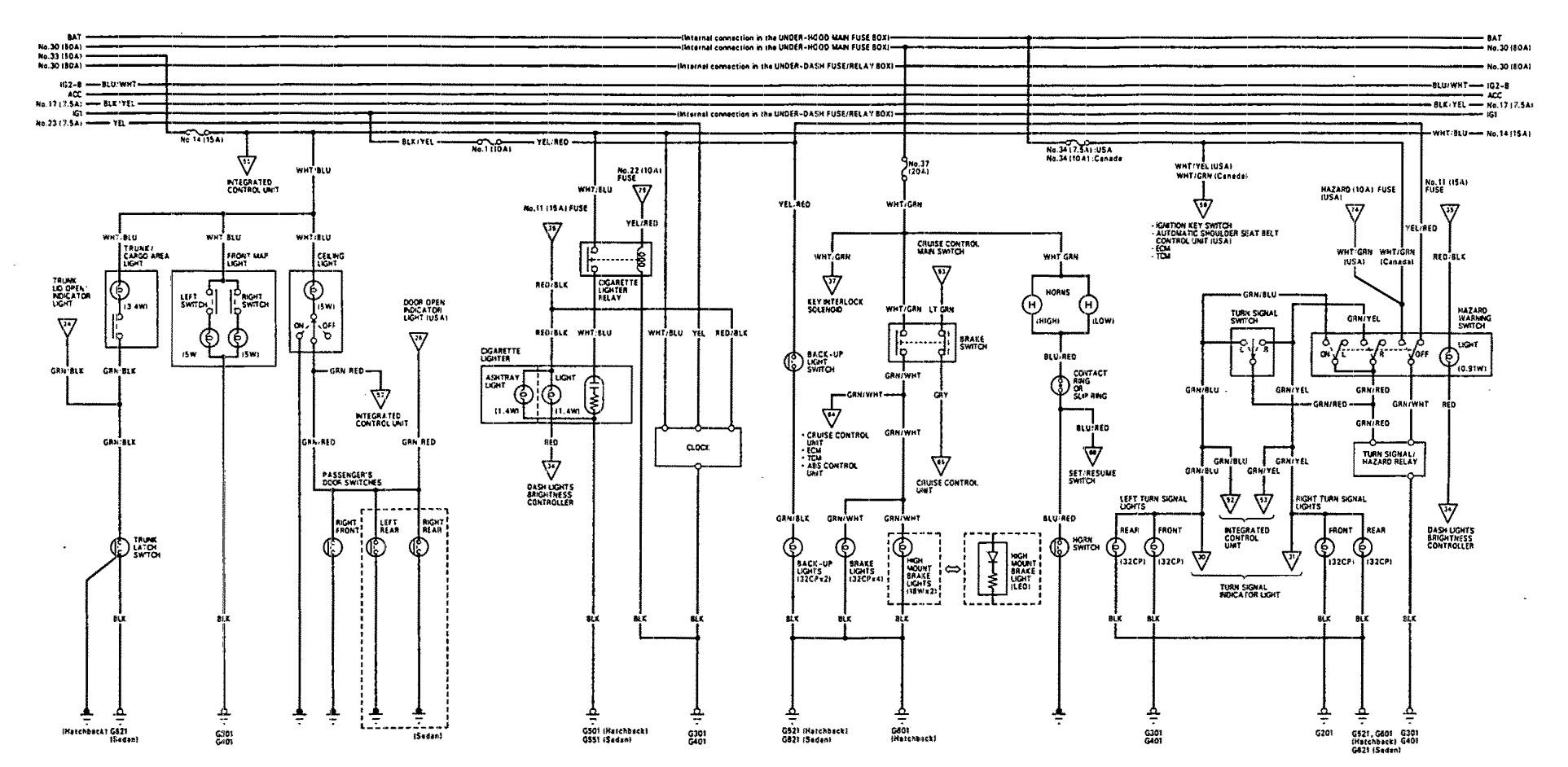

Acura Integra – wiring diagram – luggage compartment lamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
