Acura Integra (1990) – wiring diagrams – transmission control

Acura Integra (1990) – wiring diagrams – transmission control

Year of productions: 1990

Transmission control

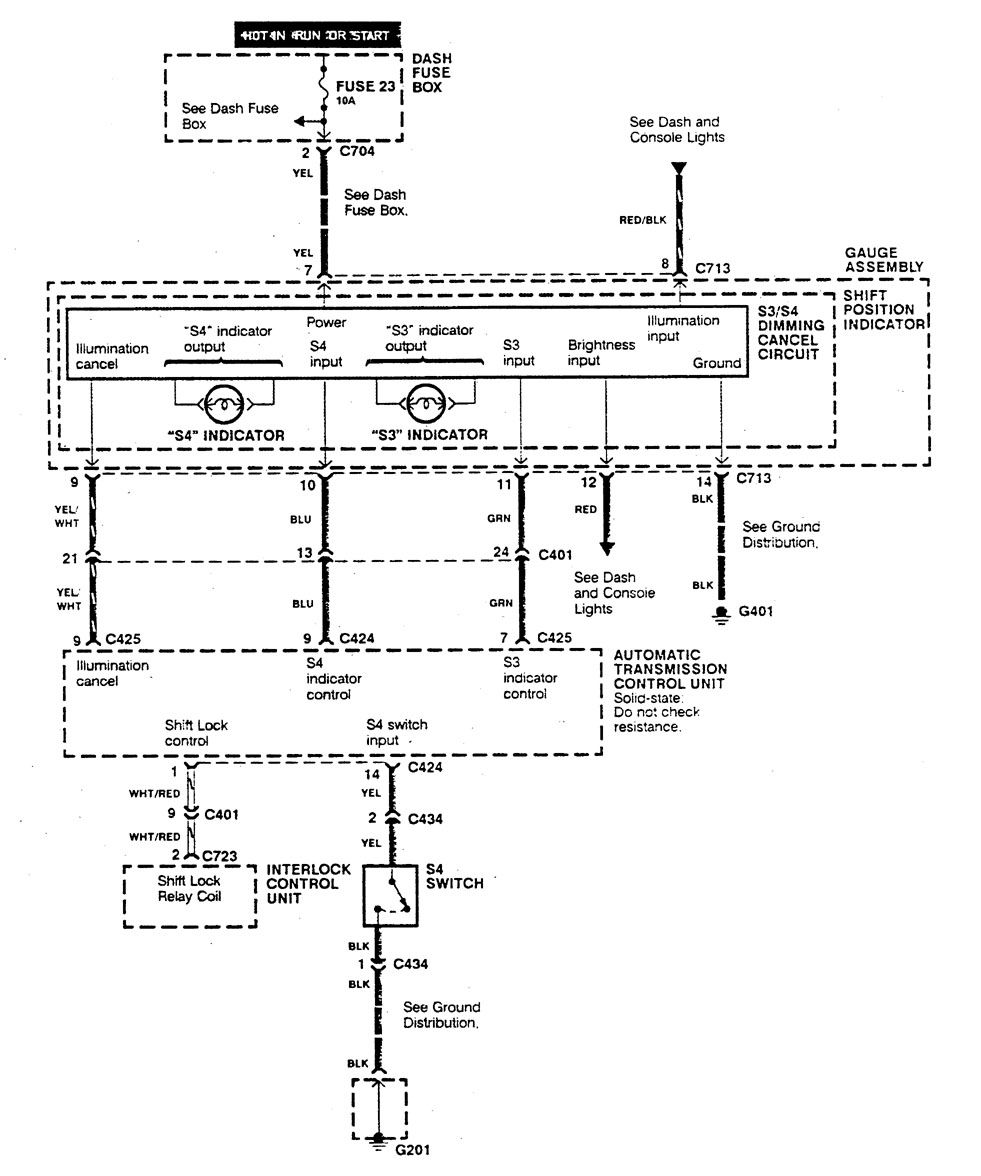

Acura Integra – wiring diagram – transmission control

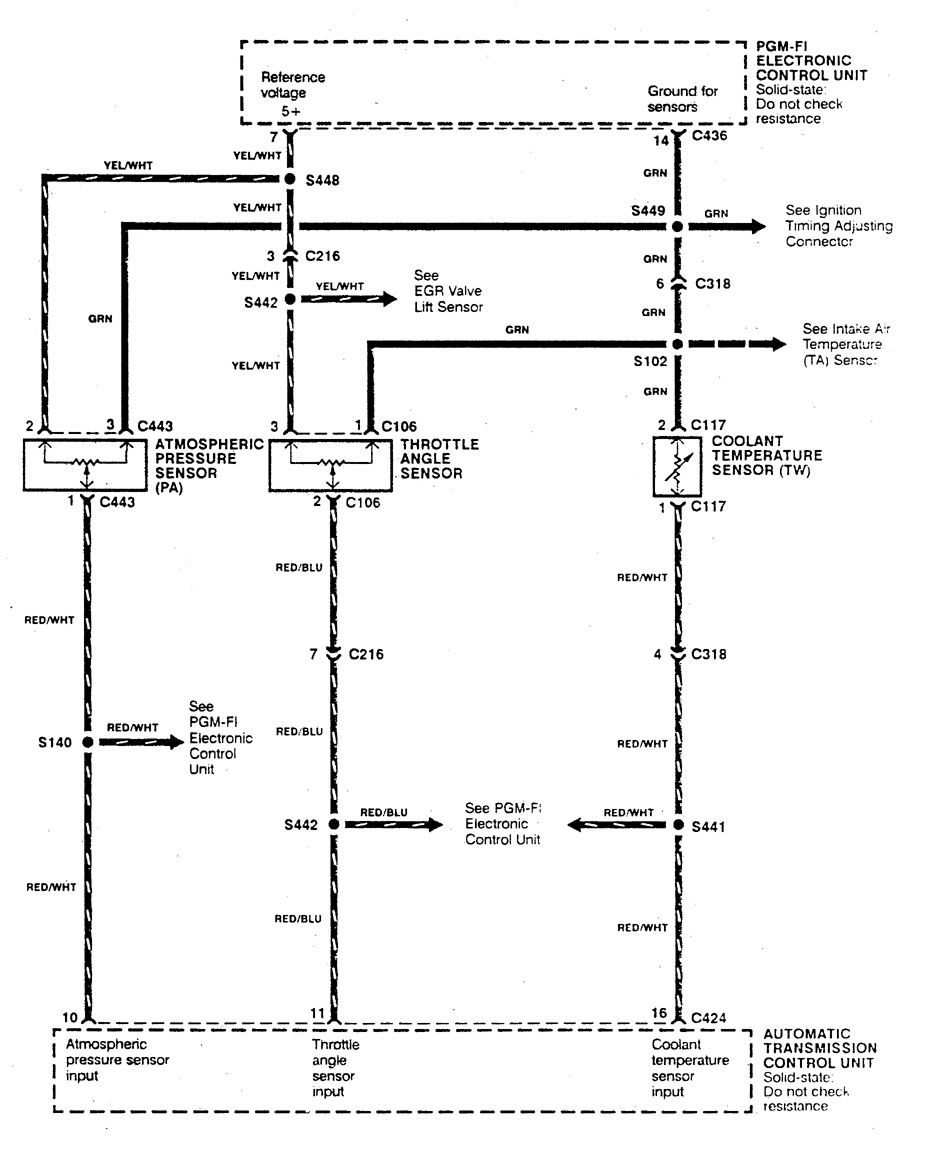

Acura Integra – wiring diagram – transmission control

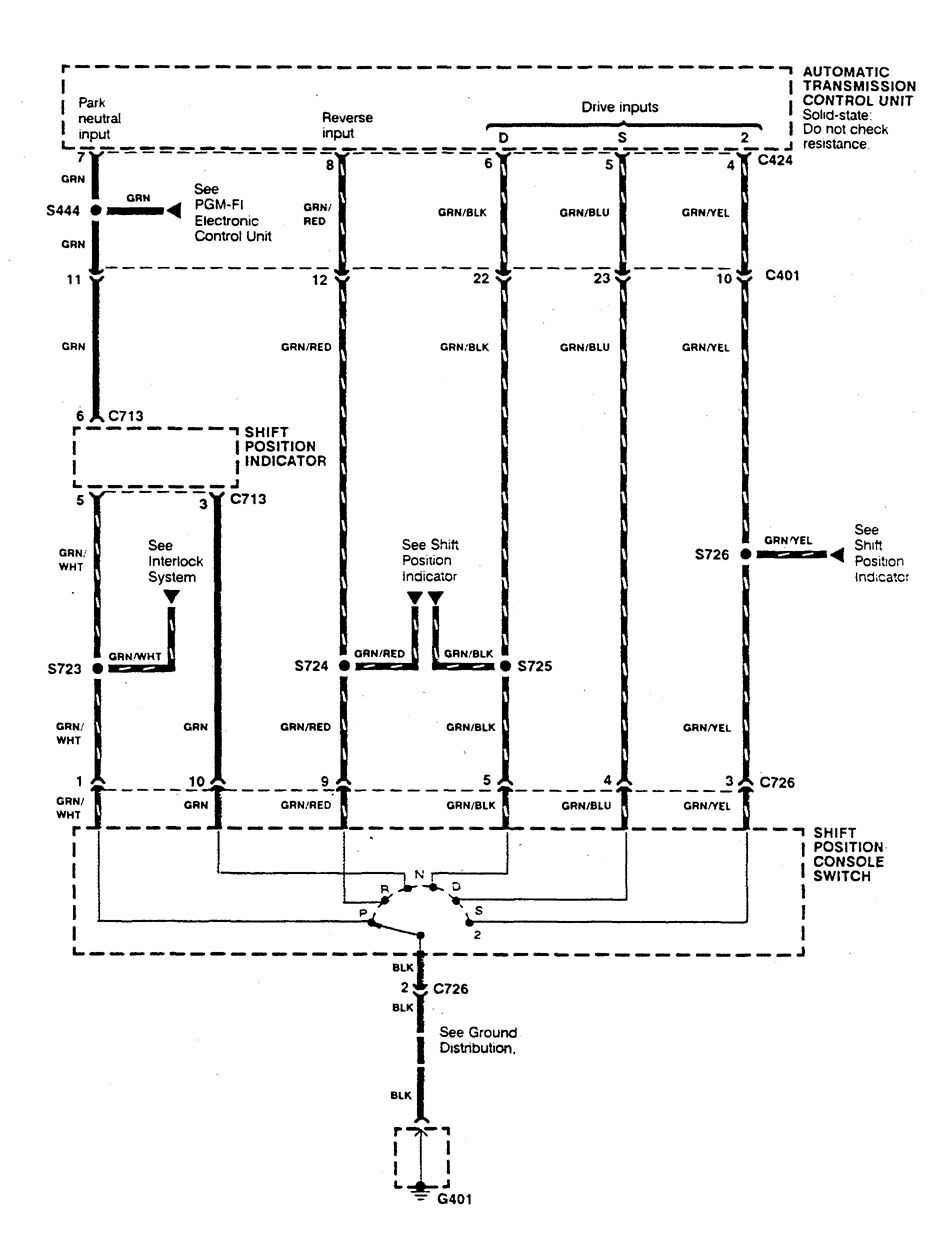

Acura Integra – wiring diagram – transmission control

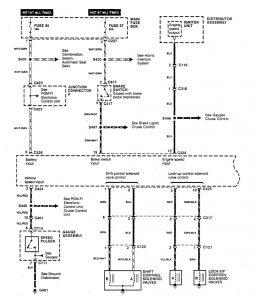

Acura Integra – wiring diagram – transmission control

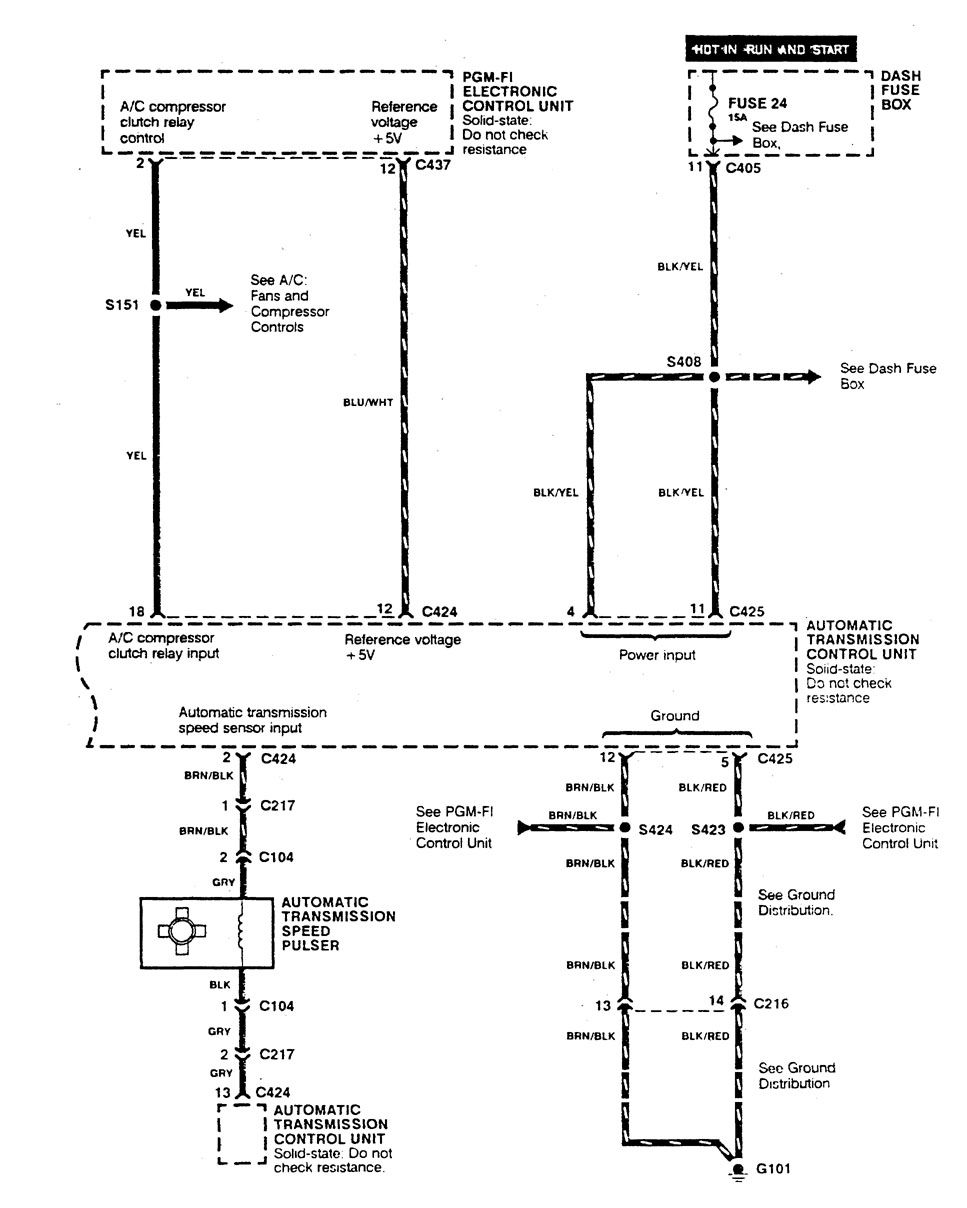

Acura Integra – wiring diagram – transmission control

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
