Acura CL (1997) – wiring diagrams – security/anti-theft

Acura CL (1997) – wiring diagrams – security/anti-theft

Year of productions:  1997

Security/Anti-Theft

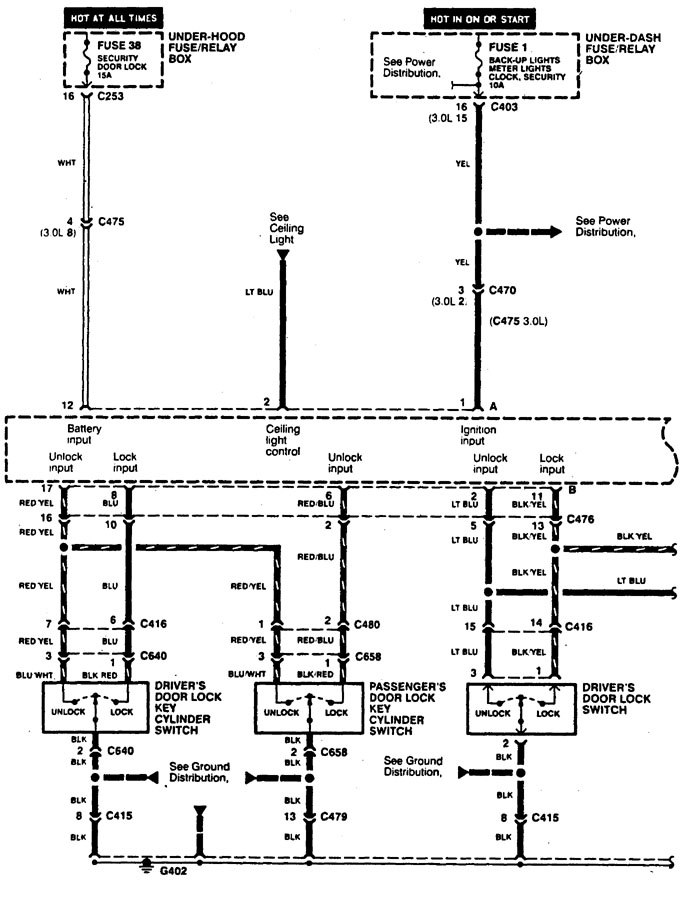

Acura CL - wiring diagram - security/anti-theft (part 1)
Acura CL – wiring diagram – security/anti-theft (part 1)

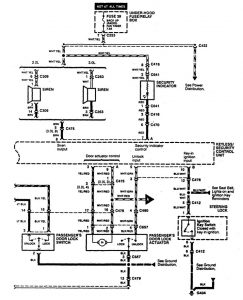

Acura CL - wiring diagram - security/anti-theft (part 2)
Acura CL – wiring diagram – security/anti-theft (part 2)

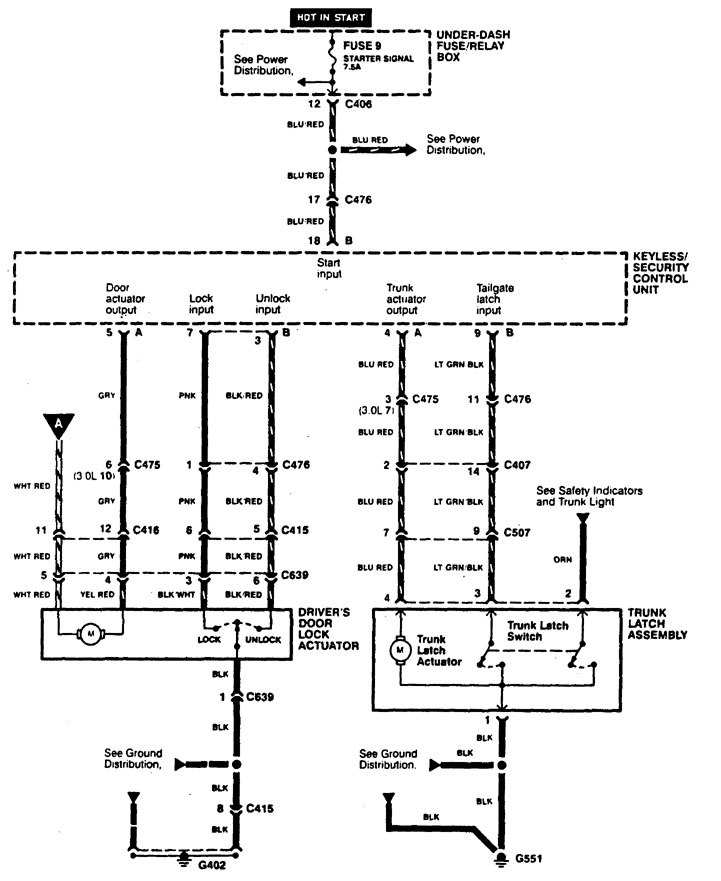

Acura CL - wiring diagram - security/anti-theft (part 3)
Acura CL – wiring diagram – security/anti-theft (part 3)

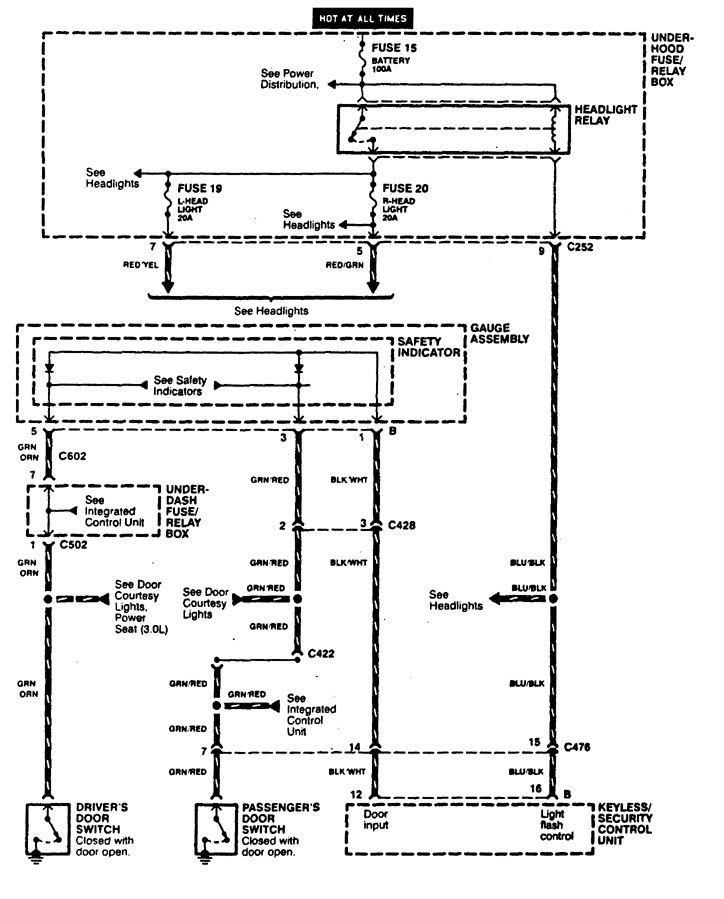

Acura CL - wiring diagram - security/anti-theft (part 4)
Acura CL – wiring diagram – security/anti-theft (part 4)
Acura CL - wiring diagram - security/anti-theft (part 5)
Acura CL – wiring diagram – security/anti-theft (part 5)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
