Hyundai H100 (1997) – fuse box diagram

Hyundai H100 (1997) – fuse box diagram

Year of production: 1997

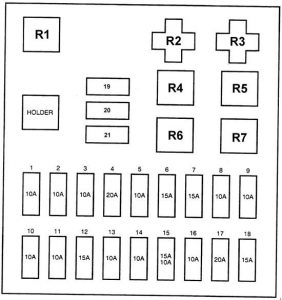

Fuse box

Hyundai H100 – fuse box diagram
Hyundai H100 – fuse box diagram
No. A Circuits
1 10 Room lamp
2 10 Except EC: Stop lamp
Only EC: Hazard
3 15 Horn, Tail lamp
4 20 Defogger
5 30 Except EC: Rear blower
5 15 Only EC: Fuel filter heating system
6 10 Back up lamp
7 15 Right head lamp
8 15 Left head lamp
9 15 Power door lock
10 15 Except EC: Rear cigar lighter
10 10 Only EC: Rear heater blower, Rear fog lamp
11 15 Front cigar lighter
12 10 ABS, Head lamp
13 15 Wiper
14 20 Front heater blower
15 15 Fog lamp
16 15 Hazard
17 20 Left power window
18 15 Right power window
19 Reserve Fuse
20 Reserve Fuse
21 Reserve Fuse
Relays
R1 Flasher Unit
R2 Not Used
R3 Not Used
R4 Power windows relay
R5 Tail lamp relay
R6 Except EC: Rear blower relay
Only EC: Rear fog lamp relay
R7 Except EC: Front fog lamp relay
Only EC: Not Used

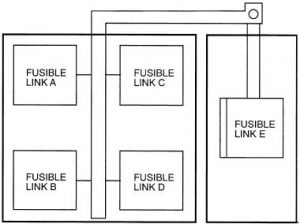

Hyundai H100 – fuse box diagram
Hyundai H100 – fuse box diagram
No. A Circuits
A 40 Diesel: Generator, Fuses No. 1,2,3,15,16, Head lamp relay
Petrol: Generator, MFI control relay, Condenser, Head lamp relay, Fuses No. 1,2,3,15,16
В 40 Ignition switch
с 40
50
With ABS: ABS modulator
Without ABS: Fuses No. 4,5
D 50 Power window relay, A/C fuse, Fuse No. 9
E 80 Generator, ABS modulator

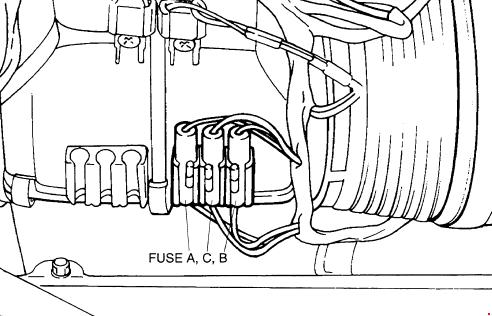

A/C Fuse

Hyundai H100 – fuse box diagram – A/C fuse
Hyundai H100 – fuse box diagram – A/C fuse
No. A Circuits
A 10 A/C Power Relay
В 20 Condenser Fan Motor Relay (Tandem)
C 15 Condenser Fan Motor Relay (Side)

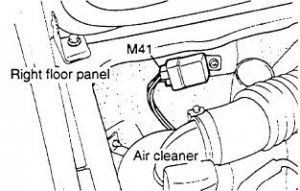

Starter relay

Hyundai H100 – fuse box diagram – starter relay
Hyundai H100 – fuse box diagram – starter relay

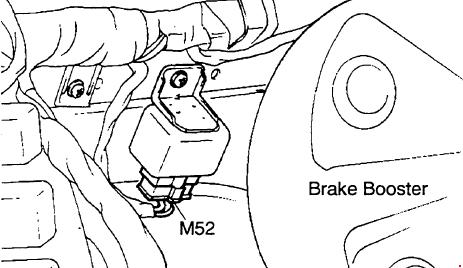

MFI control relay

Hyundai H100 – fuse box diagram – MFI control relay
Hyundai H100 – fuse box diagram – MFI control relay

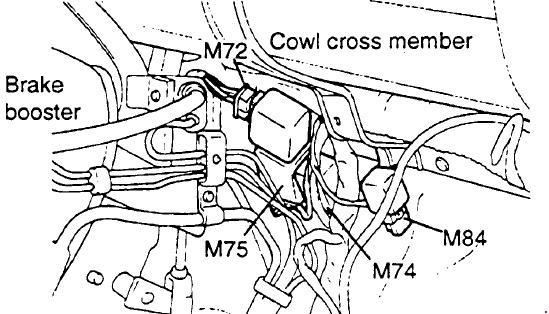

Wiper intermittent relay (M74), Fuel filter relay (M84)

Hyundai H100 – fuse box diagram – Wiper intermittent relay (M74), Fuel filter relay (M84)
Hyundai H100 – fuse box diagram – Wiper intermittent relay (M74), Fuel filter relay (M84)

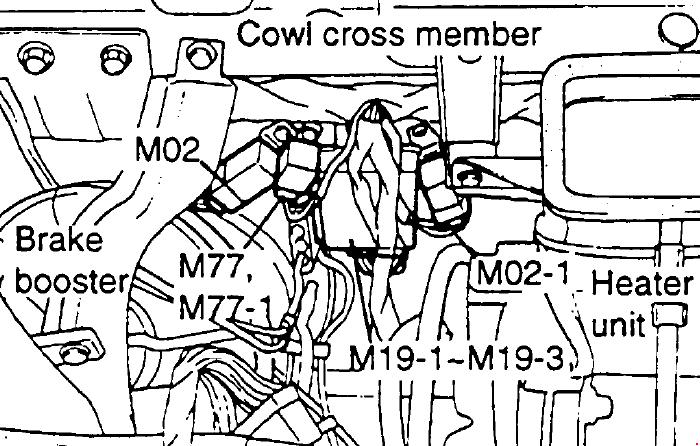

Head lamp relay (M02), Relay with diode (M77)

Hyundai H100 – fuse box diagram – Head lamp relay (M02), Relay with diode (M77)
Hyundai H100 – fuse box diagram – Head lamp relay (M02), Relay with diode (M77)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
