Volvo 960 (1995) – wiring diagrams – hazard lamp

Volvo 960 (1995) – wiring diagrams – hazard lamp

Year of productions:  1995

Hazard lamp

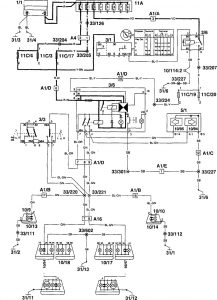

Volvo 960 - wiring diagram - hazard lamp (part 1)
Volvo 960 – wiring diagram – hazard lamp (part 1)

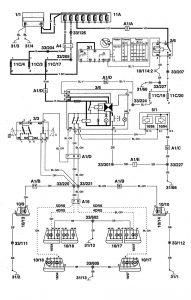

Volvo 960 - wiring diagram - hazard lamp (part 2)
Volvo 960 – wiring diagram – hazard lamp (part 2)

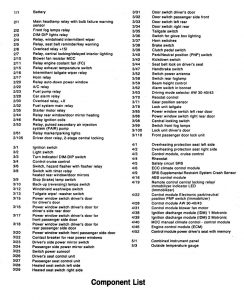

Volvo 960 - wiring diagram - hazard lamp (part 3)
Volvo 960 – wiring diagram – hazard lamp (part 3)

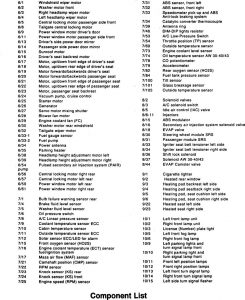

Volvo 960 - wiring diagram - hazard lamp (part 4)
Volvo 960 – wiring diagram – hazard lamp (part 4)

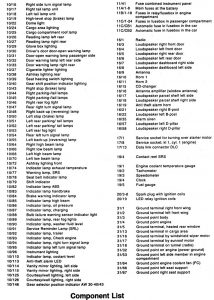

Volvo 960 - wiring diagram - hazard lamp (part 5)
Volvo 960 – wiring diagram – hazard lamp (part 5)

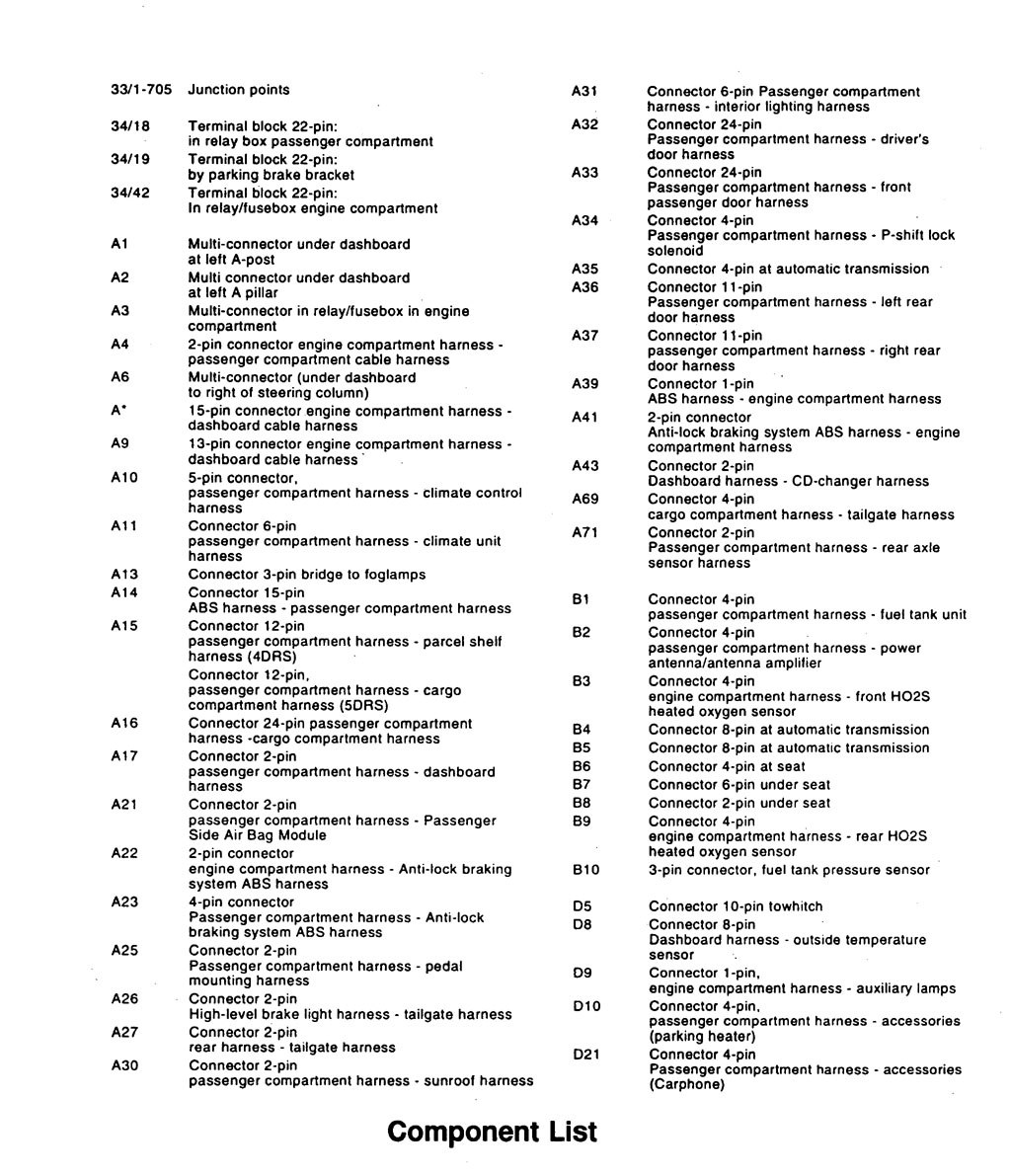

Volvo 960 - wiring diagram - hazard lamp (part 6)
Volvo 960 – wiring diagram – hazard lamp (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
