Toyota Avalon (1999) – fuse box diagram

Toyota Avalon (1999) – fuse box diagram

Year of production: 1999

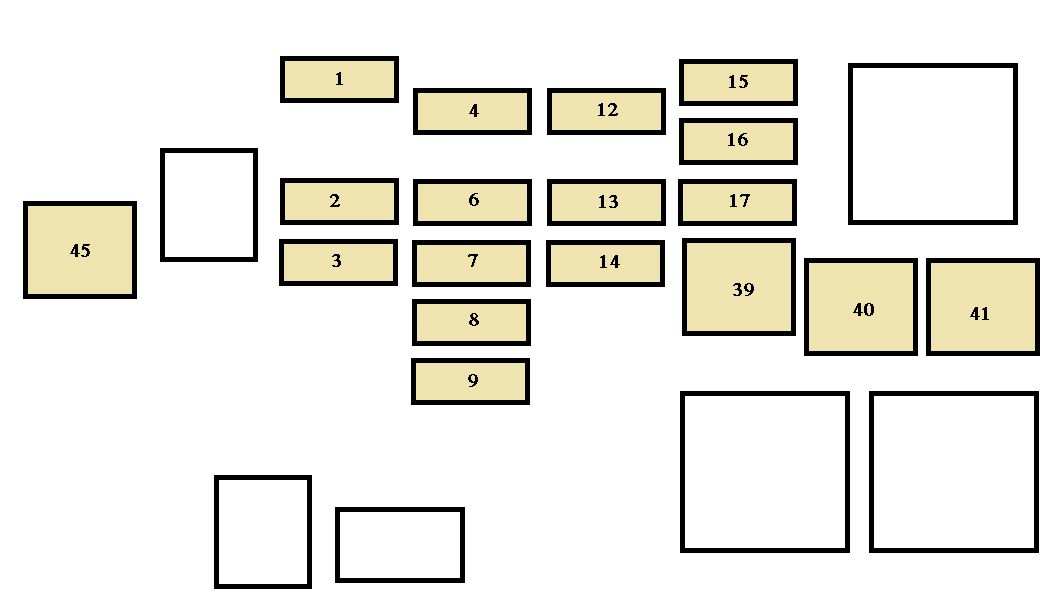

Engine compartment (U.S.A.)

Toyota Avalon First Generation - fuse box - engine compartment (USA)
Toyota Avalon First Generation – fuse box – engine compartment (USA)

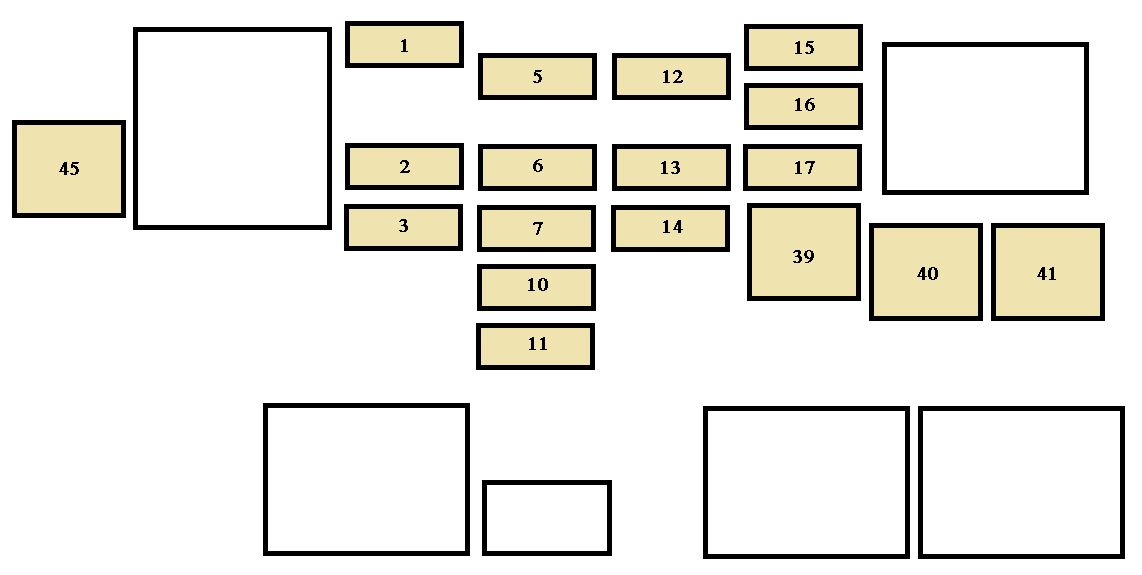

Engine compartment (Canada)

Toyota Avalon First Generation - fuse box - engine compartment (Canada)
Toyota Avalon First Generation – fuse box – engine compartment (Canada)

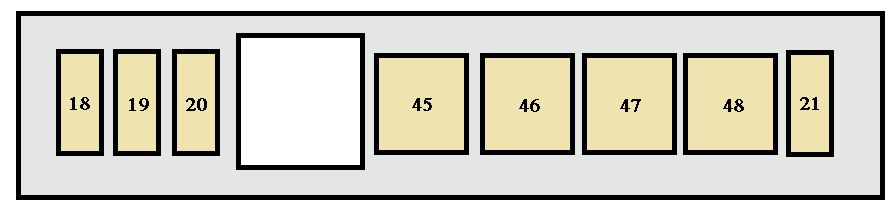

Engine compartment

Toyota Avalon First Generation - fuse box - engine compartment
Toyota Avalon First Generation – fuse box – engine compartment

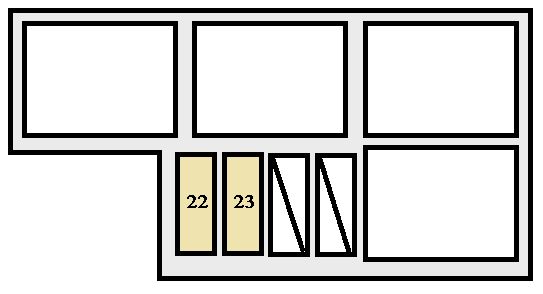

Engine compartment (models with daytime running light system and models for California)

Toyota Avalon First Generation fuse box - engine compartment with DRL and models for California)
Toyota Avalon First Generation fuse box – engine compartment with DRL and models for California)

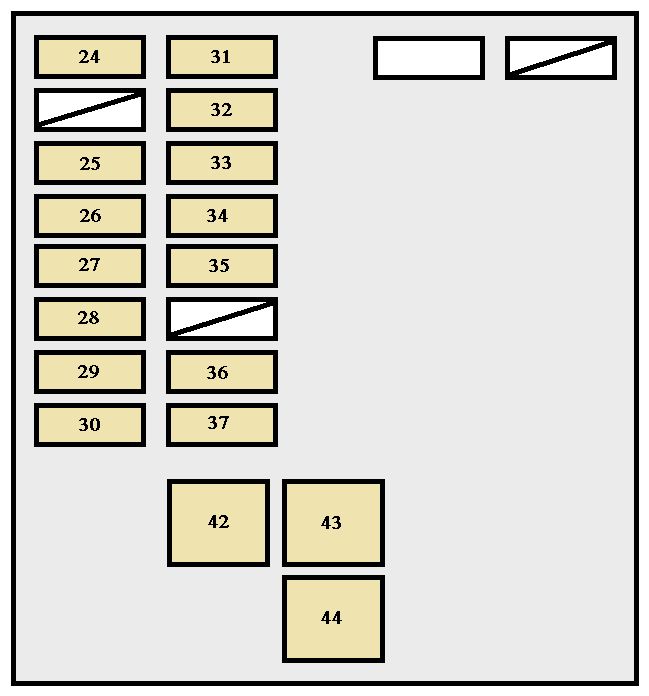

Instrument panel

Toyota Avalon First Generation - fuse box - instrument panel
Toyota Avalon First Generation – fuse box – instrument panel

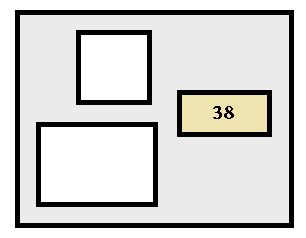

Passenger’s side kick panel

Toyota Avalon First Generation - fuse box - passengers side kick panel
Toyota Avalon First Generation – fuse box – passengers side kick panel

Fuses (type A)

Fuse Ampere rating [A] Description
1 7,5 Spare fuse
2 EFI 15 Multiport fuel injection system/sequential multiport fuel injection system, air conditioning control system, electrical idle-up system, electronically controlled automatic transmission system
3 HORN 10 Horn
4 OBD TRAC 7,5 On-board diagnosis system
5 OBD 7,5 On-board diagnosis
6 HAZ 10 Turn signal lights, emergency flasher
7 DOME 7,5 Interior light, personal light, vanity mirror light, door courtesy light, ignition switch light, trunk light, power
door lock control, locking with wireless remote control system, theft deterrent system, automatic light control system, daytime running light system, service reminder indicators and warning buzzer, clock
8 HEAD (LH) 15 Left-hand headlight
9 HEAD (RH) 15 Right-hand headlight
10 HEAD HI (LH) 15 Left-hand headlight (high beam)
11 HEAD HI (RH) 15 Right-hand headlight (high beam)
12 ALT-S 5 Charging system
13 AM2 30 Gauge and meters, SRS airbag system, Multiport fuel injection system/sequential multiport fuel injection system, starter system
14 ECU-B 5 Cruise control system, air conditioning control system
15 15 Spare fuse
16 30 Spare fuse
17 TEL 15 No circuit
18 HEAD LO (LH) 10 Left-hand headlight (low beam)
19 HEAD LO (RH) 10 Right-hand headlight (low beam)
20 RAD NO.1 15 Car audio system
21 FOG 15 Front fog lights
22 A/F (models for California): 25 Air/fuel heater
23 DRL (models with daytime running light system) 5 Daytime running light system
24 SRS 5 SRS airbag system, seat belt pretensioners
25 IGN 5 Gauge and meters, SRS airbag system, Multiport fuel injection system/sequential multiport fuel injection system
26 SEAT HEATER 20 Seat heater
27 TURN 7,5 Turn signal lights, emergency flasher
28 ECU-IG 10 Cruise control system, anti-lock brake system, shift lock system, power antenna, power door lock system, electric cooling fan
29 WIPER 20 Windshield wipers and washer, headlight cleaner
30 GAUGE 7,5 Gauge and meter, back-up lights, interior lights, charging system, electronically controlled automatic transmission system, cruise control system, power door lock system, service reminder indicators and warning buzzer, automatic light control system, daytime running light system
31 TAIL 15 Parking lights, license plate lights, tail lights, front side marker lights
32 STOP 15 Stop lights, cruise control system, high mounted stoplight, antilock brake system, shift lock system, multiport fuel injection system/sequential multiport fuel injection system
33 PANEL 5 Gauge and meter, Audio system, cigarette lighter, glovebox light, clock, electronically controlled automatic transmission system, air conditioning control system, service reminder indicators, turn signal lights, emergency flasher, headlight cleaner, seat heater
34 MIRROR HEATER 10 Mirror heaters
35 CIG/RADIO 15 Cigarette lighter, interior lights, clock, SRS airbag system, shift lock system, power antenna, electronically controlled automatic transmission system, air conditioning control system, ignition system, theft deterrent system, outside rear view mirror control system, Audio system, service reminder indicators
36 HEATER 10 Air conditioning control system, rear window defogger, starter system
37 STARTER 5 Starter system
38 A.C. 10 Air conditioning control system

Fuses (type B)

Fuse Ampere rating [A] Description
39 MAIN 40 “HEAD (LH)”, “HEAD HI (LH)”, “HEAD (RH)” and “HEAD HI (RH)” fuses
40 RDI 30 Electric cooling fan
41 CDS 30 Electric cooling fan
42 DOOR 30 Power door lock system, power seat
43 RR DEF 40 Rear window defogger
44 POWER 30 Power window, electric moon roof

Fuses (type C)

Fuse Ampere rating [A] Description
45 ALT 120 Charging system
46 AM1 80 “RR DEF”, “DOOR”, “POWER”, “TAIL”, “PANEL”, “DEF I/UP”, “SEAT HEATER”, “SRS” and “STOP” fuses
47 ABS 60 Anti-lock brake system
48 IG SW 40 “CIG/RADIO” and “GAUGE” fuses
49 HTR 50 “A.C.” fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
