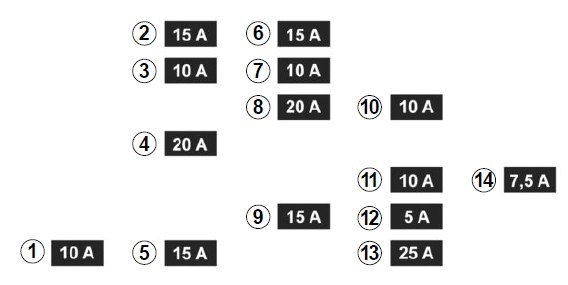

Renault Zoe (2014 – 2017) – fuse box diagram
Year of production: 2014, 2015, 2016, 2017
Fuse
| Fuse | Ampere rating [A] | Allocation |
| 1 | 10 | Brake light |
| 2 | 15 | Horn |
| 3 | 10 | Instrument panel |
| 4 | 20 | Automatic door locking |
| 5 | 15 | Direction indicator lights |
| 6 | 15 | Cigarette lighter |
| 7 | 10 | Windscreen washer |
| 8 | 20 | Radio |
| 9 | 15 | Rear windscreen wiper |
| 10 | 10 | Front ceiling light and boot light |
| 11 | 10 | Pedestrian horn |
| 12 | 5 | Brake switch |
| 13 | 25 | Driver’s window winder |
| 14 | 7,5 | Heated door mirrors |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
