Pontiac Grand Prix mk5 (Fifth Generation; 1993) – fuse box diagram
Year of production: 1993
Glove box fuse block

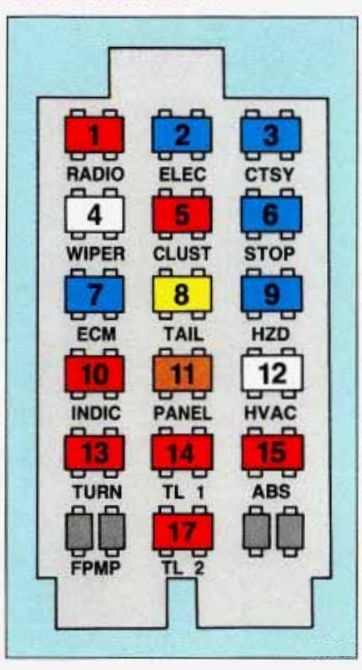

Pontiac Grand Prix – fuse box – glove box
| Fuse |
Ampere rating [A] |
Usage |
| 1 |
10 |
Radio & Clock; Steering Wheel Controls |
| 2 |
15 |
Radio & Clock; Passive Restraint Lockout; Compass; Trip Computer (STE Model) ; Lamp Monitor Module (STE Model |
| 3 |
15 |
Door Lock; Courtesy, Glove Box, Underhood, Trunk, Header Lights; Cigarette Lighter (Except STE); Door Handle (STE Model); Lighted Visor Mirror (STE Model); Lighted Inside Rearview Mirror (STE Model); Dome Light (STE Model) |
| 4 |
25 |
Windshield Wiper & Washer |
| 5 |
10 |
Temp Door Motor; HVAC & Rear Defogger; DRL Module (Canada); Instrument Cluster (Except STE); Compass; HUD Dimmer; Trip Computer (STE Model); Light Monitor Module (STE Model) |
| 6 |
15 |
Brake Lights; ABS Control Module; Chime Module |
| 7 |
15 |
ECM |
| 8 |
20 |
Taillights; Radio & Clock; HVAC; Chime Module; DRL Module (Canada) ; Compass (Except STE) ; HUD Module; Lamp Monitor Module (STE Model); Fog Light Delay (STE Model) |
| 9 |
15 |
Hazard Warning Flasher |
| 10 |
10 |
Rear Defogger Timer Relay; Instrument Cluster; Chime Module; Cruise Control; DRL Module (Canada); Lamp Driver Module (Except STE) ; ABS Lamp Driver (STE Model) |
| 11 |
5 |
Instrument Panel, Console, Switch Lights |
| 12 |
25 |
Blower Motor, SOL Bo |
| 13 |
10 |
Turn Signals/Flasher |
| 14 |
10 |
Side Marker, Forward Park Lights (STE Model) |
| 15 |
10 |
ABS Control Module |
| 16 |
— |
Not Used |
| 17 |
10 |
Taillights (STE Model) |
| 18 |
— |
Not Used |
Component Center

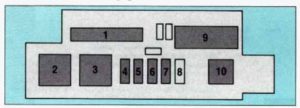

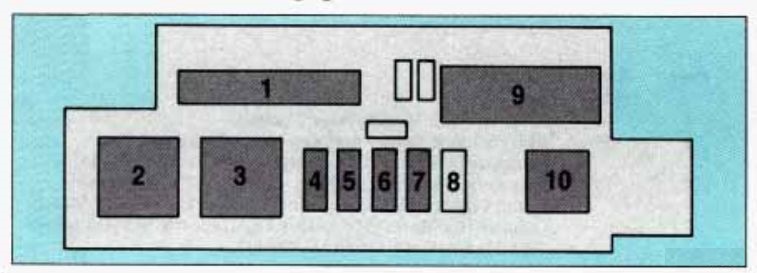

Pontiac Grand Prix – fuse box – component center
| Fuses |
Ampere rating [A] |
Usage |
| 1 |
|
Defogger Timer Relay |
| 2 |
|
Air Conditioner Blower Relay (HI) |
| 3 |
|
Air Conditioner Blower Relay (LO) |
| 4 |
30 |
Rear Defogger and HVAC Circuit Breaker |
| 5 |
30 |
Power Accessories Circuit Breaker |
| 6 |
30 |
Power Windows and Sunroof Circuit Breaker |
| 7 |
20 |
Headlight Circuit Breaker |
| 8 |
— |
Not used |
| 9 |
|
Chime Module |
| 10 |
|
Hazard Flasher |
Passenger Side Underhood Electrical Center

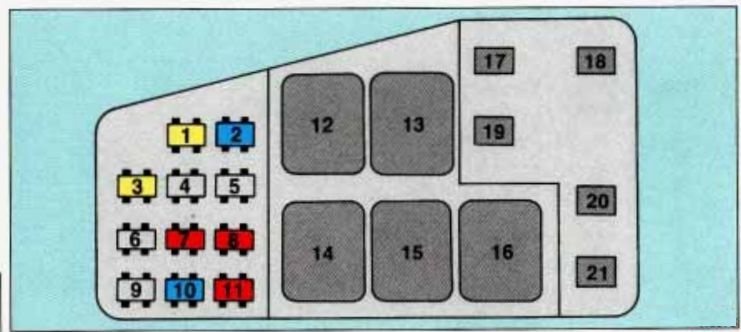

Pontiac Grand Prix – fuse box – engine compartment (passenger’s side)
| Fuse |
Ampere rating [A] |
Usage |
| 1 |
20 |
AIR Pump (3.4L Manual) |
| 2 |
15 |
Trunk Release, Back-up Lights (Auto) |
| 3 |
20 |
ECM; Fuel Pump |
| 4 |
|
Not Used |
| 5 |
|
Not Used |
| 6 |
|
Not Used |
| 7 |
10 |
Direct Ignition System |
| 8 |
10 |
Fuel Injectors |
| 9 |
|
Not Used |
| 10 |
15 |
A/C Coil, Secondary Cooling Fan, Generator, Digital EGR, Purge Canister, Back-up Lights (3.4L Manual) |
| 11 |
10 |
Primary Cooling Fan (3.1L); TCC; AIR Pump (3.4L Manual) |
| Relay |
Usage |
| 12 |
Fuel Pump |
| 13 |
AIR Pump (3.4L |
| 14 |
Secondary Cooling Fan |
| 15 |
Primary Cooling Fan |
| 16 |
A/C Clutch Coil |
| Fusible element |
Ampere rating [A] |
Usage |
| 17 |
60 |
Starter Solenoid |
| 18 |
30 |
Cooling Fan (3.1L) |
|
60 |
Cooling Fan (3.4L) |
| 19 |
60 |
Blower Motor |
| 20 |
60 |
Cooling Fan |
| 21 |
30 |
Fuse Block |
Driver Side Underhood Electrical center

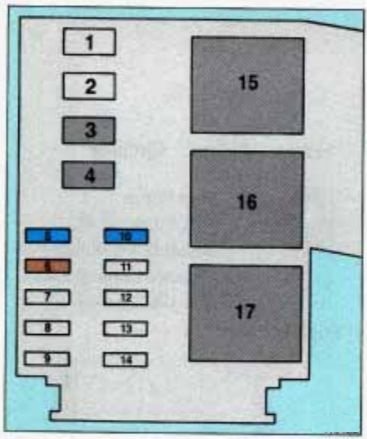

Pontiac Grand Prix – fuse box – engine compartment (driver’s side)
| Fuse |
Ampere rating [A] |
Usage |
| 1 |
— |
Not Used |
| 2 |
— |
Not Used |
| 3 |
60 |
ABS Controller |
| 4 |
50 |
Exterior Lights |
| 5 |
15 |
Horns |
| 6 |
5 |
ABS |
| 7 |
— |
Not Used |
| 8 |
— |
Not Used |
| 9 |
— |
Not Used |
| 10 |
15 |
Fog Lights |
| 11 |
— |
Not Used |
| 12 |
— |
Not Used |
| 13 |
— |
Not Used |
| 14 |
— |
Not Used |
| Relay |
Usage |
| 15 |
Horns |
| 16 |
Fog Lights |
| 17 |
ABS |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
