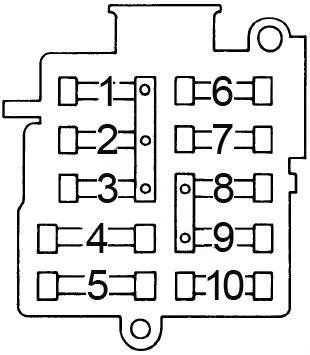

Air conditioner compressor clutch, rear window defogger, cornering lights (Monaco only), speed control, automatic temperature control relay
3
20
Turn signal flasher circuit, back-up lights, voltage limiter, fuel gauge, oil gauge, temperature gauge
4
20
Air conditioner blower motor relay, heater blower motor
5
30
Air conditioner high blower
6
5
Headlights and windshield wiper/washer switch light, instrument cluster lights (also in cavity 2), tailgate unlock switch light, radio light, rear window defogger, cigar lighter light, clock light, right ash tray light, (D-C only)
7
20
Clock, cigar lighter, tail light, side marker lights, park & turn signal lights, instrument cluster lights (also in cavity 1), license lights
8
20
Trunk light, ignition switch light & time delay relay, rear dome light (wagons only), hazard flasher circuit, stop light, seat belt, key-in headlights-on buzzer, map light, courtesy light, glove box light, dome light, seat belt light
9
20
Horns, horn relay
10
20
Power window relay, brake warning light, hot temperature indicator light (engine), door ajar indicator light, oil warning light, electric trunk, lid, seat belt interlock, ignition feed
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
