Mitsubishi Mirage (2012 – present) – fuse box diagram
Year of production: 2012, 2013, 2014, 2015, 2016, 2017, 2018

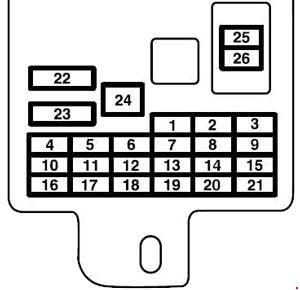

Instrument panel fuse panel
| No. |
Function/component |
A |
| 1 | Tail light (left) | 7.5 |
| 2 | Cigarette lighter | 15 |
| 3 | Ignition coil | 10 |
| 4 | Starter motor | 7.5 |
| 5 | Not used | – |
| 6 | Not used | – |
| 7 | Tail light (right) | 7.5 |
| 8 | Outside rearview mirrors | 7.5 |
| 9 | Engine control unit | 7.5 |
| 10 | Control unit | 7.5 |
| 11 | Rear fog light | 10 |
| 12 | Door lock | 15 |
| 13 | Interior light (Dome light) | 15 |
| 14 | Rear window wiper | 15 |
| 15 | Gauges | 7.5 |
| 16 | Relay | 7.5 |
| 17 | Heated seats | 20 |
| 18 | Option | 10 |
| 19 | Heated outside rearview mirrors | 7.5 |
| 20 | Windshield wiper | 20 |
| 21 | Back-up light | 7.5 |
| 22 | Defogger | 30 |
| 23 | Heater | 30 |
| 24 | Not used | – |
| 25 | Radio | 10 |
| 26 | Electronic controlled unit | 15 |

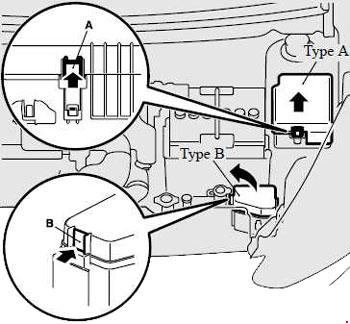

Engine compartment fuse box (location)

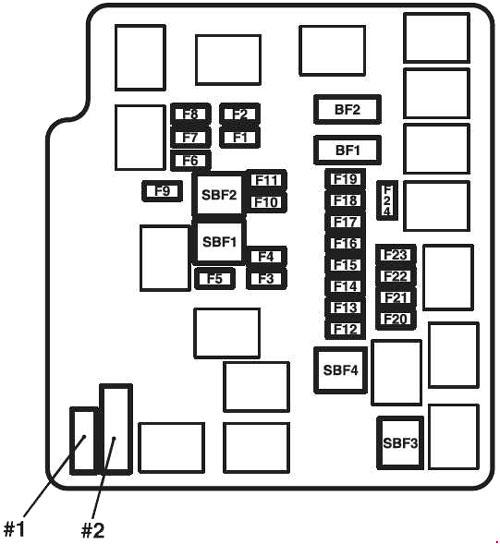

Engine compartment fuse box (A)
| No. |
Function/component |
A |
| SBF1 | Radiator fan motor | 40 |
| SBF2 | Anti-lock braking system | 30 |
| SBF3 | Ignition switch | 40 |
| SBF4 | Power window control | 40 |
| BF1 | DC-DC (P/T) | 30 |
| BF2 | DC-DC (AUDIO) | 30 |
| FI | Headlight (low beam) (left) | 10 |
| F2 | Headlight (low beam) (right) | 10 |
| F3 | Headlight (high beam) (left) | 10 |
| F4 | Headlight (high beam) (right) | 10 |
| F5 | Horn | 10 |
| F6 | Front fog lights | 15 |
| F7 | Daytime running lights | 10 |
| F8 | Not used | – |
| F9 | Not used | – |
| F10 | Battery current sensor | 7.5 |
| F11 | Not used | – |
| F12 | Stop lights (Brake lights) | 15 |
| F13 | Ignition coil | 7.5 |
| F14 | Engine control | 7.5 |
| F15 | Alternator | 7.5 |
| F16 | Hazard warning flasher | 10 |
| F17 | Automatic transaxle | 15 |
| F18 | Air conditioning | 10 |
| F19 | ETV | 15 |
| F20 | Starter | 7.5 |
| F21 | CVT oil/pump | 15 |
| F22 | Fuel pump | 15 |
| F23 | Engine | 20 |
| F24 | Automatic transaxle | 7.5 |
| #1 | Spare fuse | 20 |
| #2 | Spare fuse | 30 |

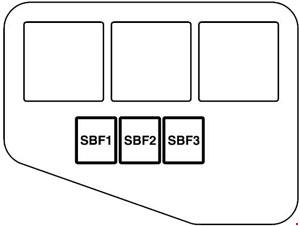

Engine compartment fuse box (B)
| No. |
Function/component |
A |
| SBF1 | PTC heater | 40 |
| SBF2 | PTC heater | 40 |
| SBF3 | PTC heater | 40 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
