MG ZT – fuse box diagram
Year of production:

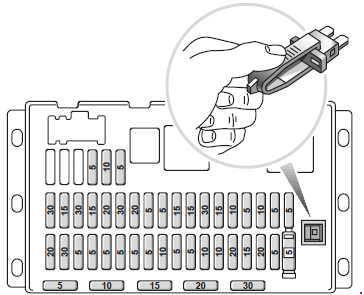

Passenger compartment fuse box
The passenger compartment fuse box is located behind the front passenger glove box.
| № |
A |
Circuit protected |
| 1 | 20 | Rear windows |
| 2 | 30 | Traction control |
| 3 | 5 | Memory seats, clock |
| 4 | 5 | Air conditioning, power windows |
| 5 | 5 | Body Control Unit, wipers |
| 6 | 5 | Instrument pack |
| 7 | 5 | Immobilisation, cruise control |
| 8 | 5 | Body Control Unit |
| 9 | 10 | Windscreen washer pump |
| 10 | 5 | Instrument pack |
| 11 | 5 | Audio system, power windows, mirrors, cigar lighter |
| 12 | 10 | Accessories socket, rear sunblind, parking aid |
| 13 | 10 | Interior lamps |
| 14 | 20 | Central door locking |
| 15 | 15 | Cigar lighter |
| 16 | 20 | Accessories socket |
| 17 | 5 | Instrument pack, engine immobilisation, ATC controls |
| 18 | 5 | Airbag SRS (yellow surround) |
| 19 | 30 | Driver’s seat |
| 20 | 20 | Fuel pump |
| 21 | 30 | Power seats |
| 22 | 15 | Audio system amplifier |
| 23 | 20 | Sunroof |
| 24 | 30 | Windows – front |
| 25 | 20 | Seat heating |
| 26 | 5 | Anti-theft alarm, engine immobilisation |
| 27 | 5 | Instrument pack |
| 28 | 15 | Horn |
| 29 | 15 | Rear wiper |
| 30 | 30 | Headlight washers |
| 31 | 15 | Alarm sounder |
| 32 | 10 | Anti-lock brakes, traction control |
| 33 | 5 | Driver’s seat belt warning, ATC controls |
| 34 | 10 | Engine management |
| 35 | 5 | Heated mirrors & washer jets |
| 36 | 5 | Alternator |
| 37 | – | Not used |
| 38 | – | Not used |
| 39 | – | Not used |
| 40 | 5 | Exterior lights |
| 41 | 10 | Cruise control, reversing lights |
| 42 | 5 | Not used |

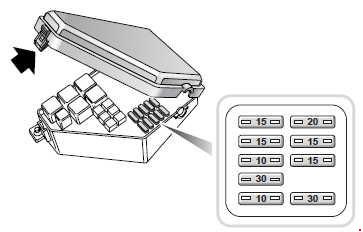

Engine Compartment Fuse Box
The fuse box is located on the left-hand side of the engine compartment.
| № |
A |
Circuit protected |
| 1 | 15 | Exhaust gas recirculation, injection pump, pressure regulator (diesel models) Oxygen sensors (petrol models) Engine management (all models) |
| 2 | 20 | Ignition coils (petrol models) Engine management (all models) |
| 3 | 15 | Camshaft and oxygen sensors (petrol models) |
| 4 | 15 | Automatic transmission, air conditioning, cooling fan, cruise control (diesel models) |
| 5 | 10 | Engine management (petrol models) |
| 6 | 15 | Front fog lights |
| 7 | 30 | Anti-lock brakes |
| 8 | 15 | Fuel burning heater (diesel models) |
| 9 | 10 | Air conditioning |
| 10 | 30 | Wipers and washers |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
