Mazda MX-5 (1989 – 1997) – fuse box diagram

31 July 2019 admin Mazda, MX-5 0

Mazda MX-5 (1989 – 1997) – fuse box diagram

Year of production: 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997

Fuse box in the engine compartment

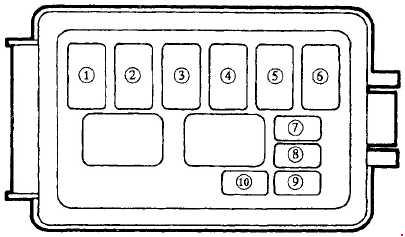

Mazda MX-5 - fuse box diagram - engine compartment
Mazda MX-5 – fuse box diagram – engine compartment
Position Name Fuse rating [A] Description
1 HEAD 30 Headlights
2 INJ 30 Fuel injection, Alternator
3 MAIN 80 For protection of all circuits
4 BTN 40 Refer to HAZARD (15A), STOP (15A), ROOM (10A), TAIL (15A)
5 ABS 60 Antilock brake system
6 COIOLING FAN 30 Cooling fan
7 AIR BAG 10 Air bag
8 AD FAN 20 Additional fan (Air conditioner)
9 ST SIG 10 Fuel injection
10 RETRACTOR 30 Headlight retractor

The Instrument Panel Fuse Panel

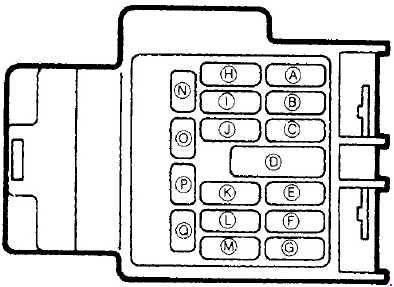

Mazda MX-5 - fuse box diagram - instrument panel
Mazda MX-5 – fuse box diagram – instrument panel
Position Name Fuse rating [A] Protected component
A ENGINE 15 Cooling fan
B METER 10 Gauges, Warning lights, Turn-signal lights, Cruise control
C AIR BAG 15 Air bag
D HEATER 30 Heater
E — — —
F POWER WIND 30 Power windows
G WIPER 20 Wipers, Washer
H — — —
I TAIL 15 Tail lights
J — — —
K STOP 15 Shift lock, Cruise control, Horn, Stoplights
L HAZARD 15 Hazard warning lights
M — — —
N ROOM 10 Interior lamps, Warning buzzers, Radio/cassette and compact disc player and clock
O CIGAR 15 Radio/cassette and compact disc player and clock, Cigarette lighter
P — — —
Q — — —

Fuses in the trunk

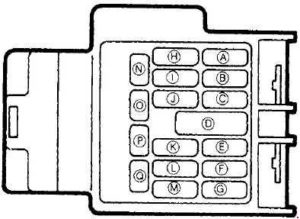

Mazda MX-5 - fuse box diagram - trunk
Mazda MX-5 – fuse box diagram – trunk
Number Name Ampere ratting [A] Description
1 DEFOG 10 Rear defroster
2 ANTENNA 10 Auto antenna

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
