Mazda CX-9 (2007 – 2010) – fuse box diagram

29 July 2019 admin CX-9, Mazda 0

Mazda CX-9 (2007 – 2010) – fuse box diagram

Year of production: 2007, 2008, 2009, 2010

Fuse block (Engine compartment)

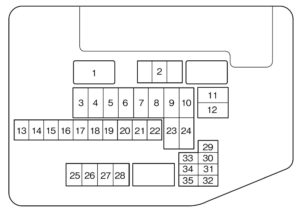

Mazda CX-9 - fuse box - engine compartment

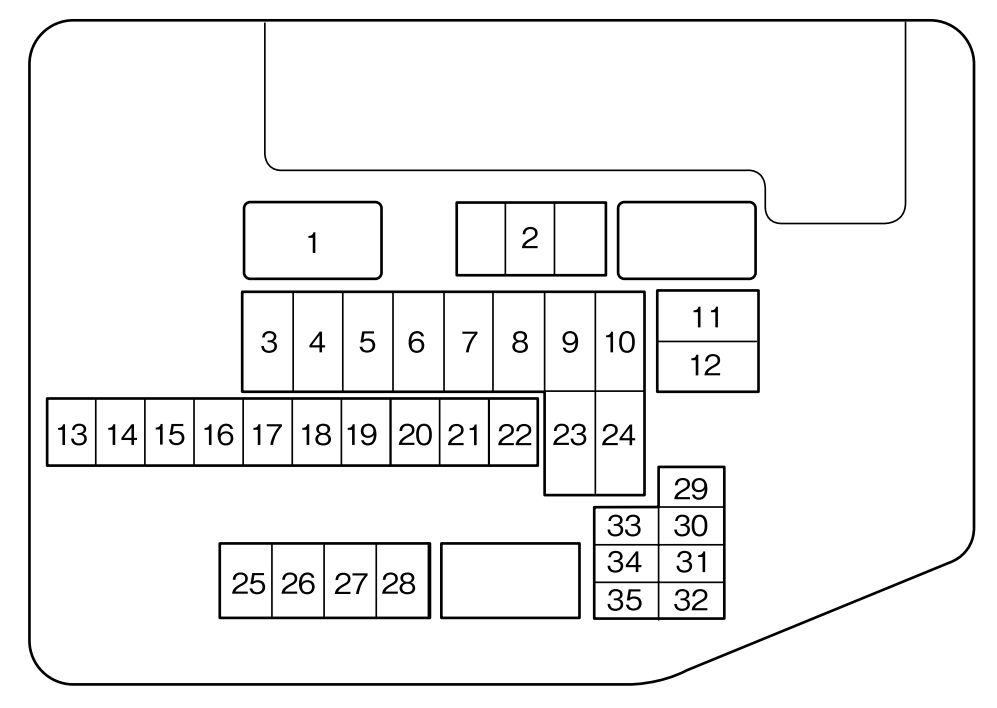

Mazda CX-9 – fuse box – engine compartment
Position Description Fuse rating [A] Protected component
1 MAIN 150 For protection of all circuits
2 ENGINE 20 Transaxle control system
3 R HEATER 40 Heater
4 P.SEAT R 30 Power seat (RH)*
5 HEATER 50 Heater
6 IGKEY2 40 For protection of various circuits
7 FAN1 30* Cooling fan
40*
8 P.SEAT L 40 Power seat (LH)*
9 DEFOG 30 Rear window defroster
10 BTN 40 For protection of various circuits
11 FUEL PUMP 30 Fuel pump
12 IGKEY1 30 For protection of various circuits
13 FOG 15 Fog lights*
14 ABS (SOL) 30 ABS solenoid
15 D/L 25 Power door locks
16 ROOM 15 Overhead light
17 OUTLET CTR 15 Accessory socket (Center)
18 OUTLET RR 15 Accessory socket (Rear)
19 AC PWR 15 Moon roof*, DC/AC inverter
20 S.WARM 15 Seat warmer*
21 A/C MAG 10 Air conditioner
22 BOSE 25 Audio system (Bose® Sound System-equipped model)*
23 FAN2 30* Cooling fan
40*
24 ABS 50 ABS
25 IG COIL 25 Ignition system
26 H/L LOW L 15 Headlight-left (Low beam)
27 H/L LOW R 15 Headlight-right (Low beam)
28 H/L HIGH 20 Headlight-high (High beam)
29 HAZARD 15 Hazard warning flashers
30 ENG+B 10 PCM
31 HORN 15 Horn
32 STOP 7,5 Brake lights
33 EGI INJ 10 Engine control system
34 ENG BAR 20 Air flow sensor, EGR control valve
35 ENG BAR 2 7,5 PCM
* Some models

Relay box (Engine compartment)*

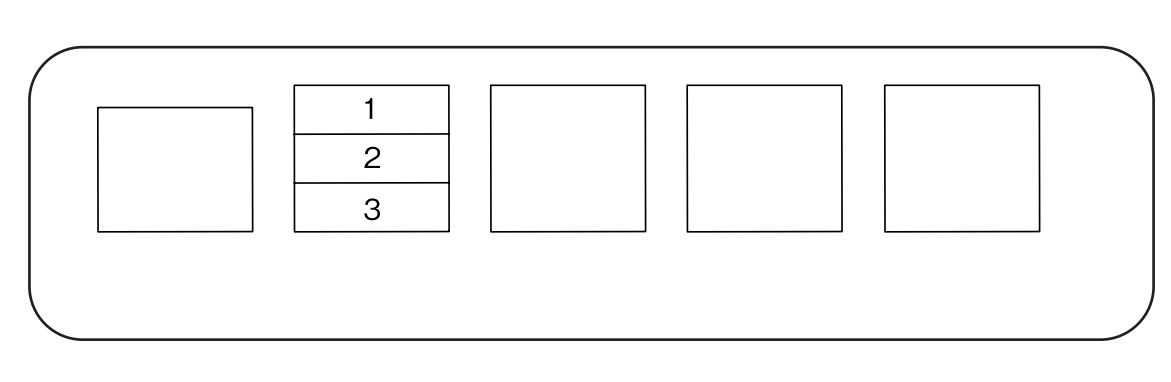

Mazda CX-9 - fuse box - engine compartment (relay box)
Mazda CX-9 – fuse box – engine compartment (relay box)
Position Description Fuse rating [A] Protected component
1 INJ 7,5 Injectors
2 — — —
3 — — —

Fuse block (Glove box)

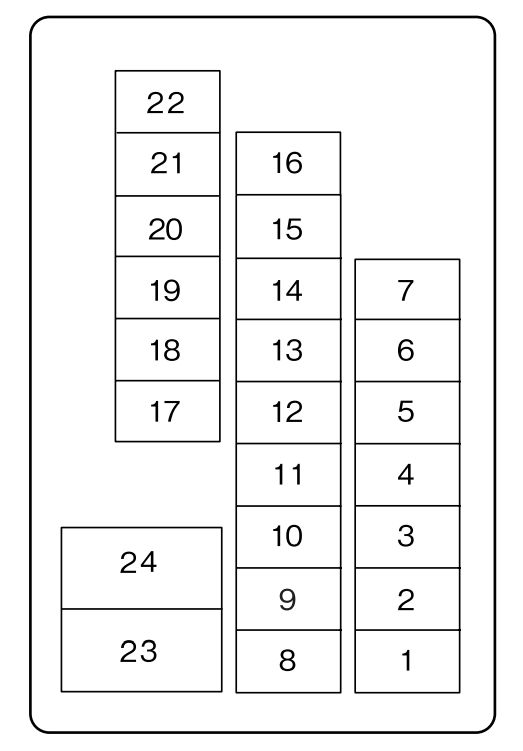

Mazda CX-9 - fuse box - glove box
Mazda CX-9 – fuse box – glove box
Position Description Fuse rating [A] Protected component
1 OUTLET FR 15 Accessory Socket (Front)
2 MIRROR 7,5 Power control mirror
3 — — —
4 METER 10 Instrument cluster
5 SAS 7,5 ABS, Air bag
6 ENG.IGA 7,5 Engine control system
7 STA 7,5 Ignition system
8 — — —
9 A/C 7,5 Air conditioner
10 R.WIPER 15 Rear window wiper and washer
11 — — —
12 P.LIFT GATE 20 Power lift gate*
13 SUNROOF 15 Moonroof*
14 AUDIO 10 Audio system
15 M.DEF 10 Mirror defroster*
16 — — —
17 TAIL 10 Taillight
18 ILLUMI 10 Dashboard illumination
19 INJ 7,5 Injectors
20 — — —
21 — — —
22 — — —
23 WIPER 30 Windshield wiper and washer
24 P.WIND 30 Power windows
*Some models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
