Lancia Musa (2007 – 2012) – bulbs specification
Year of production: 2007, 2008, 2009, 2010, 2011, 2012

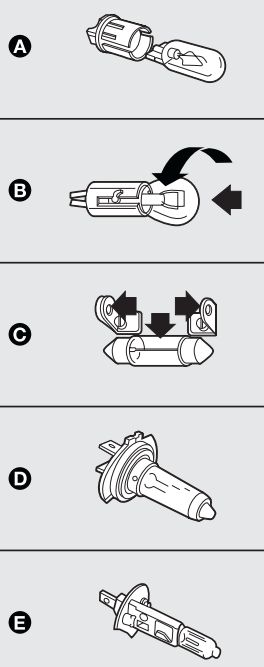

Type of bulbs
A – Glass bulbs: clipped into position. Pull to remove
B – Bayonet type bulbs: press the bulb, turn counterclockwise to remove this type of bulb from its holder
C – Tubular bulbs: free them from their contacts to remove
D-E – Halogen bulbs: to remove the bulb, release the clip holding the bulb in place
| Bulb | Figure | Type | Power |
| Main beam headlights | E | H3 | 55W |
| Dipped beam headlights | D | H7LL | 55W |
| Front side lights | A | W5WLL | 5W |
| Front fog lights (where provided) | E | H1 | 55W |
| Front direction indicators (orange) | B | PY21W | 21W |
| Side direction indicators | A | WY5W | 5W |
| Rear direction indicators | B | PY21W | 21W |
| Taillights | B | P21/5W | 21W/5W |
| Brake lights | B | P21/5W | 21W/5W |
| Third brake light (additional brake lights) | A | W2,3W | 2,3W |
| Reversing light | B | P21W | 21W |
| Rear fog lights | B | P21 | 21W |
| Number plate lights | C | C5W | 5W |
| Front ceiling light | A | W5W | 10W |
| Rear ceiling light | A | W5W | 10W |
| Rear ceiling lights (with sunroof) | A | W5W | 5W |
| Boot light | A | W5W | 5W |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
