Year of production: 2000, 2001
Driver’s side kick panel

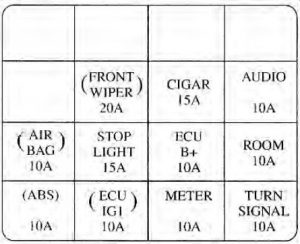

KIA Sephia – fuse box – driver’s side kick panel
| Description |
Ampere rating [A] |
Protected component |
| FRONT WIPER |
20 |
Front wiper system |
| CIGAR |
15 |
Cigarette lighter |
| AUDIO |
10 |
Audio, remote control mirror |
| AIR BAG |
10 |
Air bag diagnostic unit |
| STOP LIGHT |
15 |
Rear brake light, high-mounted stoplight |
| ECU B+ |
10 |
Shift lock actuator, transaxle control module, radio, engine control module |
| ROOM |
10 |
Interior light, clock, ignition key reminder switch, rear cargo area light |
| ABS |
10 |
ABS control unit |
| ECU IG1 |
10 |
Transaxle control module, shift lock actuator, ABS control unit, DRL unit |
| METER |
10 |
Instrument panel, back-up switch, electronic time control module, inhibit switch |
| TURN SIGNAL |
10 |
Hazard switch, front and rear turn lights, turn indicator |
Engine compartment

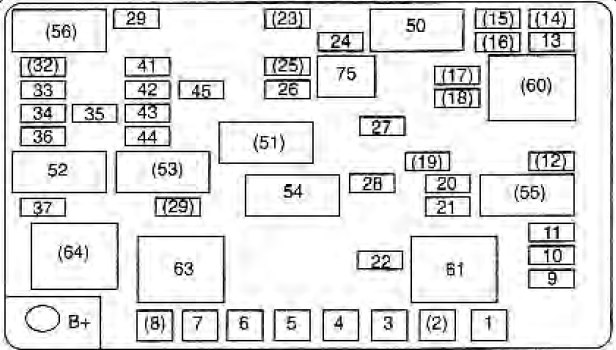

KIA Sephia – fuse box – engine compartment
Engine compartment (fuses)
| Number |
Description |
Ampere rating [A] |
Protected component |
| 1 |
IGN1 |
20 |
Ignition switch |
| 2 |
ABS |
30 |
ABS pump motor |
| 3 |
TNS |
30 |
Tail light, license plate light |
| 4 |
FUTURE |
20 |
Not applicable |
| 5 |
2ND AIR |
30 |
Not applicable |
| 6 |
FUTURE |
30 |
Not applicable |
| 7 |
COOL/FAN |
30 |
Cooling fan |
| 8 |
COND/FAN |
20 |
A/C condenser fan |
| 9 |
STARTER |
15 |
Start signal, fuel pump |
| 10 |
BLOWER |
25 |
Blower motor |
| 11 |
SR/ACC |
10 |
Ignition switch |
| 12 |
RR FOG |
10 |
Not applicable |
| 13 |
HAZARD |
15 |
Hazard and turn signal light |
| 14 |
D/LOCK |
25 |
Door locks |
| 15 |
ABS |
30 |
Anti-lock brake system control |
| 16 |
SUNROOF |
15 |
Not applicable |
| 17 |
P/W RH |
20 |
Power window motor |
| 18 |
P/W LH |
20 |
Power window motor |
| 19 |
RR WIPER |
15 |
|
| 20 |
IGN2 |
25 |
Ignition switch |
| 21 |
HEAD |
25 |
Headlights |
|
IG 2 |
30 |
Ignition switch |
| 22 |
IG COIL |
15 |
Ignition coil, condenser, generator IC regulator, diagnostic connector |
| 23 |
OBD-II |
10 |
OBD-II |
| 24 |
DEFOG |
20 |
Rear window defroster |
| 25 |
O2 DOWN |
20 |
Rear O2 sensor |
| 26 |
O2 UP |
10 |
Front O2 sensor |
| 27 |
FUEL PUMP |
10 |
Fuel pump unit |
| 28 |
INJECTOR |
10 |
Fuel injectors, camshaft position sensor, purge solenoid valve, EVAP canister close valve, IAC actuator, mass air flow sensor, EGR stepper motor, fuel pump relay coil, vehicle speed sensor |
| 29 |
A/CON |
10 |
A/C compressor controls, cooling fan |
| 30 |
BTN |
30 |
Brake light, high-mounted stoplight |
| 31 |
|
|
|
| 32 |
FRT FOG |
15 |
|
| 33 |
TAIL LH |
10 |
License plate light, tail lights, rear combination light, instrument panel illumination |
| 34 |
TAIL RH |
10 |
| 35 |
HEAD LOW |
15 |
Headlight |
| 36 |
HEAD HI |
15 |
Headlight |
| 37 |
HORN |
15 |
Horn |
| 41 |
SPARES |
10 |
Spare |
| 42 |
SPARES |
15 |
Spare |
| 43 |
SPARES |
20 |
Spare |
| 44 |
SPARES |
25 |
Spare |
| 45 |
SPARES |
30 |
Spare |
Engine compartment (relays)
| Number |
Description |
| 50 |
Defog |
| 51 |
Fuel pump |
| 52 |
Horn |
| 53 |
Air cond |
| 54 |
EGI mainamp |
| 55 |
Headlamp |
| 56 |
TNS |
| 60 |
P/Windows |
| 61 |
Blower |
| 63 |
Cooling fan |
| 64 |
Condenser fan |
| Number |
Description |
| 75 |
Fuse puller |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
