Hyundai Kona (2018) – fuse box diagram
Year of production: 2018

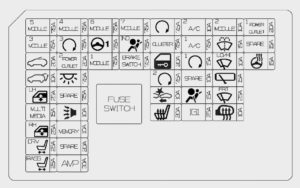

Instrument panel (Driver’s side)
| Fuse name | Symbol | Ampere rating [A] | Circuit protected |
| MODULE5 |  |
7,5 | ATM Shift Lever IND., Electro Chromic Mirror, Audio, AMP, Head Lamp RH, A/V & Navigation Head Unit, A/C Control Module, Crash Pad Switch, Head Lamp LH, ISG DC-DC Convertor, Auto Head Lamp Leveling Device Module, Front Air Ventilation Seat Module, Front Seat Warmer Module |
| MODULE3 |  |
7,5 | Stop Switch, BCM, ATM Shift Lever |
| S/ROOF |  |
20 | Sunroof Unit |
| T/Gate |  |
10 | Tail Gate Relay |
| P/WDW LH |  |
25 | Power Window LH Relay, Driver Safety Power Window Module (LHD) |
| Multi Media |  |
15 | ISG DC-DC Convertor, Audio, A/V & Navigation Head Unit |
| P/WDW RH |  |
25 | Power Window RH Relay, Driver Safety Power Window Module (RHD) |
| DR/P/Seat |  |
25 | Driver Seat Manual Switch |
| PS/P/Seat |  |
25 | Passenger Seat Manual Switch |
| MODULE4 |  |
7,5 | Blind-Spot Collision Warning Unit LH/RH, Active Air Flap, BCM, Parking Distance Warning Buzzer, Lane Keeping Assist Unit (Line), 4WD ECM |
| PDM3 |  |
7,5 | Smart Key Control Module, Immobilizer Module |
| P/OUTLET2 |  |
20 | ICM Relay Box (Power Outlet Relay) |
| ROOM LP |  |
7,5 | Glove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Wiresess Charger Unit, Driver Console Switch (With Wiresess), Luggage Lamp |
| Spare |  |
7,5 | Spare |
| B/Alarm |  |
10 | ICM Relay Box (Burglar Alarm Horn Relay) |
| MEMORY |  |
10 | A/C Control Module, Head Up Display, Instrument Cluster, BCM, ICM Relay Box (Outside Folding/Unfoling Relay), Rain Sensor |
| Spare | |
20 | Spare |
| AMP |  |
30 | ISG DC-DC Convertor, AMP |
| MODULE6 |  |
7,5 | Smart Key Control Module, BCM |
| MDPS |  |
7,5 | MDPS Unit |
| MODULE1 |  |
7,5 | Active Air Flap, Driver Console Switch (W/O Wiresess Charger), Hazard Switch, Data Link Connector |
| MODULE7 |  |
7,5 | Front Air Ventilation Seat Module, Front Seat Warmer Module |
| A/BAG IND |  |
7,5 | Instrument Cluster, A/C Control Modulee |
| BRAKE SWITCH |
 |
7,5 | Stop Lamp Switch, Smart Key Control Module |
| START |  |
7,5 | Transaxle Range Switch (A/T), Smart Key Control (With Smart Key), ICM Relay Box (Burglar Alarm Relay), ECM |
| CLUSTER |  |
7,5 | Head Up Display, Instrument Cluster |
| DR/LOCK |  |
20 | Door Lock Relay, Door Unlock Relay, ICM Relay Box (Dead Lock Relay) |
| PDM2 |  |
7,5 | Start/Stop Button Switch, Immobilizer Module |
| FCA |  |
10 | Forward Collision Avoidance Assist Unit |
| S/HTR |  |
20 | Front Seat Warmer Module, Front Air Ventilation Seat Module |
| A/CON2 |  |
20 | A/C Control Module |
| A/CON1 |  |
7,5 | A/C Control Module, E/R Junction Block (RLY.10) |
| PDM1 |  |
15 | Smart Key Control Module |
| SPARE | |
10 | Spare |
| A/BAG |  |
15 | SRS Control Module |
| IG1 |  |
25 | PCB Block (FUSE : F9, F10, F11, F12) |
| MODULE2 |  |
10 | Wiresess Charger Unit, Smart Key Control Module, BCM, Audio, A/V & Navigation Head Unit, ICM Relay Box (Power Outlet Relay), Power Outside Mirror Switch, ISG DC-DC Convertor |
| Washer |  |
15 | Muntifunction Switch |
| Wiper |  |
10 | BCM |
| R/Wiper |  |
15 | Rear Wiper Relay, Rear Wiper Motor |
| F/Wiper |  |
25 | Front Wiper Motor, PCM Block (Front Wiper (Low) Relay) |
| RR HTD |  |
10 | Driver Power Outside Mirror, A/C Control Module, ECM |
| P/OUTLET1 |  |
20 | Power Outlet |
| SPARE | |
15 | Spare |
| HTD STRG |  |
15 | BCM |
Engine compartment fuse panel
| Relay number | Symbol | Relay name | |
| RLY.2 | E62 |  |
Cooling Fan #2 Relay |
| RLY.3 | E63 |  |
PDM #3 (IG1) Relay |
| RLY.4 | E64 | |
Srart #1 Relay |
| RLY.6 | E66 |  |
PDM #4 (IG2) Relay |
| RLY.7 | E67 |  |
Fuel Pump Relay |
| RLY.8 | E68 |  |
PDM #2 (ACC) Relay |
| RLY.9 | E69 |  |
Cooling Fan #1 Relay |
| RLY.10 | E70 |  |
Blower Relay |
| RLY.12 | E72 |  |
Rear Defogger Relay |
| Type | Fuse name | Symbol | Ampere rating [A] | Circuit protected |
| MULTIFUSE-1 | MAIN |  |
150 | E/R Junction Block (Fuse – F20, F21, F22) |
| MDPS | |
80 | MDPS Unit | |
| MULTIFUSE-2 | BATT5 |  |
60 | PCB Block ((Fuse – F7, F8, F14, F15, F16), Engine Control Relay) |
| BATT2 |  |
60 | IGPM ((Fuse – F30), IPS0, IPS1, IPS2) | |
| BATT3 |  |
60 | IGPM (IPS3, IPS4, IPS5, IPS6, IPS7, IPS8) | |
| BATT4 |  |
50 | IGPM (Fuse – F3, F4, F5, F7, F8, F9, F12, F15, F18) | |
| C/FAN |  |
60 | E/R Junction Block (RLY.2, RLY.9) | |
| RR DEFOG | |
40 | E/R Junction Block (RLY.12) | |
| BLOWER |  |
40 | E/R Junction Block (RLY.10) | |
| IG1 | |
40 | W/O Smark Key : Ignition Switch With Smark Key : E/R Junction Block (RLY.3, RLY.8) |
|
| IG2 |  |
40 | W/O Smark Key : Ignition Switch With Smark Key : E/R Junction Block (RLY.6) |
|
| FUSE | TCM |  |
15 | TCM |
| V/PUMP |  |
20 | Vacuum Pump | |
| F/PUMP |  |
20 | E/R Junction Block (RLY.7) | |
| BATT1 |  |
40 | IGPM ((Fuse – F21, F24, F28, F33), Leak Current Autocut Device) | |
| DCT1 |  |
40 | TCM | |
| DCT2 |  |
40 | TCM | |
| 4WD |  |
20 | 4WD ECM | |
| ABS1 |  |
40 | ESC Control Module, Multifunction Switch | |
| ABS2 |  |
30 | ESC Control Module |
Gamma 1.6 T-GDI
| Fuse name | Symbol | Ampere ratting [A] | Relay name |
| SENSOR2 |  |
10 | PCB Block (A/CON Relay), E/R Junction Block (RLY.9), Purge Control Solenoid Valve, RCV Control Solenoid Valve, Oil Control Valve #1~#2 |
| ECU2 |  |
10 | ECM |
| ECU1 |  |
20 | ECM |
| INJECTOR |  |
15 | — |
| SENSOR1 |  |
15 | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL |  |
20 | Ignition Coil #1~#4 |
| ECU3 |  |
15 | ECM |
| A/CON |  |
10 | PCB Block (A/CON Relay) |
| ECU5 |  |
15 | ECM |
| SENSOR4 |  |
15 | Vacuum Pump |
| ABS3 |  |
10 | ESC Control Module, Multipurpose Check Connector |
| TCM2 |  |
15 | TCM, Transaxle Range Switch |
| SENSOR3 |  |
10 | E/R Junction Block (RLY.7) |
| ECU4 |  |
15 | ECM |
| H/LAMP |  |
10 | PCB Block (Head Lamp(High) Relay) |
| HORN |  |
15 | PCB Block (Horn Relay) |
Kappa 1.0 T-GDI
| Fuse name | Symbol | Ampere ratting [A] | Relay name |
| SENSOR2 | |
10 | PCB Block (A/CON Relay), E/R Junction Block (RLY.9), RCV Control Solenoid Valve, Purge Control Solenoid Valve, Oil Control Valve #1~#3 |
| ECU2 | |
10 | ECM |
| ECU1 | |
20 | ECM |
| INJECTOR | |
15 | — |
| SENSOR1 | |
15 | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL | |
20 | Ignition Coil #1~#3 |
| ECU3 | |
15 | ECM |
| A/CON | |
10 | PCB Block (A/CON Relay) |
| ECU5 | |
10 | ECM |
| SENSOR4 | |
15 | — |
| ABS3 | |
10 | ESC Control Module, Multipurpose Check Connector |
| TCM2 | |
15 | — |
| SENSOR3 | |
10 | E/R Junction Block (RLY.7) |
| ECU4 | |
15 | ECM |
| H/LAMP | |
10 | PCB Block (Head Lamp(High) Relay) |
| HORN | |
15 | PCB Block (Horn Relay) |

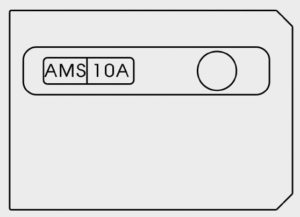

Engine compartment fuse panel (Battery terminal cover)
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
