Hyundai H1 (Grand Starex) – (2016) – fuse box diagram
Year of production: 2016

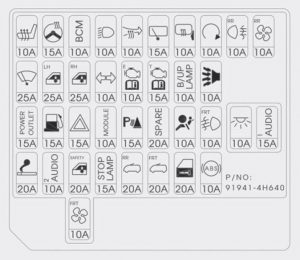

Instrument panel fuse panel
instrument panel
| Description | Ampere rating [A] | Protected component |
| AUDIO-2 | 10 | Audio, Digital clock, BCM, Power outside mirror switch |
| C/LIGHTER | 20 | Cigarette lighter, Front power outlet |
| S/HEATER DRV | 10 | Driver seat warmer switch (if equipped) |
| FOG LAMP REAR | 10 | Rear fog lamp relay |
| HEAD LAMP | 10 | Head lamp High/Low relay |
| WIPER FRT | 25 | Front wiper relay, Front wiper motor |
| BCM | 10 | BCM, DRL |
| HEATER | 10 | Front/Rear blower relay, Front/Rear A/C control module, Condenser fan relay, Electro chromic mirror, Thermo switch, PTC heater relay(D4CB), EGR solenoid valve(D4BH) |
| B/UP LAMP | 10 | Back-up lamp relay, Back-up lamp switch, Transmission range switch |
| ABS | 10 | ABS/ESC control module, ESC switch(D4CB) |
| T/SIGNAL LAMP | 10 | Hazard switch |
| AIR BAG | 10 | SRS control module |
| MODULE | 10 | Instrument cluster, BCM, Immobilizer control module(D4BH), A/C relay(D4BH), Generator resister |
| ECU | 10 | Vehicle speed sensor, ECM, Air flow sensor(D4CB), Injection pump(D4BH), TCM, Fuel filter warning sensor |
| START | 10 | Start relay, Burglar alarm relay |
| HEATED MIRROR | 10 | Front A/C control module, Power outside mirror & defogger LH/RH |
| STOP LAMP | 15 | Stop lamp switch |
| RPAS | 15 | Buzzer, Stop, Signal electronic module |
| DOOR LOCK | 20 | Door lock/unlock relay |
| FOG LAMP FRONT | 10 | Front fog lamp relay |
| B/ALARM HORN | 10 | Burglar alarm horn relay |
| AUDIO-1 (POWER CONNECTOR) | 15 | Audio |
| ROOM LAMP | 10 | Digital clock, Instrument cluster, Courtesy lamp LH/RH, Step lamp LH/RH, Cargo lamp, Room lamp switch, Door warning switch, Data link connector, BCM, Vanity lamp switch LH/RH, Overhead console lamp |
| HAZARD | 15 | Hazard relay, Hazard switch |
| FUEL LID | 15 | Fuel filler door relay |
| P/WINDOW LH | 25 | Power window main switch, Power window switch LH |
| P/WINDOW RH | 25 | Power window main switch, Power window switch RH |
| HEATED STEERING | 15 | Steering Wheel Heated Coil |
| WIPER RR | 15 | Multi Function Switch |
| BLOWER FRT | 10 | Full Auto Aircon Module |
| BLOWER RR | 10 | Manual Aircon Module |
| TCU | 15 | TCU Module |
| POWER OUTLET | 15 | Power Outlet Front |
| SAFETY P/WINDOW | 20 | Safety Power Window Module |
| SUNROOF FRT | 20 | Front Sunroof Motor |
| SUNROOF RR | 20 | Rear Sunroof Motor |
Engine compartment main fuse panel
| Description | Ampere rating [A] | Protected component |
| ALT | 150 | Fuse(A/CON, FRT DEICER), Fusible link(FRT HTR, RR HTR, RR HTD, C/FAN, F/FILTER, ABS 1/2), Generator, E/R fuse & relay box RH |
| B+1 | 50 | Fuse(DR LOCK, FRT FOG LP, B/ALARM, Power connector(AUDIO-1, ROOM LP)) |
| B+2 | 30 | Fuse(FUEL LID, P/WDW LH/RH, HAZARD), Multipurpose check connector |
| BATT 3/RAD FAN 5 | 40 | Fuse(STOP LP, BWS), Radiator fan relay(G4KC) |
| IG 1 | 40 | Ignition switch(ACC, IG1) |
| IG 2 | 40 | Ignition switch(IG2, START), Start relay |
| ECU 3 | 30/20 | Engine control relay |
| HEATER FRT | 40 | Front blower relay |
| REAR HEATED | 40 | Rear defogger relay |
| HEATER RR | 40 | Rear blower relay |
| ABS 1 | 40 | ABS control module(G4KC) |
| ABS 2 | 40 | ABS control module(G4KC) |
| COOLING FAN 1 | 30 | Condenser fan relay 1 |
| COOLING FAN 2 | 30 | Radiator Fan Motor |
| FUEL HEATER | 30 | Fuel filter heater relay(DIESEL) |
| ECU 4/TCU | 10 | TCM, ECM (Gasoline) |
| HORN | 10 | Horn relay |
| HEATER | 20 | Fuel fired heater control module(D4CB) |
| FUEL PUMP | 15 | Fuel pump relay(G4KC) |
| ALT | 10 | Generator(D4BH) |
| H/LAMP HI | 15 | Head lamp(HIGH) relay, Head lamp(LOW) relay |
| A/CON | 10 | A/C relay |
| DEICER | 15 | Windshield defogger relay (if equipped) |
| TAIL LAMP LH | 10 | Head lamp LH(Position lamp), Rear combi lamp LH, License lamp LH |
| TAIL LAMP RH | 10 | Head lamp RH(Position lamp), Rear combi lamp RH, License lamp RH |
| HEAD LAMP LH | 10 | Head lamp LH |
| HEAD LAMP RH | 10 | Head lamp RH |
| SENSOR 1 | 10 | A/C relay, Condenser fan relay(D4CB), Lambda sensor(D4CB), PTC heater relay #1(D4CB), Stop lamp switch(D4CB) |
| SENSOR 2 | 15 | D4CB:Camshaft position sensor, Glow plug relay, EGR actuator, VGT control valve, Immobilizer control module G4KC:Fuel pump relay, Canister purge solenoid valve, Oil control valve, Crankshaft position sensor, Oxygen sensor, Immobilizer control module, Idle speed control actuator |
| IGN COIL | 15 | Ignition coil #1~#4(G4KC), Condenser(G4KC) |
| ECU 1 | 10 | ECM(D4CB) |
| ECU 2 | 20 | ECM(D4CB, G4KC), Injector #1~#4(G4KC) |
Engine compartment sub fuse panel (Diesel engine)
| Description | Ampere rating [A] | Protected components |
| GLOW | 80 | Glow plug relay |
| PTC 1 | 40 | PTC heater relay #1 |
| PTC 2 | 40 | PTC heater relay #2 |
| PTC 3 | 40 | PTC heater relay #3 |
| ABS 1 | 40 | ABS/ESP control module |
| ABS 2 | 40 | ABS/ESP control module |
| ECU | 15 | Electronic Control Unit Power |
| FUEL PUMP | 20 | Fuel Pump Motor |
| DCU 1 | 20 | Dosing Control Unit Power 1 |
| DCU 2 | 20 | Dosing Control Unit Power 2 |
| DCU 3 | 20 | Dosing Control Unit Power 3 |
| DCU | 60 | Dosing Control Unit Main Power |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
