Hyundai Grand Santa Fe (2013 – 2016) – fuse box diagram
Year of production: 2013, 2014, 2015, 2016

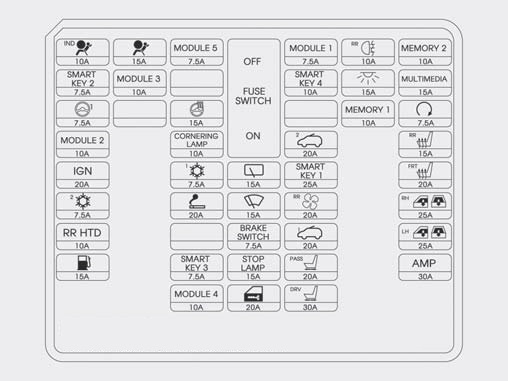

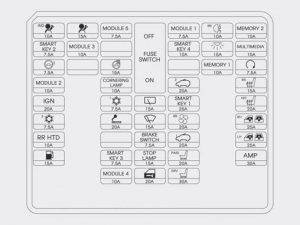

Instrument panel
| Description | Symbol | Ampere rating [A] | Protected component |
| A/BAG IND |  |
10 | Instrument Cluster |
| A/BAG |  |
15 | SRS Control Module, A/C Control Module |
| MODULE 5 |  |
7,5 | Rain Sensor, Sunroof, Smart Key Control Module, BCM, Parking Guide System, AC, Inverter Module, Rear Blower Relay, Rear Seat Warmer LH/RH, Driver/Passenger Climate Control Seat Control Module, Driver/Passenger Seat Warmer Module |
| MODULE 1 |  |
7,5 | Sport Mode Switch, Key Solenoid, Console Switch LH/RH, Front Console Switch, Rear Power Window Switch LH/RH, RR_BLOWER SW |
| REAR FOG LAMP |  |
10 | ICM Relay Box (Rear Fog Lamp Relay) |
| MEMORY 2 |  |
10 | BCM, Tire Pressure Monitoring Module, Driver IMS Module, Driver/Passenger Door Module, Auto Light & Photo Sensor, Data Link Connector, A/C Control Module, Instrument Cluster |
| SMART KEY 2 |  |
7,5 | Smart Key Control Module, Immobilizer Module |
| MODULE 3 |  |
10 | BCM, Instrument Cluster, Tire Pressure Monitoring Module, AMP, Smart Parking Assist Control Module, Electro Chromic Mirror, Lane Departure Warning Module, Steering Angle Sensor, Audio, A/C Control Module, A/V & Navigation Head Unit, 4WD ECM ATM Shift Lever Indicator, Rear Parking Assist Sensor LH/RH, Rear Seat Warmer LH/RH, Driver/Passenger Climate Control Seat Control Module, Driver/Passenger Seat Warmer Module, Driver IMS Module, Console Switch LH/RH, Rear Console Switch, Rear Parking Assist Sensor (Center) LH/RH, Driver/Passenger Door Module, Electric Parking Brake Module |
| SMART KEY 4 |  |
10 | Start/Stop Button Switch, Immobilizer Module |
| INTERIOR LAMP |  |
15 | Cargo Lamp, Vanity Lamp LH/RH, Overhead Console Lamp Center Room Lamp, Personal Lamp LH/RH |
| MULTI MEDIA |  |
15 | Audio, A/V & Navigation Head Unit, Digital Clock |
| MDPS |  |
7,5 | MDPS Unit |
| HANDLE HTD |  |
15 | Steering Wheel Switch |
| MEMORY 1 |  |
10 | RF Receiver, Ignition Key Ill. & Door Warning Switch |
| START |  |
7,5 | W/O IMMO. & Smart Key : ICM Relay Box (Burglar Alarm Relay) With IMMO./Smart Key : ECM/PCM, Transaxle Range Switch, Smart Key Control Module, E/R Fuse & Relay Box (RLY. 2) |
| MODULE 2 |  |
10 | Adaptive Front Lighting Module, Crash Pad Switch, Glow Relay Unit (DSL), Multipurpose Check Connector, Head Lamp LH/RH, Head Lamp Leveling Device Actuator LH/RH, Auto Head Lamp Leveling Device Module, Stop Lamp Switch, Diesel Box (RLY. 1)(DSL) |
| SUNROOF 2 |  |
20 | Sunroof |
| S/HEATER RR |  |
15 | Rear Seat Warmer LH/RH |
| IGN |  |
20 | E/R Fuse & Relay Box (Fuse – F36, F37, F38) |
| A/CON 1 |  |
7,5 | E/R Fuse & Relay Box (RLY. 4/14), A/C Control Module Cluster Ionizer, Diesel Box (RLY. 3/4) |
| WIPER RR |  |
15 | Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch |
| SMART KEY 1 |  |
25 | Smart Key Control Module |
| S/HEATER FRT |  |
20 | Driver/Passenger Climate Control Seat Control Module, Driver/Passenger Seat Warmer Module |
| A/CON 2 |  |
7,5 | A/C Control Module |
| C/LIGHTER |  |
20 | Front Power Outlet & Cigarette Lighter, Luggage Power Outlet |
| WIPER FRT |  |
15 | Multifunction Switch, E/R Fuse & Relay Box (RLY. 9/11) |
| RR BLOWER |  |
20 | ICM Relay Box (Rear Blower Relay) |
| P/WDW RH |  |
25 | Passenger Safety Power Window Module Passenger Door Module, Rear Power Window Switch RH Rear Safety Power Window Module RH |
| RR DEFOGGER |  |
10 | A/C Control Module |
| BRAKE SWITCH |  |
7,5 | Smart Key Control Module, Stop Lamp Switch |
| SUNROOF 1 |  |
20 | Sunroof |
| P/WDW LH |  |
25 | Driver Safety Power Window Module Driver Door Module, Rear Power Window Switch LH Rear Safety Power Window Module LH |
| FUEL LID |  |
15 | Fuel Fillar Door Switch |
| SMART KEY 3 |  |
7,5 | Smart Key Control Module |
| STOP LAMP |  |
15 | Stop Signal Electronic Module |
| P/SEAT PASS |  |
20 | Passenger Seat Manual Switch |
| AMP |  |
30 | AMP |
| MODULE 4 |  |
10 | Audio, A/V & Navigation Head Unit, Parking Guide System Digital Clock, BCM, Overhead Console Lamp, AMP Power Outside Mirror Switch, E/R Fuse & Relay Box (RLY. 1) |
| DR LOCK |  |
20 | Door Lock/Unlock Relay, Tail Gate Relay |
| P/SEAT DRV |  |
30 | Driver IMS Module, Driver Seat Manual Switch Driver Lumbar Support Switch |

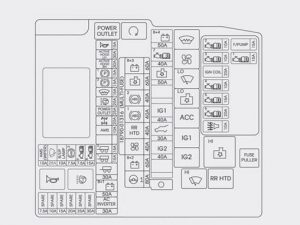

Engine compartment fuse panel
| Relay number | Symbol | Relay Name | Relay Type |
| E30 |  |
POWER OUTLET RELAY | ISO MICRO |
| E31 | |
START RELAY | ISO MICRO |
| E32 |  |
FRONT DEICER RELAY | ISO MICRO |
| E33 |  |
BLOWER RELAY | ISO MICRO |
| E34 |  |
WIPER (LO) RELAY | ISO MICRO |
| E35 |  |
COOLING FAN (LO) RELAY | ISO MICRO |
| E36 |  |
ACC RELAY | ISO MICRO |
| E37 |  |
IG1 RELAY | ISO MICRO |
| E38 |  |
IG2 RELAY | ISO MICRO |
| E39 |  |
COOLING FAN (HI) RELAY | ISO MINI |
| E40 |  |
WIPER (HI) RELAY | ISO MICRO |
| E41 | |
REAR DEFOGGER RELAY | ISO MICRO |
| E42 |  |
HORN RELAY | ISO MICRO |
| E43 |  |
HEAD LAMP WASHER RELAY | ISO MICRO |
| Description | Symbol | Ampere rating [A] | Protected component | |
| MULTI FUSE | MDPS |  |
80 | MDPS Unit |
| B+2 |  |
60 | Smart Junction Box (IPS 1 (4CH), IPS 2 (1CH), IPS 5 (1CH), Fuse – F31/F36/F41/F45) | |
| BLOWER | |
40 | RLY. 4 (Blower Relay) | |
| RR HTD | |
40 | RLY. 12 (Rear Defogger Relay) | |
| ABS1 |  |
40 | ABS Control Module, ESC Control Module, Multipurpose Check Connector | |
| ABS2 |  |
40 | ABS Control Module, ESC Control Module | |
| C/FAN |  |
60 | Except Europe – RLY. 6 (Cooling Fan (LO) Relay), RLY. 10 (Cooling Fan (HI) Relay) | |
| B+3 |  |
60 | Smart Junction Box (Fuse – F4/F5/F10/F21/F26, Leak Current Autocut Device) | |
| FUSE | B+4 |  |
50 | Smart Junction Box (IPS 3 (4CH), IPS 4 (2CH), IPS 6 (2CH), Fuse – F35/F38/F40/F44) |
| EMS |  |
40 | EMS Box | |
| C/FAN | |
50 | Except Europe – RLY. 6 (Cooling Fan (LO) Relay), RLY. 10 (Cooling Fan (HI) Relay) | |
| IG1 | |
40 | Ignition Switch (W/O Smart Key), RLY. 7/8 (ACC/IG1 Relay, With Smart Key) | |
| IG2 | |
40 | Ignition Switch (W/O Smart Key), RLY. 2 (Start Relay)/RLY. 9 (IG2 Relay) | |
| TRAILER |  |
30 | Trailer Lamp & Power Outlet | |
| B+1 |  |
50 | Smart Junction Box (Fuse – F22/F27/F32/F37/F42) | |
| AC INVERTER |  |
30 | AC Inverter Module | |
| HORN | |
15 | RLY. 13 (Horn Relay) | |
| ACTIVE HOOD LH |  |
30 | — | |
| ACTIVE HOOD RH |  |
30 | — | |
| EPB1 |  |
15 | Electric Parking Brake Module | |
| EPB2 |  |
15 | Electric Parking Brake Module | |
| H/LP WASHER | |
20 | RLY. 14 (Head Lamp Washer Relay) | |
| P/OUTLET | |
25 | RLY. 1 (Power Outlet Relay) | |
| 4WD |  |
20 | 4WD ECM | |
| AMS |  |
10 | Battery Sensor | |
| TRAILER 2 |  |
15 | Trailer Lamp & Power Outlet | |
| TRAILER 1 |  |
15 | Trailer Lamp & Power Outlet | |
| WIPER |  |
10 | BCM, PCM/ECM | |
| WIPER FRT | |
25 | RLY. 5 (Wiper (LO) Relay), Front Wiper Motor | |
| B/UP LAMP |  |
10 | M/T – Back-Up Lamp Switch, A/T – Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, Trailer Lamp & Power Outlet, Audio, A/V & Navigation Head Unit | |
| ABS3 |  |
7,5 | ABS Control Module, ESC Control Module | |
| SENSOR5 |  |
7,5 | PCM/ECM, Mass Air Flow Sensor | |
| TCU |  |
15 | TCM (DSL), Transaxle Range Switch | |
| F/PUMP |  |
15 | Fuel Pump Relay | |
| ECU1 |  |
15 | G4KE/G4KJ/G6DF : PCM D4HA/D4HB (VGT Regular Engine Pack) : TCM (A/T) |
|
| ECU2 |  |
10 | D4HA/D4HB : Electronic VGT Actuator | |
| SENSOR3 |  |
10 | G6DF : PCM, Injector #1/#2/#3/#4/#5/#6, Fuel Pump Relay D4HA/D4HB (VGT Regular Engine Pack) : Lambda Sensor, Stop Lamp Switch |
|
| IGN COIL |  |
20 | G6DF : Condenser #1/#2, Ignition Coil #1/#2/#3/#4/#5/#6 D4HA/D4HB : ECM |
|
| SENSOR2 |  |
10 | G6DF : PCM, Oil Control Valve #1/#2/#3/#4, Variable Intake Solenoid Valve #1/#2, Purge Control Solenoid Valve D4HA/D4HB (VGT Regular Engine Pack) : EGR Cooling Bypass Solenoid Valve, Lower Power EGR Valve, Crankshaft Position Sensor, Fuel Pump Relay, E/R Fuse & Relay Box (RLY. 6/10) |
|
| SENSOR1 |  |
15 | G6DF : PCM, Oxygen Sensor #1/#2/#3/#4, E/R Fuse & Relay Box (RLY. 6/10) D4HA/D4HB (VGT Regular Engine Pack) : Oil Level Sensor, Fuel Pressure Regulating Valve, Rail Pressure Regulating Valve |
|
| SENSOR4 |  |
20 | G4KE/G4KJ : PCM | |
| B/ALARM |  |
10 | Burglar Alarm Horn Relay |

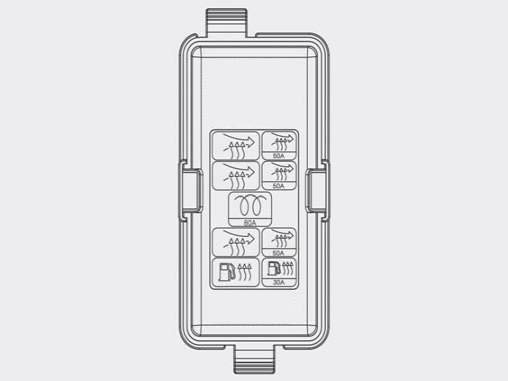

Engine compartment fuse panel (Diesel engine only)
Circuit
| Symbol | Ampere rating [A] | Protected component |
 |
30 | RLY. 1 (Fuel Filter Heater Relay) |
 |
50 | RLY. 2 (PTC Heater Relay #1) |
 |
50 | RLY. 3 (PTC Heater Relay #2) |
 |
50 | RLY. 4 (PTC Heater Relay #3) |
 |
80 | Glow Relay Unit |
Relay Type
| Relay number | Symbol | Protected component | Relay type |
| E44 | |
RLY. 1 (Fuel Filter Heater Relay) | MICRO PLUG |
| E45 | |
RLY. 2 (PTC Heater Relay #1) | MICRO PLUG |
| E46 | |
RLY. 3 (PTC Heater Relay #2) | MICRO PLUG |
| E47 | |
RLY. 4 (PTC Heater Relay #3) | MICRO PLUG |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
