GMC Sierra 1500 (1995) – wiring diagrams – power distribution

4 January 2019 admin GMC, Sierra 0

GMC Sierra 1500 (1995) – wiring diagrams – power distribution

Year of productions:  1995

Power distribution

Version 1

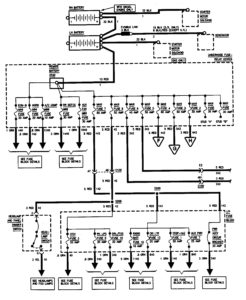

GMC Sierra 1500 – wiring diagrams – power distribution (part 1)

GMC Sierra 1500 – wiring diagrams – power distribution (part 1)

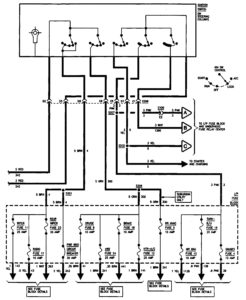

GMC Sierra 1500 – wiring diagrams – power distribution (part 2)

GMC Sierra 1500 – wiring diagrams – power distribution (part 2)

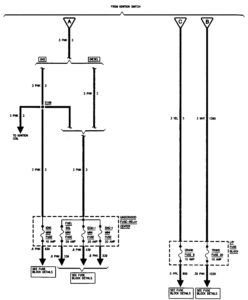

GMC Sierra 1500 – wiring diagrams – power distribution (part 3)

GMC Sierra 1500 – wiring diagrams – power distribution (part 3)

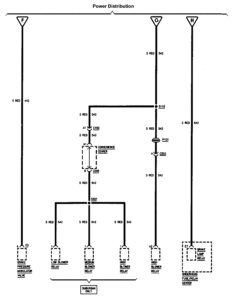

GMC Sierra 1500 – wiring diagrams – power distribution (part 4)
GMC Sierra 1500 – wiring diagrams – power distribution (part 4)

Version 2

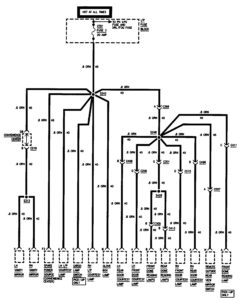

GMC Sierra 1500 – wiring diagrams – power distribution (part 1)
GMC Sierra 1500 – wiring diagrams – power distribution (part 1)

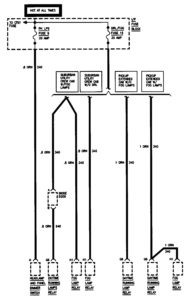

GMC Sierra 1500 – wiring diagrams – power distribution (part 2)
GMC Sierra 1500 – wiring diagrams – power distribution (part 2)

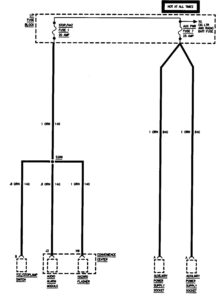

GMC Sierra 1500 – wiring diagrams – power distribution (part 3)
GMC Sierra 1500 – wiring diagrams – power distribution (part 3)

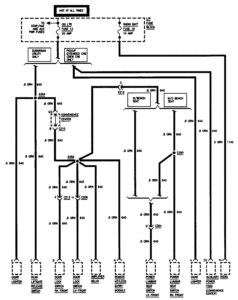

GMC Sierra 1500 – wiring diagrams – power distribution (part 4)
GMC Sierra 1500 – wiring diagrams – power distribution (part 4)

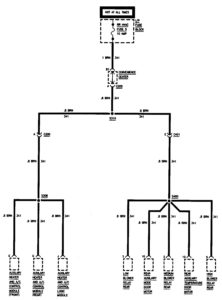

GMC Sierra 1500 – wiring diagrams – power distribution (part 5)
GMC Sierra 1500 – wiring diagrams – power distribution (part 5)

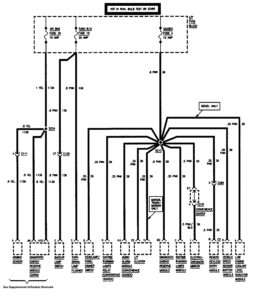

GMC Sierra 1500 – wiring diagrams – power distribution (part 6)
GMC Sierra 1500 – wiring diagrams – power distribution (part 6)

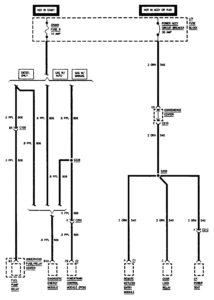

GMC Sierra 1500 – wiring diagrams – power distribution (part 7)
GMC Sierra 1500 – wiring diagrams – power distribution (part 7)

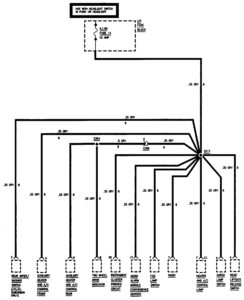

GMC Sierra 1500 – wiring diagrams – power distribution (part 8)
GMC Sierra 1500 – wiring diagrams – power distribution (part 8)

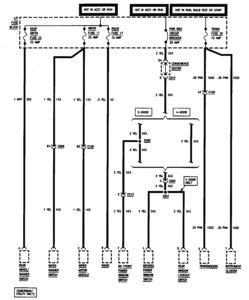

GMC Sierra 1500 – wiring diagrams – power distribution (part 9)
GMC Sierra 1500 – wiring diagrams – power distribution (part 9)

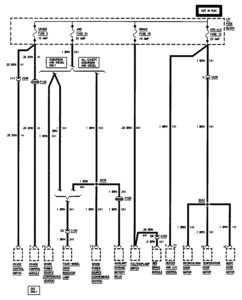

GMC Sierra 1500 – wiring diagrams – power distribution (part 10)
GMC Sierra 1500 – wiring diagrams – power distribution (part 10)

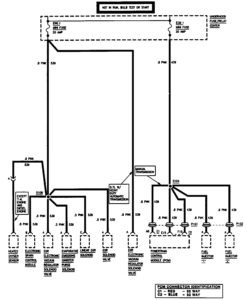

GMC Sierra 1500 – wiring diagrams – power distribution (part 11)

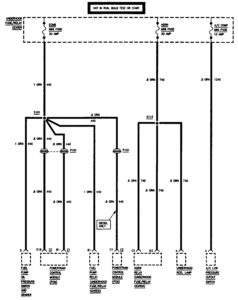

GMC Sierra 1500 – wiring diagrams – power distribution (part 12)
GMC Sierra 1500 – wiring diagrams – power distribution (part 12)

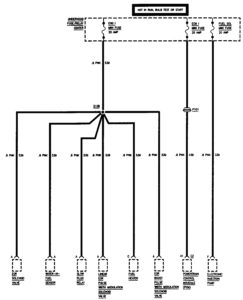

GMC Sierra 1500 – wiring diagrams – power distribution (part 13)
GMC Sierra 1500 – wiring diagrams – power distribution (part 13)

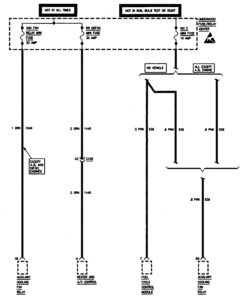

GMC Sierra 1500 – wiring diagrams – power distribution (part 14)
GMC Sierra 1500 – wiring diagrams – power distribution (part 14)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
