Ford Festiva (1988 – 1993) – fuse box diagram
Year of production: 1988, 1989, 1990, 1991, 1992, 1993
Passenger Compartment Fuse Box

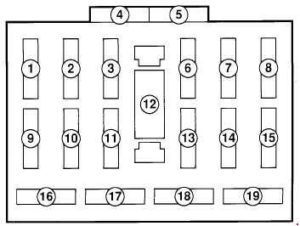

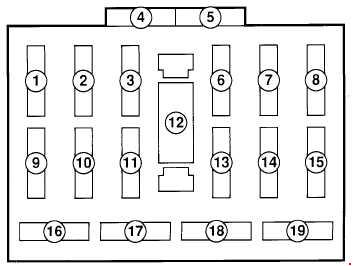

Ford Festiva – fuse box diagram – passenger compartment
№
|
A
|
Protected Component |
| 1 |
– |
– |
| 2 |
15 |
Front Wiper/Washer, Shift-Lock System (ATX (’90-’93)), Engine Control System (’90-’93) |
| 3 |
15 |
Rear Wiper/Washer, Daytime Running Light System (Canada) |
| 4 |
– |
– |
| 5 |
15 |
Spare |
| 6 |
15 |
Heater & Air Conditioner |
| 7 |
20 |
Cooling Fan System, Heater & Air Conditioner |
| 8 |
– |
– |
| 9 |
10 |
Charging System, Emission Control System |
| 10 |
10 |
Safety Belt Warning, Turn & Hazard Warning Flasher Lights, Back-Up Lights, Instrument Cluster, Warning Lights, Shift-Lock System (’90-’93) |
| 11 |
15 |
Rear Window Defroster |
| 12 |
30 |
Climate Control Blower Motor |
| 13 |
15 |
Horn, Brakelights, High-Mount Brakelight |
| 14 |
15 |
Safety Belt Warning, Turn & Hazard Warning Flasher Lights, Radio (’88-’89), Trunk Light (’88-’89), Ignition Key Reminder Buzzer |
| 15 |
10 |
Interior Courtesy Lights, Luggage Compartment Light (’90-’93), Radio (’90-’93) |
| 16 |
15 |
License Plate Light, Rear Side Marker Light, Front Parking Lights, Cluster and Tail Lights |
| 17 |
– |
– |
| 18 |
15 |
Audio System, Cigarette Lighter, Remote Control Mirror |
| 19 |
30 |
Passive Restraint System (Automatic Seat Belt (’90-’93)) |
Engine Compartment Fuse Box
Ford Festiva – fuse box diagram – engine compartment
| № |
Fusible Link |
| A |
EFE Carburetor Heater (’88-’89), EFI System (’89-’92), EGI-EFI System (’93) |
| B |
Back-Up, Interior & Parking Lights, Brakelights, Taillights, Horn, Luggage Compartment Light, Turn Signal & Hazard Flasher Lights, Cluster & Warning Lights, Radio, Cigarette Lighter, Charging & Emission Control Systems, Wiper/Washer Systems, A/C-Heater System, Cooling Fan System, Rear Window Defroster, Ignition & Starting Systems, Shift Lock System, Remote Control Mirror, Ignition Key Reminder, Passive Restraint System (’90-’93) |
| C |
Headlights, Daytime Running Lights, Starting & Charging System |
In-Line Fuse
| A |
Description components |
| 15 |
Condenser Fan Motor (A/T Models Only (’90-’93)) |
| 10 |
A/C System (located on left side of heater case (’90-’93)) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
