Fiat Doblo (2006 – 2010) – fuse box diagram
Year of production: 2006, 2007, 2008, 2009, 2010

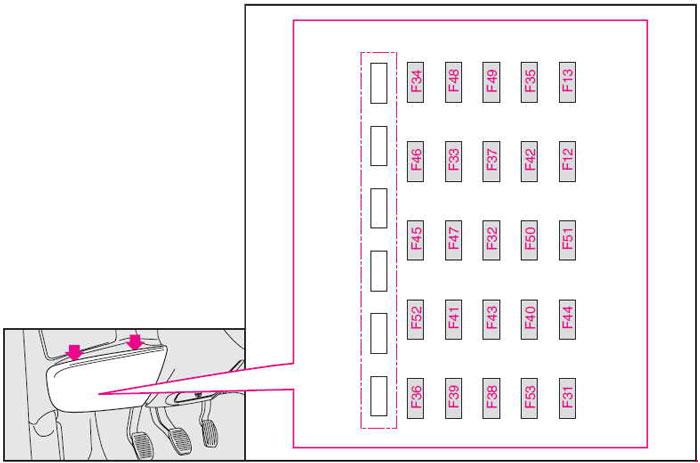

The instrument panel fuse panel
| No. |
A |
Function |
| 12 | 10 | Right-hand dipped beam |
| 13 | 10 | Left-hand dipped beam – Headlight beam adjuster |
| 31 | 7.5 | Reversing light – Manual climate control enable control – Pump system relay – Fan system relay passenger compartment heater |
| 32 | 15 | Light system |
| 33 | – | Not used |
| 34 | – | Not used |
| 35 | – | Not used |
| 36 | 15 | Subwoofer system |
| 37 | 10 | Instrument panel and warning lights (ignition switch powered) – Brake lights – Additional brake light (third stop light) |
| 38 | 20 | Door locking system |
| 39 | 10 | + 30 services (sound system, cellular telephone, diagnostic socket) |
| 40 | 30 | Heated rear window |
| 41 | 7.5 | Heated rearview mirrors |
| 42 | 10 | Boot – Ceiling light |
| 42 | 7.5 | ABS control unit (ignition switch powered) |
| 43 | 30 | Windscreen wiper – Windscreen-rear window washer pump |
| 44 | 20 | Cigar lighter – Supplementary power socket |
| 45 | 15 | Heated seats |
| 46 | – | Not used |
| 47 | 20 | Left front power window |
| 48 | 20 | Right front power window |
| 49 | 7.5 | +15 services (sound system, cellular telephone, dashboard control lighting, electrical mirrors, trailer, heated seat control lighting) – Safet belt buzzer muting relay |
| 50 | 7.5 | Air bag |
| 51 | 7.5 | Dashboard instrument lights – Number plate light |
| 52 | 15 | Rear window wiper |
| 53 | 10 | Hazard lights – Direction indicators – Instrument panel and warning lights (battery powered) |

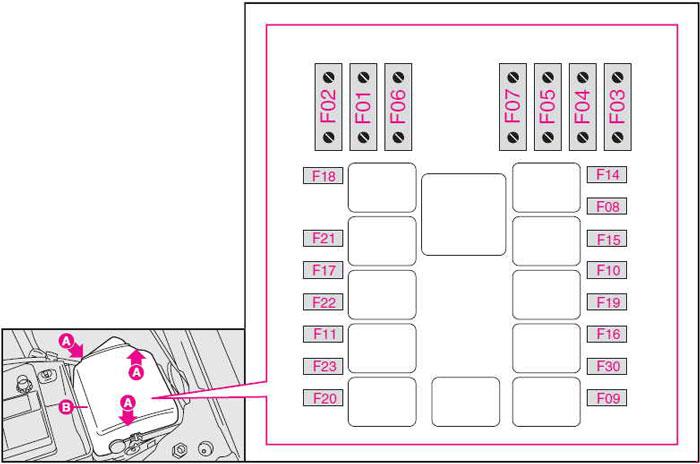

Fuses in the engine compartment
| No. |
A |
Function |
| 1 | 70 | Dashboard control unit power: standard functions |
| 2 | 40 | Dashboard control unit power: optional functions |
| 3 | 20 | Ignition switch |
| 4 | 40 | ABS power (pump) |
| 5 | 30 | ABS power (valve) |
| 6 | 30 | One-speed radiator fan |
| 6 | 30 | Radiator fan first speed (versions with manual climate control system) |
| 6 | 40 | Radiator fan first speed (1.3 -1.9 Multijet versions) |
| 7 | 60 | Radiator fan second speed (1.4 – 1.6 versions with manual climate control system) |
| 7 | 40 | Radiator fan second speed (1.3 -1.9 Multijet versions) |
| 8 | 30 | Passenger compartment fan |
| 9 | – | Not used |
| 10 | 15 | Horn |
| 11 | 15 | Engine control system secondary loads – Glow plug control unit – Petrol fume recirculation solenoid valve – Tachometer generator – Lambda sensors (oxygen sensors) |
| 14 | 10 | Right-hand main beam |
| 15 | 10 | Left-hand main beam |
| 16 | 7.5 | Engine control unit (ignition switch powered) – Engine control system relay |
| 17 | 10 | Engine control unit (power) |
| 18 | 7.5 | Engine control unit (+battery) – Engine cooling system relay |
| 19 | 7.5 | Manual climate control compressor |
| 20 | – | Not used |
| 21 | 15 | Fuel pump |
| 22 | 20 | Ignition coils – Injectors – Fuel pump |
| 23 | – | Not used |
| 24 | – | Not used |
| 30 | 15 | Front fog lights |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
