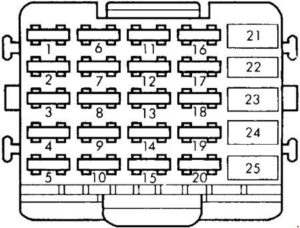

| Fuse |
[A] |
Protected Component |
| 1 |
3 |
’91-’92: Left & Right Pods, Cluster Light, Console, Radio, Disc Player |
| 2 |
10 |
’88-’89: Mirrors, Chime, VM Module, Trip Computer, Radio, Heater, Heater & A/C Controls, Digital Instrument Cluster, Clock (Battery for Memory) |
| 15 |
’90: Mirrors, Chime, IOD, VM Module, Courtesy Lights, Trip Computer Radio, Decklid Release, Dome Light, Illumination Entry Module, Underhood Light, Glove Box Light, Trunk Light, VDS Module, Keyless Entry |
| 3 |
’91-’92: Trip Computer, VM Module, Climate, Control Display, Radio Disc Player |
| 3 |
5 |
’88-’90: Back-Up Lights |
| 20 |
’91-’92: Intermittent Wiper Module |
| 4 |
5 |
’88-’90: Vanity Lights |
| 10 |
’91-’92: Radio, Compact Disc |
| 5 |
20 |
’88-’90: Radio, Cigarette Lighter |
| 3 |
’91-’92: Lighting Control Module |
| 6 |
20 |
’91-’92: Chime, Clock, Keyless Entry, VM Module, Trip Computer, Power Mirrors, Underhood, Courtesy, Rear, Glove Box, Dome/Reading, Trunk, Vanity Lights, Power Door Locks, ATC Control Module, Radio, Illuminated Entry, Deck Lid Release Solenoid |
| 7 |
7.5 |
’88-’90: Automatic Transmission |
| 5 |
’91-’92: Chime, Clock, Instrument Cluster, Cruise Indicator, VM Module, Illuminated Entry, Trip Computer, Cruise Control Servo |
| 8 |
15 |
’88-’90: Trip Computer, VM Module, Clock, Chime System Illumination Entry, Rear Defogger Relay, Back-Up Lights, Transmission Computer (Ignition) |
| 20 |
’91-’92: Power Mirrors |
| 9 |
15 |
’88-’90: Light Control System (Ignition) |
| 20 |
’91-’92: Anti-Lock, Console, Horns, Restraint Module, Power Antenna, Diagnostic Connector |
| 10 |
10 |
’88-’90: Instrument Cluster, Light Outage, Module, Heater & A/C Controls, Passive Restraint Module |
| 7.5 |
’91-’92: Right Side Exterior Lights |
| 11 |
– |
– |
| 12 |
20 |
’88-’90: Stoplights, Turn, Hazard, Park, Side & License Lights (Left Side) |
| 10 |
’91-’92: Center Stoplight, Brake Switch |
| 13 |
7.5 |
’88-’89: Instrument Panel LCD |
| 3 |
’90: Instrument Panel LCD |
| 14 |
7.5 |
’88-’89: Instrument Panel & Clock |
| 3 |
’90: Instrument Panel & Clock |
| 15 |
’91-’92: Climate Module & Display, EGR Solenoid, Light Outage Module, Air Control Module, Daytime Running Lights, HEVAC Module |
| 15 |
10 |
’88-’90: Instrument Cluster |
| 10 |
’91-’92: Lamp Outage Module, Left Side, Front and Rear Exterior Lights |
| 16 |
30 |
’88-’90: Rear Defogger, Power Antenna |
| 17 |
15 |
’88-’89: Interior Lights, Glove Box Light, Trunk Light, Underhood Light |
| 18 |
20 |
’88-’90: Horn, Stoplight Switch |
| 19 |
10 |
’88-’90: Passive Restraint System |
| 10 |
’91-’92: Right Low Beam Headlight |
| 20 |
20 |
’88-’90: Stoplights, Turn, Hazard, Park, Side & License Lights (Right Side) |
| 10 |
’91-’92: Left Low Beam Headlight |
| Circuit Breaker |
| 21 |
12.5 |
’88-’90: Headlights |
| 21 |
’91-’92: Headlights, Daytime Running Lights |
| 22 |
30 |
Power Seats, Power Door Locks, Passive Restraint Motors (’91-’92) |
| 23 |
30 |
’88-’90: Protection System Motors & Relays, Passive Restraint System (’90) |
| 24 |
30 |
’88-’90: Intermittent Wiper/Washer |
| 30 |
’91-’92: Power Windows |
| 25 |
30 |
’88-’90: Power Windows & Sun Roof |
