Dodge A100 (1964 – 1970) – fuse box diagram

13 October 2019 admin A100, Dodge 0

Dodge A100 (1964 – 1970) – fuse box diagram

Year of production: 1964, 1965, 1966, 1967, 1968, 1969, 1970

Fuse box diagram

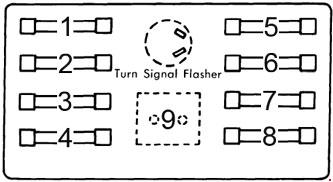

Dodge A100 - fuse box diagram
Dodge A100 – fuse box diagram
Fuse [A] Protected Component
1 6 Alternator Regulator
2 30 Horn
3 15 Turn Signal
4 15 Tail Light, Stop Light, Dome Light, Park Light
5 20 Heater
6 6 Radio
7 2 Instrument Light
8 15 4-Way Flasher, Cigar Lighter
9 8 Circuit Breaker: Axle
Two circuit breakers used, one is part of headlight switch, one is contained in windshield wiper switch also protecting back-up light circuit
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
