Daewoo Chairman – fuse box diagram
Year of production:
Engine compartment

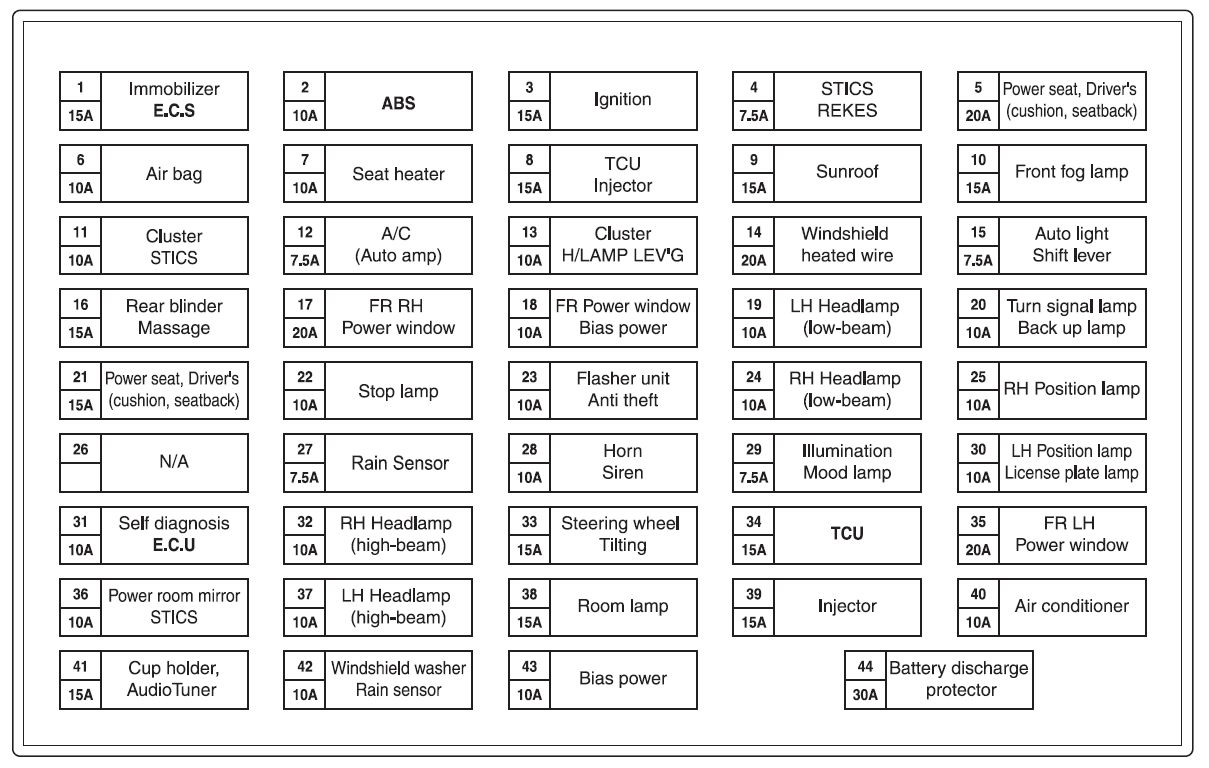

Fuse box
| № | A | Component |
|---|---|---|
| 1 | 15 | Immobilizer E.C.S |
| 2 | 10 | ABS |
| 3 | 15 | Ignition |
| 4 | 7,5 | STICS REKES |
| 5 | 20 | Power seat, Driver’s (cushion seatback) |
| 6 | 10 | Air bag |
| 7 | 10 | Seat heater |
| 8 | 15 | TCU Injector |
| 9 | 15 | Sunroof |
| 10 | 15 | Front fog lamp |
| 11 | 10 | Cluster STICS |
| 12 | 7,5 | A/C (Auto amp) |
| 13 | 10 | Cluster H/LAMP LEV’G |
| 14 | 20 | Windshield heated wire |
| 15 | 7,5 | Auto light, Shift lever |
| 16 | 15 | Rear blinder Mesaage |
| 17 | 20 | FR RH Power window |
| 18 | 10 | FR Power window, Bias power |
| 19 | 10 | LH Headlamp (low-beam) |
| 20 | 10 | Turn signal lamp, Back up lamp |
| 21 | 15 | Power seat, Driver’s (cushion, seatback) |
| 22 | 10 | Stop lamp |
| 23 | 10 | Flasher unit, Ani theft |
| 24 | 10 | RH Headlamp (low-beam) |
| 25 | 10 | RH Position lamp |
| 26 | — | — |
| 27 | 7,5 | Rain Sensor |
| 28 | 10 | Horn Siren |
| 29 | 7,5 | Illumination, Mood lamp |
| 30 | 10 | LH Position lamp, License plate lamp |
| 31 | 10 | Self diagnosis E.C.U. |
| 32 | 10 | RH Headlamp (high-beam) |
| 33 | 15 | Steering wheel, Tilting |
| 34 | 15 | TCU |
| 35 | 20 | FR LH Power window |
| 36 | 10 | Power room mirror STICS |
| 37 | 10 | LH Headlamp (high-beam) |
| 38 | 15 | Room lamo |
| 39 | 15 | Injector |
| 40 | 10 | Air conditioner |
| 41 | 15 | Cup holder, Audio Tuner |
| 42 | 10 | Windshield washer, Rain sensor |
| 43 | 10 | Bias power |
| 44 | 30 | Battery discharge protector |

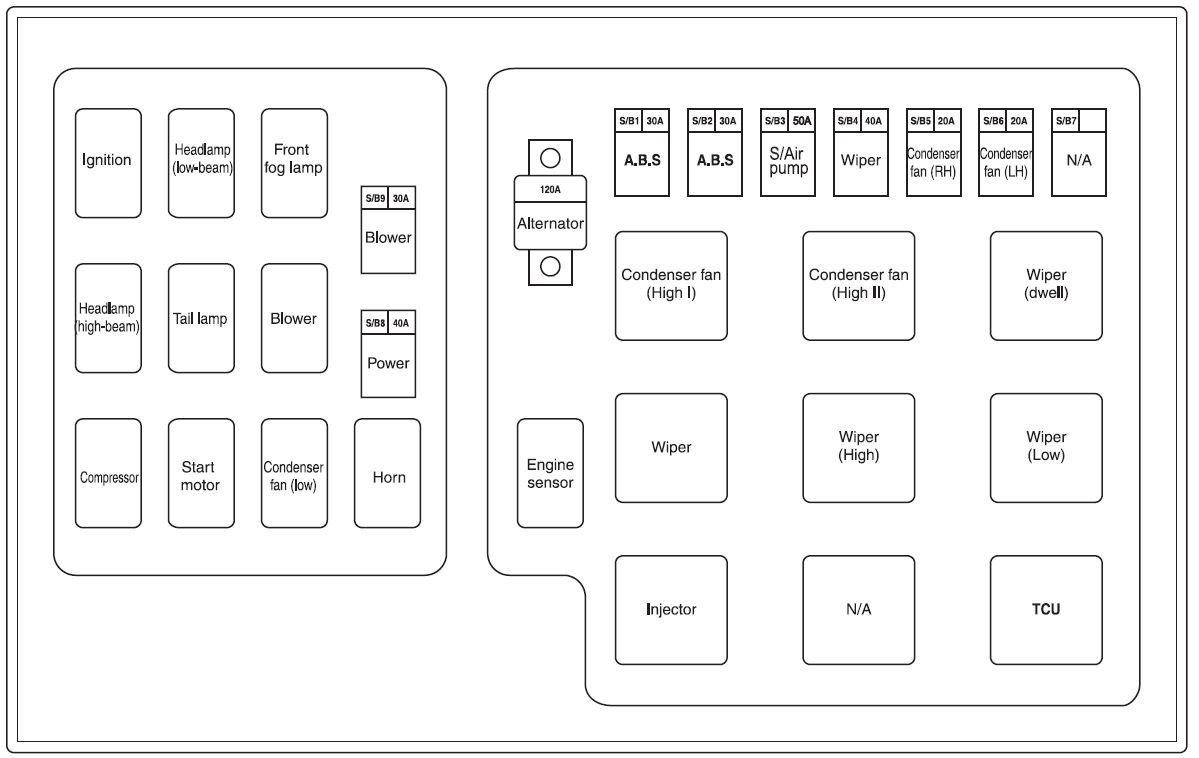

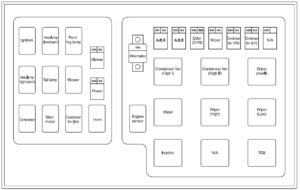

Relay box

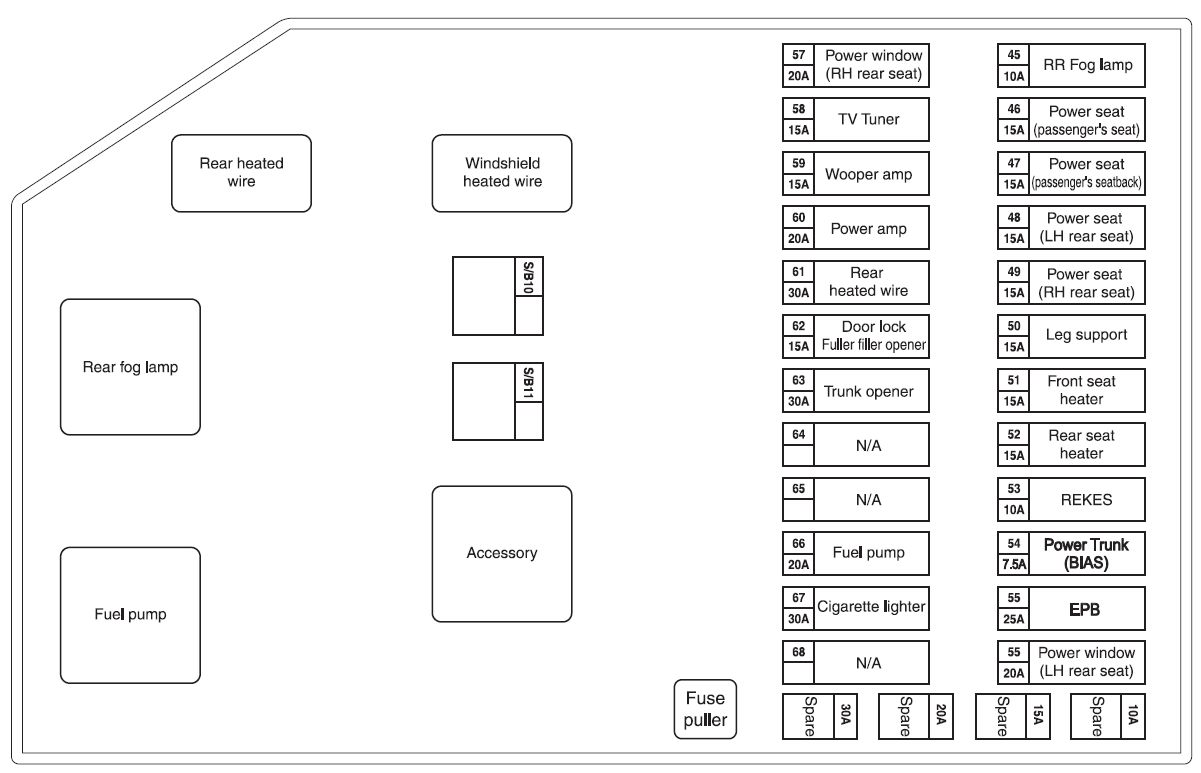

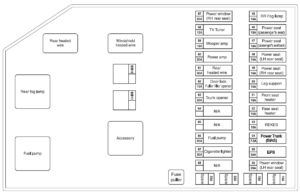

Trunk compartment
| № | A | Component |
| 45 | 10 | RR Fog lamp |
| 46 | 15 | Power seat (passenger’s seat) |
| 47 | 15 | Power seat (passenger’s seatback) |
| 48 | 15 | Power seat (LH rear seat) |
| 49 | 15 | Power seat (RH rear seat) |
| 50 | 15 | Leg support |
| 51 | 15 | Front seat heater |
| 52 | 15 | Rear seat heater |
| 53 | 10 | REKES |
| 54 | 7,5 | Power Trunk (BIAS) |
| 55 | 25 | EPB |
| 56 | 20 | Power window (LH rear seat) |
| 57 | 20 | Power window (RH rear seat) |
| 58 | 15 | TV Tuner |
| 59 | 15 | Wooper amp |
| 60 | 20 | Power amp |
| 61 | 30 | Rear heated wire |
| 62 | 15 | Door lock, Fuller filler opener |
| 63 | 30 | Trunk opener |
| 64 | — | — |
| 65 | — | — |
| 66 | 20 | Fuel pump |
| 67 | 30 | Cigarette lighter |
| 68 | — | — |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
