Citroen Jumper (from 2015) – fuse box diagram

Citroen Jumper (from 2015) – fuse box diagram

Year of production: 2015, 2016

Fuse box in instrument panel (passengers’s side)

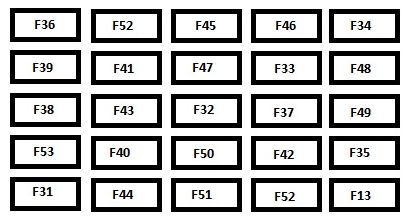

Citroen Jumper - fuse box diagram - instrument panel
Citroen Jumper – fuse box diagram – instrument panel
Fuse Ampere rating [A] Allocation
12 7,5 Right-hand dipped beam headlamp
13 7,5 Left-hand dipped beam headlamp
31 5 Relay supply
32 10 Cab lighting
33 15 Rear 12V socket
34 Not used
35 7,5 Reversing lamps – Water in Diesel fuel sensor
36 15 Central locking control – Battery
37 7,5 Brake lamps switch – Thirs brake lamp – Instrument pamel
38 10 Central locking
39 10 Audio system – Diagnostic socket – Alarm siren – Programmable additional heating controls – Air conditioning controls – Tachograph – Battery
40 15 Heated: rear screen (left hand), driver’s side mirror
41 15 Heated: rear screen (right hand), passenger’s side mirror
42 7,5 ABS control unit and sensor – ASR sensor – DSC sensor – Brake lamps switch
43 30 Windscreen wiper motor
44 20 Cigarette lighter – 12V socket
45 7,5 Door controls
46 Not used
47 20 Driver’s electric window motor
48 20 Passenger electric window motor
49 7,5 Audio system – Instrument panel controls – Driver’s electric window
50 7,5 Airbags and pre-tensioners unit
51 7,5 Tachograph – Cruise contro – Air conditioning  controls
52 7,5 Optional relay supply
53 7,5 Instrument panel – rear foglamp

Fuse box in passenger compartment (driver’s door pillar fuses)

Citroen Jumper - fuse box diagram - passenger compartment
Citroen Jumper – fuse box diagram – passenger compartment
Fuse Ampere rating [A] Allocation
54 Not used
55 15 Heated seats
56 15 Rear passenger 12 V socket
57 10 Programmable additional heating
58 10 Lateral sidelamps
59 7,5 Pneumatic suspension
60 Not used
61 Not used
62 Not used
63 10 Programmable additional heating switch
64 Not used
65 30 Programmable additional heating fan

Fuse box under bonnet

Citroen Jumper - fuse box diagram - engine compartment
Citroen Jumper – fuse box diagram – engine compartment
Fuse Ampere rating [A] Allocation
1 40 ABS pump supply
2 50 Diesel pre-heater unit
3 30 Ignition switch
4 20 Programmable additional heating
5 20 Cab ventilation with programmable additional heating
6 40 Cab fan max speed
60
7 40 Cab fan min speed
50
8 40 Cab fan unit
9 20 Screenwash pump
10 15 Horn
14 7,5 Right hand main beam
15 7,5 Left hand main beam
18 7,5 Engine management
19 7,5 Air conditioning compressor
20 30 Headlamp wash pump
21 15 Fuel pump supply
23 15 ABS electrovalves
30 15 Front foglamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
