Year of production: 2013, 2014, 2015, 2016
Engine Compartment Fuse Block
The engine compartment fuse block is located on the driver side of the vehicle, near the battery.
LUV and LUW Engines
Chevrolet Sonic – wiring diagram – fuse box diagram – engine compartment (LUV and LUW engines)
| Mini fuses |
Usage |
| 1 |
Antilock Brake System Valve |
| 2 |
Sunroof |
| 4 |
Rear Wiper |
| 5 |
Regulated Voltage Control |
| 6 |
Antilock Brake System Fluid |
| 7 |
Automatic Occupant Sensing/ROS |
| 8 |
Outside Rearview Mirror |
| 10 |
Rear Window Defogger |
| 12 |
Heated Outside Rearview Mirror |
| 13 |
Heated Front Seat |
| 14 |
Fuel System Control Module 1 |
| 15 |
Flex Fuel |
| 16 |
Washer |
| 17 |
Fuel Pump (1.8L) |
| 18 |
Engine Control Module 5 |
| 19 |
Fuel System Control Module 2/Leveling |
| 20 |
Transmission Control Module 1 |
| 21 |
Engine Control Module 1 |
| 22 |
Coil |
| 23 |
Engine Control Module 4 |
| 24 |
Engine Control Module 3 |
| 25 |
Engine Control Module 2 |
| 26 |
Injector/ Ignition Coil |
| 27 |
Engine Control Module |
| 28 |
Air Conditioning Compressor Clutch |
| 29 |
Transmission Control Module |
| 30 |
Horn |
| 31 |
Front Fog Lamps |
| 32 |
Left High Beam |
| 33 |
Right High Beam |
| SPARE |
Spare |
| J-Case fuse |
Usage |
| 1 |
Antilock Brake System Pump |
| 2 |
Front Wiper |
| 3 |
Blower |
| 4 |
Run/Crank IEC |
| 6 |
Cooling Fan K5 |
| 7 |
Cooling Fan K4 |
| 8 |
EVP |
| 9 |
Start |
| Relays |
Usage |
| RLY 1 |
Front Wiper Control Relay |
| RLY 2 |
Front Wiper Speed Relay |
| RLY 3 |
Rear Window Defogger Relay |
| RLY 4 |
Run/Crank Relay |
| RLY 6 |
Fuel Pump Relay (1.8L) |
| RLY 7 |
Cooling Fan K2 Relay (1.4L) |
| RLY 8 |
Cooling Fan K3 Relay (1.8L), Cooling Fan K3 High Current Relay (1.4L) |
| RLY 9 |
Powertrain Relay |
| RLY 10 |
Start High Current Relay |
| RLY 11 |
Air Conditioning Compressor Clutch Relay |
| RLY 12 |
High-Beam Relay |
| RLY 13 |
Cooling Fan K1 Relay |
LWE Engine

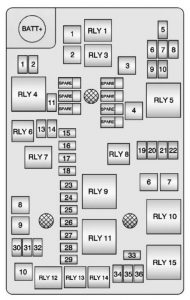

Chevrolet Sonic – wiring diagram – fuse box diagram – engine compartment (LWE engine)
| Mini fuses |
Usage |
| 1 |
Antilock Brake System Valve |
| 2 |
Sunroof |
| 5 |
Outside Rearview Mirror |
| 6 |
AOS/ROS |
| 7 |
ABS Oil |
| 8 |
Regulated Voltage Control |
| 9 |
Rear Wiper |
| 10 |
Not Used/IBS* |
| 11 |
Rear Window Defogger |
| 13 |
Not Used/SAI Valve* |
| 14 |
Heated Outside Rearview Mirror |
| 15 |
Heated Seat Front |
| 16 |
Fuel System Control Module 1 |
| 17 |
Canister Vent |
| 18 |
Washer |
| 19 |
Fuel Pump* |
| 20 |
Engine Control Module 5 |
| 21 |
Fuel System Control Module 2/Leveling |
| 22 |
Transmission Control Module 1/DC-DC Converter |
| 23 |
Auxiliary Water Pump Power |
| 24 |
Engine Control Module 1 |
| 25 |
Coil |
| 26 |
Engine Control Module 4 |
| 27 |
Engine Control Module 3 |
| 28 |
Engine Control Module 2 |
| 29 |
Injector/Ignition Coil |
| 30 |
Engine Control Module |
| 31 |
Air Conditioning Compressor Clutch |
| 32 |
Transmission Control Module |
| 33 |
Horn |
| 34 |
Front Fog Lamps |
| 35 |
Left High Beam |
| 36 |
Right High Beam |
| J-Case fuse |
Usage |
| 1 |
Front Wiper |
| 2 |
Antilock Brake System Pump |
| 3 |
Blower |
| 4 |
Run/Crank IEC |
| 6 |
Cooling Fan K5 |
| 7 |
Cooling Fan K4 |
| 8 |
SAI Pump* |
| 9 |
EVP |
| 10 |
Start |
| Micro Relays |
Usage |
| RLY 1 |
Front Wiper Control |
| RLY 3 |
Front Wiper Speed |
| HV-Micro Relays |
Usage |
| RLY 7 |
Auxiliary Water Pump Power* |
| RLY 12 |
Start |
| U-Micro Relays |
Usage |
| RLY 6 |
Not Used/SAI Valve* |
| RLY 8 |
Fuel Pump* |
| RLY 13 |
Air Conditioning Compressor Clutch |
| RLY 14 |
High-Beam Headlamps |
| Mini Relays |
Usage |
| RLY 4 |
Rear Defogger |
| RLY 5 |
Run/Crank |
| RLY 9 |
SAI Pump* |
| RLY 10 |
Cooling Fan K3 |
| RLY 11 |
P/T |
| RLY 15 |
Cooling Fan K1 |
* = If equipped
Instrument Panel Fuse Block
The instrument panel fuse block is located on the underside of the driver side instrument panel.
Chevrolet Sonic – wiring diagram – fuse box diagram – instrument panel
| Fuses |
Description |
| 1 |
DLIS |
| 2 |
Data Link Connector |
| 3 |
Airbag |
| 4 |
Liftgate |
| 5 |
Spare |
| 6 |
Body Control Module 8 |
| 7 |
Body Control Module 7 |
| 8 |
Body Control Module 6 |
| 9 |
Body Control Module 5 |
| 10 |
Body Control Module 4 |
| 11 |
Body Control Module 3 |
| 12 |
Body Control Module 2 |
| 13 |
Body Control Module 1 |
| 14 |
Instrument Cluster |
| 15 |
OnStar |
| 16 |
Ultrasonic Rear Park Assist |
| 17 |
Driver Information Center |
| 18 |
Audio |
| 19 |
Trailer |
| 20 |
VLBS |
| 21 |
CHEVYSTAR |
| 22 |
Heating, Ventilation, Air Conditioning |
| 23 |
HDLP ALC |
| 24 |
Clutch |
| 25 |
Instrument Panel Cluster/Automatic Occupant Sensing |
| 26 |
Airbag Run/Crank |
| 27 |
Run Relay |
| 28 |
Liftgate Release |
| 29 |
Trailer Run/Crank |
| 30 |
Clock Spring |
| 31 |
Heating, Ventilation, and Air Conditioning |
| 32 |
Spare |
| 33 |
Sunroof |
| 34 |
Cigarette Lighter |
| 35 |
Spare |
| 36 |
Rear Power Windows |
| 37 |
Front Power Windows |
| 38 |
RAP/ACCY |
| 39 |
DC/DC Converter |
| 40 |
Driver Power Window Express Up/Down |
| 41 |
PTC2 |
| 42 |
PTC1 |
| 43 |
Battery Connector |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
