BMW X3 (E83; 2004 – 2010) – fuse box diagram
Year of production: 2004, 2005, 2006, 2007, 2008, 2009, 2010
Fuse box №1 (behind glovebox)
| № | A | Component |
|---|---|---|
| F1 | – | – |
| F2 | – | – |
| F3 | – | – |
| F4 | – | – |
| F5 | 5A | Horn |
| F6 | 5A | Vanity mirror lamps |
| F7 | 5A | Audio unit/navigation system/telephone system, audio system (after 09/05) |
| F8 | – | – |
| F9 | 5A | Brake pedal position (BPP) switch,clutch pedal position (CPP) switch, headlamp switch, multifunction control module, steering column function control module |
| F10 | 5A | Instrumentation control module |
| F11 | 5A | Supplementary restraint system (SRS) control module |
| F12 | 7,5A | Multi switch assembly-center console |
| F13 | – | – |
| F14 | 5A | Immobilizer control module |
| F15 | 5A | Light sensor, rain sensor, rear screen wash/wipe system |
| F16 | – | – |
| F17 | – | – |
| F18 | – | – |
| F19 | – | – |
| F20 | – | – |
| F21 | – | – |
| F22 | 5A | Engine control module(ECM) – Diesel |
| F23 | 5A | Headlamp direction control module |
| F24 | 5A | Interior rearview mirror, parking aid control module |
| F25 | 5A | Passengers door mirror, heated wind screen washer jets (before 03/04) |
| F26 | 5A | Cigarette lighter, transfer box control module |
| F27 | 10A | Reverse gear position switch, reversing lamp relay |
| F28 | 5A | AC/heater system, heated rear window relay |
| F29 | 5A | Engine control module(ECM), ignition coil relay |
| F30 | 7,5A | Datalink connector (DLC), engine oil level sensor, fuel heater (Diesel), transmission control module (TCM) |
| F31 | 5A | Door function control module, driver |
| F32 | 5A | Ught switch (before 09/06) |
| F33 | 5A | Multi switch assembly center console |
| F34 | 5A | Instrumentation control module, fuel pump control module |
| F35 | 40A | ABS control module-with DSC |
| F36 | 60A | Fuel heater, secondary air injection (AIR) pump relay |
| F37 | 60A | Engine coolant blower motor |
| F38 | 15A | Fog lamps relay |
| F39 | 5A | Telephone control module, telephone system interface module, telephone system aerial (before 09/05) |
| F40 | 5A | Steering position sensor, transmission selector lamp |
| F41 | 30A | Audio unit, audio unit amplifier |
| F42 | 10A | Audio unit/navigation system, CD changer, multifunction display, television tuner |
| F43 | 5A | Data link connector (DLC), instrumentation control module |
| F44 | 20A | Trailer socket |
| F45 | 20A | Intermittent wiper(rear) |
| F46 | 20A | Sunroof control module |
| F47 | 20A | Cigarette lighter, auxiliary power socket |
| F48 | 30A | Multifunction control module |
| F49 | 5A | Aerial module, multifunction control module |
| F50 | 40A | Heater/AC blower motor |
| F51 | 30A | Head lamp washer pump relay |
| F52 | 30A | Multifunction control module |
| F53 | 25A | ABS control module-with DSC |
| F54 | 20A | Fuel pump control module, fuel pump relay |
| F55 | 15A | Horn relay |
| F56 | 5A | Transmission control module(TCM) (before 03/07) |
| F57 | 7,5A | Door function control module, driver, door mirror memory potentiometer, electric window switch |
| F58 | 7,5A | Headlamp direction control module(before 03/07) |
| F59 | 30A | Windscreen wiper motor relay |
| F60 | 25A | Multifunction control module |
| F61 | 30A | Centre console switch assembly |
| F62 | 7,5A | Auxiliary heater |
| F63 | 7,5A | AC compressor clutch relay |
| F64 | – | – |
| F65 | 30A | Seat adjustment control module, driver, seat lumbar pump switch, driver (before 03/07) |
| F66 | 10A | Ignition switch |
| F67 | 5A | Alarm system gradient sensor, alarm system hom, alarm system in car movement sensor, immobilizer, interior rearview mirror |
| F68 | 30A | Heated rear window relay |
| F69 | 5A | Power steering control module, tyre pressure monitor control module |
| F70 | 30A | Seat adjustment control module, passenger, seat lumbar pump switch, passenger (before 03/07) |
| F71 | 30A | Multifunction control module |
Fuse box №2 (behind fuse box №1)
| № | A | Component |
|---|---|---|
| F102 | 80A | Shorting link connector (2,0/2,5 petrol (M54.N46)) |
| F105 | 50A | Ignition switch |
| F106 | 50A | Ignition switch, lamps control module |
| F107 | 50A | Lamps control module, trailer control module |

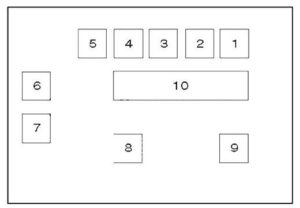

Relay panel (behind glovebox)
| № | Component |
|---|---|
| 1 | Horn relay |
| 2 | Fog lamps relay |
| 3 | A/C compressor clutch relay |
| 4 | Fuel pump relay |
| 5 | – |
| 6 | Secondary air injection (AIR) pump relay |
| 7 | Headlamp washer pump relay |
| 8 | Headlamp direction control module |
| 9 | Power steering control module |
| 10 | Multifunction control module – functions: Alarm system, headlamp washers, interior rearview mirror, rear screen wash/wipe system, windscreen wash/wipe system |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
