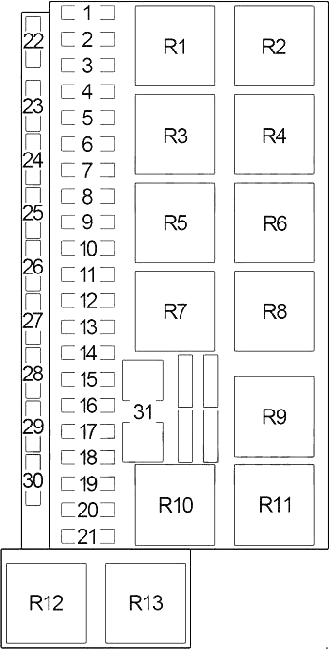

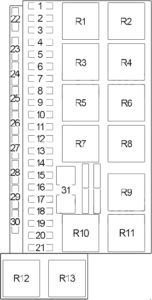

No.
|
A
|
Protected Component |
| 1 |
15 |
Front Fog Light, Rear Fog Light |
| 2 |
15 |
’88-’90: Emergency Flasher |
| 10 |
’91-’94: Emergency Flasher |
| 3 |
25 |
’88-’90: Stop Lamp Switch, Horn |
| 20 |
’91-’94: Stop Lamp Switch, Horn, Auxiliary Radiator Fan (2nd/3rd Speed) (’93-’94) |
| 4 |
15 |
Interior Lights, Cigarette Lighter, Luggage Compartment Light, Trip Computer, Climate Control System, Radio/Speakers, Auxiliary Radiator Fan (1st Speed), Vanity Mirror Light, Clock, Socket |
| 5 |
10 |
Oxygen Sensor Heating Element |
|
30 |
Cooling Fan (Full Speed) |
| 6 |
5 |
Right Side Marker & Park Lights, Daytime Headlights (Canada), Right Taillights (’93-’94) |
| 7 |
5 |
Left Side Marker & Park Lights, Left Taillights (’93-’94) |
| 8 |
10 |
Right High Beam Headlight, High Beam indicator |
| 9 |
10 |
Left High Beam Headlight |
| 10 |
10 |
Right Low Beam Headlight |
| 11 |
10 |
Left Low Beam Headlight |
| 12 |
15 |
Headlight Washer, Auxiliary Washer, Rear Light Control Unit, Back-Up Lights, ABS Control Unit, Auto Shift Lock, Car Phone (’93-’94), Differential Lock, Cruise Control |
| 13 |
15 |
Fuel Pump |
| 14 |
5 |
License Plate Light, Center Console Light, Glove Box Light, Engine Compartment Light, Instrument Cluster (’93-’94) |
| 15 |
25 |
’88-’90: Wiper/Washers, Turn Signals, Heated Washer Jets, Air Conditioner |
| 15 |
’91-’94: Wiper/Washers, Turn Signals, Heated Washer Jets |
| 16 |
30 |
’88-’90: Rear Window Defogger, Heated Mirror |
| 20 |
’91-’94: Rear Window Defogger, Heated Mirror |
| 17 |
30 |
’88-’90: Air Conditioner, Heater Blower |
| 20 |
’91-’94: Air Conditioner, Heater Blower |
| 18 |
25 |
’88-’90: Power Seats witch Memory |
| 5 |
’91-’94: Power Seats Memory, Outside Mirror, Central Locking System (’93-’94) |
| 19 |
10 |
Central Locking System, Heated Door Lock, Anti-Theft Alarm System |
| 30 |
Central Locking System, Heated Door Lock |
| 15 |
’91-’94: Central Locking System, Heated Door Lock |
| 20 |
25 |
’88-’90: Heated Seats |
| 30 |
’88-’90: Cooling Fan (Low Speed), Cooling Fan Relay
|
| 30 |
’91-’94: Heated Seats |
| 21 |
20 |
’88-’90: Power Windows |
| 25 |
’91-’94: Power Windows, Rear Cigarette Lighter |
| 22 |
– |
– |
| 23 |
10 |
Injected Valves, Heated-Wire Air Flow Sensor |
| 24 |
15 |
Active Carbon Canister Valve, Idle Stabilization |
| 25 |
30 |
Power Seats witch Memory |
| 26 |
5 |
Cruise Control |
| 27 |
5 |
Motronic Engine Control System |
| 28 |
5 |
’88-’90: Instrument Cluster |
| 15 |
’91-’94: Instrument Cluster |
| 29 |
10 |
Automatic Transmission |
| 30 |
5 |
Instrument Cluster, Trip Computer & Function Control Switch, Auto-Check System |
| 31 |
– |
– |

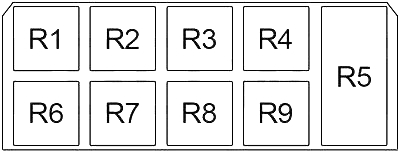

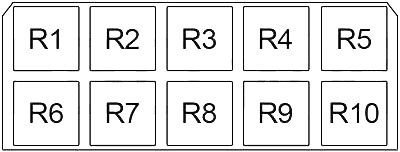

| Relay |
| R1 |
Horn |
| R2 |
Foglights |
| R3 |
Automatic Transmission |
| R4 |
– |
| R5 |
Washer/Wiper Intermittent |
| R6 |
– |
| R7 |
Fuel Pump |
| R8 |
– |
| R9 |
Load Reduction |
| R10 |
– |
| R11 |
– |
| R13 |
Radiator Cooling Fan (3rd Stage) |
| Circuit Breaker |
| R12 |
Power Window, Power Seats |
