Alfa Romeo GT (2004 – 2010) – fuse box diagram
Year of production: 2004, 2005, 2006, 2007, 2008, 2009, 2010

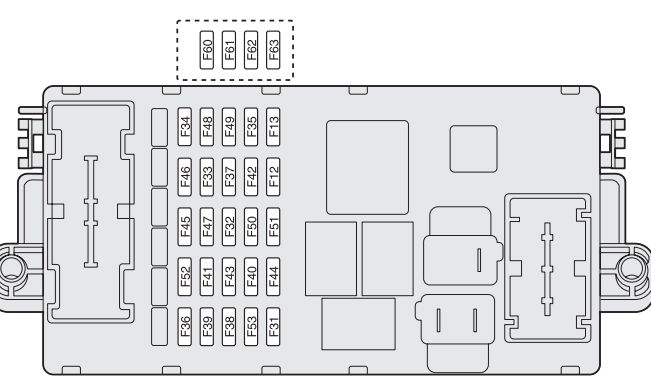

Fuse box on dashboard

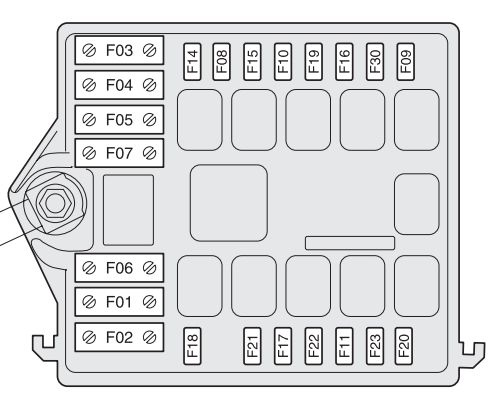

Fuse box next to battery

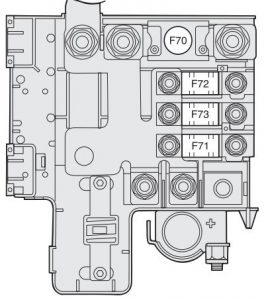

Fuse box on battery positive pole
Fuse summary table
| Lights | Location | Fuse | Ampere rating [A] |
| Hazard warning light | Dashboard | F53 | 10 |
| Right dipped-beam headlight | Dashboard | F12 | 10 |
| Left dipped-beam headlight | Dashboard | F13 | 10 |
| Right main-beam headlight | Battery | F14 | 10 |
| Left main-beam headlight | Battery | F15 | 15 |
| Foglight | Battery | F30 | 15 |
| Braking light | Dashboard | F37 | 10 |
| Reversing light | Dashboard | F35 | 7,5 |
| +30 direction indicators | Dashboard | F53 | 10 |
| Services | Figure | Fuse | Ampere rating [A] |
| Selespeed transmission pump | Battery (positive pole) | F03 (MAXI-FUSE) | 30 |
| Additional heater | Battery (positive pole) | F03 (MAXI-FUSE) | 30 |
| Headlight aiming device | Dashboard | F13 | 10 |
| Climate control system | Dashboard | F31 | 7,5 |
| Climate control system | Dashboard | F39 | 15 |
| Climate control compressor | Battery | F1 | 7,5 |
| Heater unit relay coils | Dashboard | F31 | 7,5 |
| Key-operated +30 | Dashboard | F32 | 15 |
| Selespeed transmission | Battery | F11 | 15 |
| Selespeed transmission | Dashboard | F51 | 7,5 |
| Radio | Dashboard | F39 | 15 |
| Navigator | Dashboard | F39 | 15 |
| Rearscreen heating | Dashboard | F40 | 30 |
| Windscreen – rearscreen washer (pump) | Dashboard | F43 | 30 |
| Cigar lighter | Dashboard | F44 | 20 |
| Seats with electric heating | Dashboard | F45 | 15 |
| Heated wing mirrors – heated nozzles | Dashboard | F51 | 7,5 |
| Cruise control | Dashboard | F35 | 7,5 |
| Central door locking | Dashboard | F38 | 20 |
| Headlight washer | Battery | F5 | 20 |
| Services + 30 | Dashboard | F39 | 15 |
| Primary services (electronic injection) | Battery | F8 | 7,5 |
| Secondary services (electronic injection) | Battery | F9 | 15 |
| Secondary services | Dashboard | F49 | 7,5 |
| Volumetric sensors | Dashboard | F39 | 15 |
| ESP system sensor | Dashboard | F42 | 7,5 |
| Steering angle sensor | Dashboard | F42 | 7,5 |
| EOBD system diagnosis socket | Dashboard | F39 | 15 |
| Cell phone provision | Dashboard | F39 | 15 |
| Driver’s door control unit supply | Dashboard | F47 | 20 |
| Passenger’s door control unit supply | Dashboard | F48 | 20 |
| Controls lighting | Dashboard | F49 | 7,5 |
| Climate control system controls lighting | Dashboard | F35 | 7,5 |
| Instrument cluster | Dashboard | F37 | 10 |
| Instrument cluster | Dashboard | F53 | 10 |
| Driver’s door control unit | Dashboard | F39 | 15 |
| ABS control unit | Dashboard | F42 | 7,5 |
| ABS control unit | Battery (positive pole) | F04 (MAXI-FUSE) | 50 |
| Dashboard control box | Battery (positive pole) | F02 (MAXI-FUSE) | 50 |
| Air – bag control unit | Dashboard | F50 | 7,5 |
| Electronic injection control unit +30 | Battery | F18 | 7,5 |
| Engine compartment control box (petrol versions) | Battery (positive pole) | F70 (MEGA-FUSE) | 125 |
| Dashboard control unit | Battery (positive pole) | F71 (MAXI-FUSE | 70 |
| Trailer control unit | Dashboard | F36 | 10 |
| Climate control fan | Battery (positive pole) | F05 (MAXI-FUSE) | 40 |
| Radiator fan (first speed – petrol versions) | Battery (positive pole) | F06 (MAXI-FUSE) | 40 |
| Radiator fan (second speed – petrol versions) | Battery (positive pole) | F07 (MAXI-FUSE) | 40 |
| Horn | Battery (positive pole) | F10 | 15 |
| Fuel pump | Battery | F21 | 15 |
| Injectors (petrol versions) | Battery | F22 | 15 |
| Ignition coils | Battery | F21 | 15 |
| Tailgate electric unlocking | Dashboard | F60(*) | 25 |
| Electronic injection system | Battery | F16 | 7,5 |
| Bose system | Dashboard | F61(*) | 15 |
| Bose system | Dashboard | F62(*) | 15 |
| Additional heater | Battery | F08 | 30 |
| Ignition switch | Battery (positive pole) | F72 (MAXI-FUSE) | 30 |
| Glow plug warming (JTD versions) | Battery | F01 (MAXI-FUSE) | 50 |
| Heated fuel oil filter (JTD versions) | Battery | F20 | 20 |
| Engine compartment control box (JTD versions) | Battery (positive pole) | F70 (MEGA-FUSE) | 150 |
| Radiator fan (first speed – JTD versions) | Battery | F06 (MAXI-FUSE) | 40 |
| Radiator fan (second speed – JTD versions) | Battery | F07 (MAXI-FUSE) | 60 |
| Injectors (JTD versions) | Battery | F22 | 20 |
(*) Fuse behind dashboard control box on an auxiliary bracket
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
