Acura Vigor (1994) – wiring diagrams – console lamp

Acura Vigor (1994) – wiring diagrams – console lamp

Year of productions:  1994

Console lamp

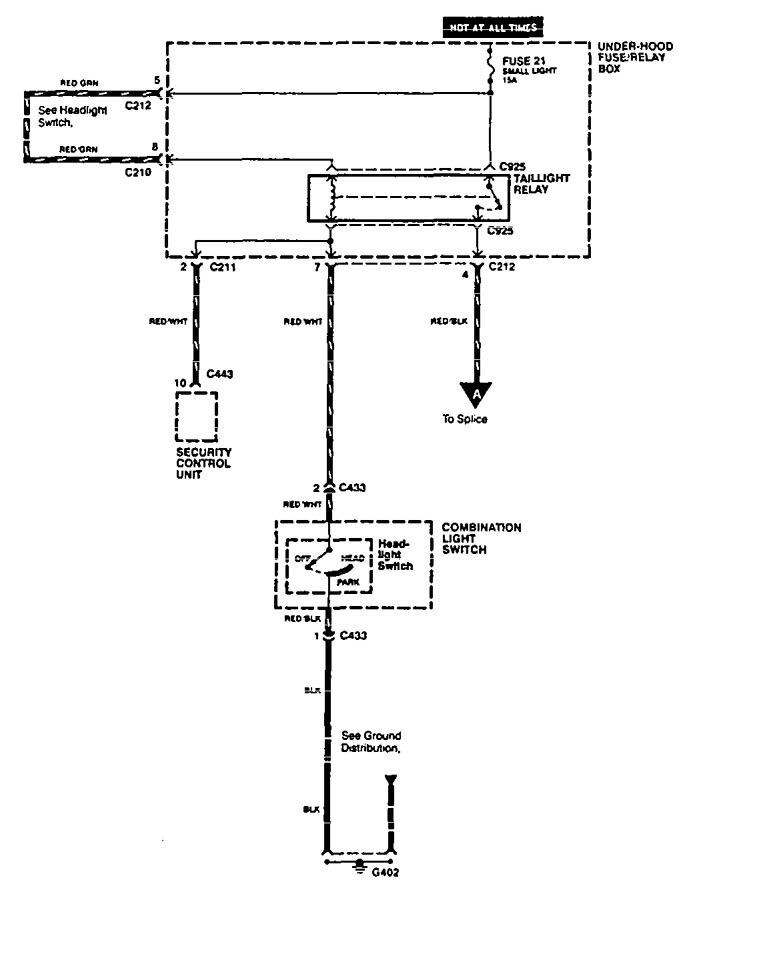

Acura Vigor – wiring diagram – console lamp (part 1)

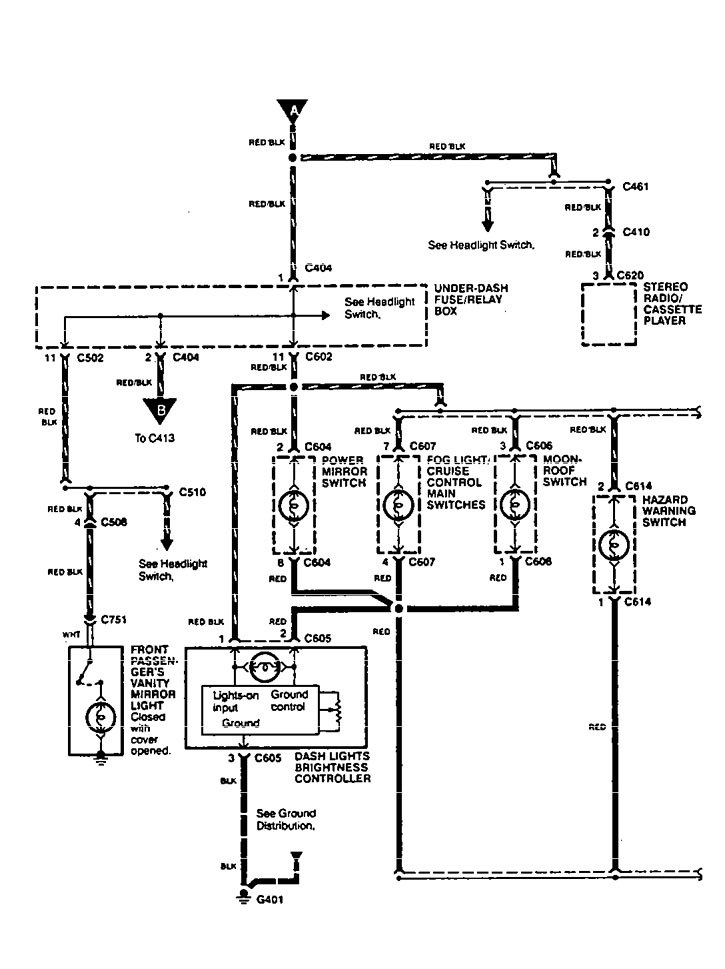

Acura Vigor – wiring diagram – console lamp (part 2)

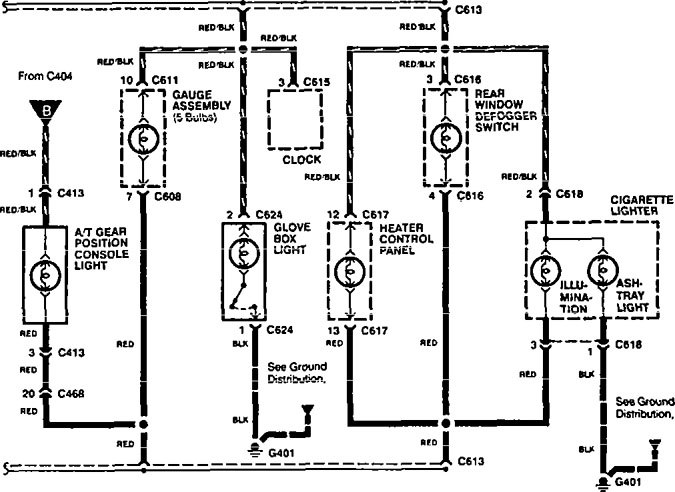

Acura Vigor – wiring diagram – console lamp (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
