Acura TL (2011) – wiring diagrams – ground distribution

12 August 2017 admin Acura, TL 0

Acura TL (2011) – wiring diagrams – ground distribution

Year of productions: 2011

Ground distribution

Version 1

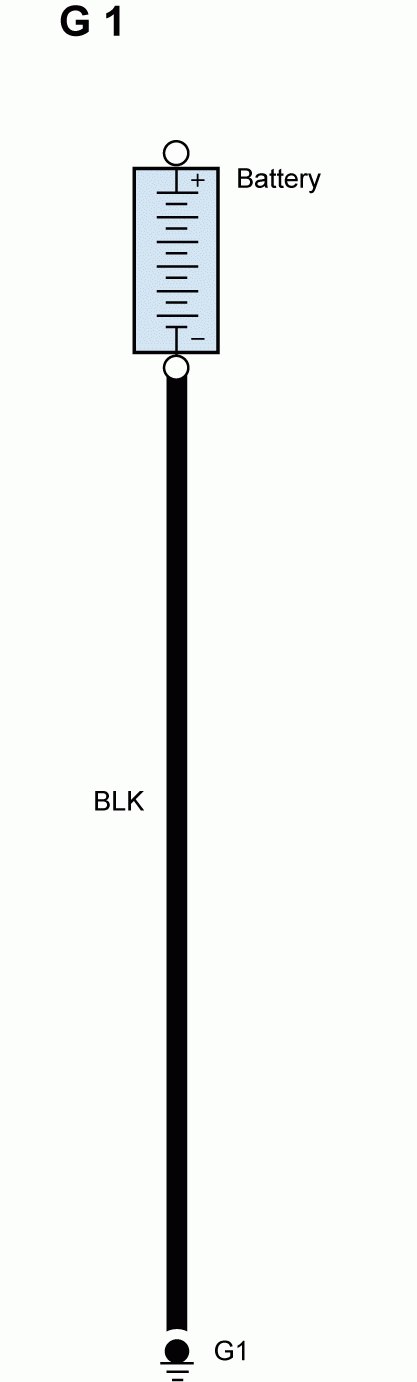

Acura TL - wiring diagram - ground distribution (part 1) — Acura TL – wiring diagram – ground distribution (part 1)

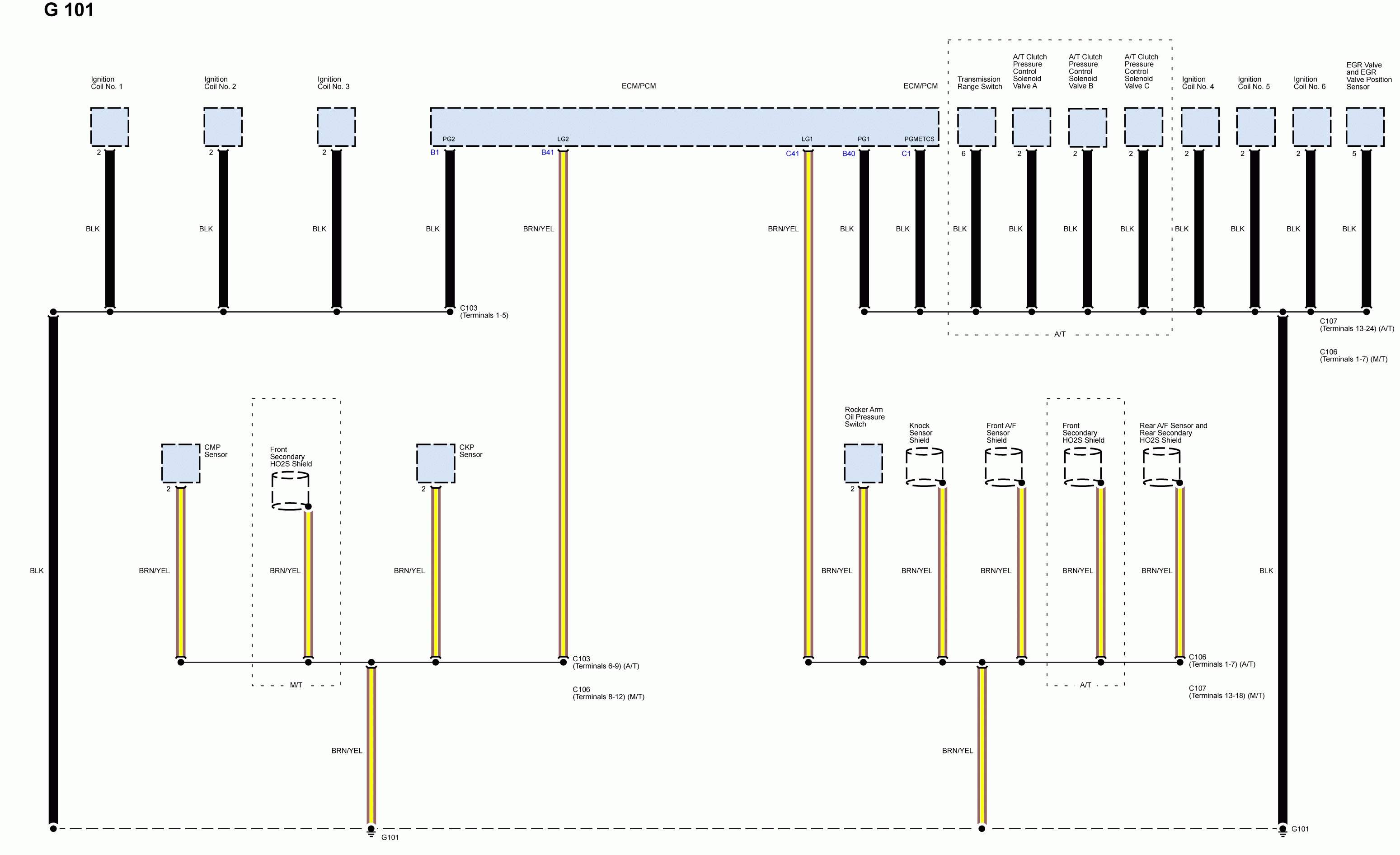

Acura TL - wiring diagram - ground distribution (part 2) — Acura TL – wiring diagram – ground distribution (part 2)

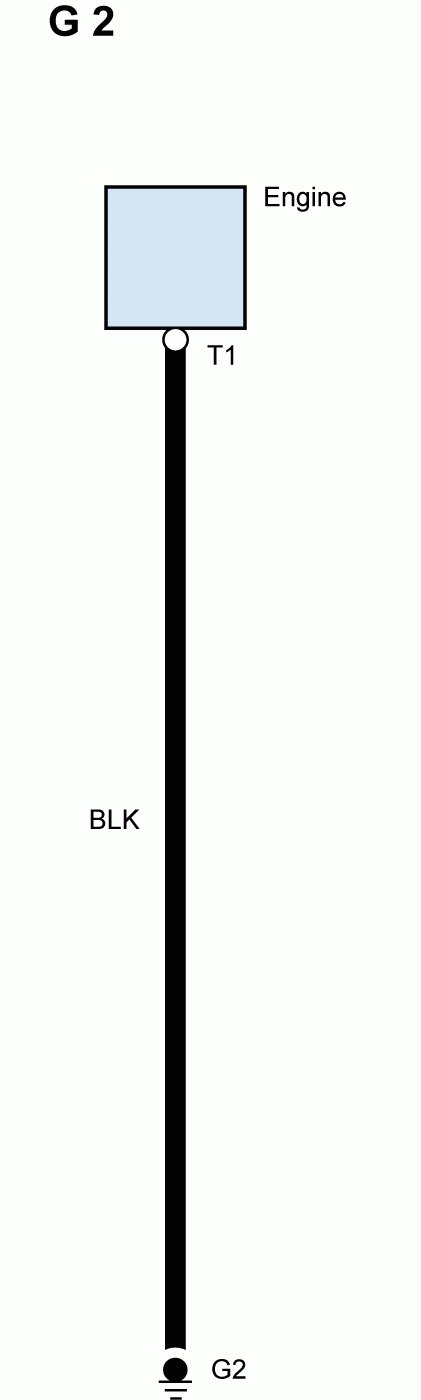

Acura TL - wiring diagram - ground distribution (part 3) — Acura TL – wiring diagram – ground distribution (part
3)

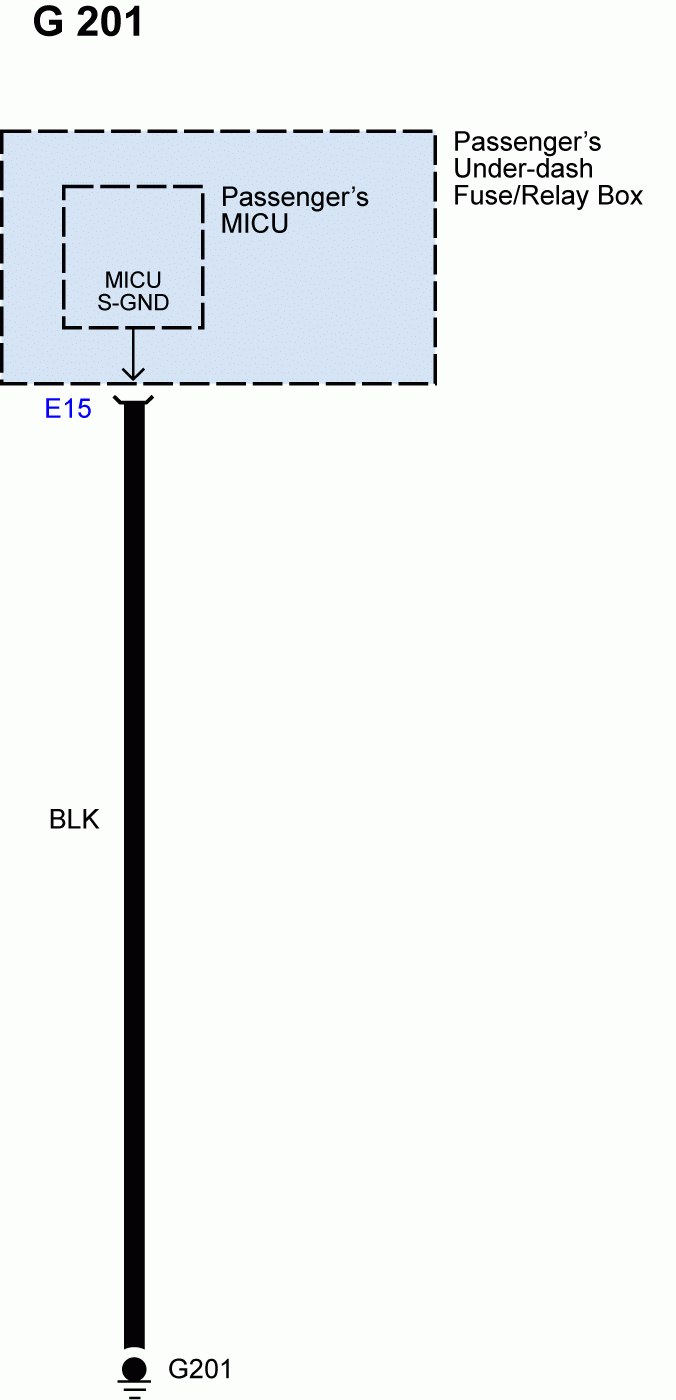

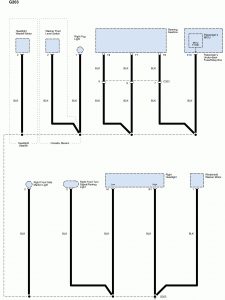

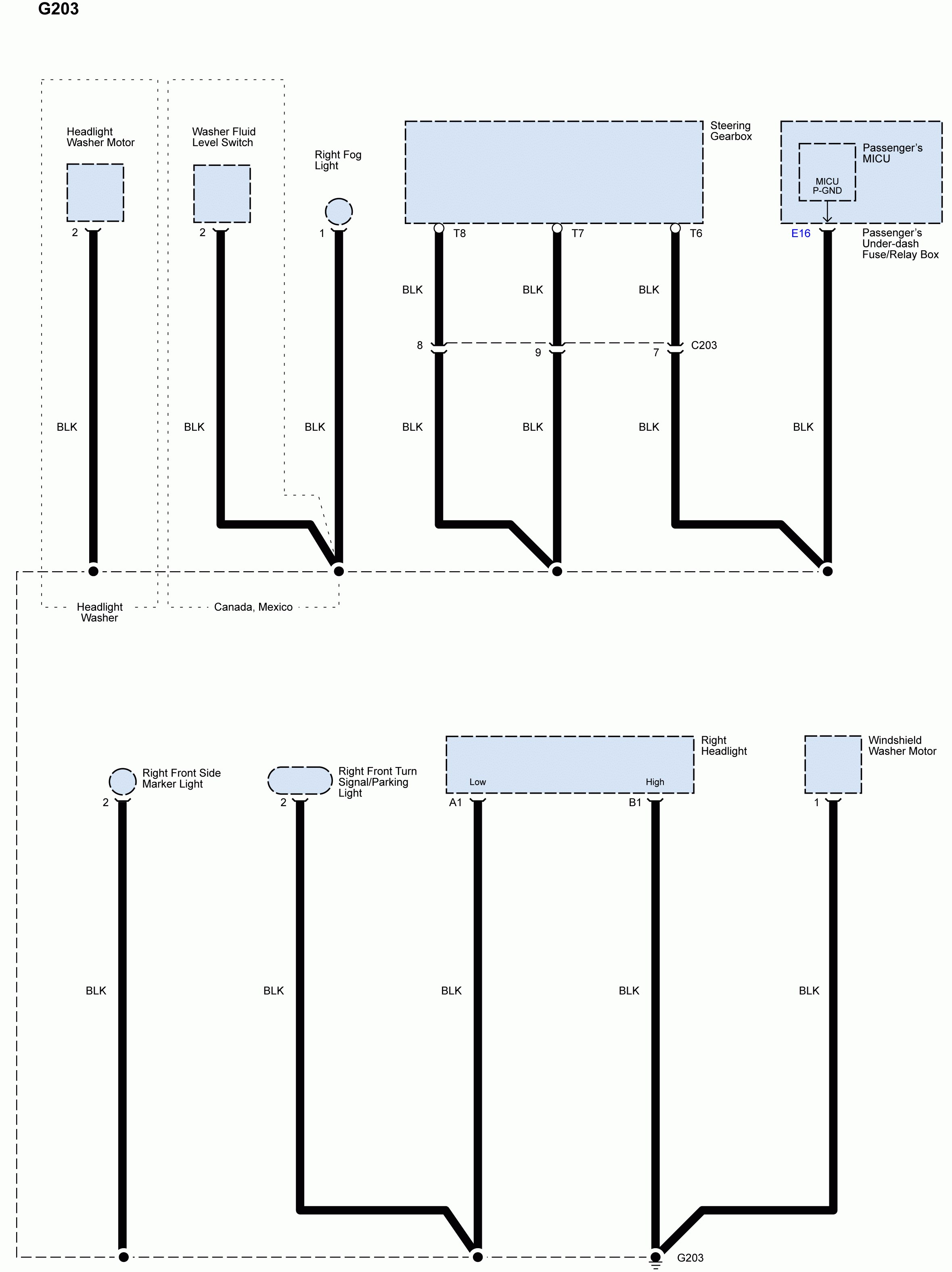

Acura TL - wiring diagram - ground distribution (part 4) — Acura TL – wiring diagram – ground distribution (part 4)

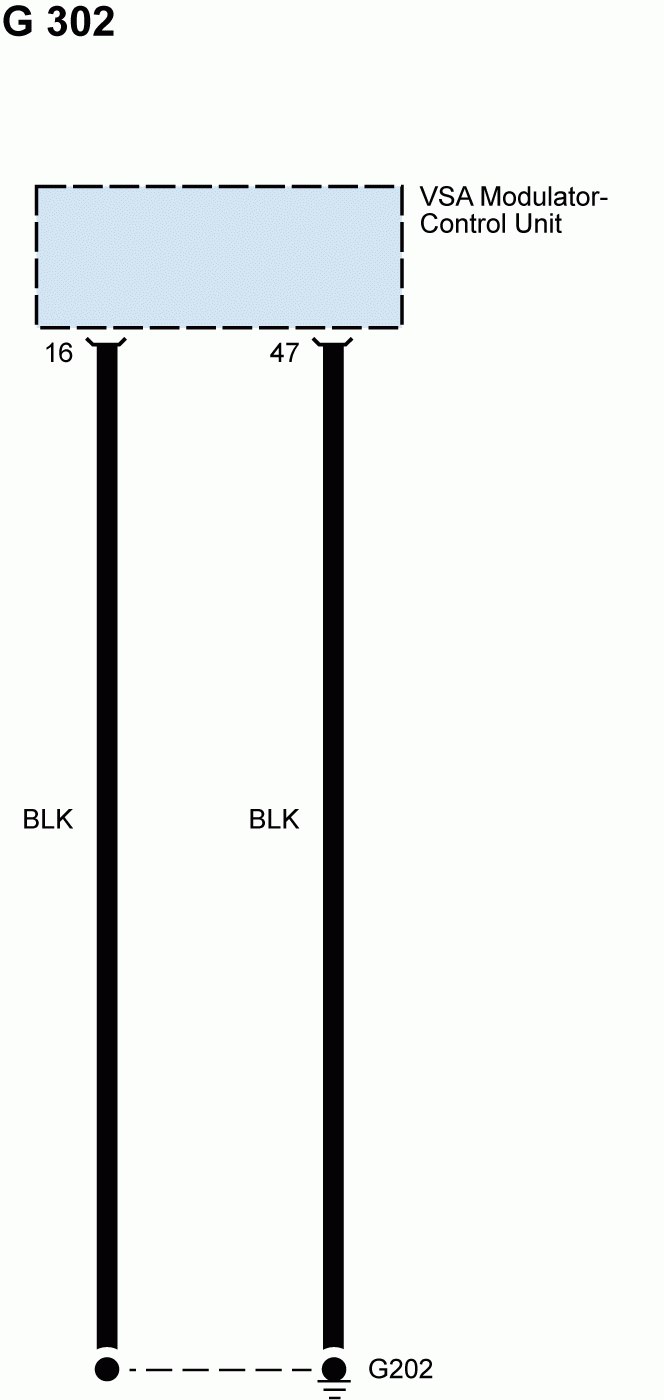

Acura TL - wiring diagram - ground distribution (part 5) — Acura TL – wiring diagram – ground distribution (part 5)

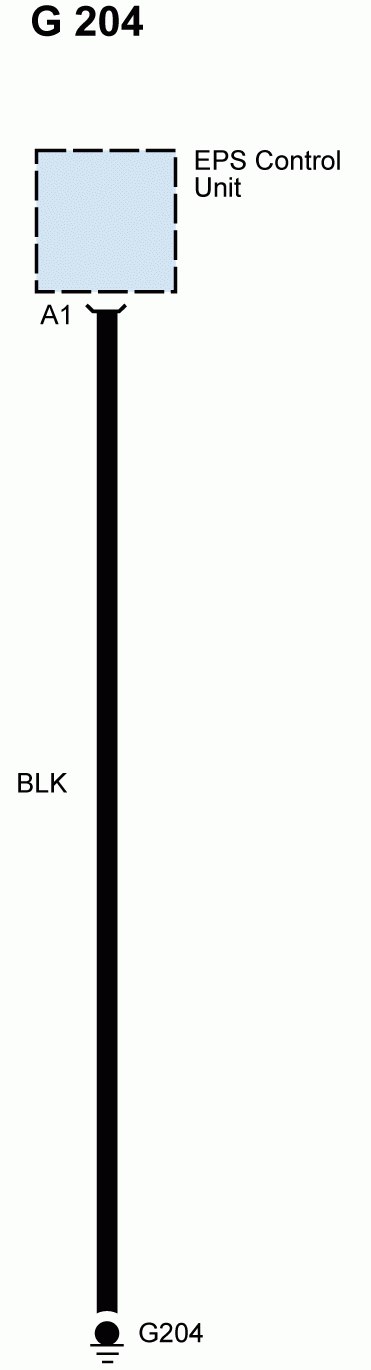

Acura TL - wiring diagram - ground distribution (part 6) — Acura TL – wiring diagram – ground distribution (part 6)

Acura TL - wiring diagram - ground distribution (part 7) — Acura TL – wiring diagram – ground distribution (part 7)

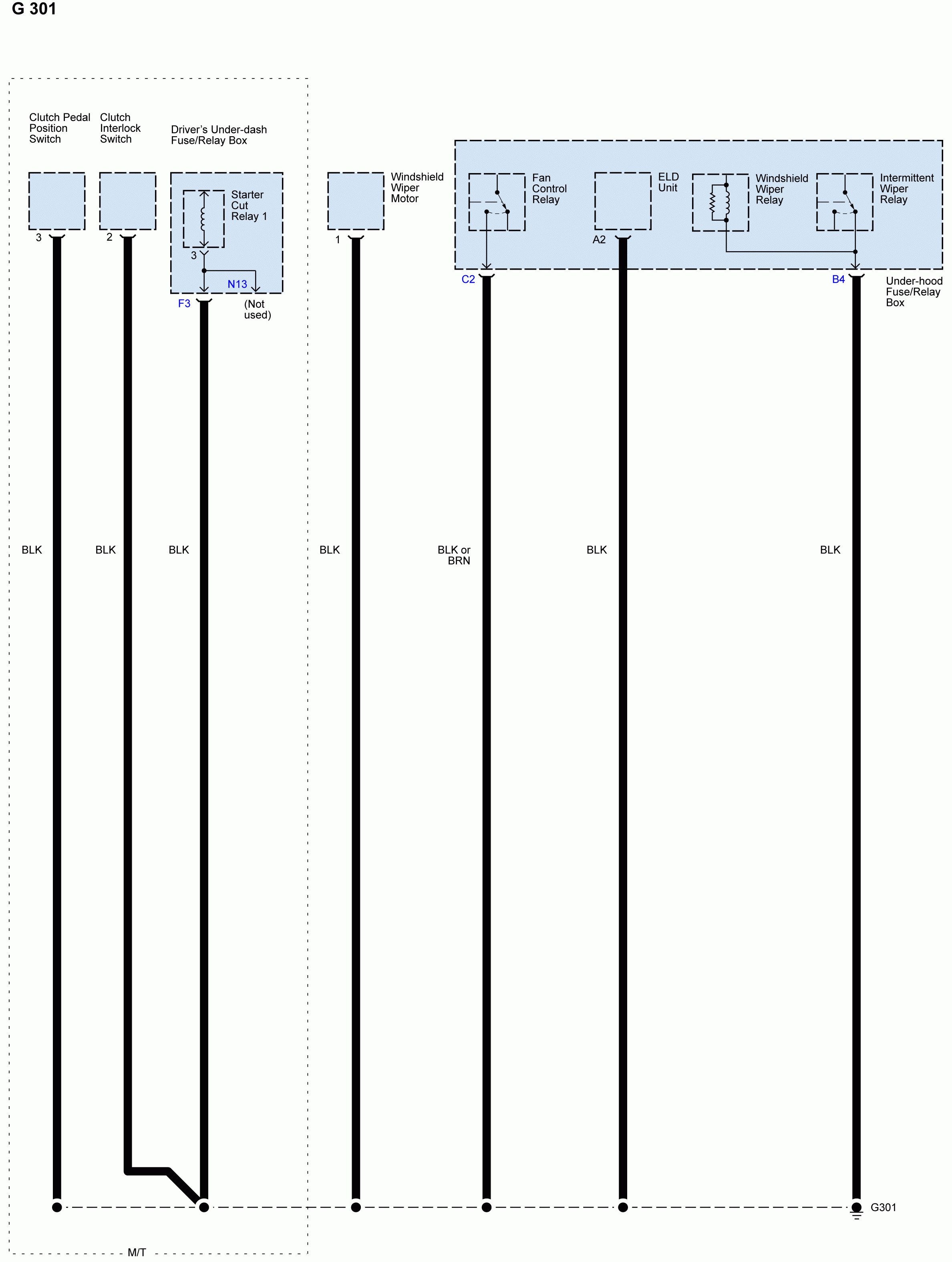

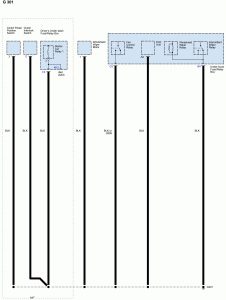

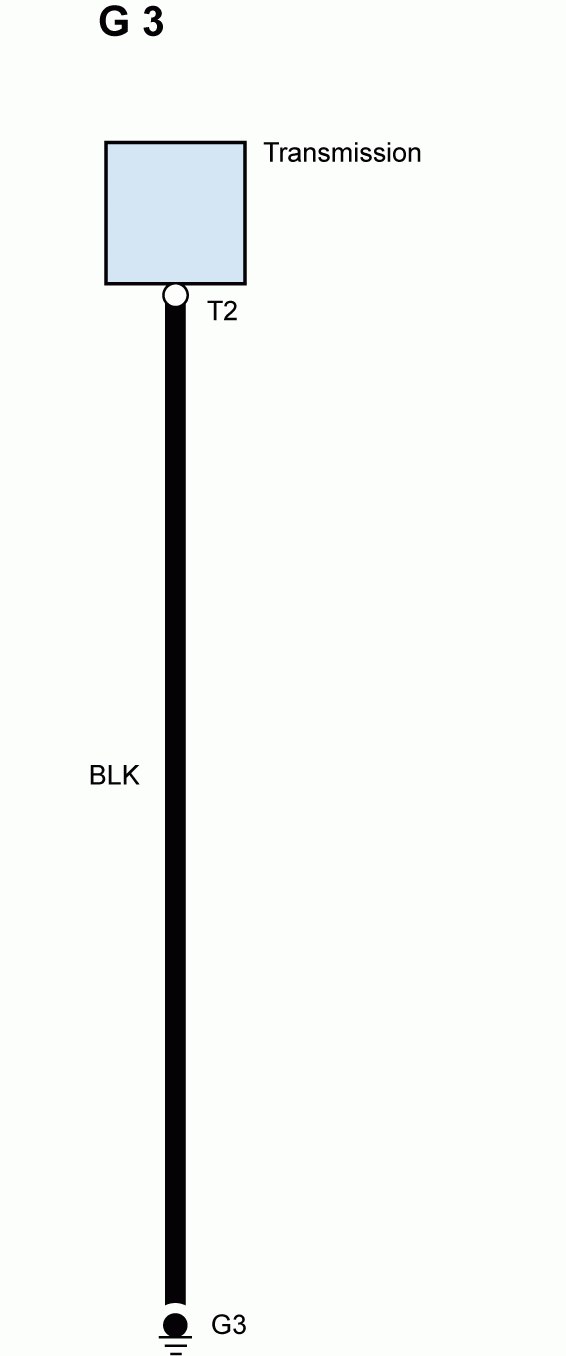

Acura TL - wiring diagram - ground distribution (part 8) — Acura TL – wiring diagram – ground distribution (part 8)

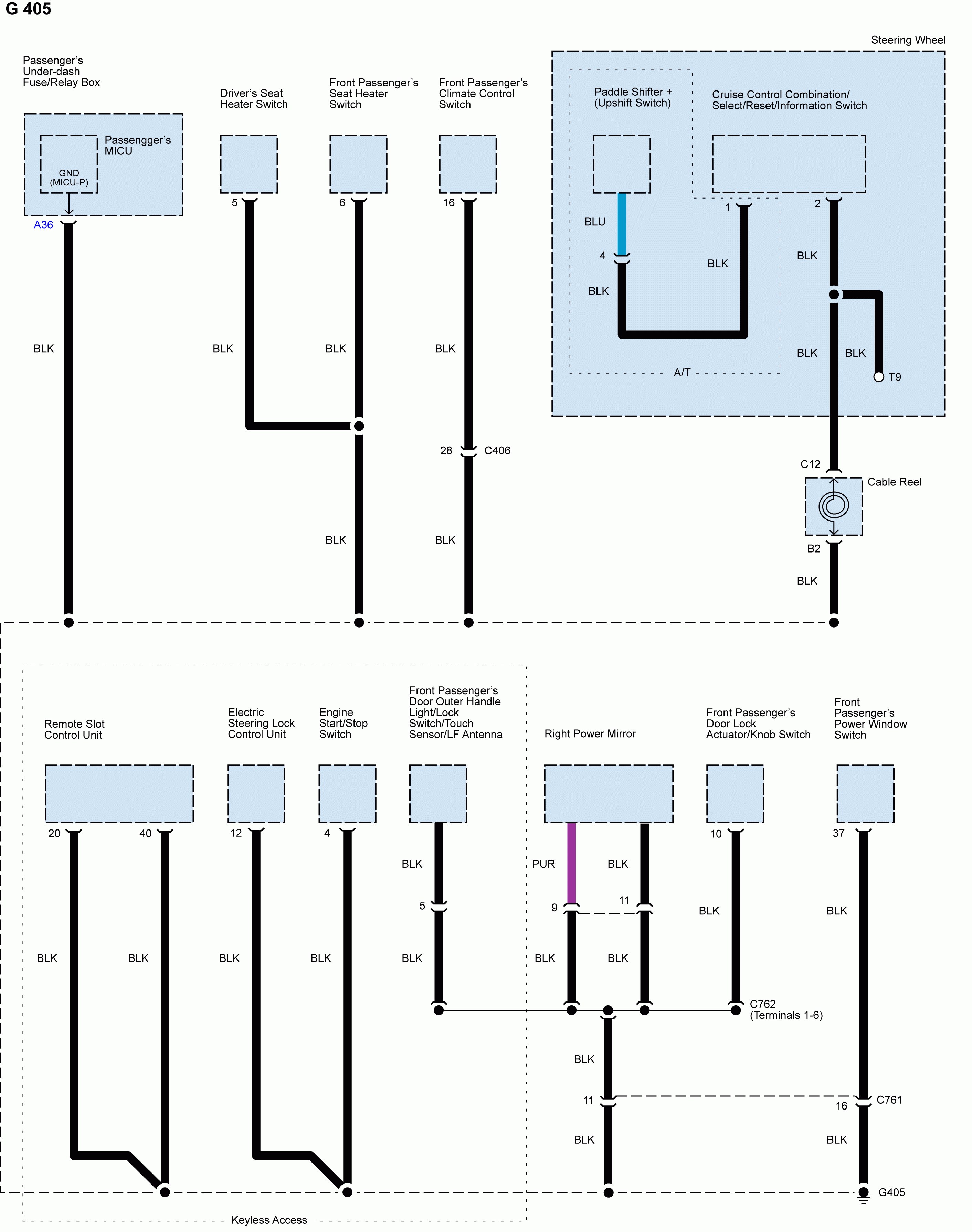

Acura TL - wiring diagram - ground distribution (part 9) — Acura TL – wiring diagram – ground distribution (part 9)

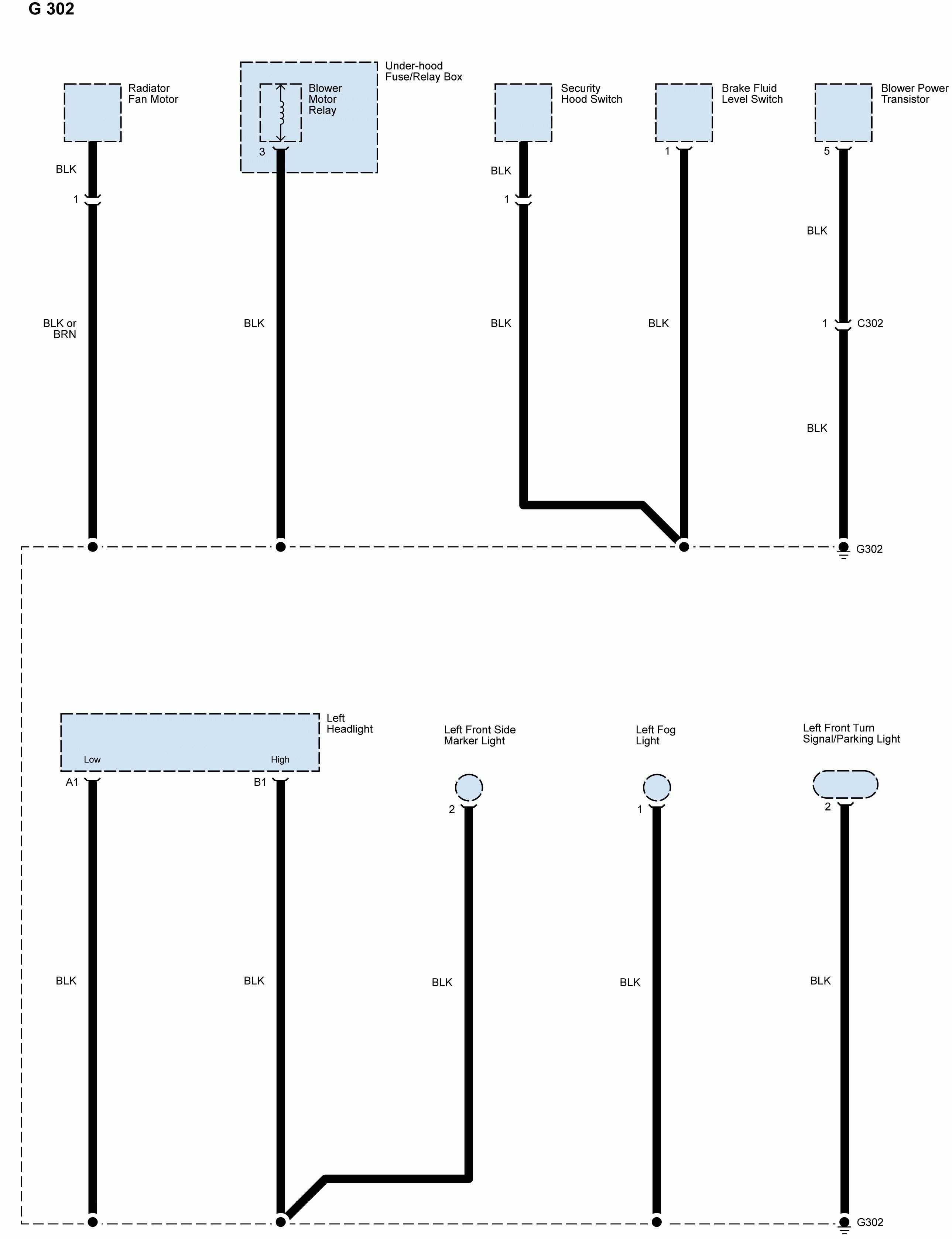

Acura TL - wiring diagram - ground distribution (part 10) — Acura TL – wiring diagram – ground distribution (part 10)

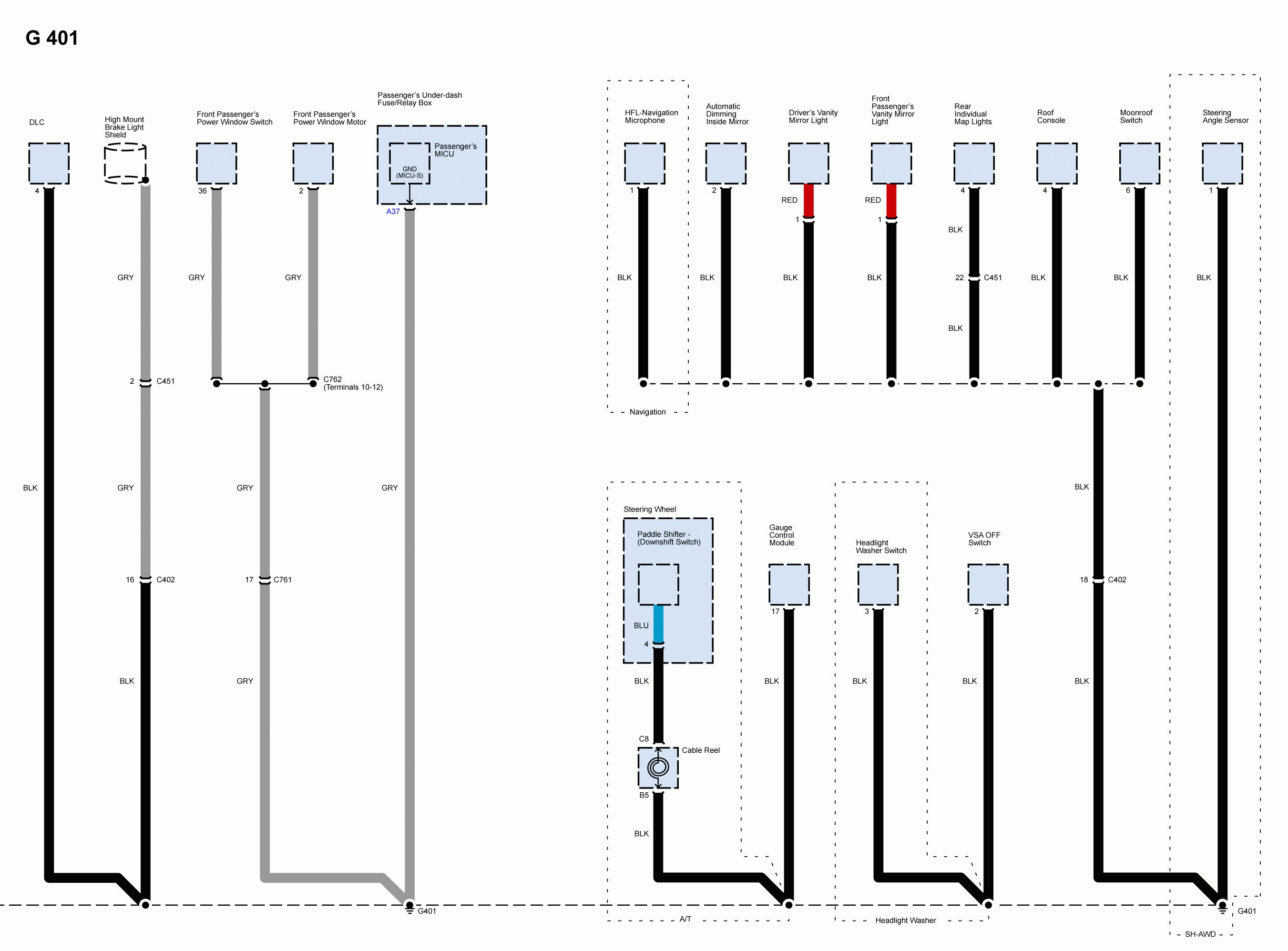

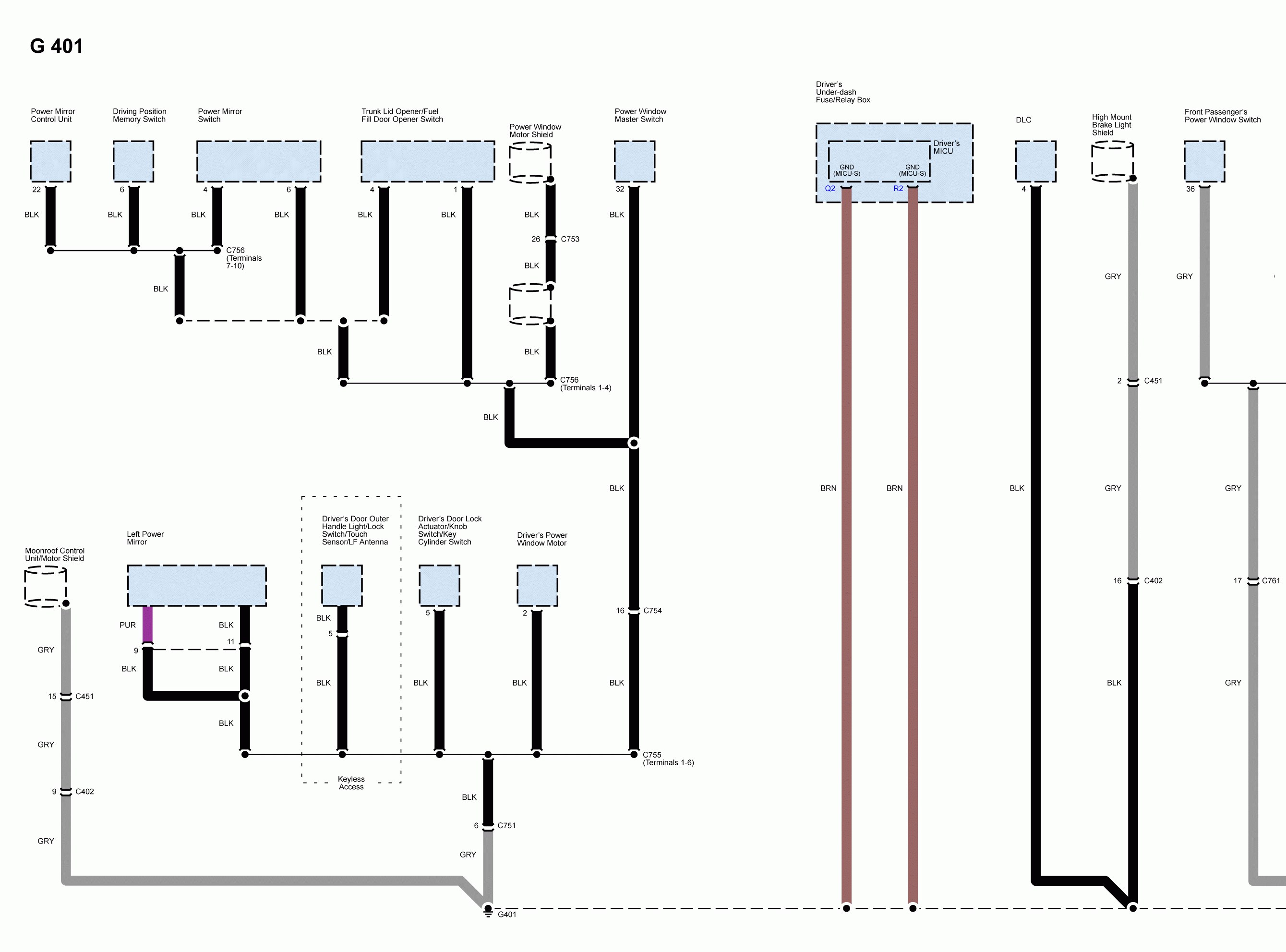

Acura TL - wiring diagram - ground distribution (part 11) — Acura TL – wiring diagram – ground distribution (part 11)

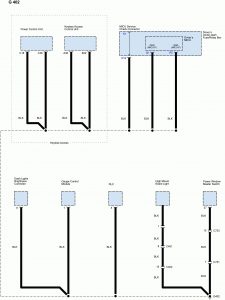

Acura TL - wiring diagram - ground distribution (part 12) — Acura TL – wiring diagram – ground distribution (part 12)

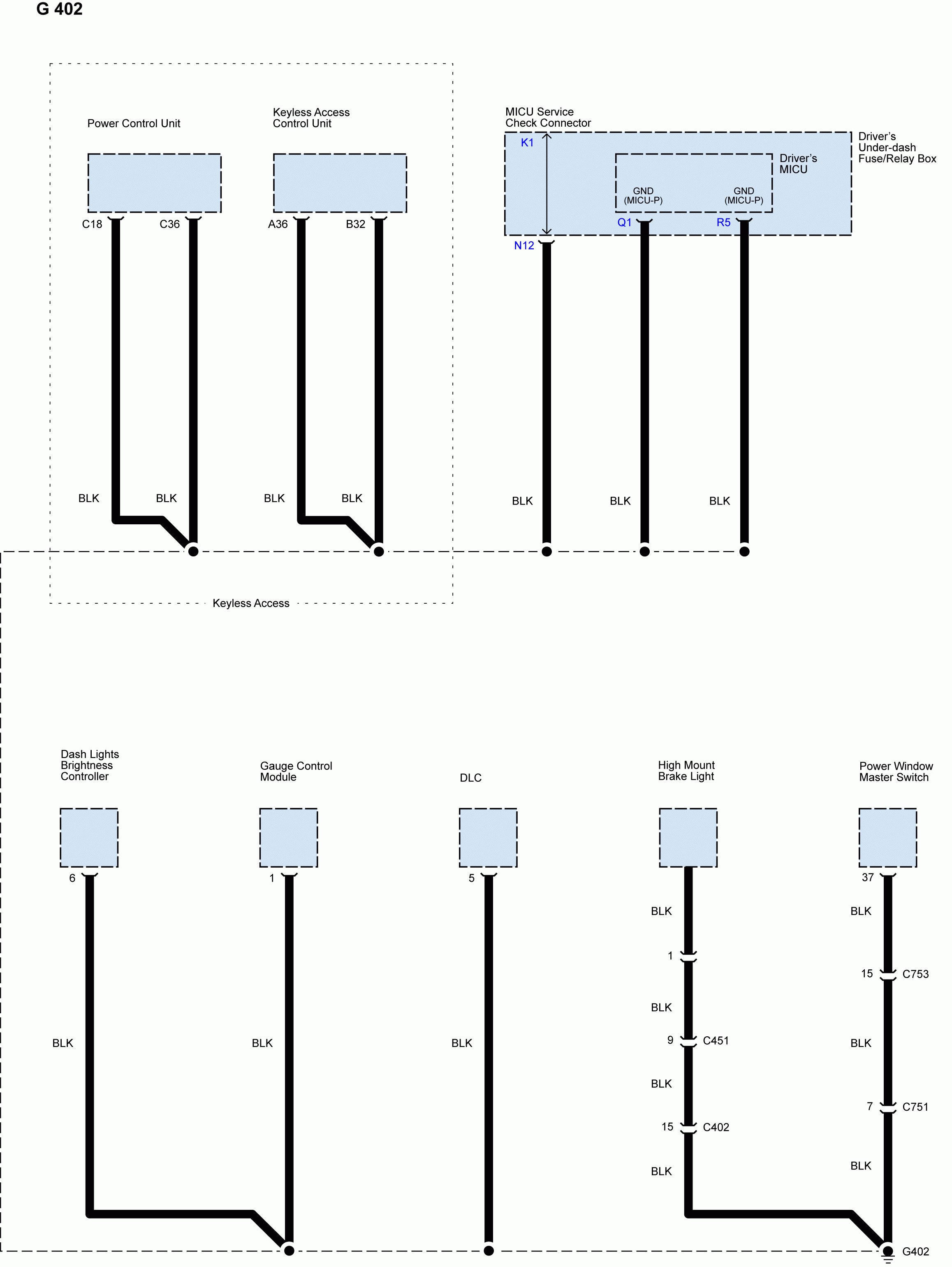

Acura TL - wiring diagram - ground distribution (part 13) — Acura TL – wiring diagram – ground distribution (part 13)

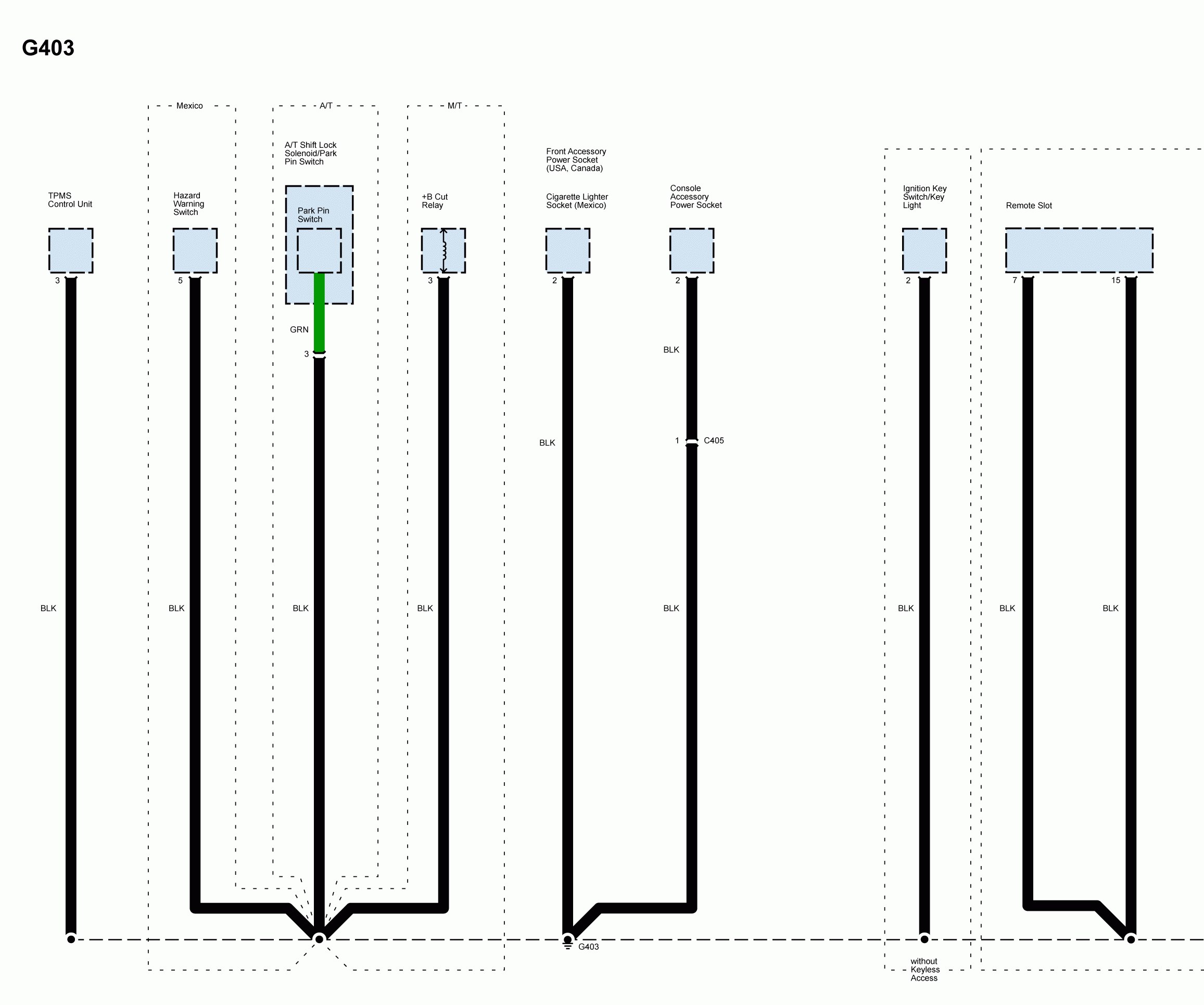

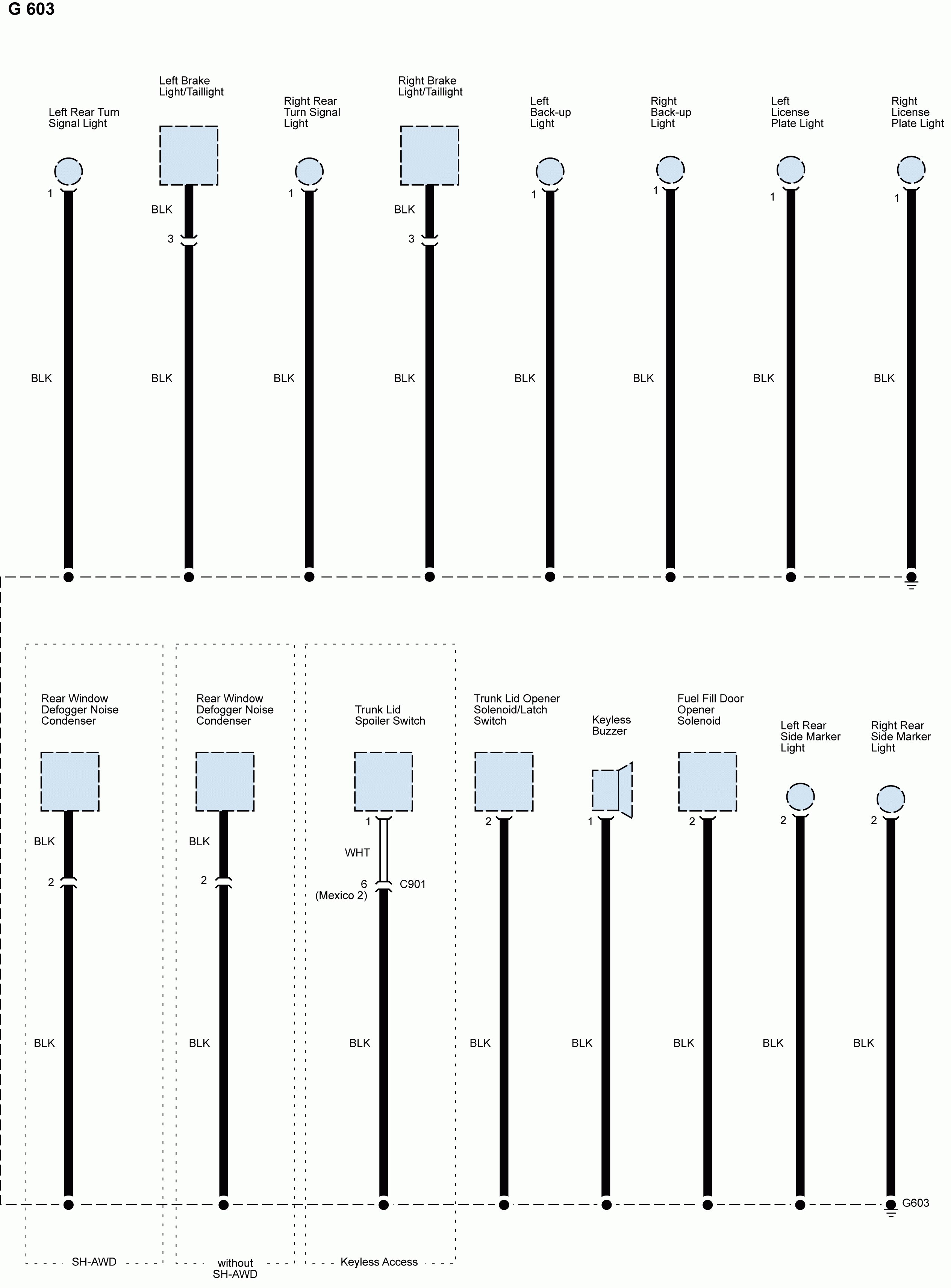

Acura TL - wiring diagram - ground distribution (part 14) — Acura TL – wiring diagram – ground distribution (part 14)

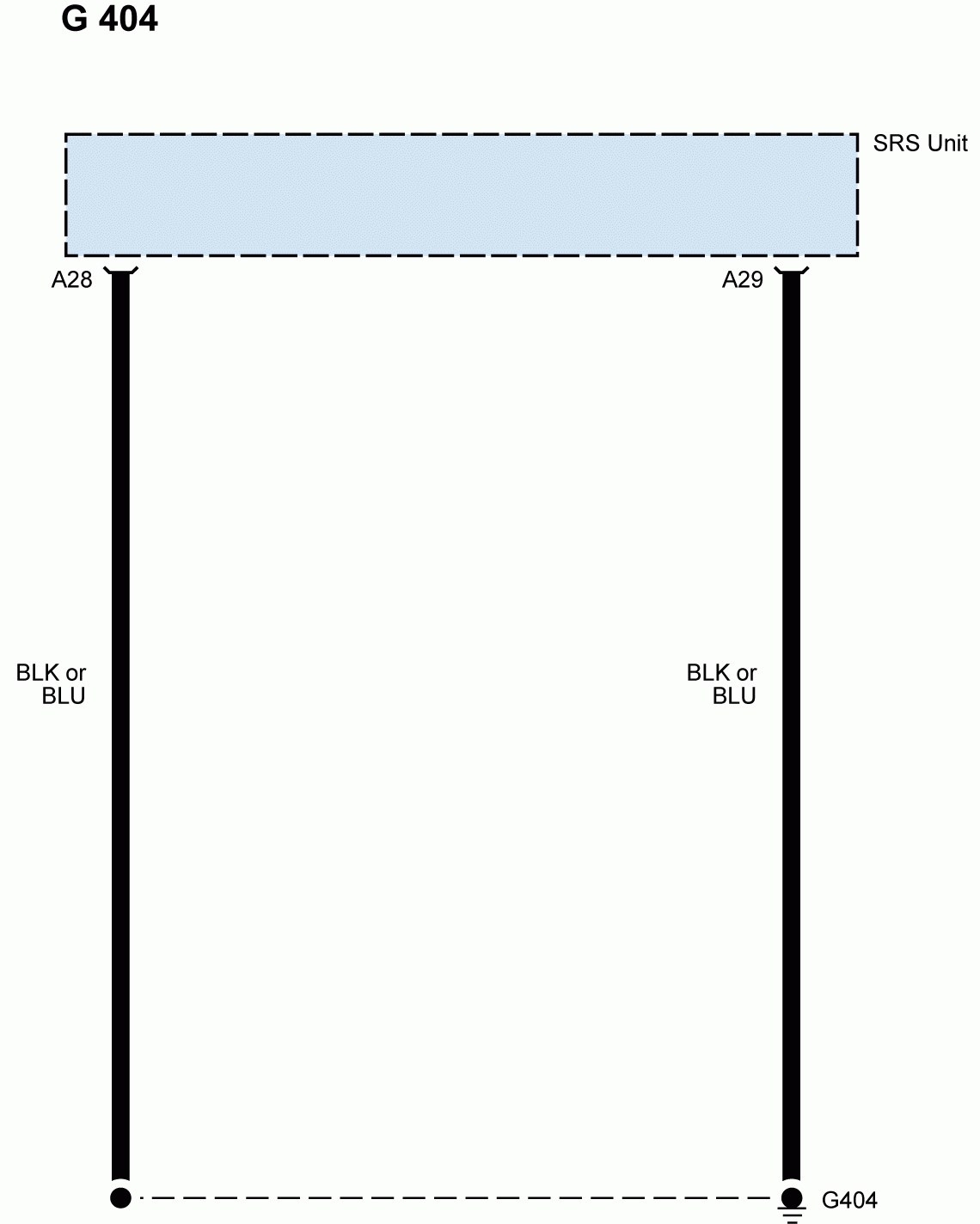

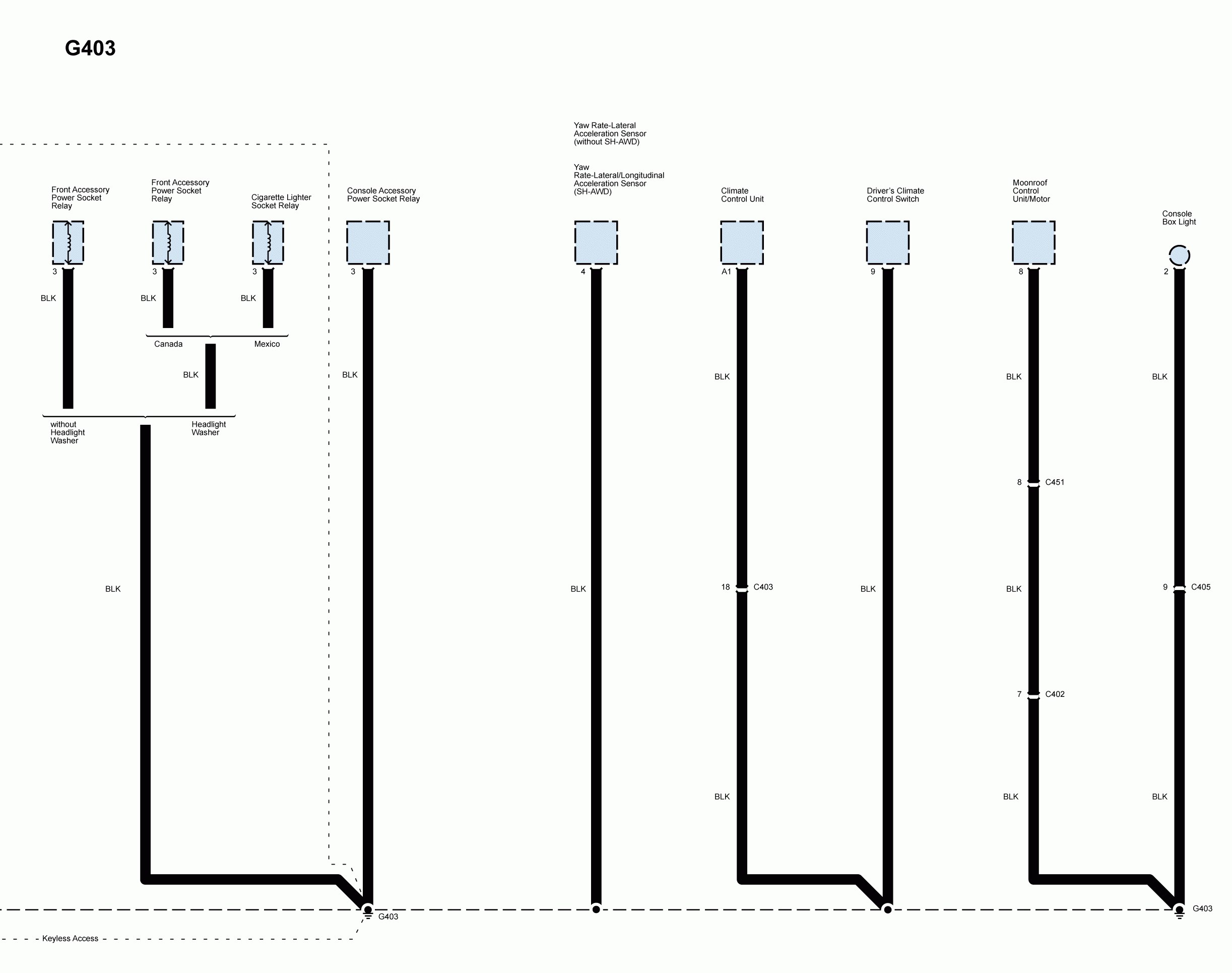

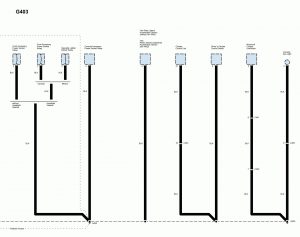

Acura TL - wiring diagram - ground distribution (part 15) — Acura TL – wiring diagram – ground distribution (part 15)

Acura TL - wiring diagram - ground distribution (part 16) — Acura TL – wiring diagram – ground distribution (part 16)

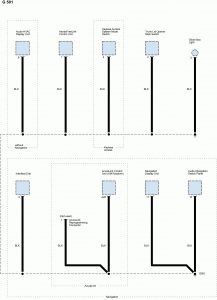

Acura TL - wiring diagram - ground distribution (part 17) — Acura TL – wiring diagram – ground distribution (part 17)

Acura TL - wiring diagram - ground distribution (part 18) — Acura TL – wiring diagram – ground distribution (part 18)

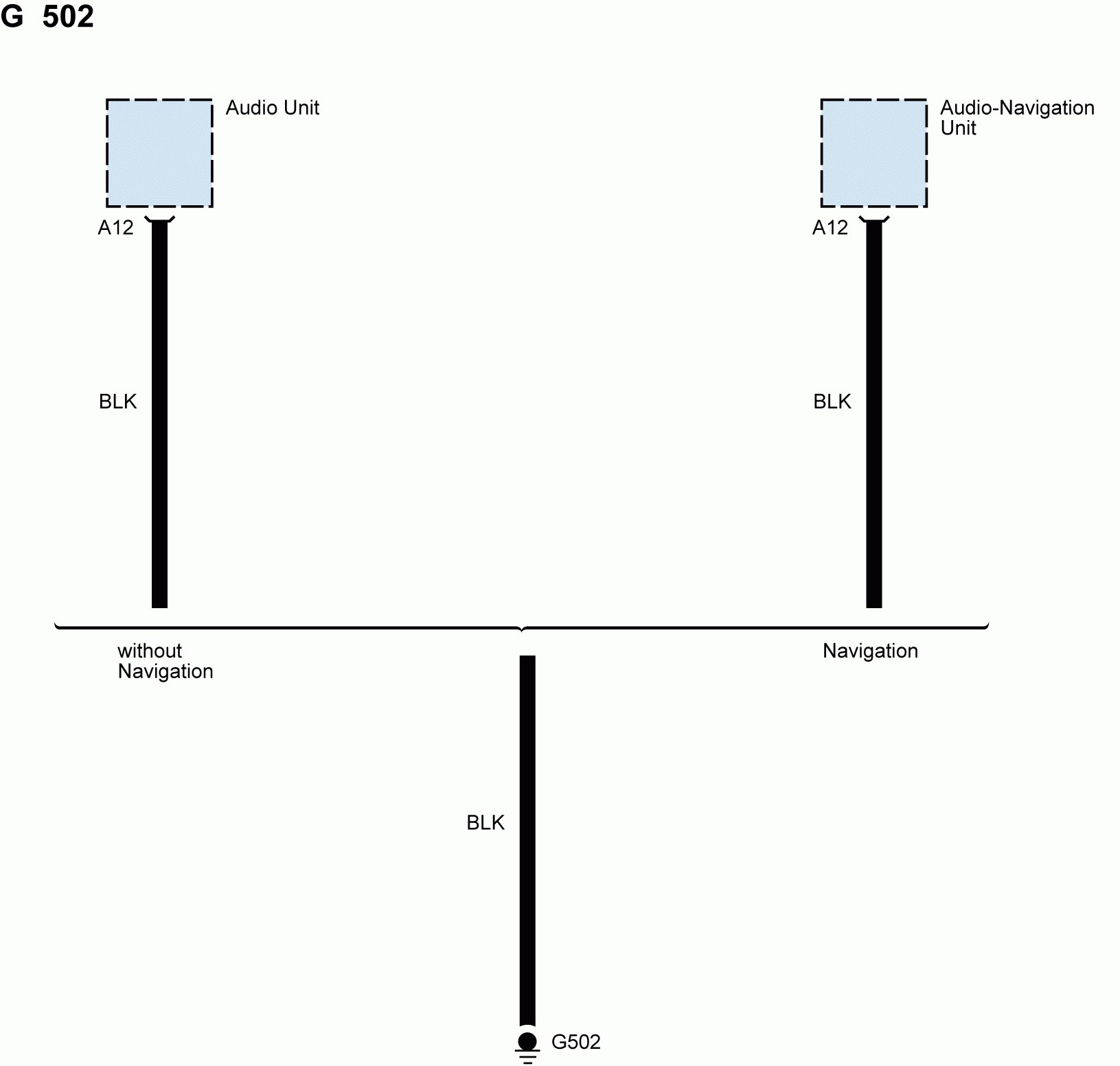

Acura TL - wiring diagram - ground distribution (part 19) — Acura TL – wiring diagram – ground distribution (part 19)

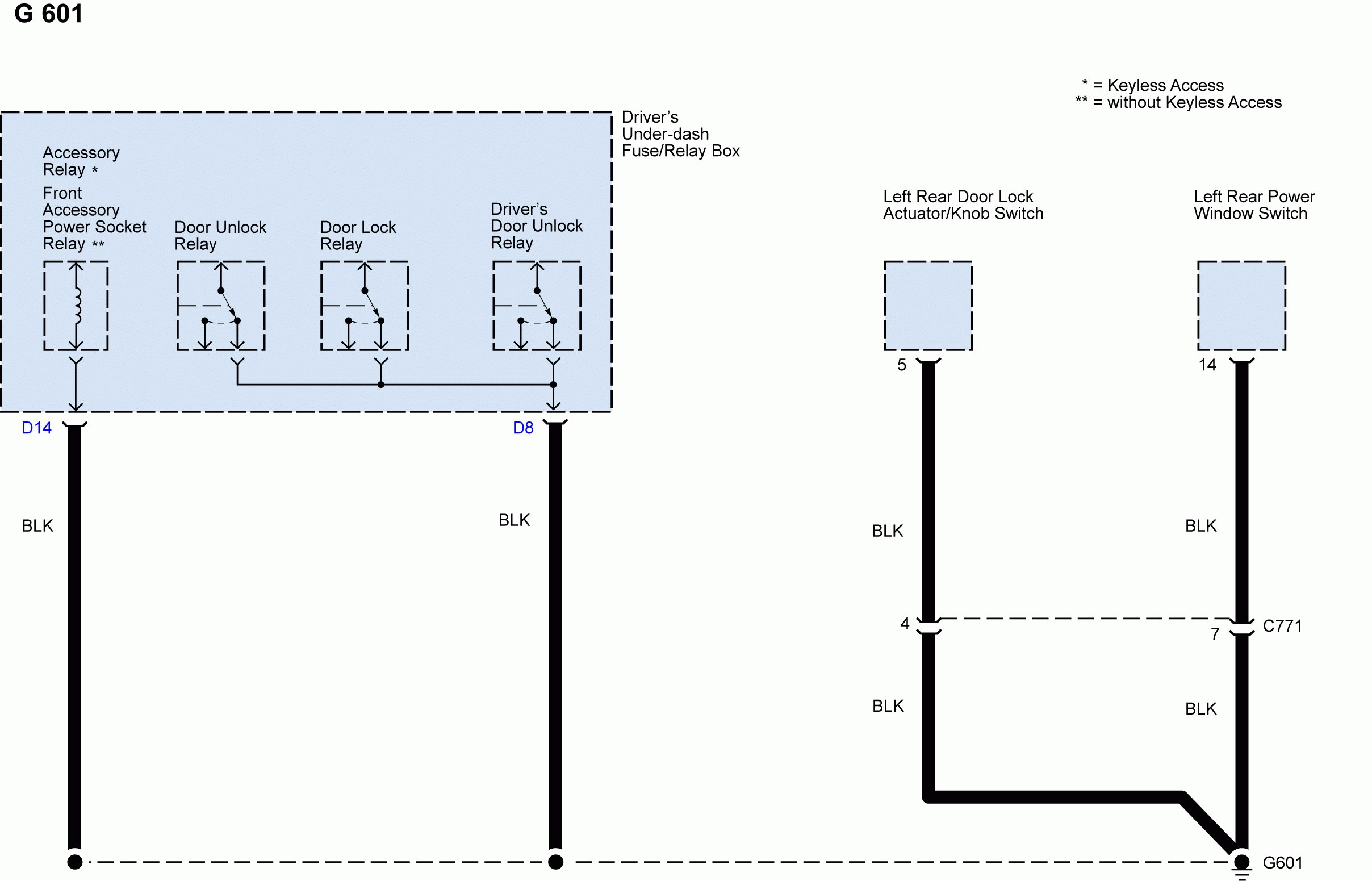

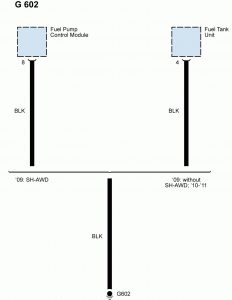

Acura TL - wiring diagram - ground distribution (part 20) — Acura TL – wiring diagram – ground distribution (part 20)

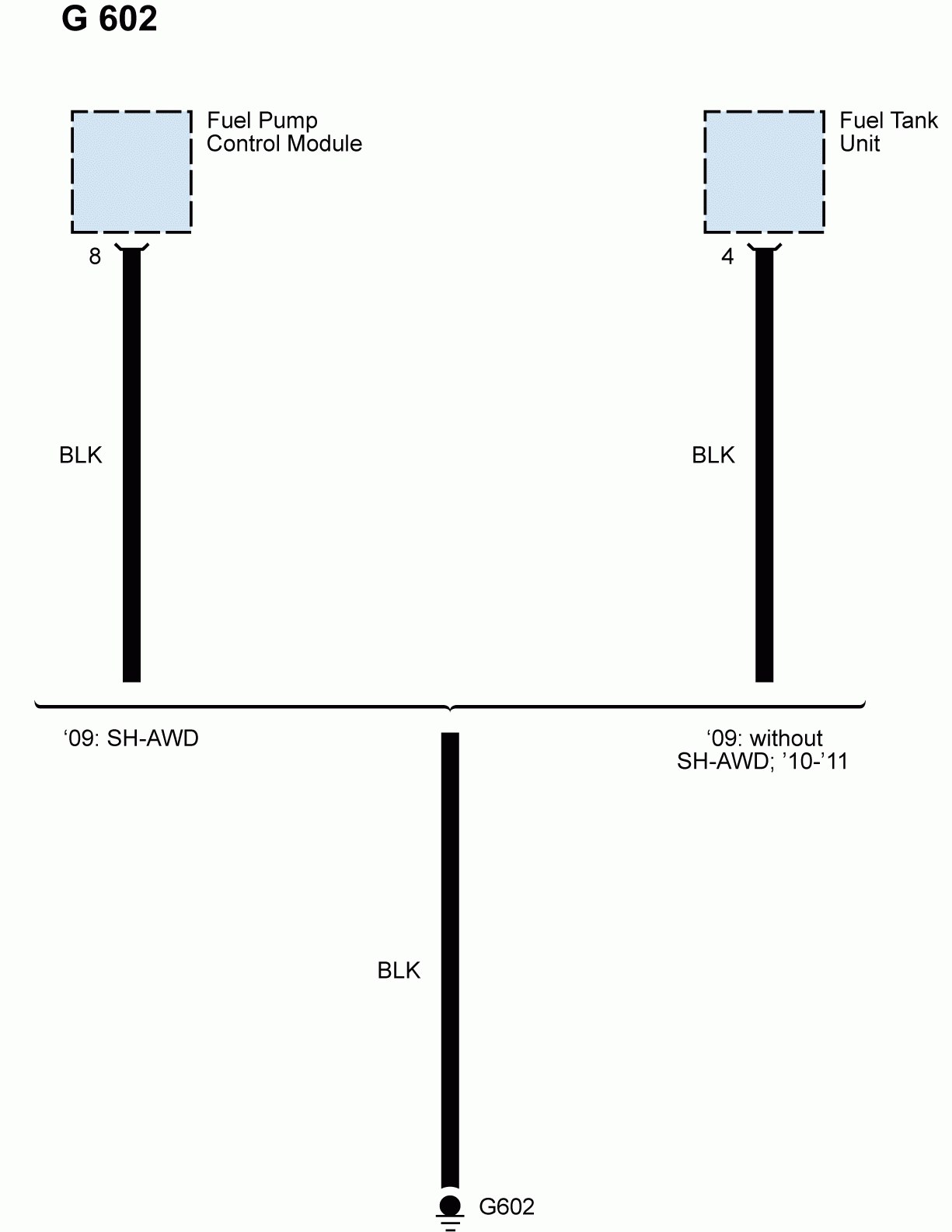

Acura TL - wiring diagram - ground distribution (part 21) — Acura TL – wiring diagram – ground distribution (part 21)

Acura TL - wiring diagram - ground distribution (part 22) — Acura TL – wiring diagram – ground distribution (part 22)

Version 2

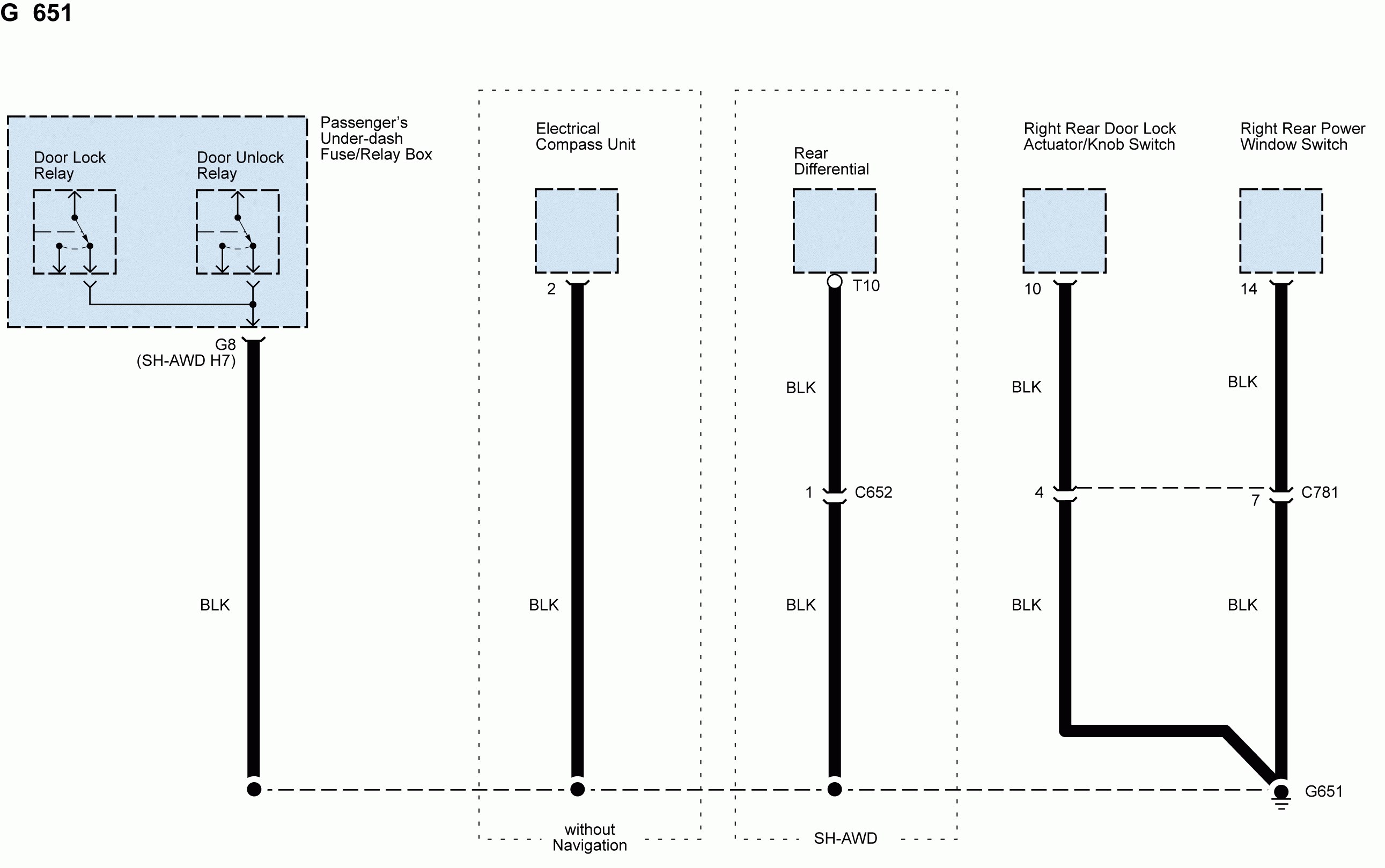

Acura TL - wiring diagram - ground distribution (part 1) — Acura TL – wiring diagram – ground distribution (part 1)

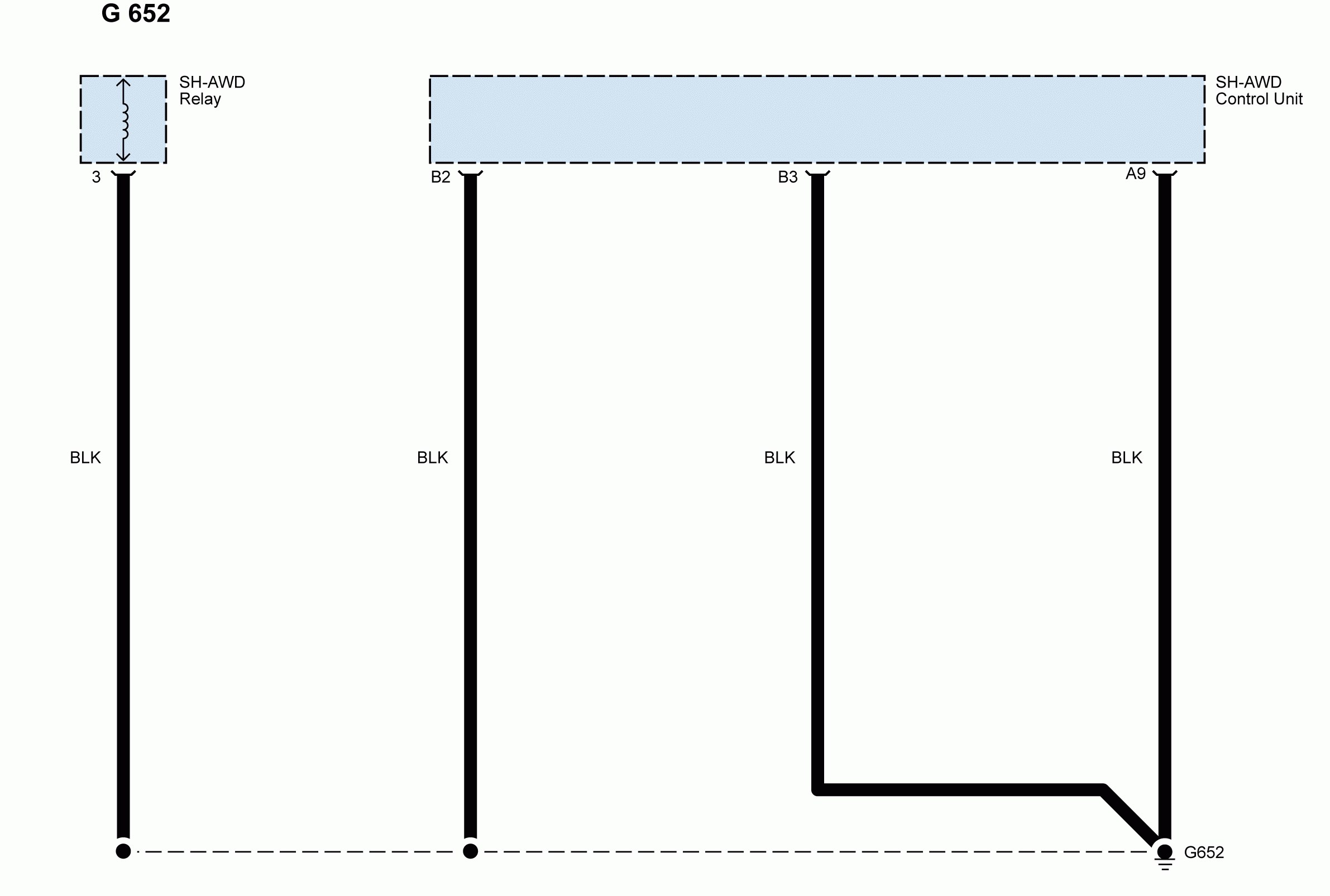

Acura TL - wiring diagram - ground distribution (part 2) — Acura TL – wiring diagram – ground distribution (part 2)

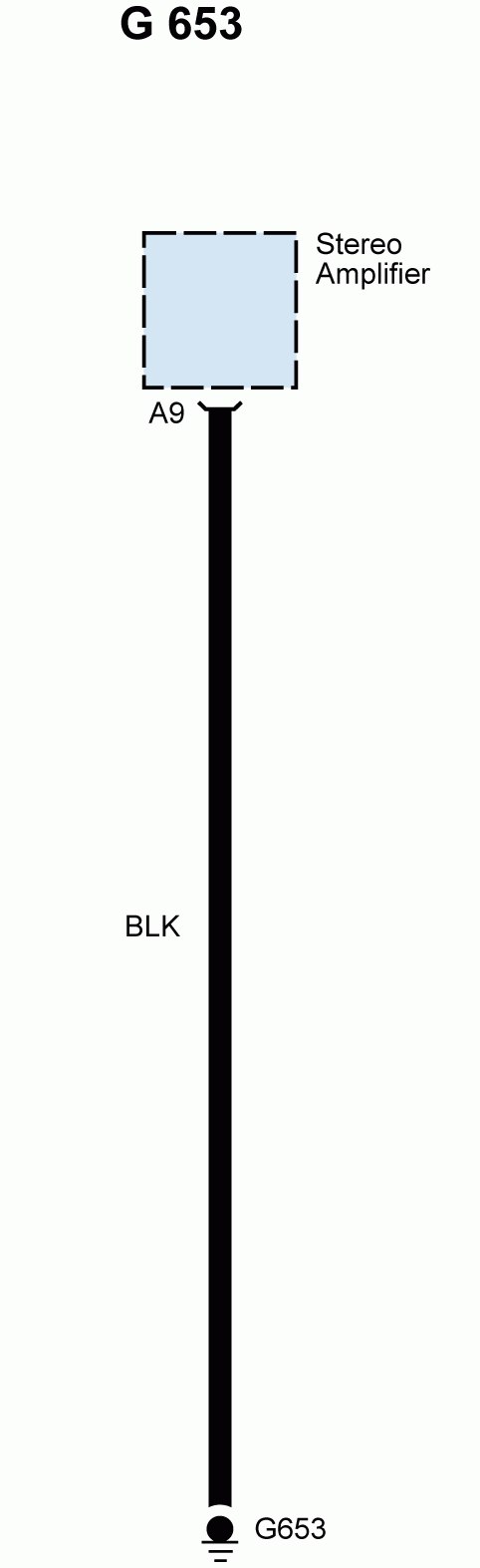

Acura TL - wiring diagram - ground distribution (part 3) — Acura TL – wiring diagram – ground distribution (part 3)

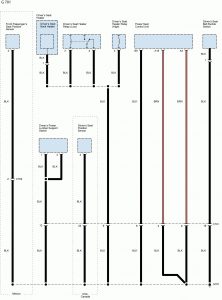

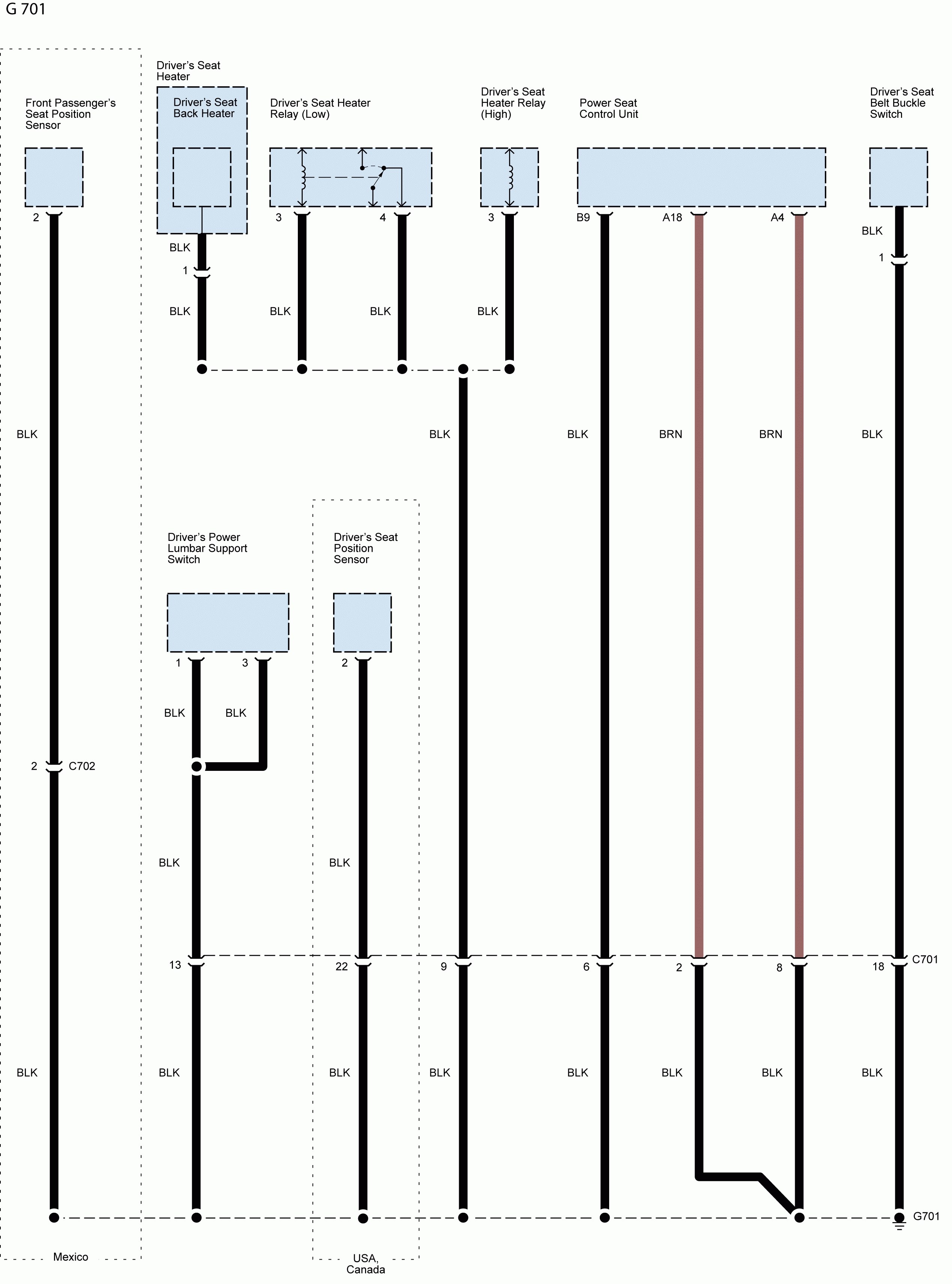

Acura TL - wiring diagram - ground distribution (part 4) — Acura TL – wiring diagram – ground distribution (part 4)

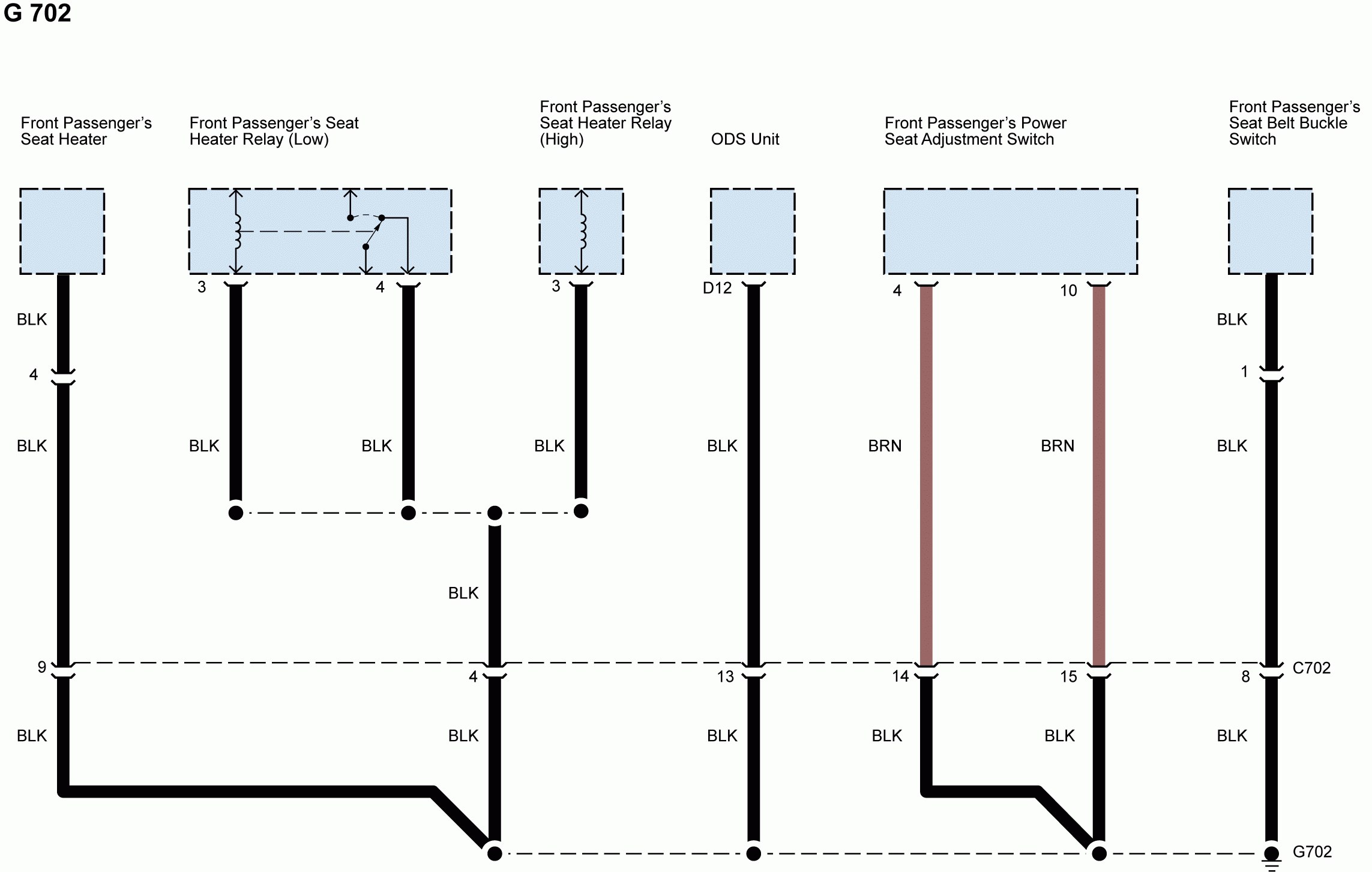

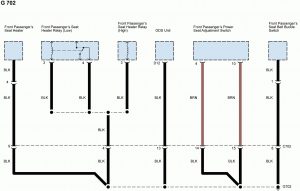

Acura TL - wiring diagram - ground distribution (part 5) — Acura TL – wiring diagram – ground distribution (part 5)

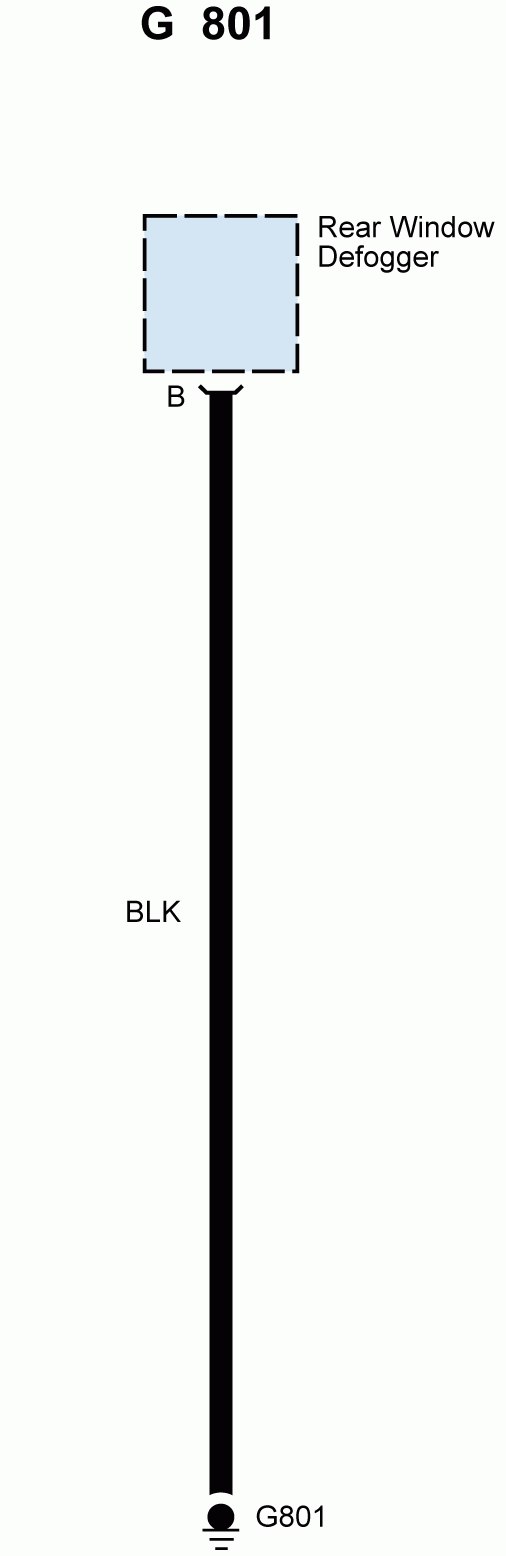

Acura TL - wiring diagram - ground distribution (part 6) — Acura TL – wiring diagram – ground distribution (part 6)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
