Acura TL (2011) – wiring diagrams – computer data lines

Year of productions:  2011

Computer data lines

Version 1

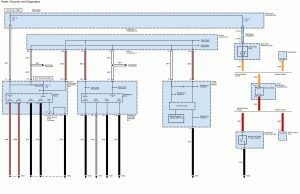

Acura TL - wiring diagram - computer data lines (part 1)
Acura TL – wiring diagram – computer data lines (part 1)

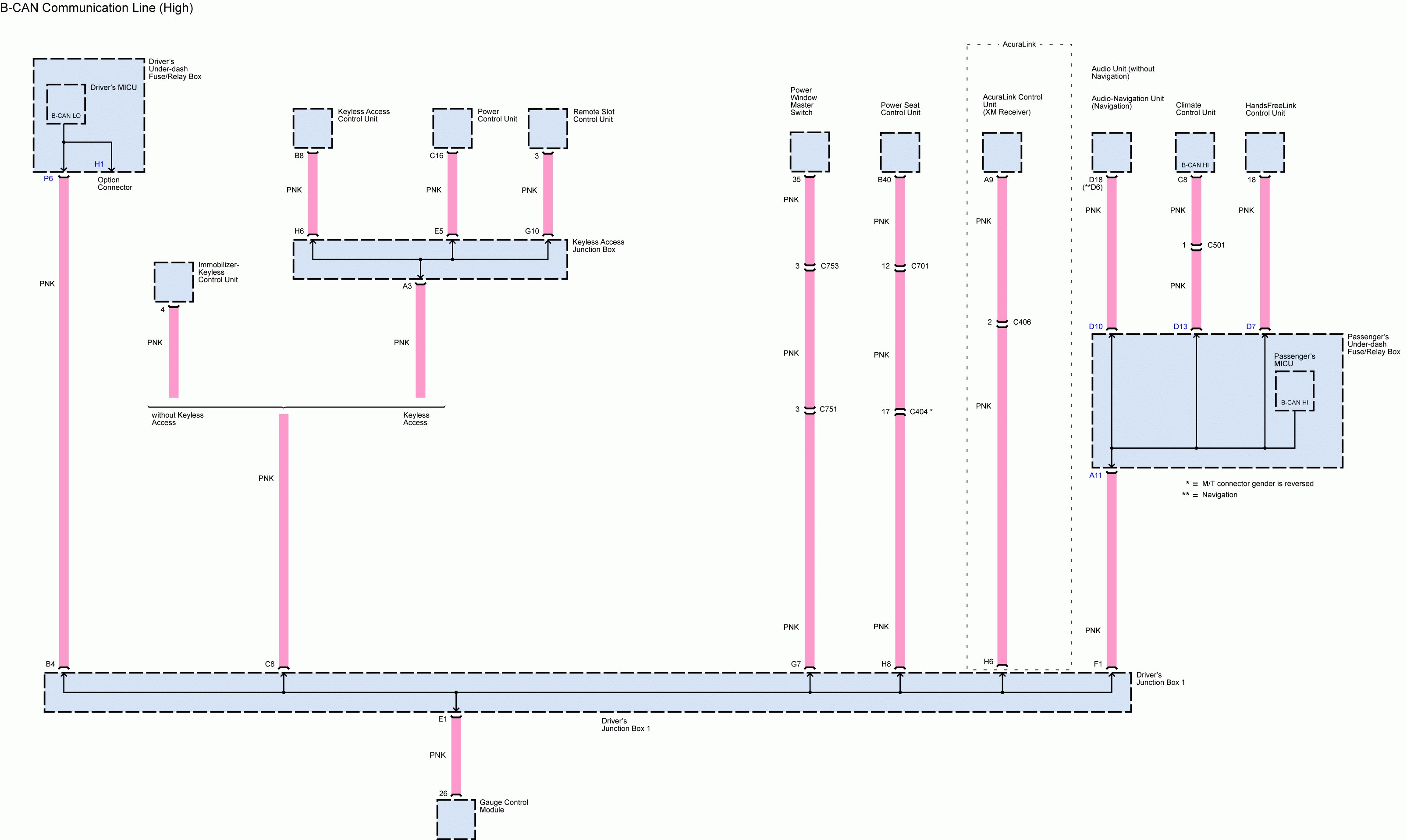

Acura TL - wiring diagram - computer data lines (part 2)
Acura TL – wiring diagram – computer data lines (part 2)

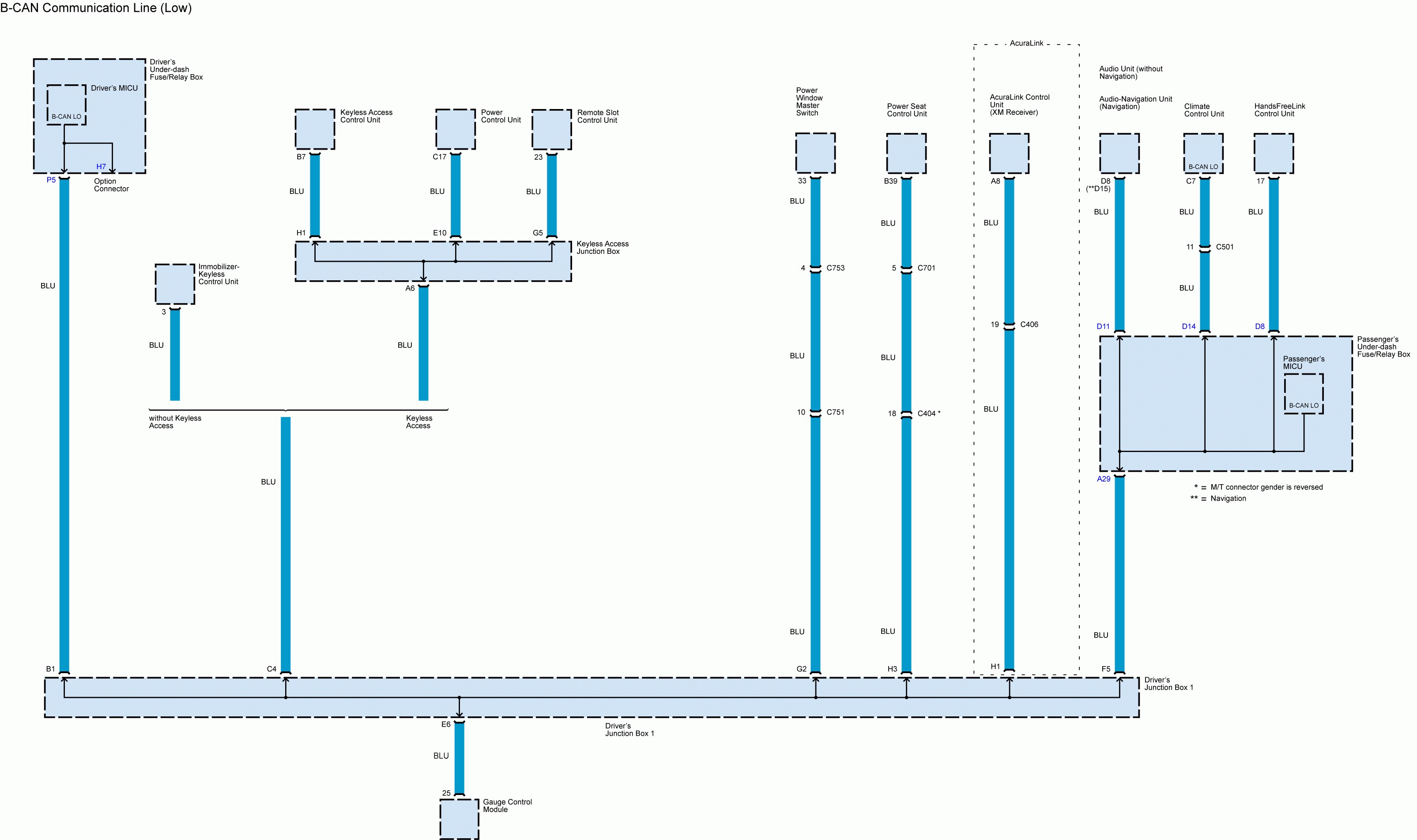

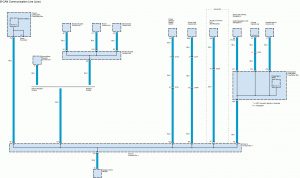

Acura TL - wiring diagram - computer data lines (part 3)
Acura TL – wiring diagram – computer data lines (part 3)

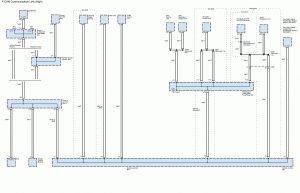

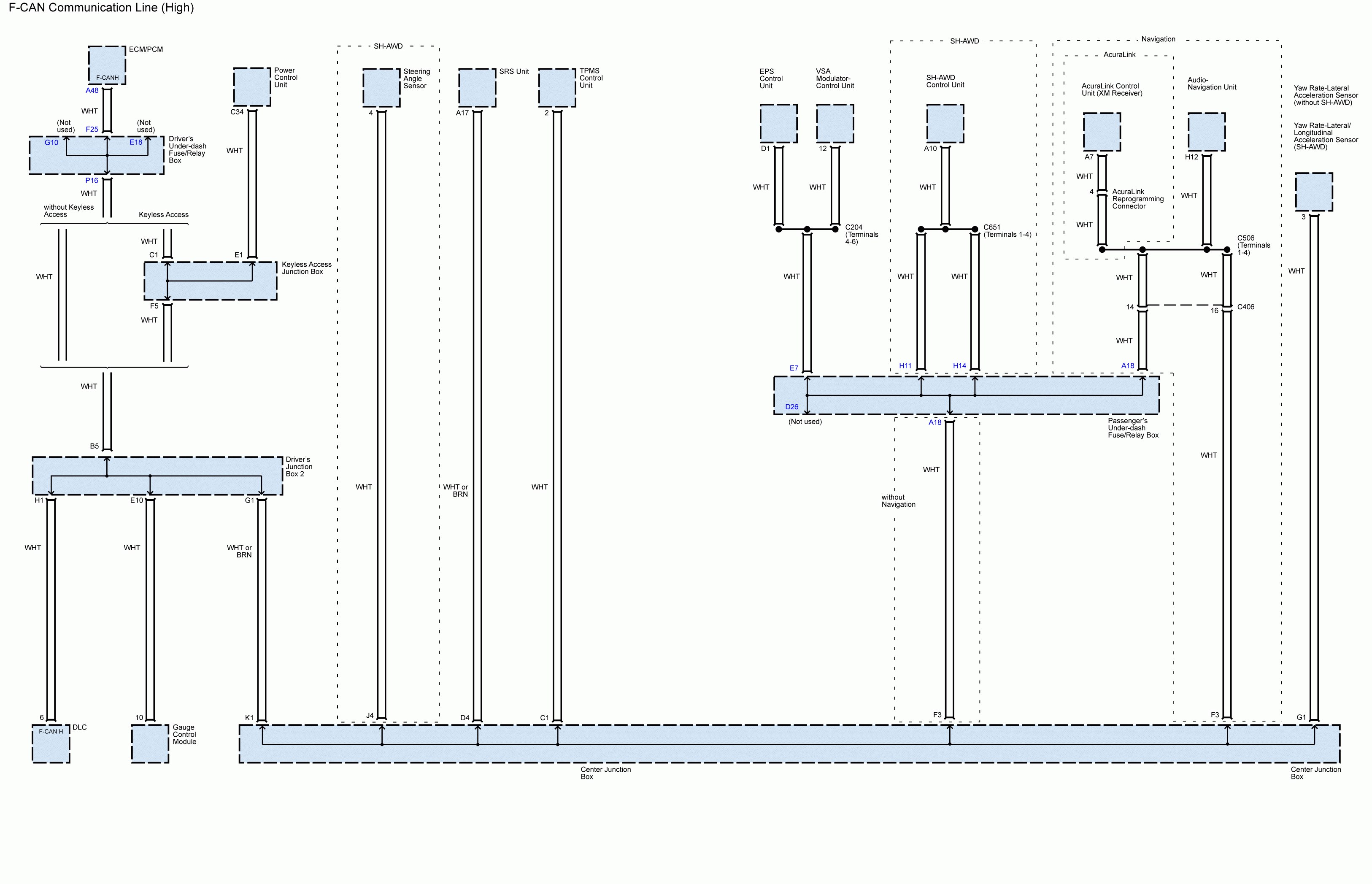

Acura TL - wiring diagram - computer data lines (part 4)
Acura TL – wiring diagram – computer data lines (part 4)

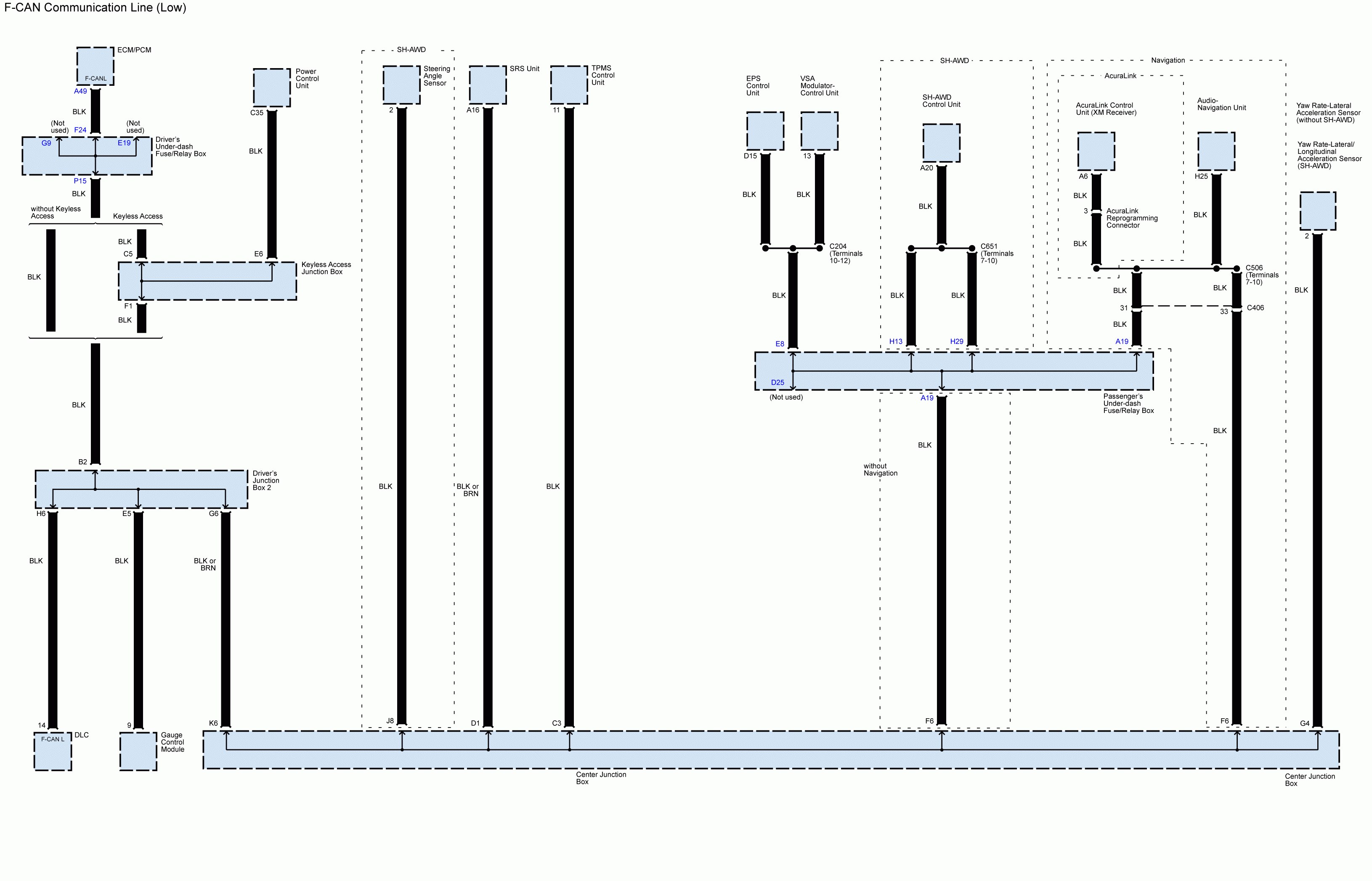

Acura TL - wiring diagram - computer data lines (part 5)
Acura TL – wiring diagram – computer data lines (part 5)

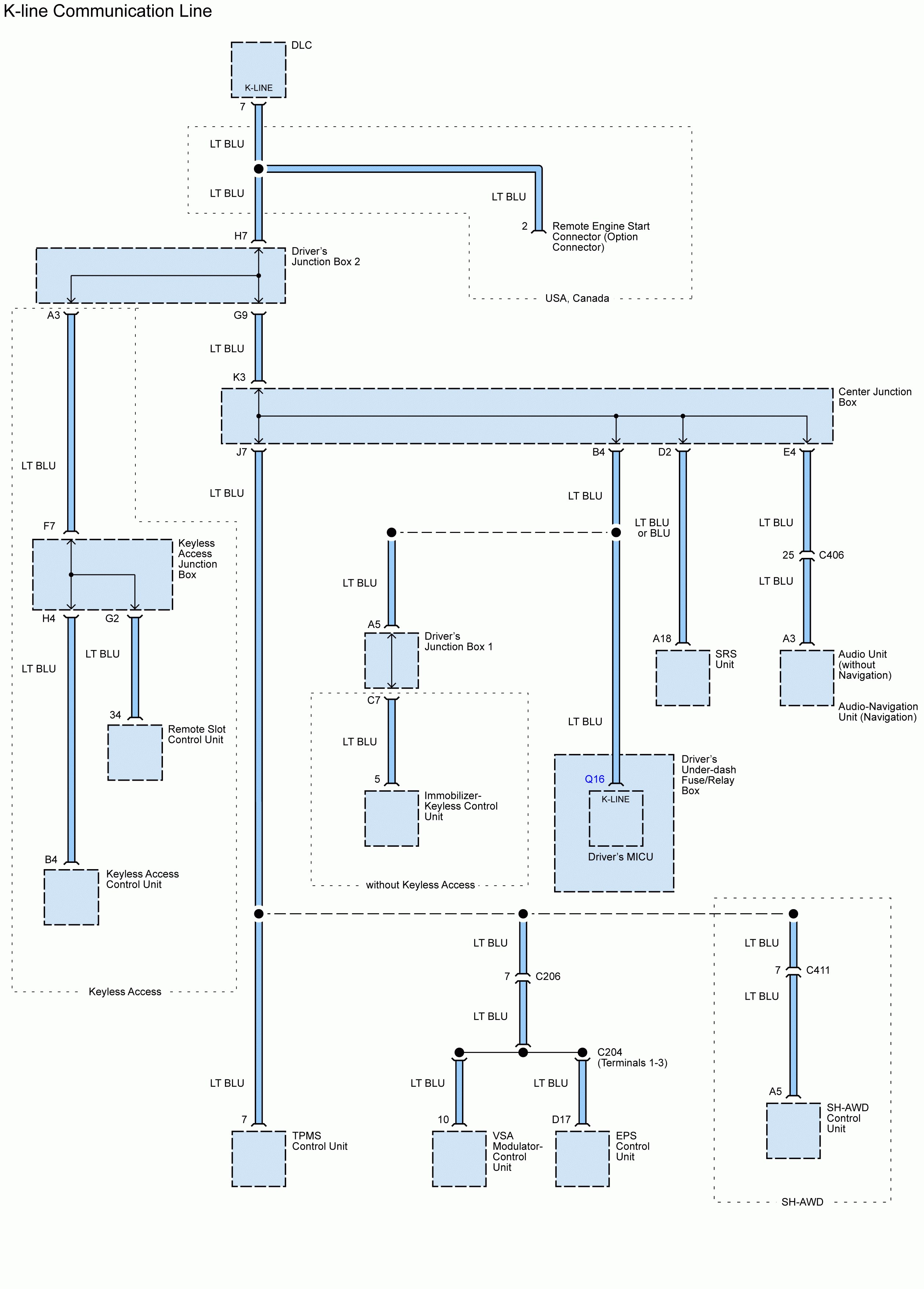

Acura TL - wiring diagram - computer data lines (part 6)
Acura TL – wiring diagram – computer data lines (part 6)

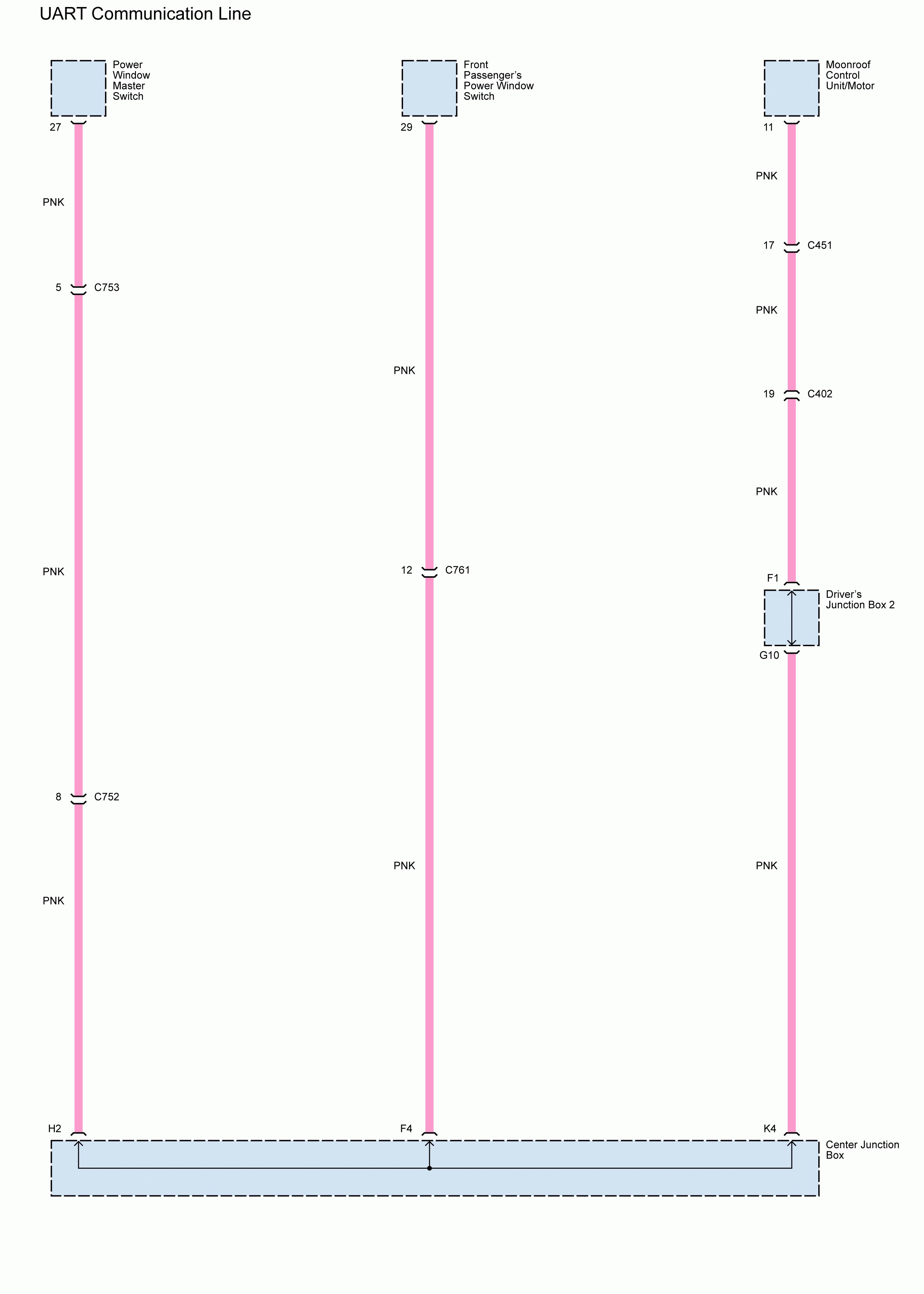

Acura TL - wiring diagram - computer data lines (part 7)
Acura TL – wiring diagram – computer data lines (part 7)

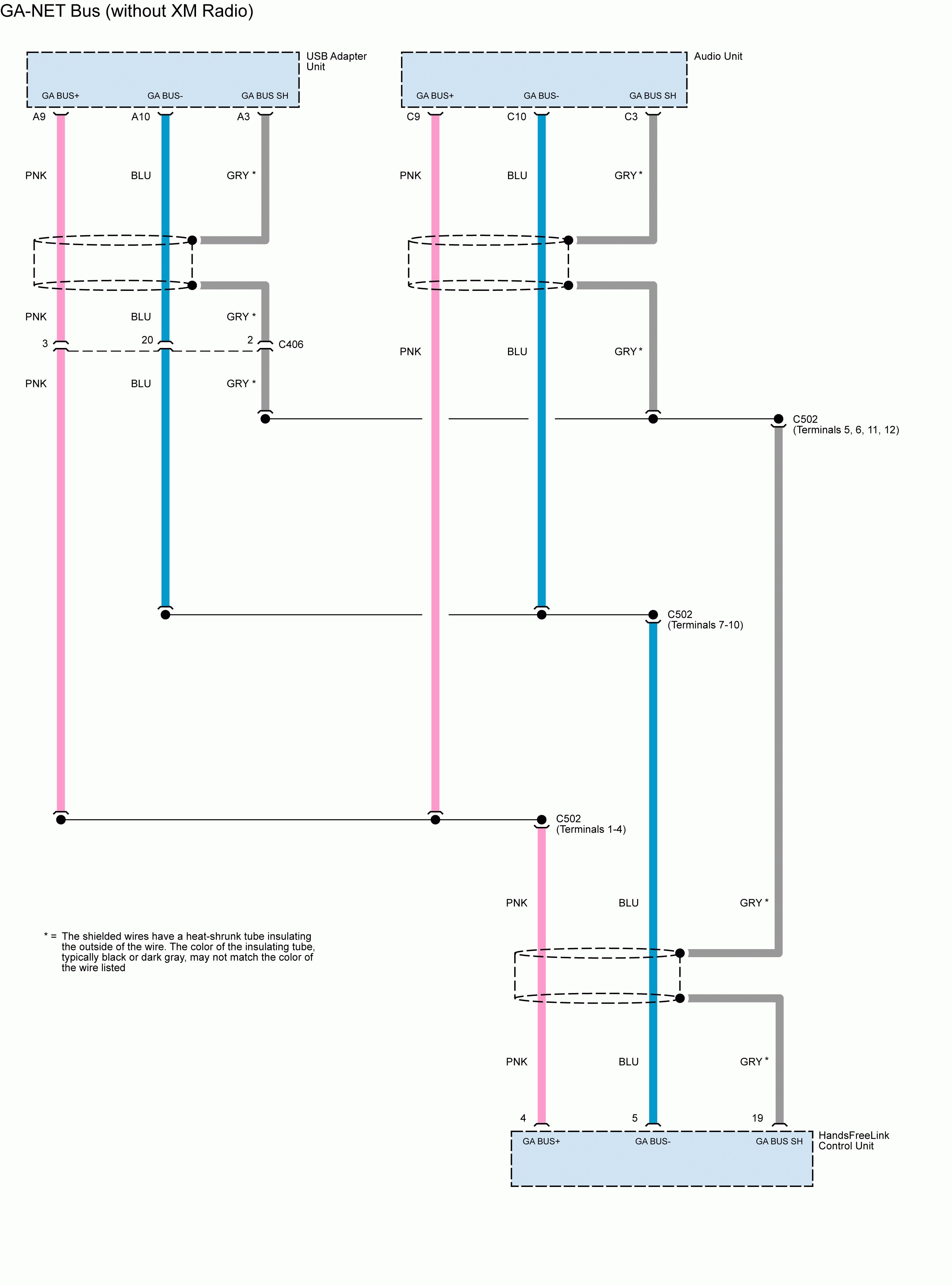

Version 2

Acura TL - wiring diagram - computer data lines
Acura TL – wiring diagram – computer data lines

Version 3

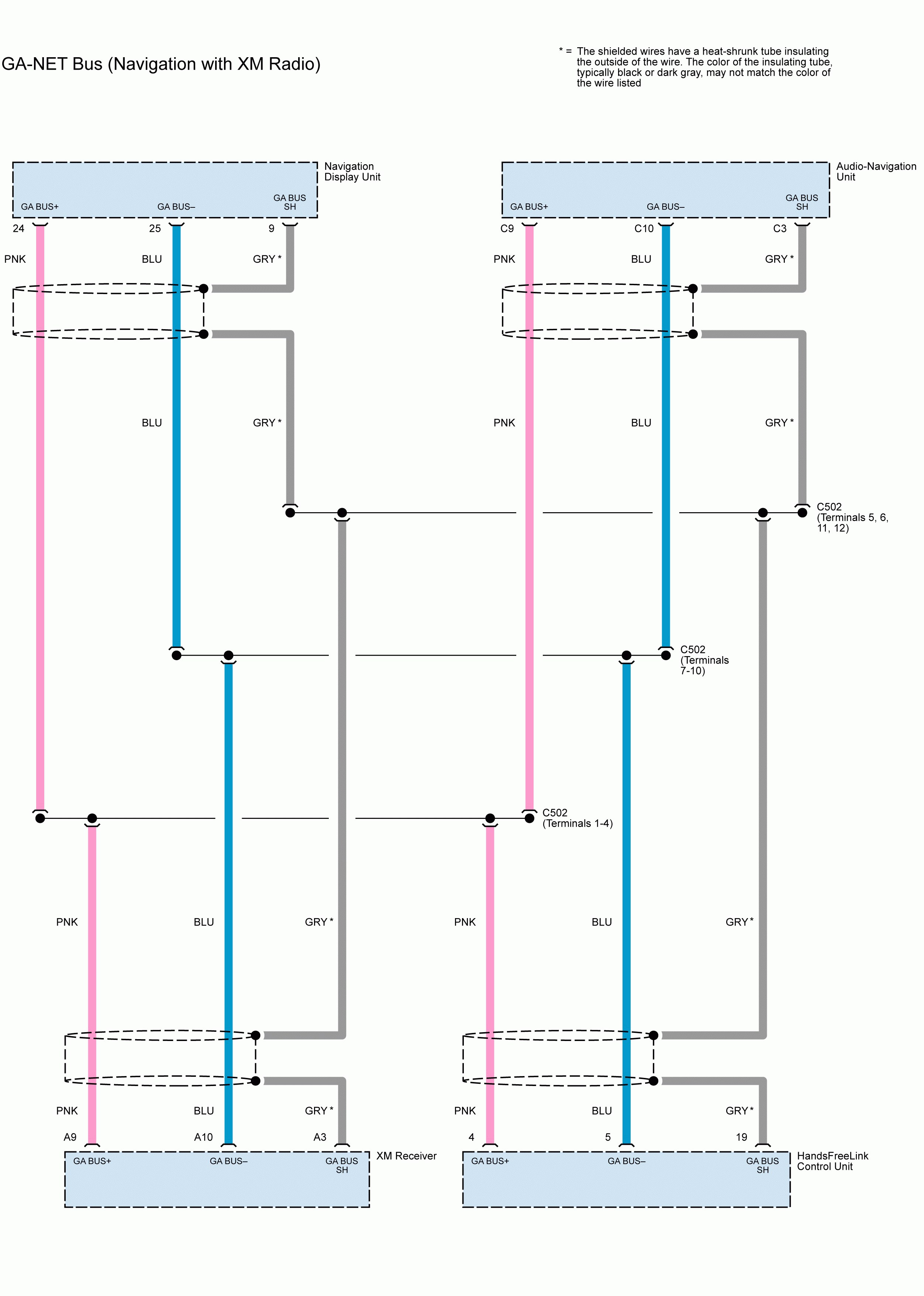

Acura TL - wiring diagram - computer data lines
Acura TL – wiring diagram – computer data lines

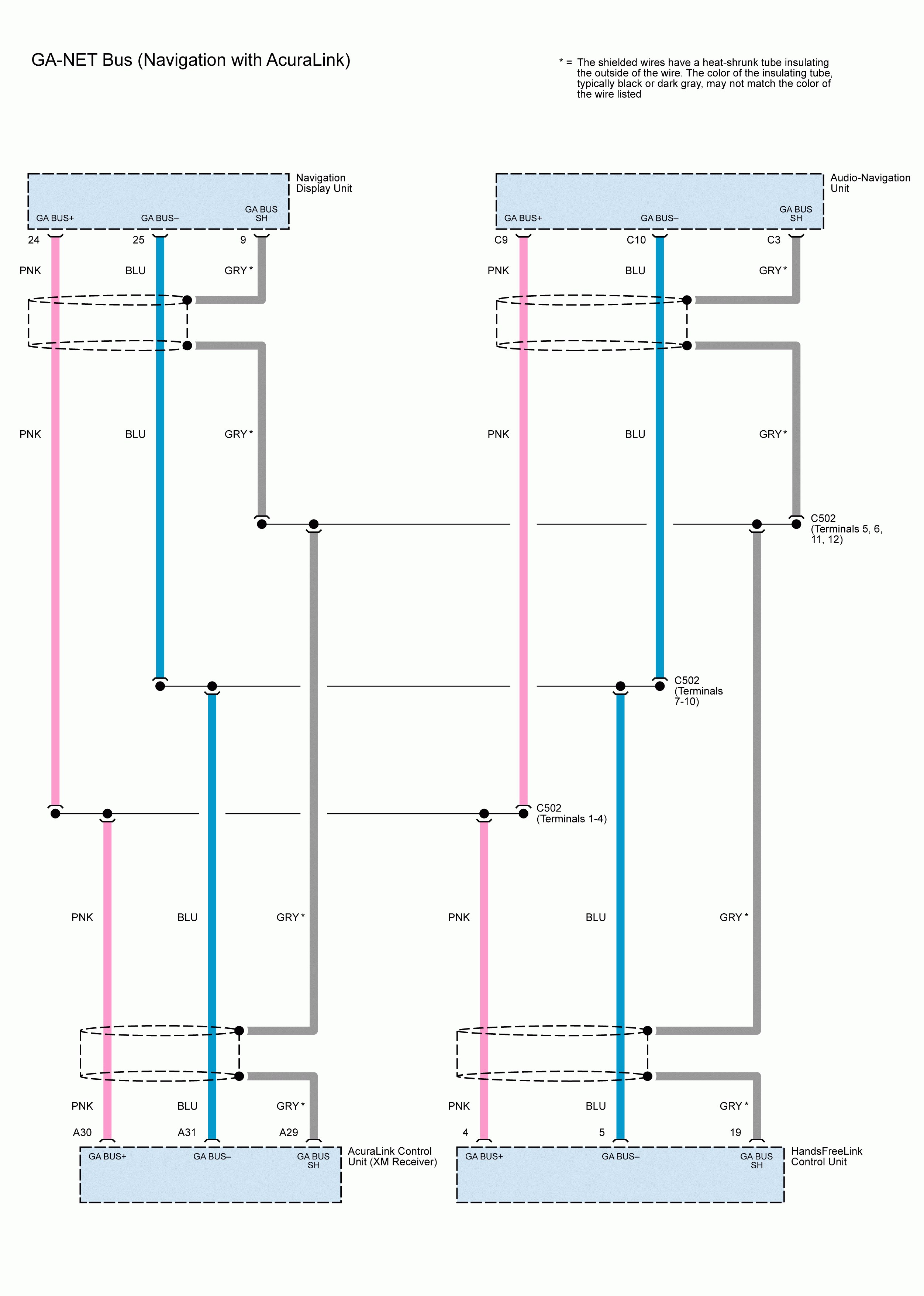

Version 4

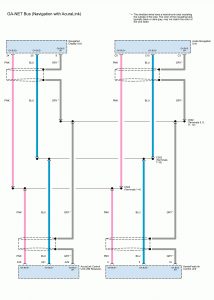

Acura TL - wiring diagram - computer data lines
Acura TL – wiring diagram – computer data lines

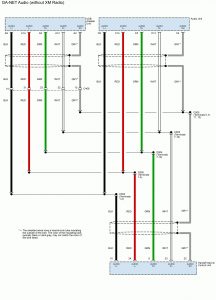

Version 5

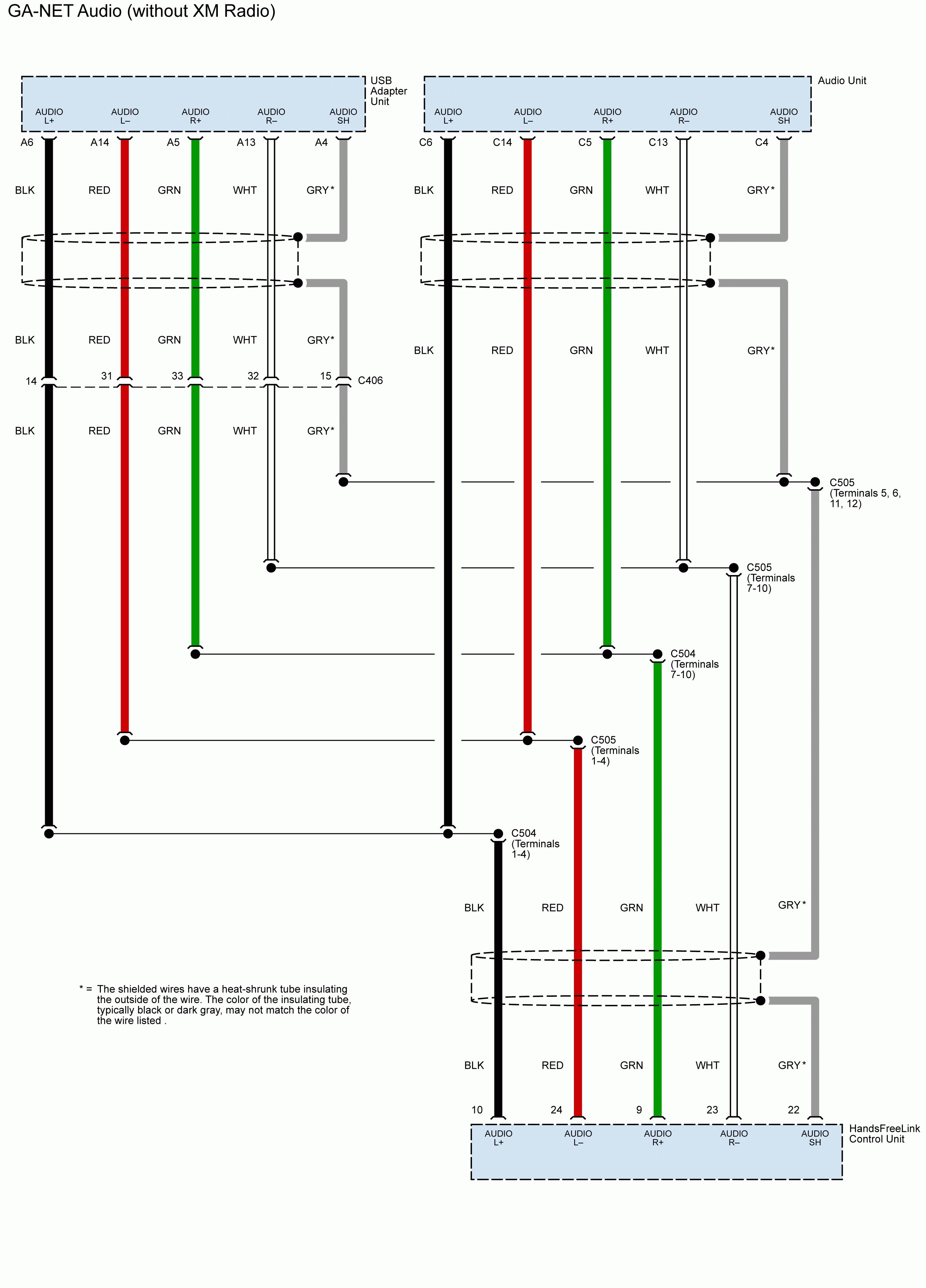

Acura TL - wiring diagram - computer data lines
Acura TL – wiring diagram – computer data lines

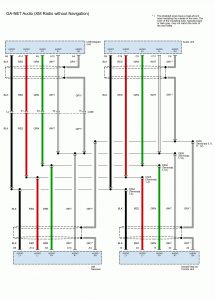

Version 6

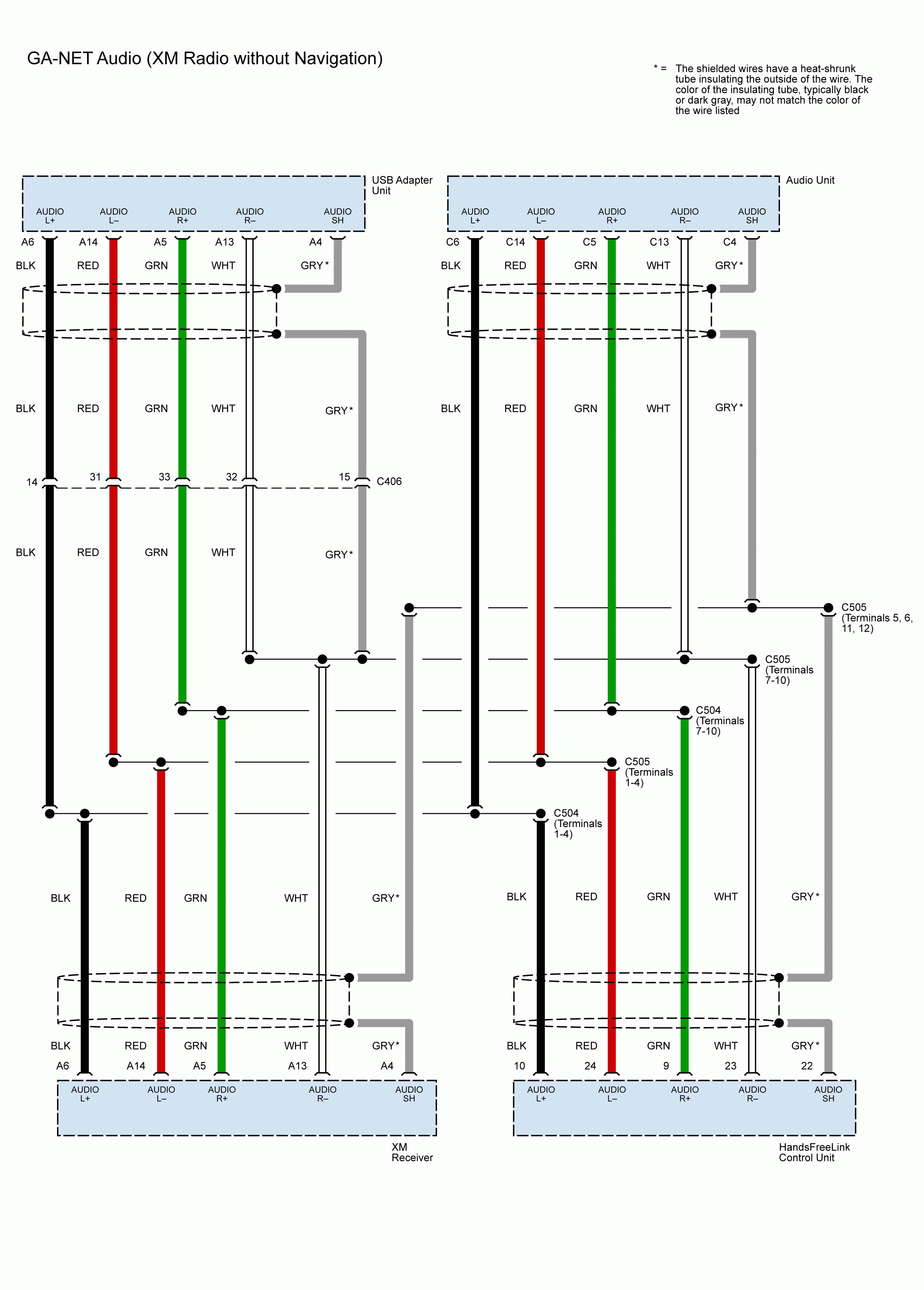

Acura TL - wiring diagram - computer data lines
Acura TL – wiring diagram – computer data lines

Version 7

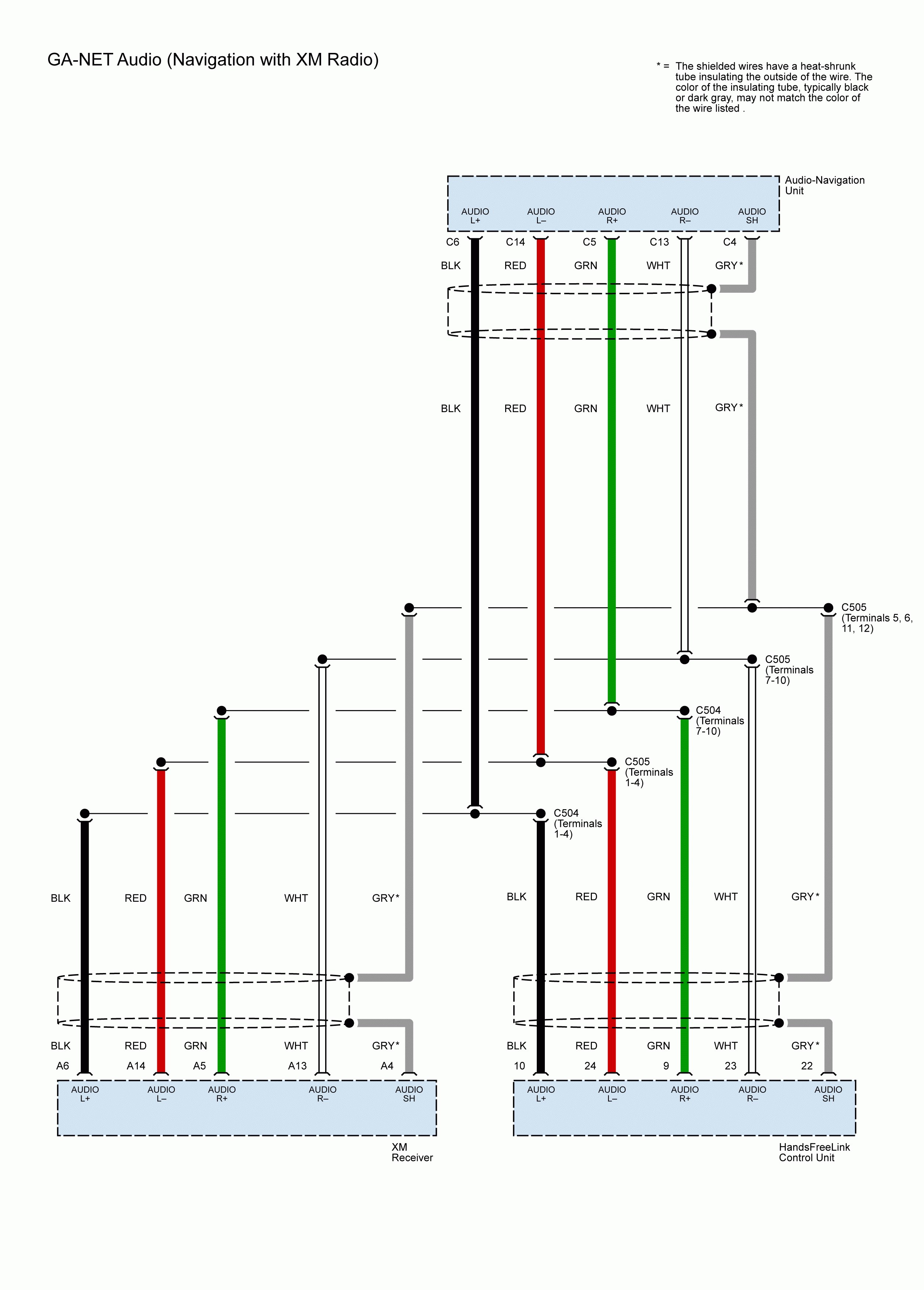

Acura TL - wiring diagram - computer data lines
Acura TL – wiring diagram – computer data lines

Version 8

Acura TL - wiring diagram - computer data lines
Acura TL – wiring diagram – computer data lines

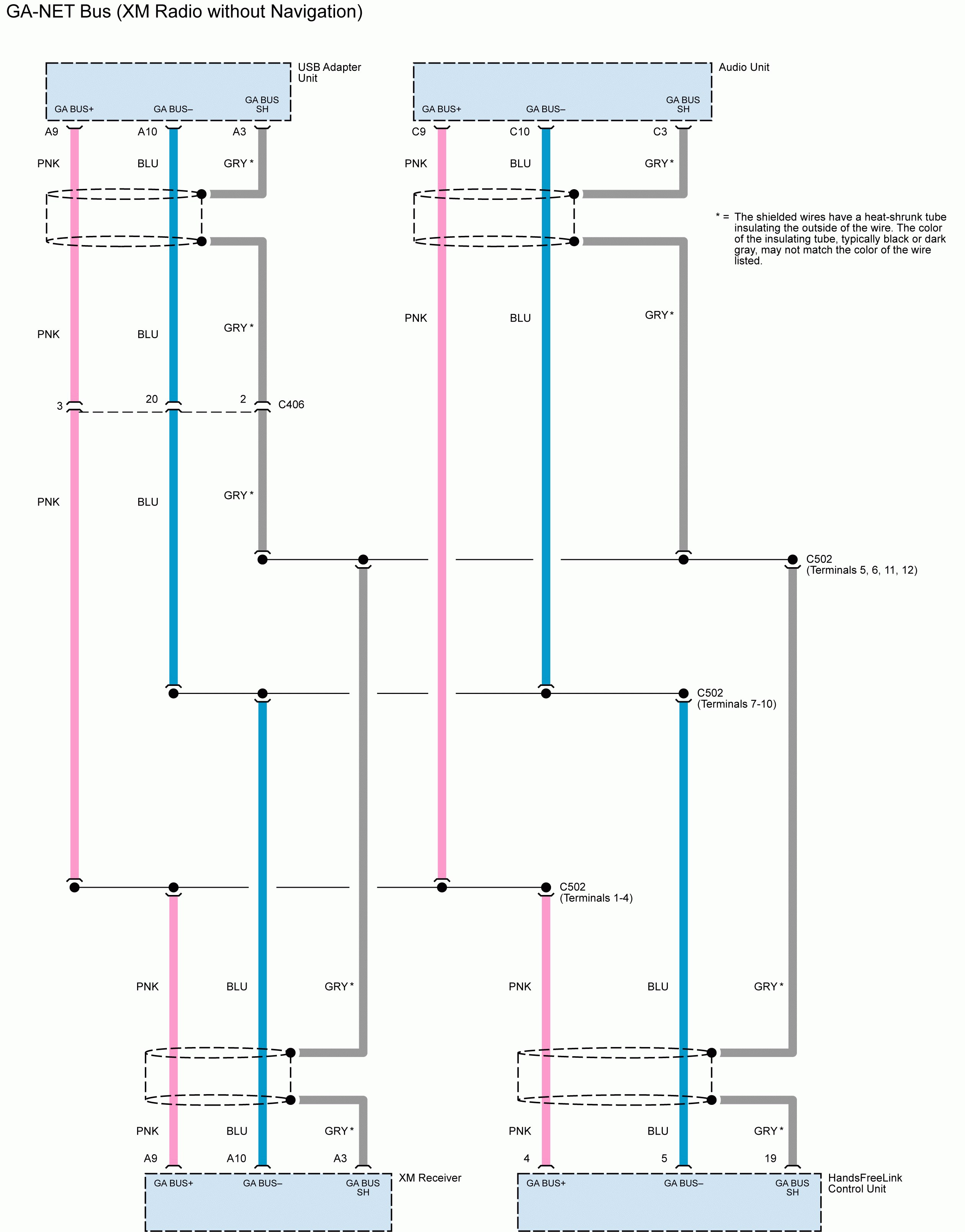

Version 9

Acura TL - wiring diagram - computer data lines
Acura TL – wiring diagram – computer data lines

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
