Acura RL (2007) – wiring diagrams – brake controls

Year of productions:  2007

Brake control

Version 1

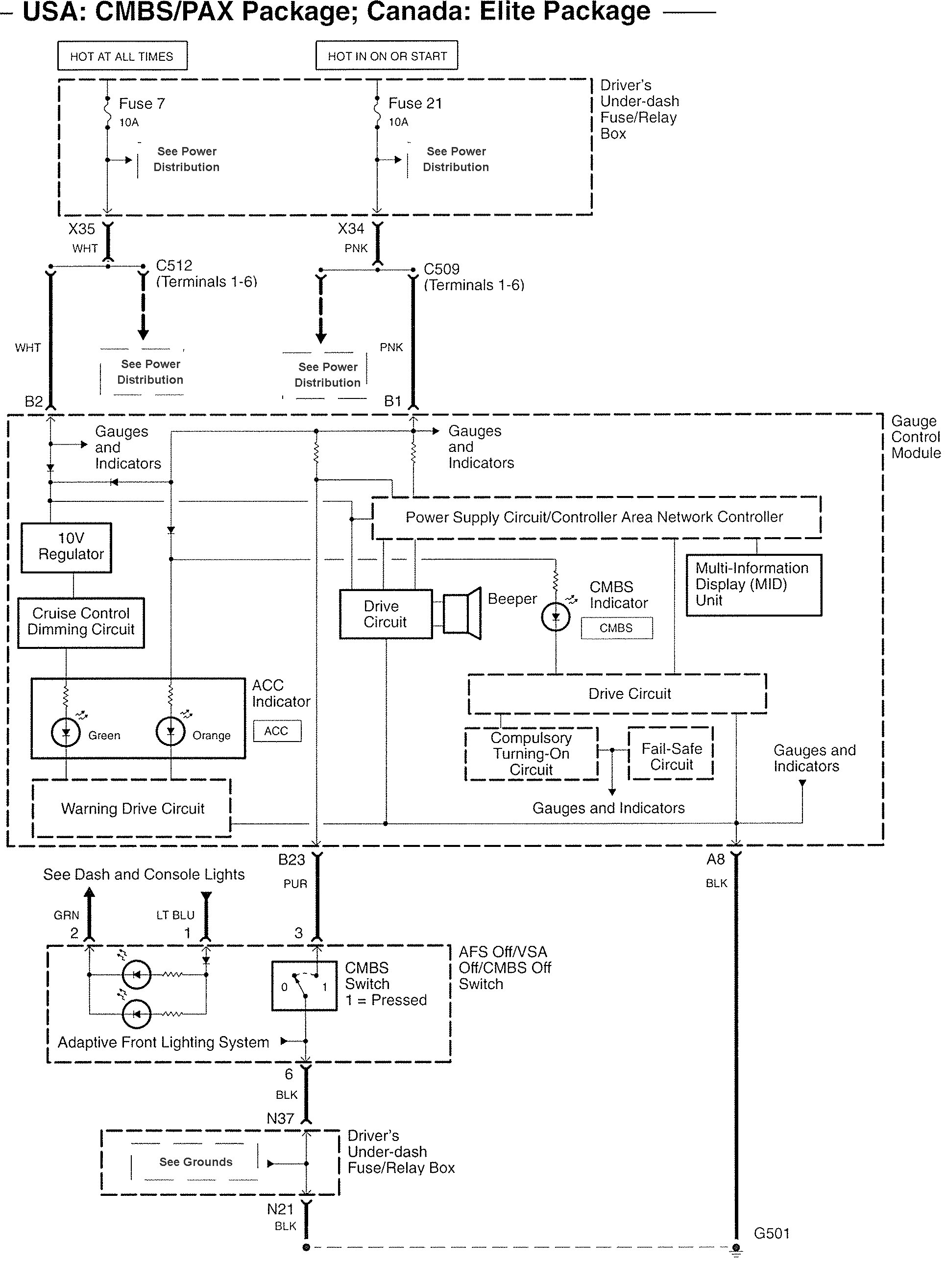

Acura RL - wiring diagram - brake controls (part 1)
Acura RL – wiring diagram – brake controls (part 1)
Acura RL - wiring diagram - brake controls (part 2)
Acura RL – wiring diagram – brake controls (part 2)
Acura RL - wiring diagram - brake controls (part 3)
Acura RL – wiring diagram – brake controls (part 3)
Acura RL - wiring diagram - brake controls (part 4)
Acura RL – wiring diagram – brake controls (part 4)
Acura RL - wiring diagram - brake controls (part 5)
Acura RL – wiring diagram – brake controls (part 5)
Acura RL - wiring diagram - brake controls (part 6)
Acura RL – wiring diagram – brake controls (part 6)

Version 2

Acura RL - wiring diagram - brake controls (part 1)
Acura RL – wiring diagram – brake controls (part 1)

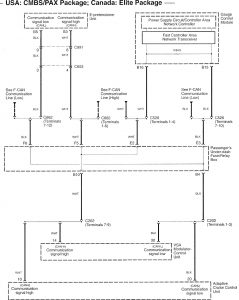

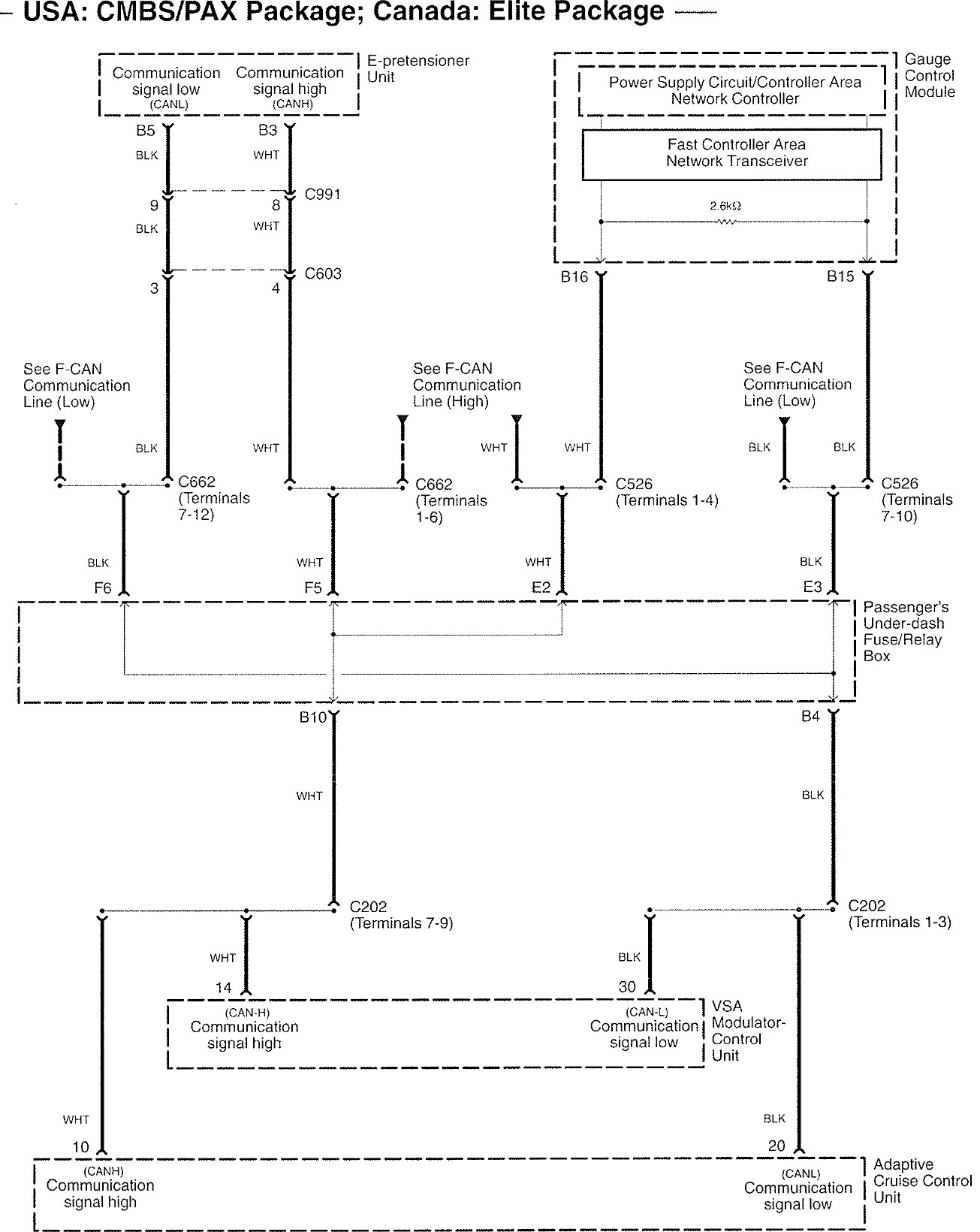

Acura RL - wiring diagram - brake controls (part 2)
Acura RL – wiring diagram – brake controls (part 2)

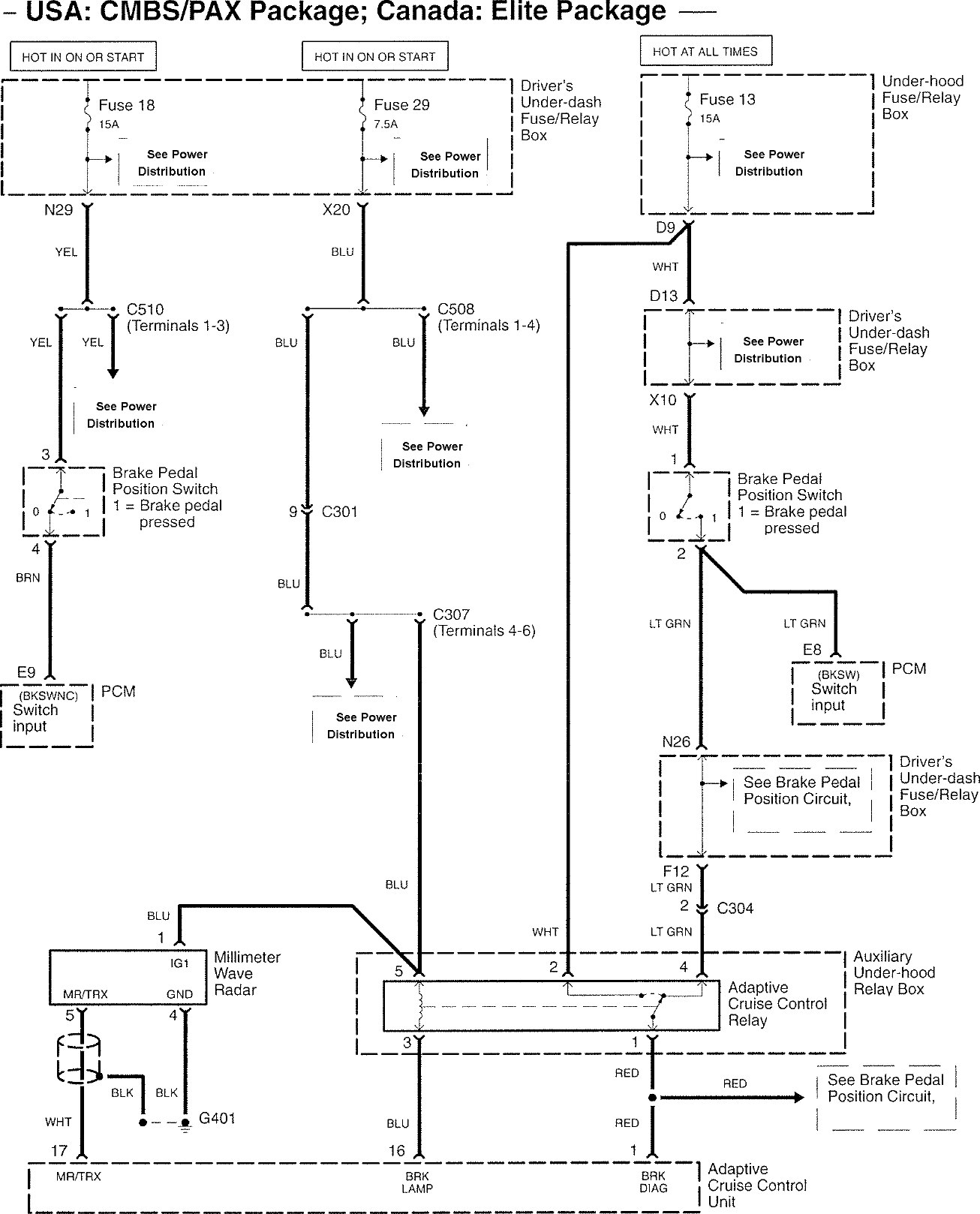

Acura RL - wiring diagram - brake controls (part 3)
Acura RL – wiring diagram – brake controls (part 3)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
